Universal 2.4G WIFI Bluetooth Rubber Rod Swivel Antenna

Our 5G antennas offer an extreme boost to speed and significantly lower latency, whilst also boasting greater bandwidth.

SKU: AEWW004 Category: External Antennas Tag: 2.4GHz WiFi

Product Overview

Key Features

Description

Specification

Applications

Peak Gain: 3 dBi
Connector: Hinged SMA-Male or RP-SMA-Male Connector

Durable with Enhanced Hinge for Vibration Environments

Omni-Directional, Monopole Antenna, Ground Plane Dependent

PCB Antenna Designed for M2M

Suitable for Both Indoor and Outdoor Use

Custom Connector Available

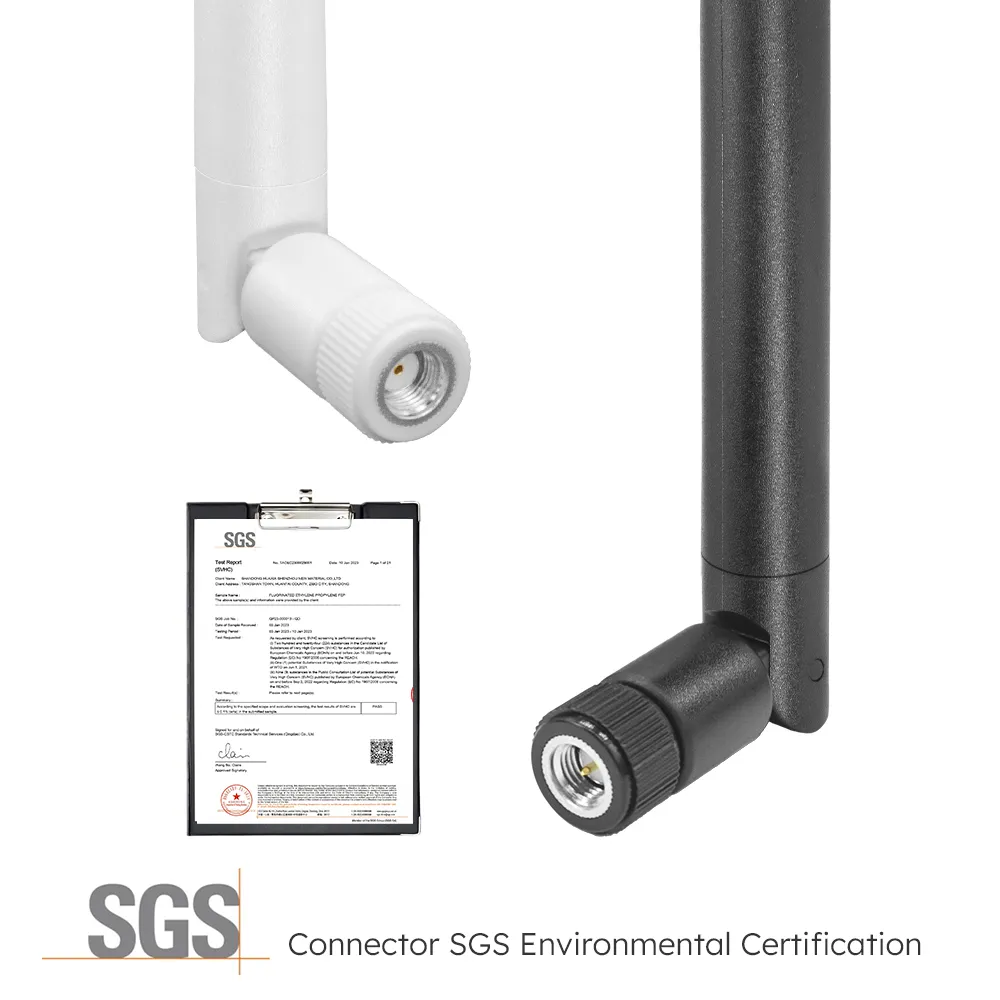

RoHS Compliant

Operating Frequency: 2400-2500 MHz

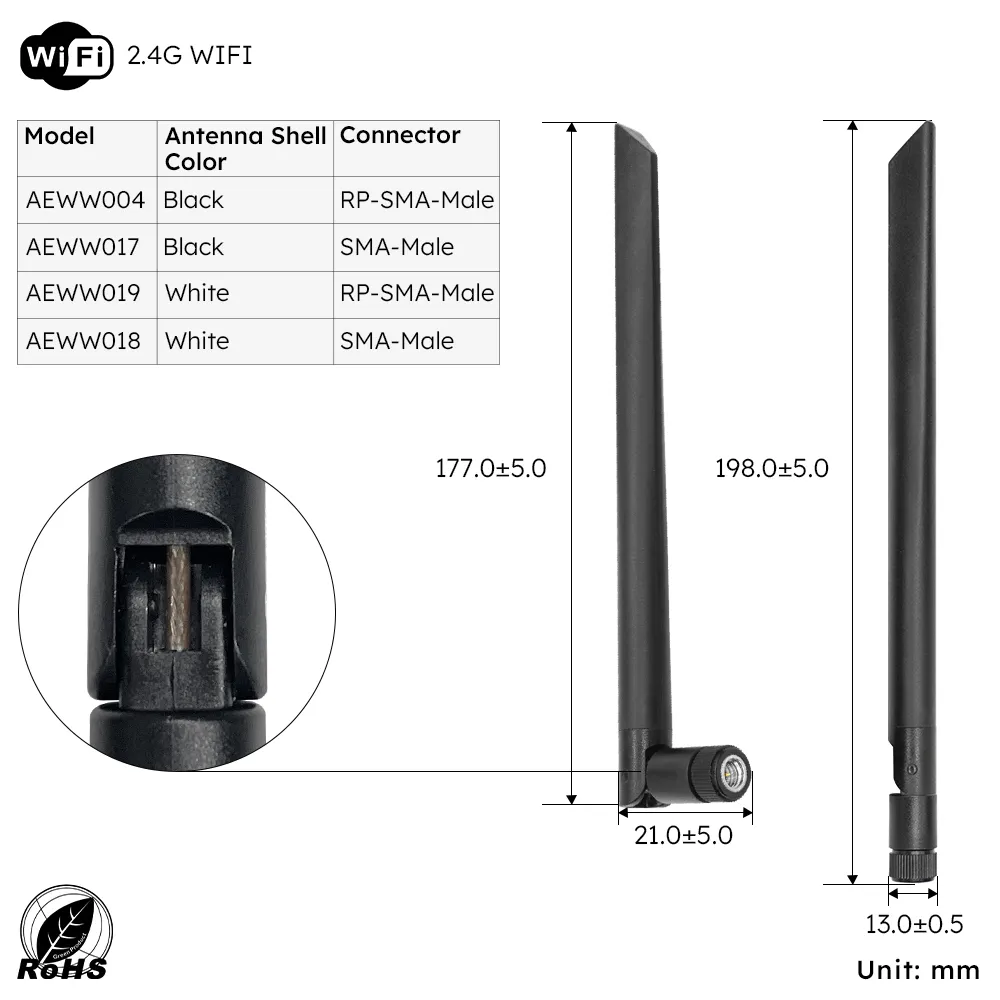

Dimensions: Ø13 x 198 mm

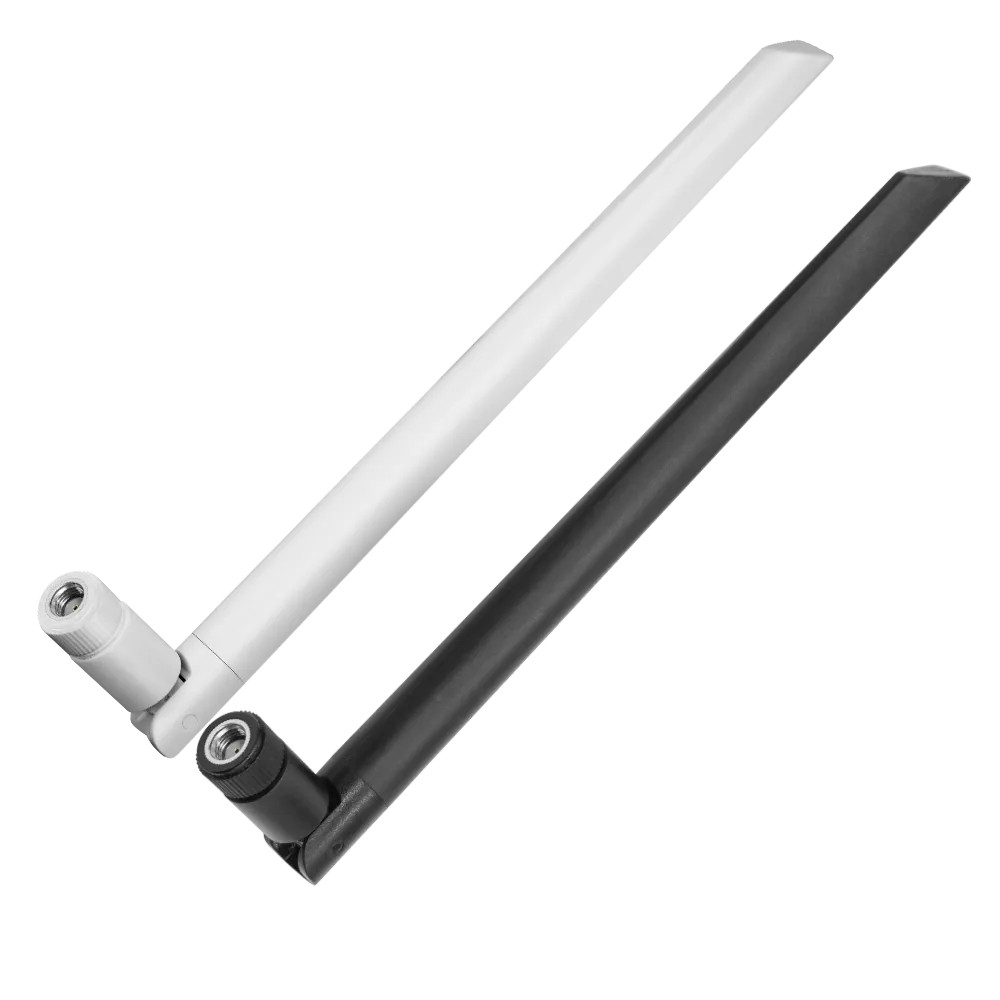

The Aboosty AEWW004 is a 2.4 GHz Wi-Fi monopole antenna suitable for indoor and outdoor applications.

The antenna features an enhanced hinge structure for improved vibration resistance. Its omnidirectional performance ensures reliable communication and easy installation with minimal maintenance, helping to reduce the lifetime cost of M2M and mobile device installations. For optimal performance, it is recommended to be used with a ground plane.

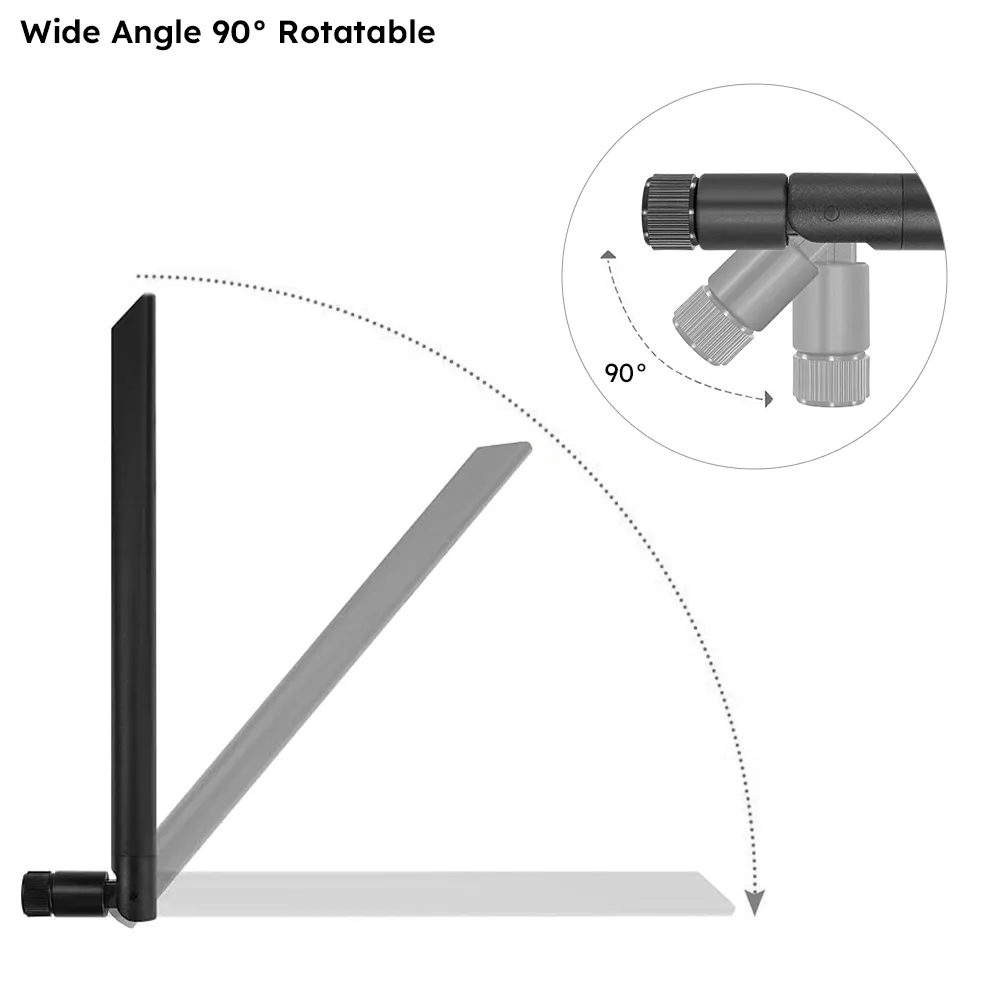

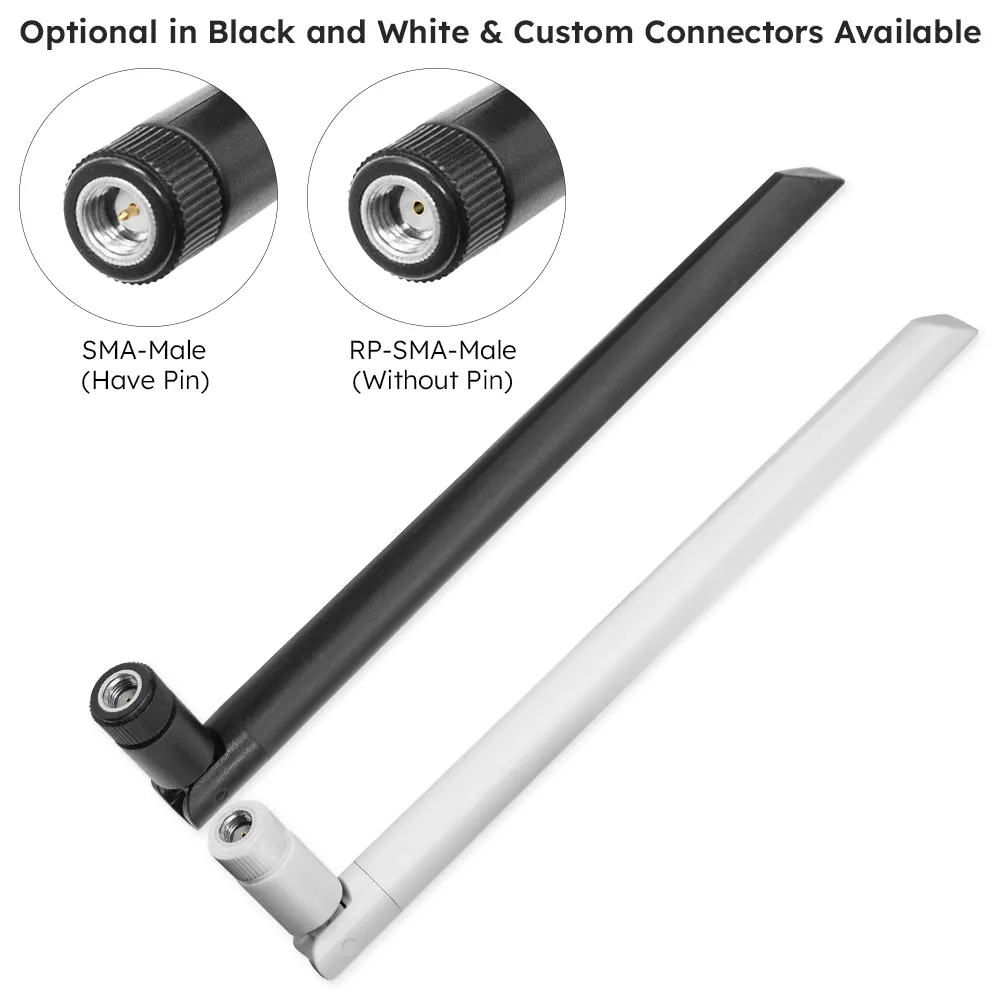

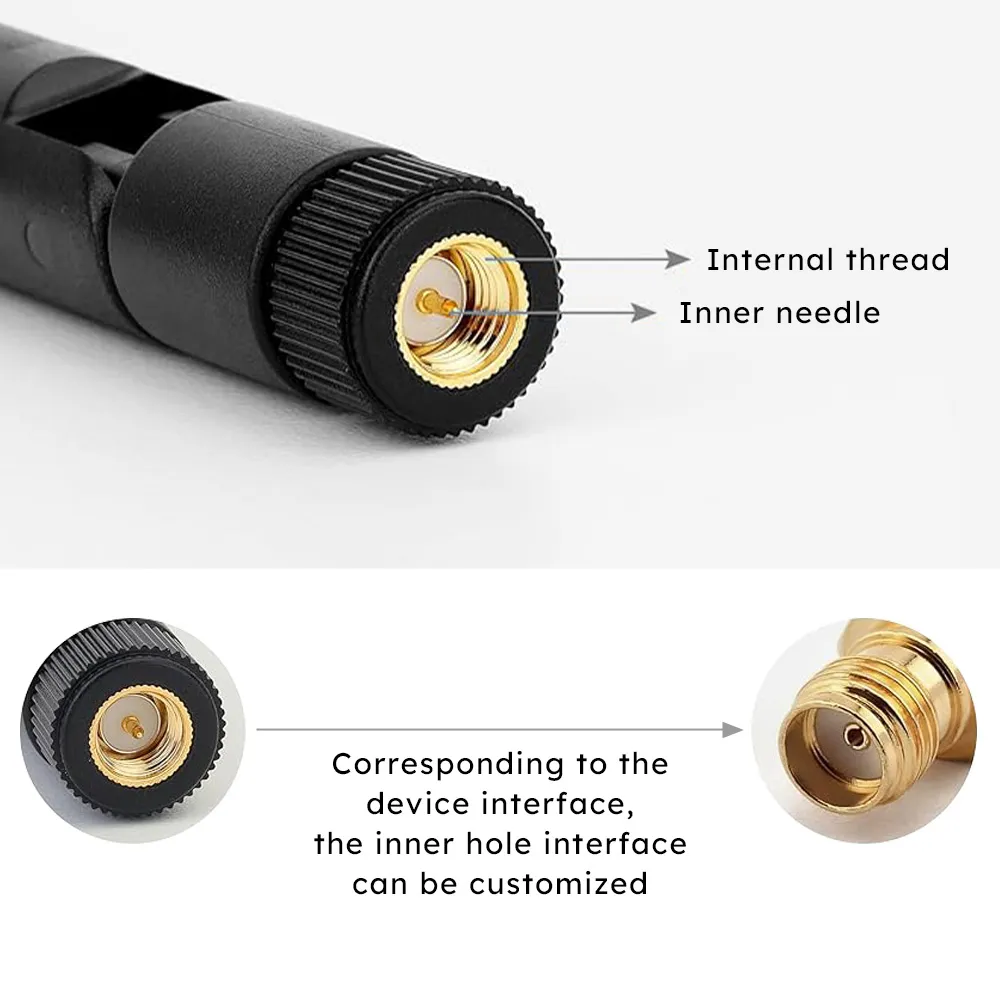

The connector is available with a hinged RP-SMA (M) or SMA (M) option, allowing for flexible mounting in either a straight or right-angle position, and is suitable for compact spaces.

For more information or support, please get in touch with the Aboosty customer support team.

Package Included: 1 x swivel whip antenna

LABEL

VALUE

Certificates Acquired

RoHS Compliant

Length (mm)

Ø13

Width (mm)

Height (mm)

198

Freq. (MHz)

2400-2500

Technology Type

2.4G WIFI

Operating Temperature (℃)

-40°C to +85°C

Markets

Smart Industrial, Smart Cities, Mobile Communication, Mobility and Infrastructure, Others

Other Attributes

N/A

Antenna Type

Monopole

Connector Style

Right Angle, Straight

Radiation Pattern

Omnidirectional

Polarity

Linear

Max Effi. (%)

74.06

Peak Gain

4.2 dBi

VSWR

3.0:1

Impedance (Ω)

Ingress/Impact

N/A

Termination Style

Connector

Antenna Connector Type

SMA-Male

Cable Type

N/A

Cable Length (mm)

N/A

Mechanical Style

PC, White

Mounting Style

Direct Mount

Customization Option

Logo, Packaging, Connectors

Home and Office Networking
Industrial Automation
IoT Systems
IoT Devices
Outdoor Hotspots
Vehicle and Public Spaces
Smart Agriculture

Part Number

User Story

Model

Description

Note

AEWW004

Black Type with SMA-Male Connector

M02-0600060R0A

Customization supported

AEWW017

Black Type with SMA-Female Connector

M02-0600040R0A

Customization supported

AEWW018

White Type with SMA-Male Connector

M02-0600130R0A

Customization supported

AEWW019

White Type with SMA-Female Connector

M02-0600330R0A

Customization supported
