AEWW005

Universal 2.4G WIFI Bluetooth Omni-directional Swivel Antenna

WIFI/Bluetooth

Single External Antennas

Download

Datasheet

Buy Samples

Coming soon

Buy now

Dealers

Coming soon

Aboosty is ready to help you tackle various wireless issues.

Universal 2.4G WIFI Bluetooth Omni-directional Swivel Antenna

SKU: AEWW005 Category: External Antennas Tag: 2.4GHz WiFi

Product Overview

Key Features

Description

Specification

Applications

Peak Gain: 2.8 dBi

Monopole Antenna, Ground Plane Dependent

Designed for M2M PCB Antenna

Cost-Effective

Durable and Robust

Easy Installation

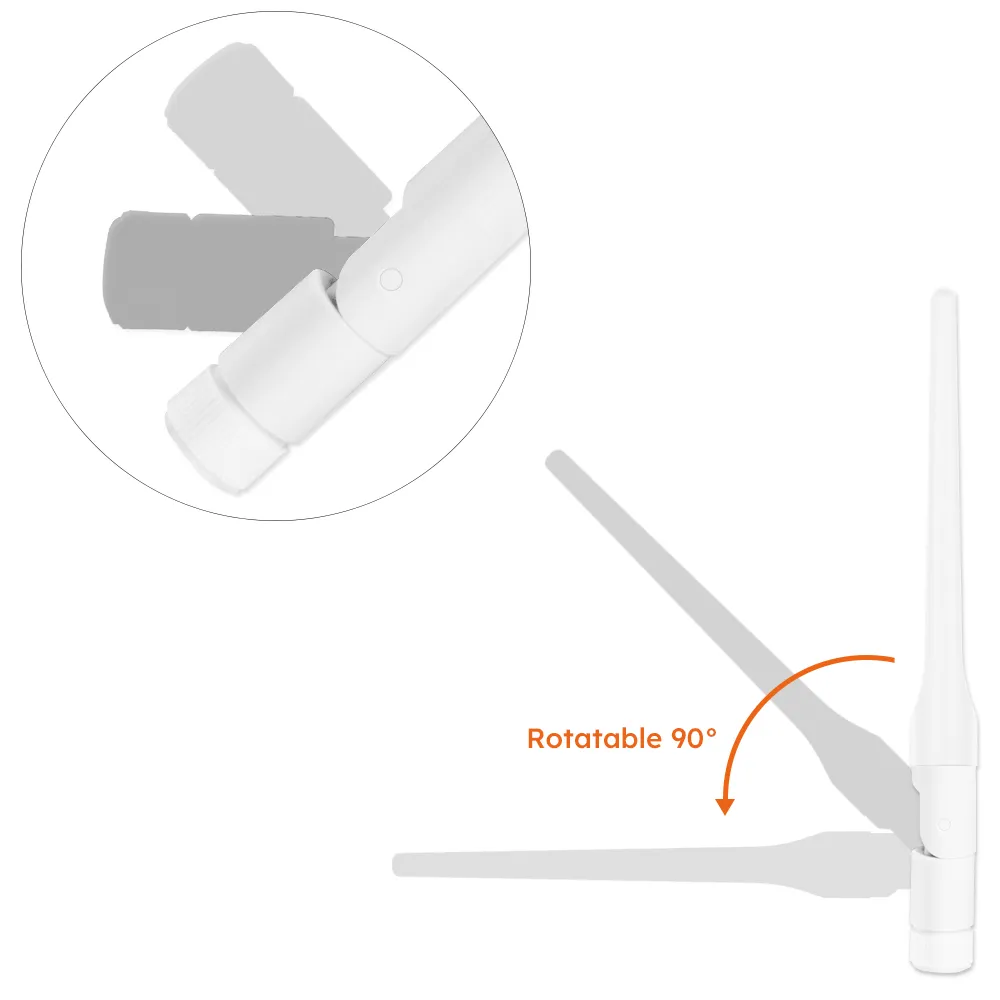

Enhanced hinge structure for vibration environments

Custom Connector Available

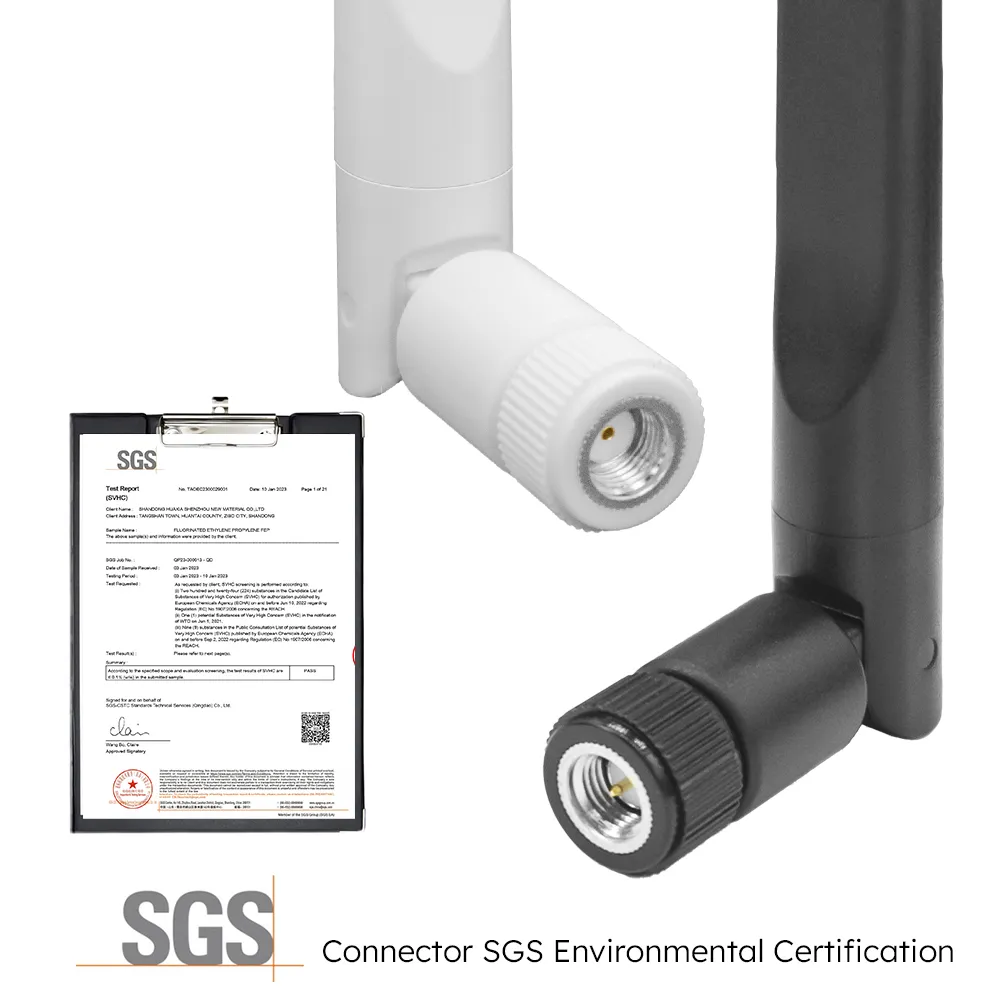

RoHS Compliant

Operating Frequency: 2400-2500 MHz | 5100-5900 MHz

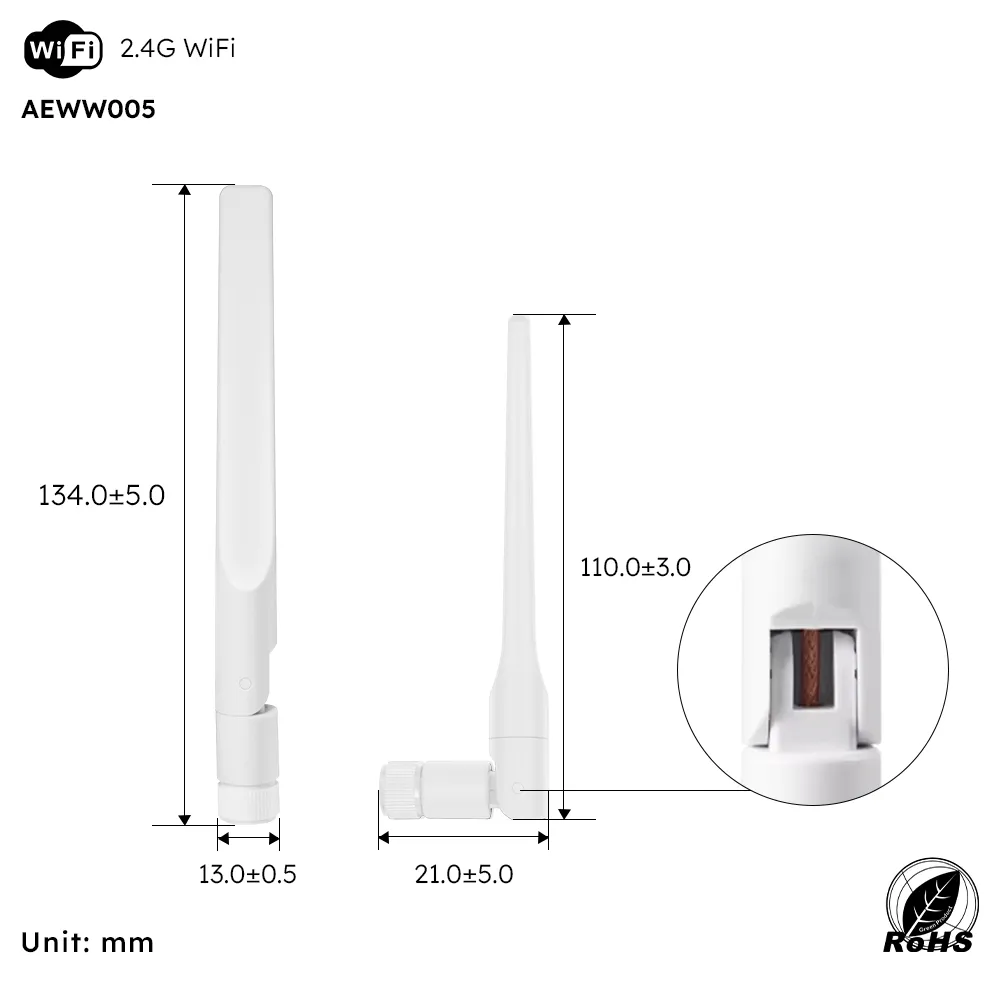

Dimensions: Ø13 x 134 mm

The Aboosty AEWW005 is a 2.4 GHz Wi-Fi monopole antenna suitable for indoor and outdoor applications. It is ideal for Bluetooth, BLE, and Wireless LAN use with high efficiency and performance.

The antenna features an enhanced hinge structure for improved vibration resistance. Its omnidirectional performance ensures reliable communication and easy installation with minimal maintenance, helping to reduce the lifetime cost of M2M and mobile device installations.

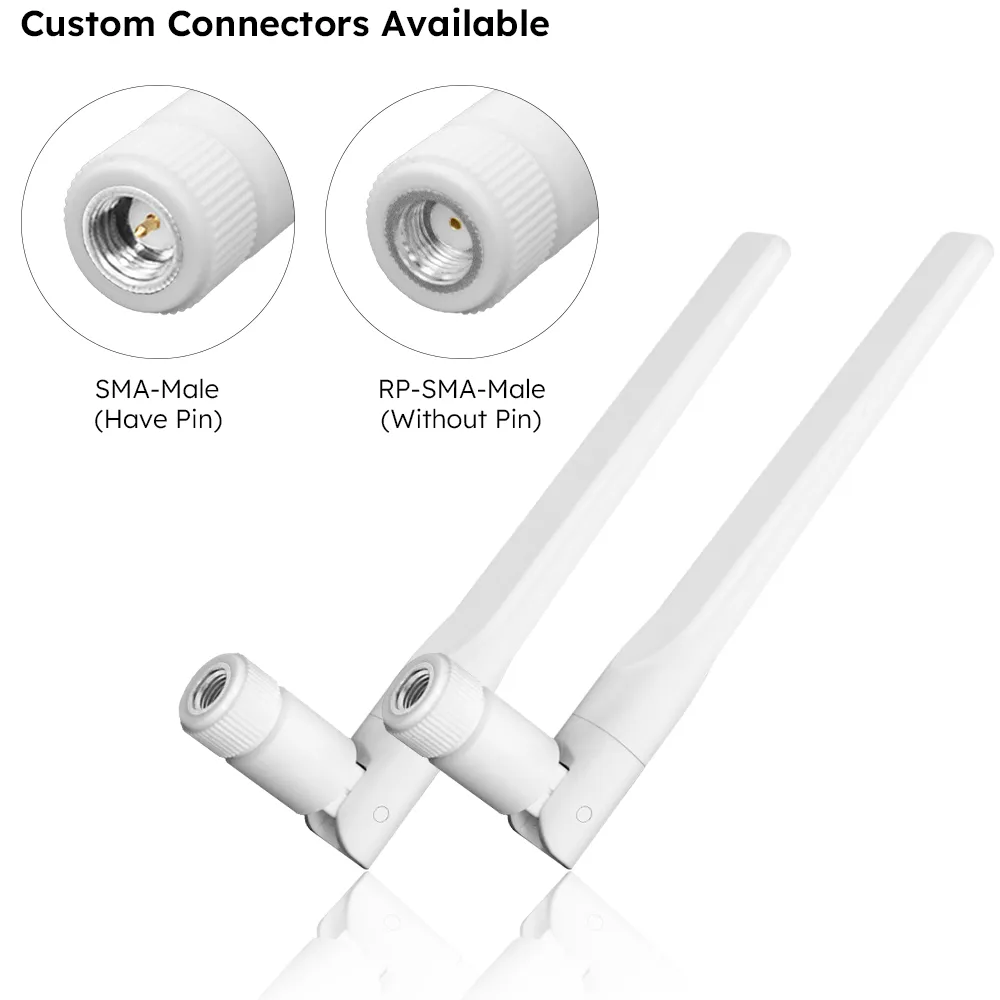

The connector is available with a hinged RP-SMA (M) or SMA (M) option, allowing for flexible mounting in either a straight or right-angle position, and is suitable for compact spaces.

For more information or support, please get in touch with the Aboosty customer support team.

Package Included: 1 x swivel whip antenna

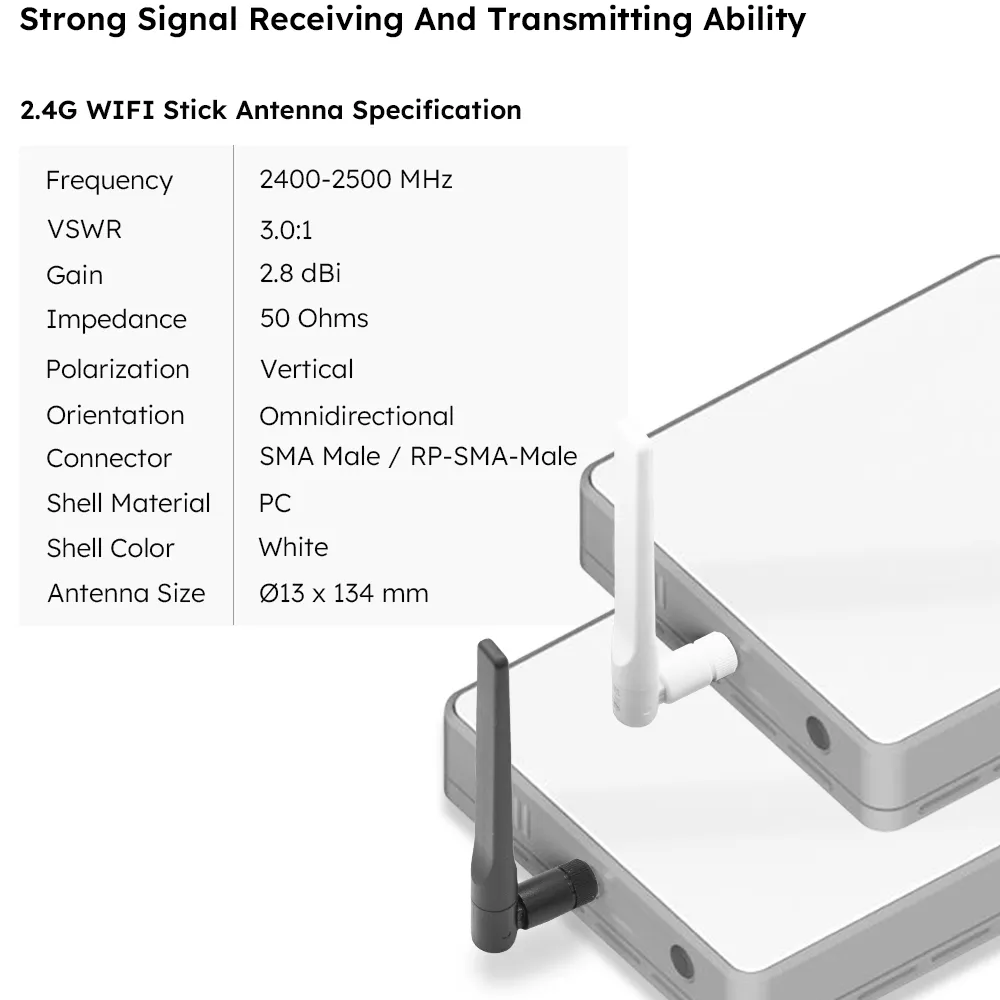

LABEL

VALUE

Certificates Acquired

RoHS Compliant

Length (mm)

Ø13

Width (mm)

Height (mm)

134

Freq. (MHz)

2400-2500 MHz

Technology Type

2.4G WIFI

Operating Temperature (℃)

-40°C to +85°C

Antenna Type

Monopole

Connector Style

Right Angle, Straight

Radiation Pattern

Omnidirectional

Polarity

Linear

Max Effi. (%)

77.3

Peak Gain

2.81 dBi

VSWR

3.0:1

Impedance (Ω)

Ingress/Impact

N/A

Termination Style

Connector

Antenna Connector Type

SMA-Female

Cable Type

N/A

Cable Length (mm)

N/A

Mechanical Style

PC, White

Mounting Style

Screw Mount

Customization Option

Logo, Packaging, Connectors

Home and Office Networking
Industrial Automation
IoT Systems
IoT Devices
Outdoor Hotspots
Vehicle and Public Spaces
Smart Agriculture

Part Number

User Story

Model

Description

Note

AEWW005

White Antenna with SMA-Female Connector

M02-0600100R0A

Customization supported

AEWW020

White Antenna with SMA-Male Connector

M02-0600160R0A

Customization supported
