AECK003

Low-Profile Waterproof Outdoor Wall Mount 4G Cellular LTE Puck Antenna

LTE/CELLULAR

Single External Antennas

Download

Datasheet

Buy Samples

Coming soon

Dealers

Coming soon

Aboosty is ready to help you tackle various wireless issues.

Low-Profile Waterproof Outdoor Wall Mount 4G Cellular LTE Puck Antenna

SKU: AECK003 Category: External Antennas Tags: 4G/3G/LTE/GSM, 5G NR, NB-IoT

Product Overview

Key Features

Description

Specification

Applications

Peak Gain: 3.6 dBi
Cable: 1m RG174 / 1m RG178 Cable
Connector: SMA-Male / IPEX 1 Connector

Low Profile & Ground Plane Independent

Quality Textured Covert Design

Waterproof, UV-resistant ABS Housing

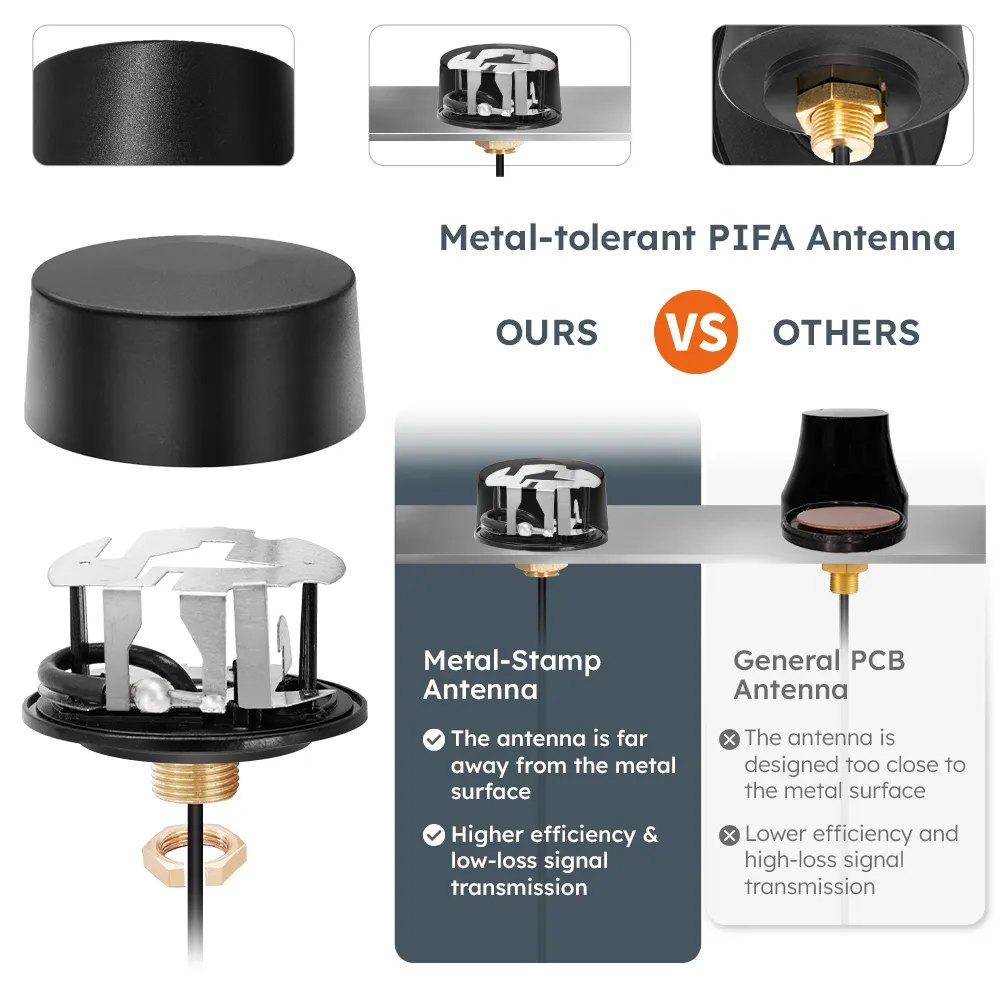

High Performance with PIFA (Planar Inverted-F Antenna) Design

Vandal Resistant - No Exposed Cable When Installed - Water Tight When Mounted Correctly for Outdoor Use

Custom Adhesive, Magnetic, and Screw Mounting Methods Available

Custom Cables and Connectors Available

RoHS Compliant

Operating Frequency: 698-960 MHz | 1710-2690 MHz

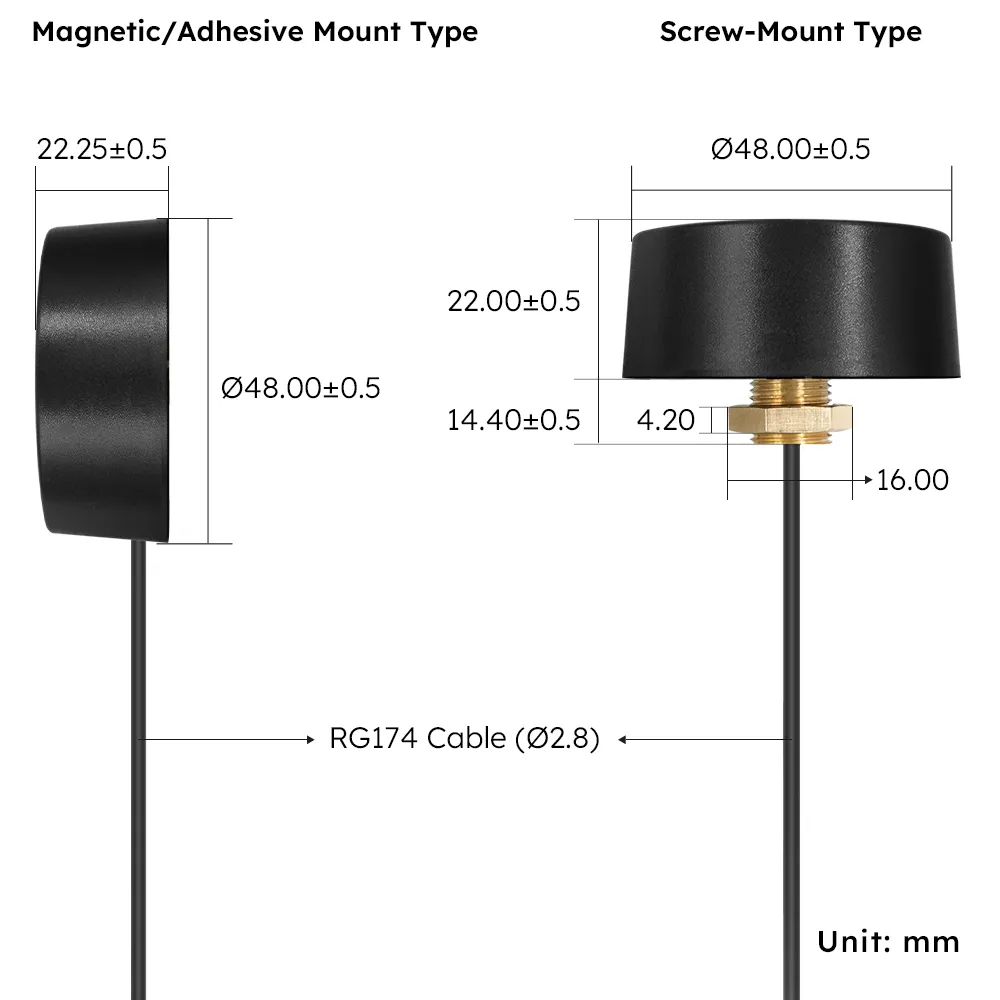

Dimensions: Ø48 x 22.3 mm

Aboosty AECK003 Puck Antenna: Ultra Low-Profile for Indoor / Outdoor 4G Cellular LTE Use

The Aboosty AECK003 omnidirectional antenna features a sleek, ultra-low-profile design that combines exceptional performance with discreet installation. This ground-plane independent PIFA design and fixed-mount antenna enables mounting on glass surfaces or discreet placement under dashboards. Coupled with its penta-band capability, which ensures reliable reception and transmission across various mobile networks, this antenna is an excellent choice for applications requiring both durability and subtle installation.

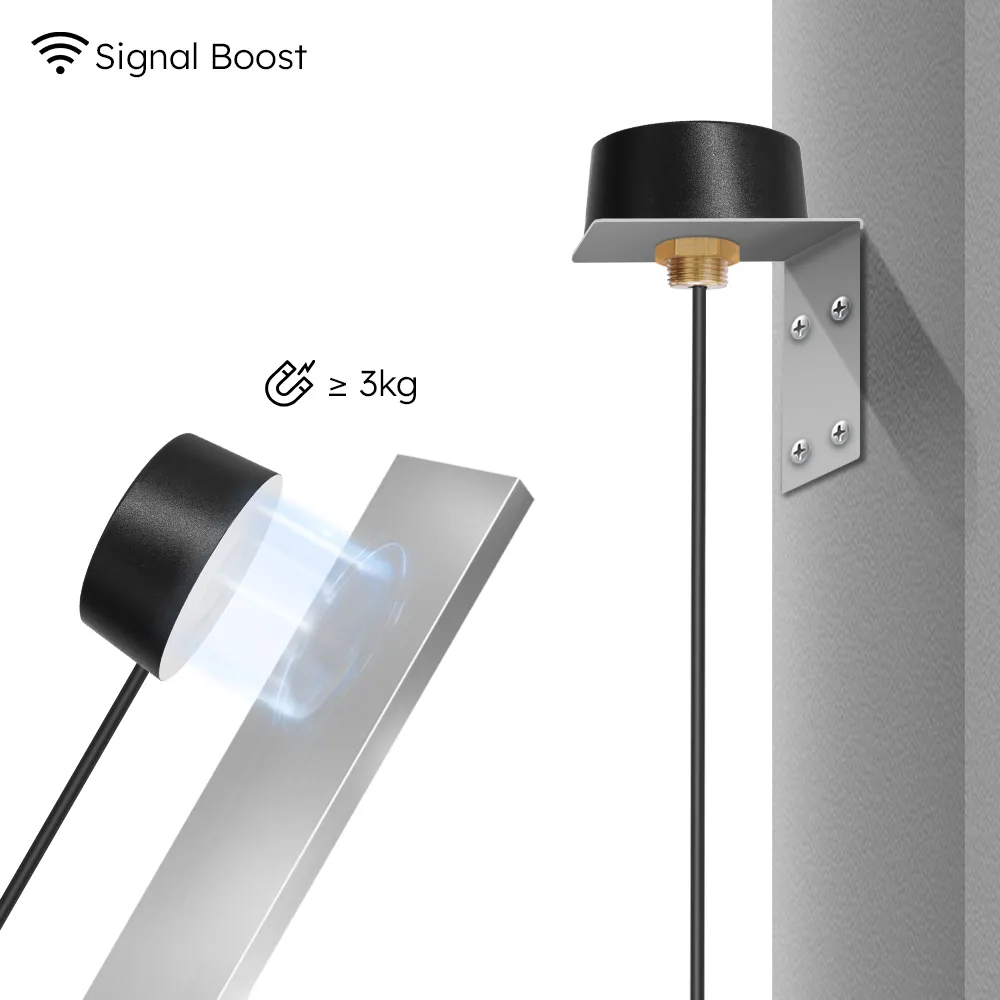

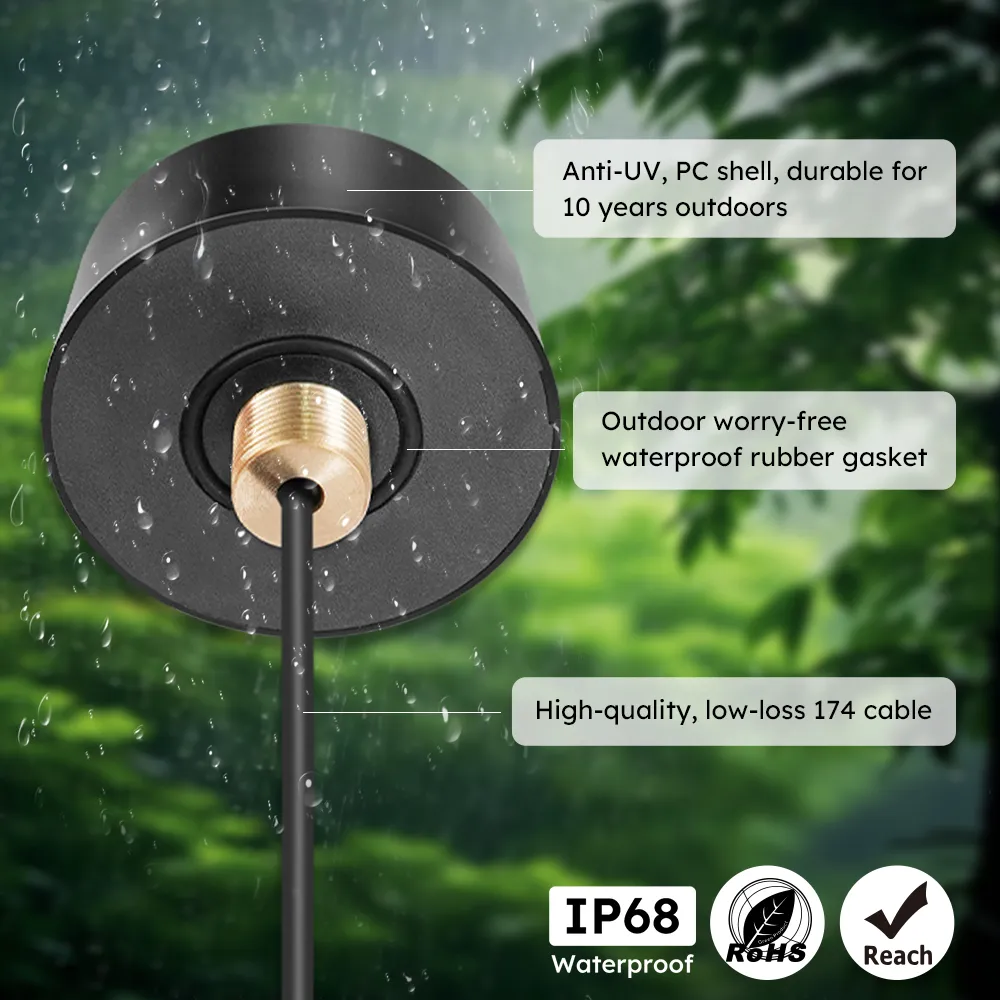

Constructed with UV-stable ABS, the AECK003 withstands harsh conditions like dust, sand, and water. Its vandal-resistant design eliminates exposed cables and features a tamper-proof mount. The antenna supports flexible installation options, including permanent mounting with a locking internal nut or magnetic/adhesive mounting on metallic and non-metallic surfaces.

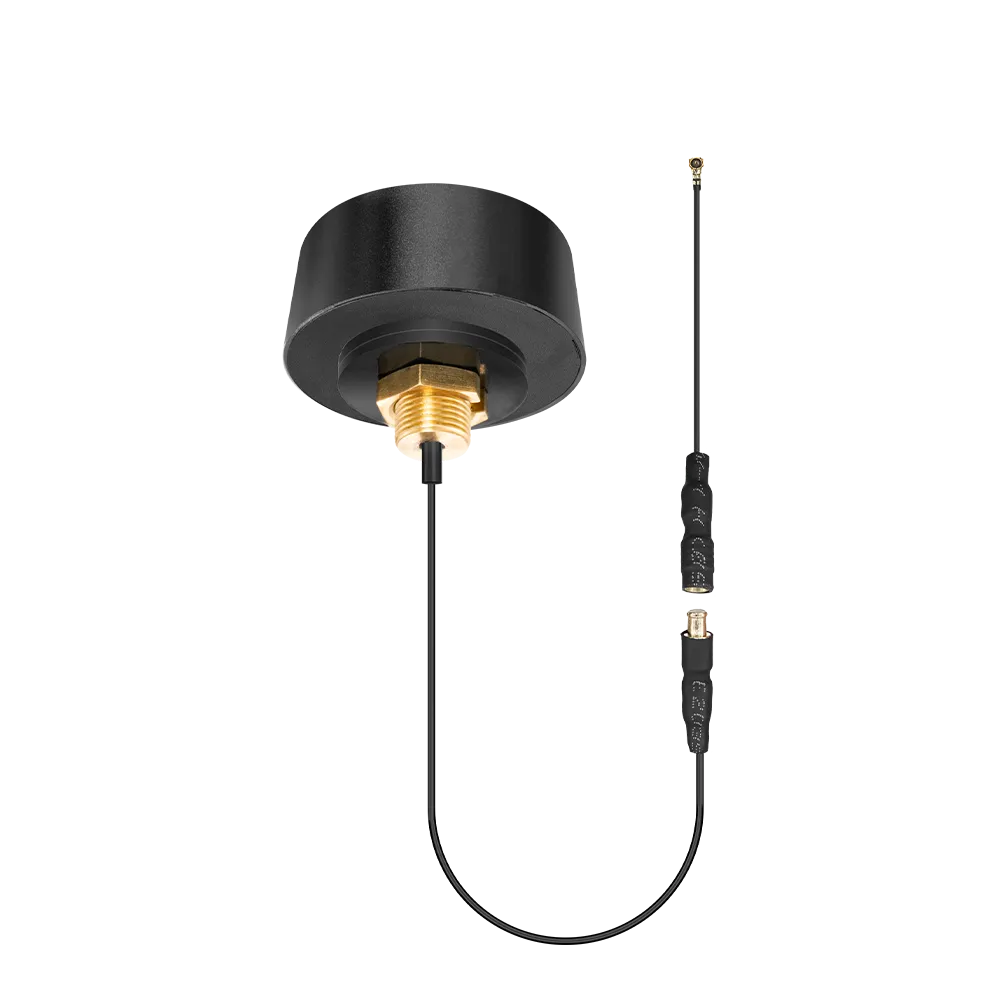

The standard version has a 1-meter RG174 cable and SMA(M) connector. The cables and connectors are completely customizable according to customer request.

Wi-Fi frequencies (2.4 & 5.8 GHz) of this type of antenna are also available, see AEWK001.

LABEL

VALUE

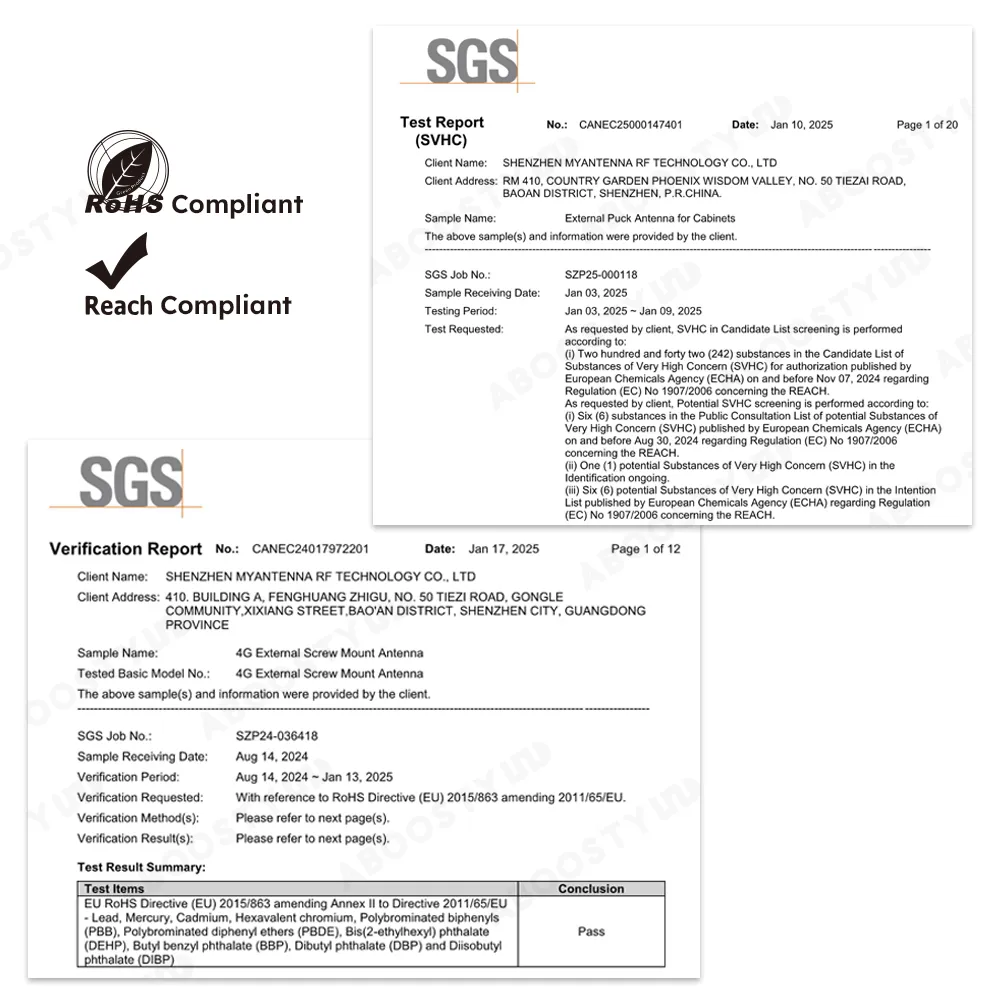

Certificates Acquired

RoHS Compliant

Length (mm)

Ø48

Width (mm)

Height (mm)

22.3

Freq. (MHz)

698-960, 1710-2690

Technology Type

4G/3G/LTE/GSM, 4G 3G/NB-lot

Operating Temperature (℃)

-40°C to +85°C

Markets

Transportation, Smart Industrial, Smart Cities, Public Safety, Mobility and Infrastructure, Mobile Communication, Others

Other Attributes

Waterproof Antennas

Antenna Type

PIFA Antenna

Connector Style

N/A

Radiation Pattern

Omnidirectional

Polarity

Linear

Max Effi. (%)

Peak Gain

3.6 dBi

VSWR

3.0:1

Impedance (Ω)

Ingress/Impact

N/A

Termination Style

Connector

Antenna Connector Type

IPEX 1

Cable Type

RG174

Cable Length (mm)

1000

Mechanical Style

Dome/Puck

Mounting Style

Adhesive Mount

Customization Option

Logo, Packaging, Cables and Connectors, Mounting Method

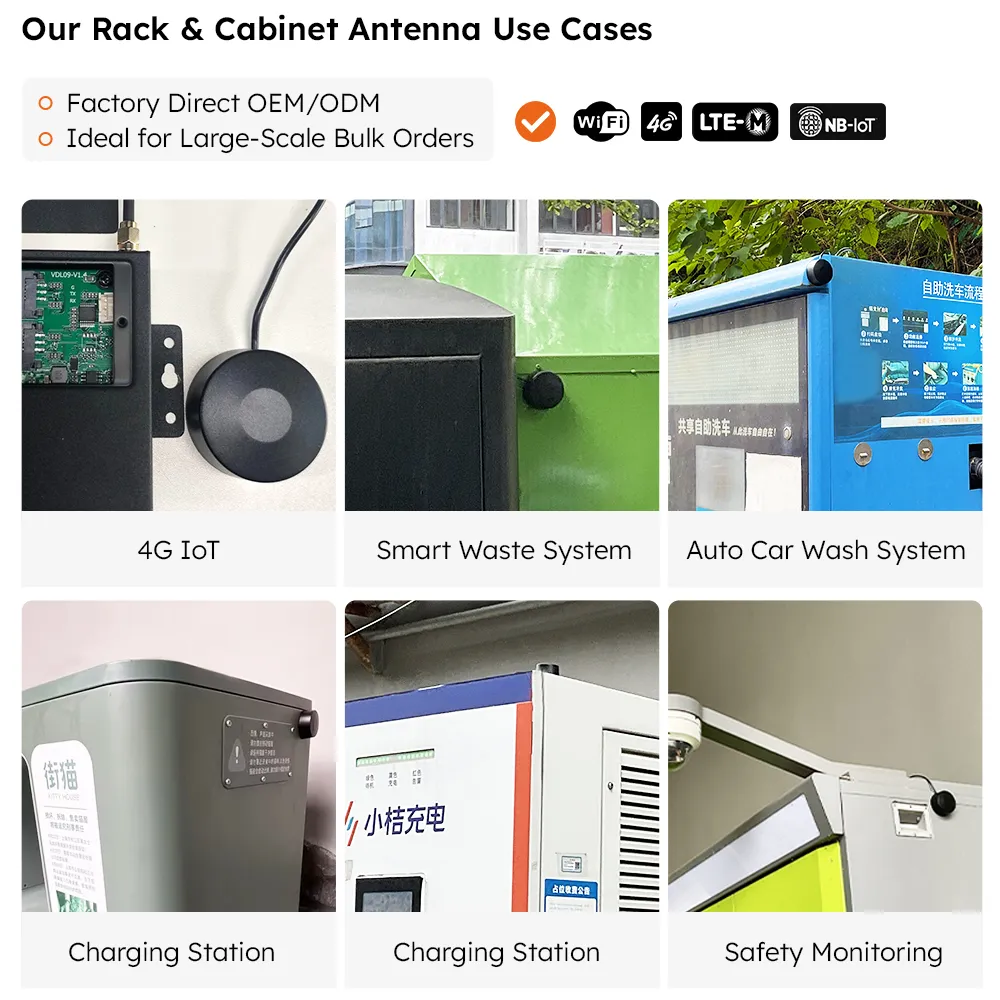

Server Racks & Electrical Cabinets
Terminal Applications
Smart Home
Home Security Systems
IoT Systems
IoT Devices
Industrial Monitoring and Control
Smart Agriculture
M2M Applications
Mobile applications like buses, vans, trucks, etc.
Kiosks, vending machines, control panels, NEMA enclosures, ceilings, and covert installations
Works with Verizon, AT&T, T-Mobile, Telus, Bell Canada, Rogers, Digicel, and all 4G LTE and 5G cellular broadband services.
Compatible with routers, modems, and gateways from brands such as CalAmp, Cisco, Cradlepoint, Digi, MoFi, Netgear, Inseego, Pepwave, Proxicast, Sierra, SureCall, weBoost, Wilson, ZTE, and many others.

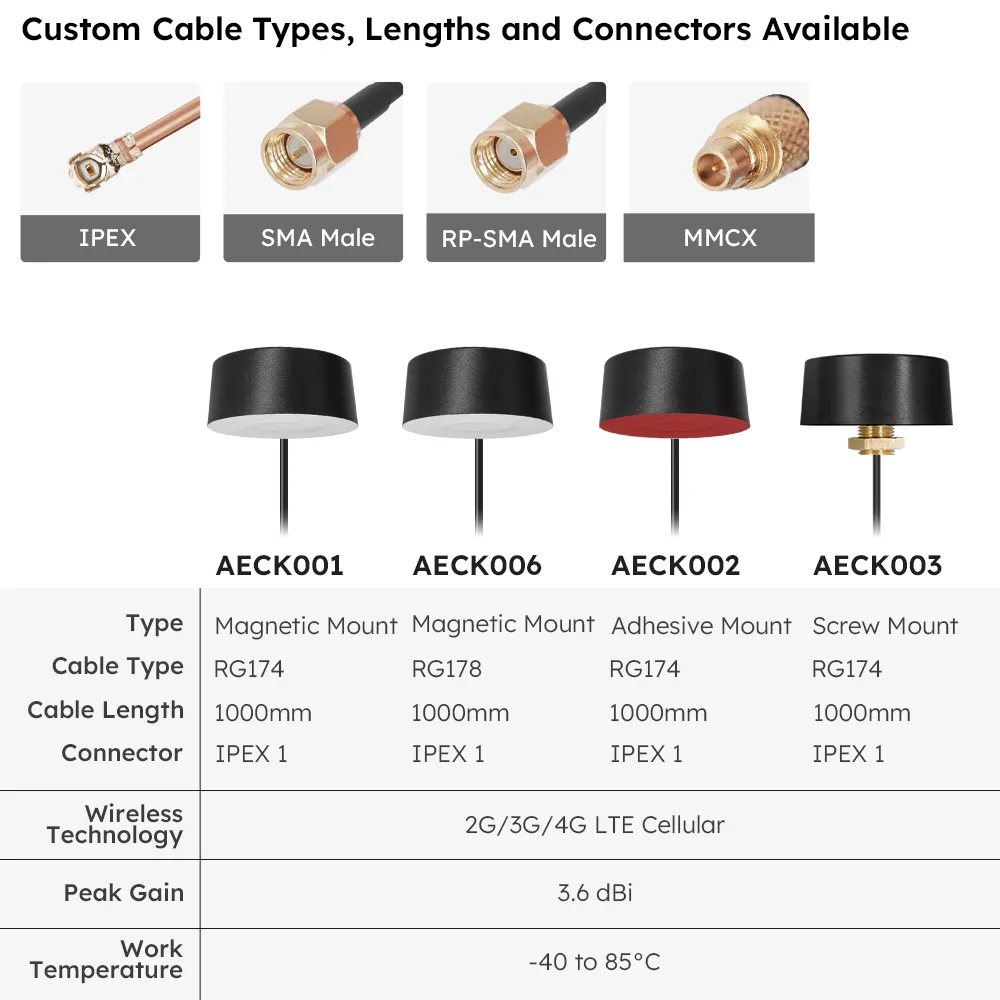

Part Number

User Story

Model

Description

Note

AECK001

Magnetic Mount Type, IPEX1, 1000mm RG174 Cable

M02-0500210R0A

Customization supported

AECK002

Adhesive Mount Type, IPEX1, 1000mm RG174 Cable

M02-0500220R0A

Customization supported

AECK003

Screw Mount Type, IPEX1, 1000mm RG174 Cable

M02-0500350R0A

Customization supported

AECK006

Magnetic Mount Type, IPEX1, 1000mm RG178 Cable

M02-0500140R0A

Customization supported
