ALSR200-UF TPE

TPE Jacket Ultra Low Loss LMR-200-UF Coaxial Cable

LMR-200-UF

0-6GHz RF

Download

Datasheet

Buy Samples

Coming soon

Dealers

Coming soon

Aboosty is ready to help you tackle various wireless issues.

TPE Jacket Ultra Low Loss LMR-200-UF Coaxial Cable

SKU: ALSR200-UF TPE Category: RF Assemblies Tag: Cables

Product Overview

Key Features

Description

Specification

Applications

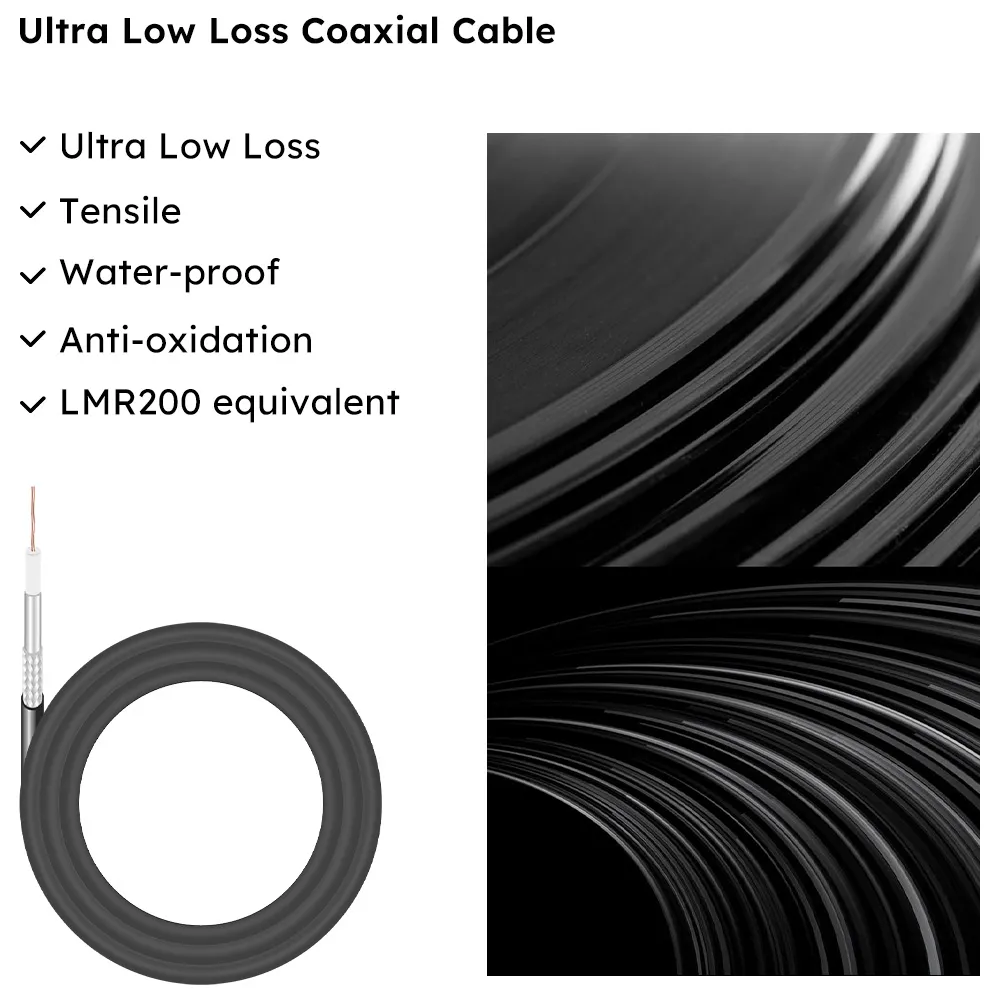

Ultra-low loss cable

High Speed, UV-resistant

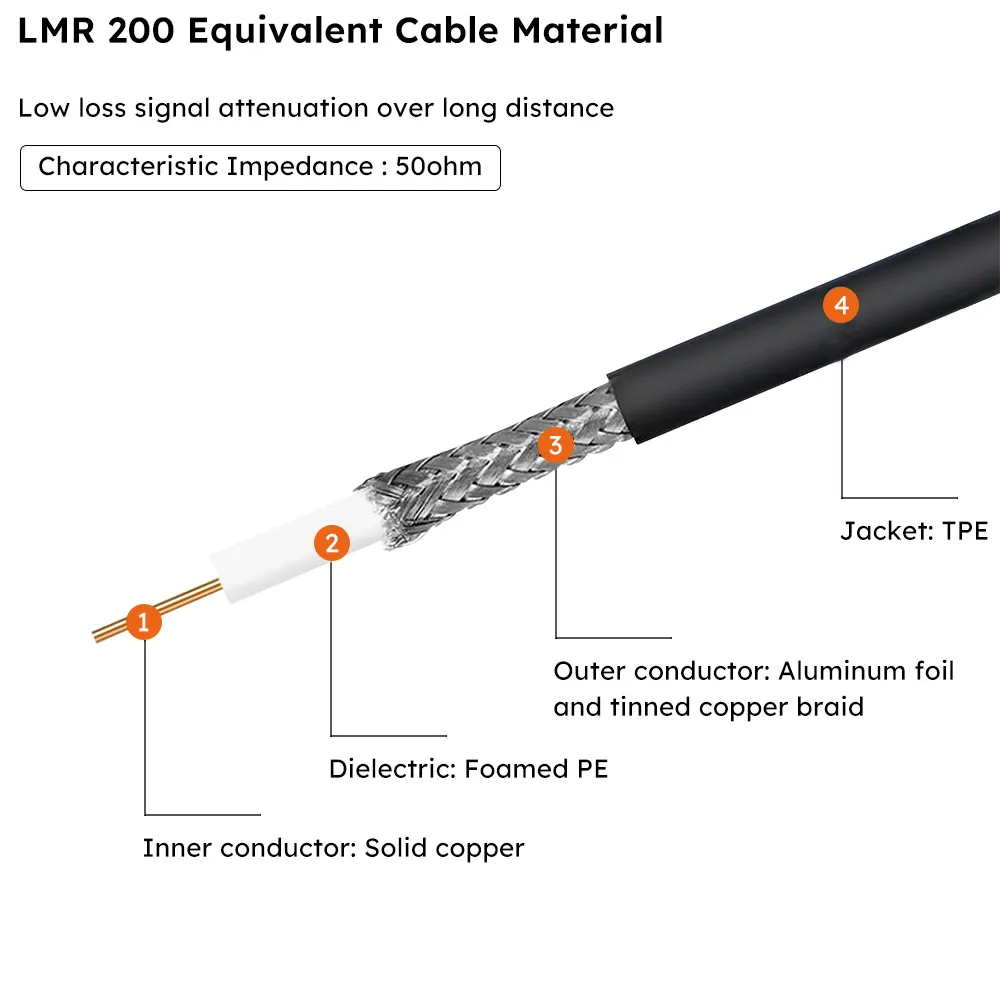

Cable type: Coaxial

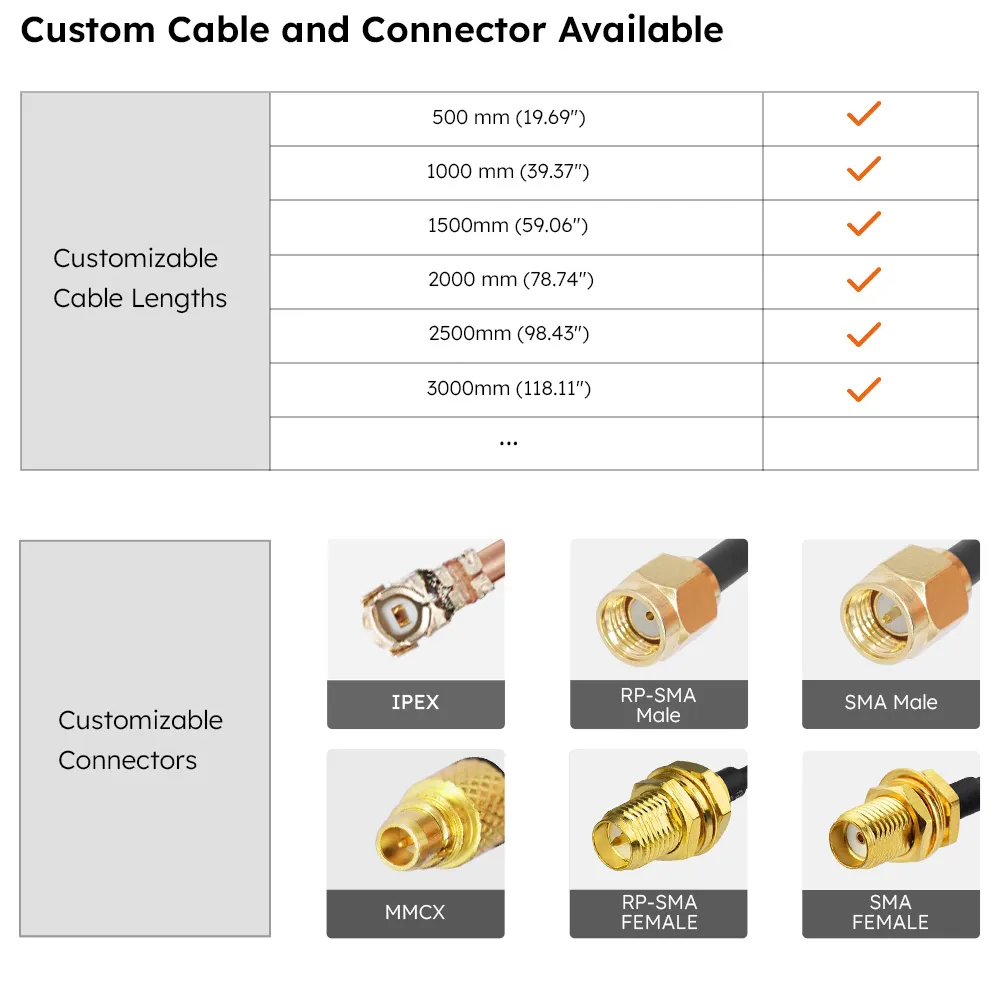

Custom Cables and Connectors Available

RoHS Compliant

Ultra-low loss RF coaxial cable assembly included connecting to cell antennas, RF, and amateur radio equipment.

Connection of commercial radio, Scientific, and technical equipment and extending existing cables.We are committed to providing customers with the best products and services. If you have any questions, please feel free to contact us and if the good is with any quality issue, we’re happy to offer you a new one!

LABEL

VALUE

Certificates Acquired

RoHS Compliant

Connector Style

N/A

Customization Option

Cables and Connectors

VSWR

3.0:1

Impedance (Ω)

Cable Type

LMR-200-UF

Cable Length (mm)

Customizable

Frequency Range

0-6GHz RF

Voltage Rating

1500 vms

Insulation Resistance

1000 MΩ/km

Conductor Resistance

24.6 Ω/km

Capacitance

80±3 PF/m

Nom. Impedance

50 ohm

Attenuation at 1GHz (dB/100M)

67.08 at 1.8GHz

Connector Max. Torque

1.1 Nm

Connector 1 Type

N/A

Connector 1 Orientation

N/A

Connector 1 Gender

N/A

Connector 1 Polarity

N/A

Connector 1 Material

N/A

Connector 2 Type

N/A

Connector 2 Orientation

N/A

Connector 2 Gender

N/A

Connector 2 Polarity

N/A

Connector 2 Material

N/A

GPS Antennas
RF amplifiers
USB Receiver, SDR Receiver
Routers, Modems

Part Number

User Story

Model

Description

Note

ALSR200-UF TPE

LMR-200-UF (TPE) with Customizable Lengths and Connectors

X01-0207630R0A

Customization supported

DELIVERY INFORMATION

Antennas & GPS modules, RF Connectors / Cables

Antennas & GPS modules, RF Connectors / Cables - estimated delivery time for samples is 5-7 days

Evaluation boards

Evaluation boards - estimated delivery time for samples is 7-14 days
