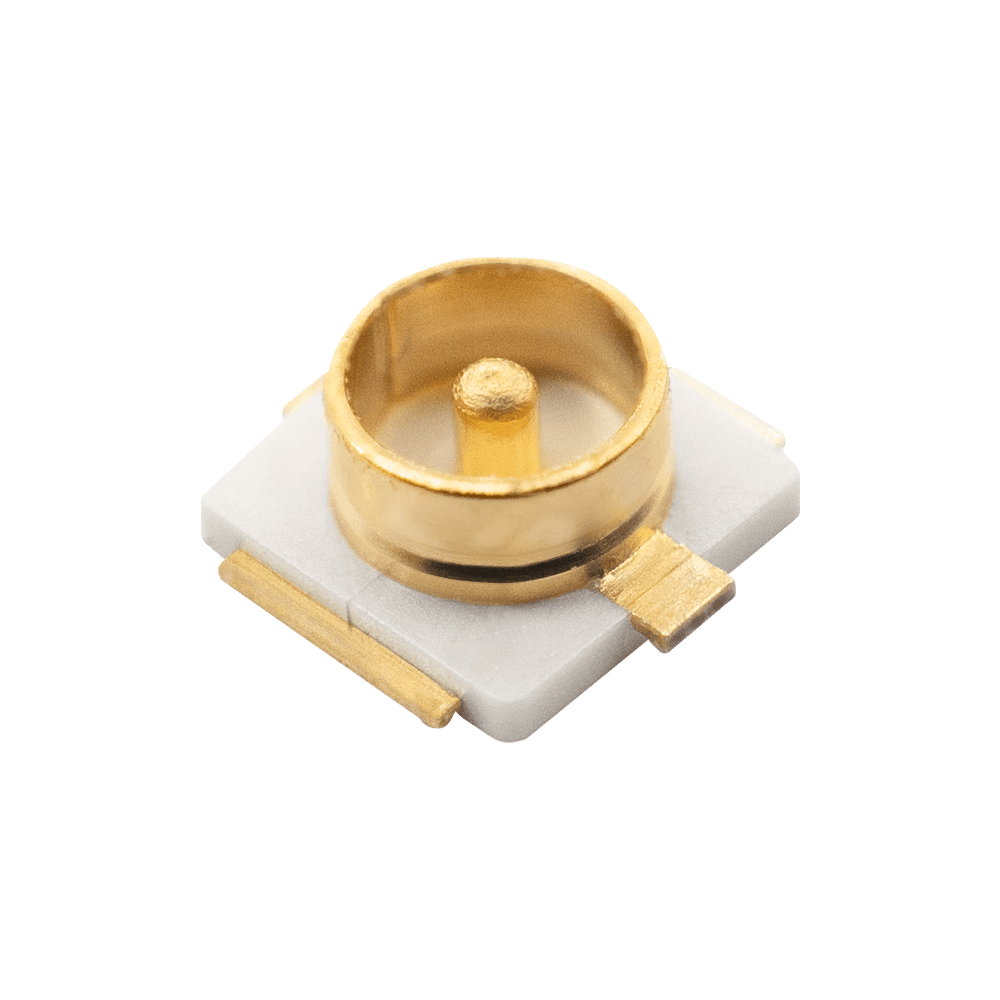

A-IPEX1-1.25A

SMD Mount Receptacle Compatible with I-PEX MHFI, I-PEX MHFII, I-PEX MHFHT, UMC, CM

Straight

IPEX 1

Download

Datasheet

Buy Samples

Coming soon

Dealers

Coming soon

Aboosty is ready to help you tackle various wireless issues.

SMD Mount Receptacle Compatible with I-PEX MHFI, I-PEX MHFII, I-PEX MHFHT, UMC, CM

SKU: A-IPEX1-1.25A Category: RF Assemblies Tag: Connectors

Product Overview

Key Features

Specification

Applications

Compatible with I-PEX MHFI, I-PEX MHFII, I-PEX MHFHT, UMC, CM

Supplied on Tape & Reel, 5000 pcs per reel

Dimensions: 3 x 3 x 1.25 mm

Diameter: 2mm

RoHS & Reach Compliant

LABEL

VALUE

Certificates Acquired

RoHS Compliant

Connector Style

Straight

Contact Termination

PCB

Customization Option

Non-customizable

Certificates Acquired

RoHS Compliant

Connector Type

IPEX 1

VSWR

≤1.15

Impedance (Ω)

Connector Category

Receptacles

Shield Termination

Return Loss

>-19.085dB

Insertion Loss

>0.5dB

Frequency-Max

6GHz

Mounting Type

SMT/SMD

Number of Ports

Housing Color

Gold

Suitable for antenna, wireless LAN equipment, coaxial cable, Wi-Fi radio external antenna, etc.

Part Number

User Story

Model

Description

Note

A-IPEX1-1.25A

IPEX/IPX U.FL SMD SMT Solder for PCB Mount

M04-0103560R0A

Customization supported
