A-IPEX5-0.57A

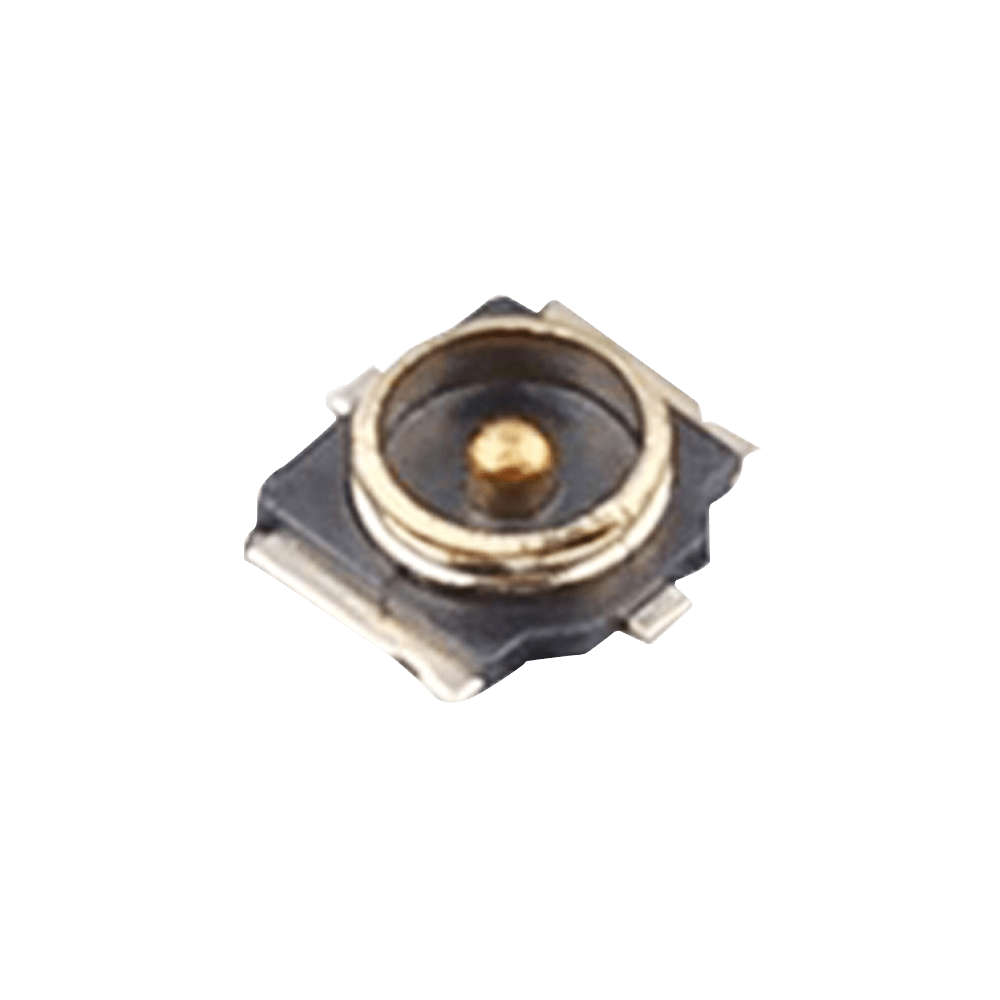

U.FL/IPEX/ MHF 5 Male RF Receptacle Connector SMD PCB Mount

Straight

IPEX 5

Download

Datasheet

Buy Samples

Coming soon

Dealers

Coming soon

Aboosty is ready to help you tackle various wireless issues.

U.FL/IPEX/ MHF 5 Male RF Receptacle Connector SMD PCB Mount

SKU: A-IPEX5-0.57A Category: RF Assemblies Tag: Connector

Product Overview

Key Features

Specification

Applications

Compatible with I-PEX MHFI, I-PEX MHFII, I-PEX MHFHT, UMC, CM

Dimensions: Diameter 1.5 mm x Height 0.57 mm

RoHS Compliant

LABEL

VALUE

Certificates Acquired

RoHS Compliant

Connector Style

Straight

Contact Termination

PCB

Customization Option

Non-customizable

Certificates Acquired

RoHS Compliant

Connector Type

IPEX 5

VSWR

≤1.4

Impedance (Ω)

Connector Category

Receptacles

Shield Termination

Frequency-Max

6GHz

Mounting Type

SMT/SMD

Number of Ports

Housing Color

Gold

Suitable for antenna, wireless LAN equipment, coaxial cable, Wi-Fi radio external antenna, etc.

Part Number

User Story

Model

Description

Note

A-IPEX5-0.57A

IPX/IPEX 5 Recptacle

M04-0103590R0A

DELIVERY INFORMATION

Antennas & GPS modules, RF Connectors / Cables

Antennas & GPS modules, RF Connectors / Cables - estimated delivery time for samples is 5-7 days

Evaluation boards

Evaluation boards - estimated delivery time for samples is 7-14 days
