ACA-SMA-K TO IPEX1 004

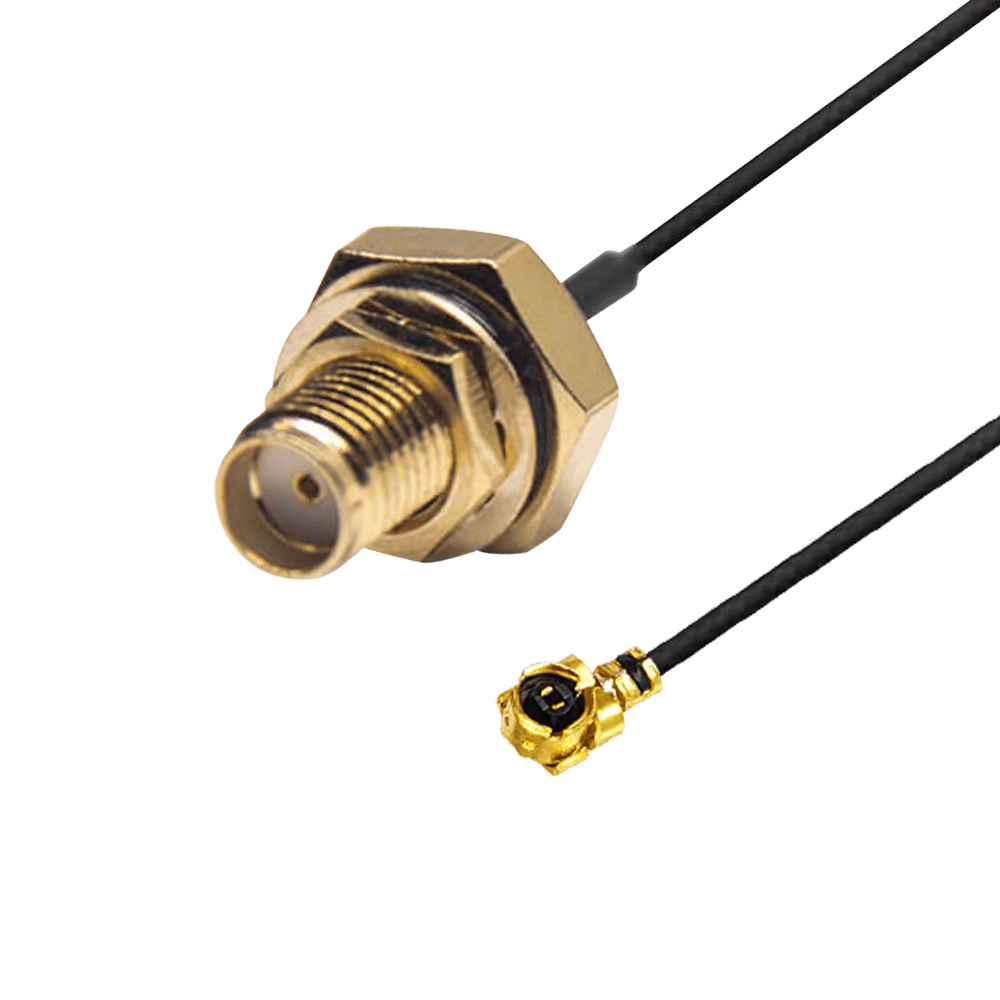

Waterproof SMA (F) to IPEX/MHF/U.FL 1(F) RF 0.81mm Coax Cable, 200mm

RF 0.81 Coax

0-6GHz RF

Download

Buy Samples

Coming soon

Dealers

Coming soon

Aboosty is ready to help you tackle various wireless issues.

Waterproof SMA (F) to IPEX/MHF/U.FL 1(F) RF 0.81mm Coax Cable, 200mm

SKU: ACA-SMA-K TO IPEX1 004 Category: RF Assemblies Tag: Cables

Product Overview

Key Features

Specification

Applications

Waterproof SMA (F) to IPEX/MHF/U.FL 1(F) RF 0.81mm Coax Cable

Cable length: Default 200mm

Orientation: Straight-Straight

48 Hours Salt Spray Test for Connectors

Factory-direct, high-quality products with 30-day returns

OEM sourced, same quality, more competitive price

Custom cable types, lengths, and connector options are available

RoHS & Reach Compliant

LABEL

VALUE

Certificates Acquired

Reach, RoHS Compliant

Connector Style

N/A

Customization Option

Cables and Connectors

VSWR

3.0:1

Impedance (Ω)

Cable Type

RF 0.81 Coax

Cable Length (mm)

200

Frequency Range

0-6GHz RF

Voltage Rating

DC 60V

Insulation Resistance

≥1000 MΩ/km

Conductor Resistance

≤0.144 Ω/km

Capacitance

101±4 PF/m

Nom. Impedance

50 ohm

Attenuation at 1GHz (dB/100M)

1.12

Connector 1 Type

SMA

Connector 1 Orientation

Straight

Connector 1 Gender

Connector 1 Polarity

Normal

Connector 1 Material

Gold

Connector 2 Type

IPEX MHF1

Connector 2 Orientation

Straight

Connector 2 Gender

Connector 2 Polarity

Normal

Connector 2 Material

Gold

Wireless/IoT Devices

Part Number

User Story

Model

Description

Note

ACA-SMA-K TO IPEX1 004

Waterproof SMA (F) to IPEX/MHF/U.FL 1(F) RF 0.81mm Coax Cable, 200mm

M00-0104570R0A

Customization supported

DELIVERY INFORMATION

Antennas & GPS modules, RF Connectors / Cables

Antennas & GPS modules, RF Connectors / Cables - estimated delivery time for samples is 5-7 days

Evaluation boards

Evaluation boards - estimated delivery time for samples is 7-14 days
