ACA-SMA-K TO IPEX1 001

SMA Female to IPEX/MHF/U.FL 1 Female, RF 1.13 Coax Cable, Custom Cable Length

RF 1.13 Coax

0-6GHz RF

Download

Buy Samples

Coming soon

Dealers

Coming soon

Aboosty is ready to help you tackle various wireless issues.

SMA Female to IPEX/MHF/U.FL 1 Female, RF 1.13 Coax Cable, Custom Cable Length

SKU: ACA-SMA-K TO IPEX1 001 Category: RF Assemblies Tag: Cables

Product Overview

Key Features

Specification

Applications

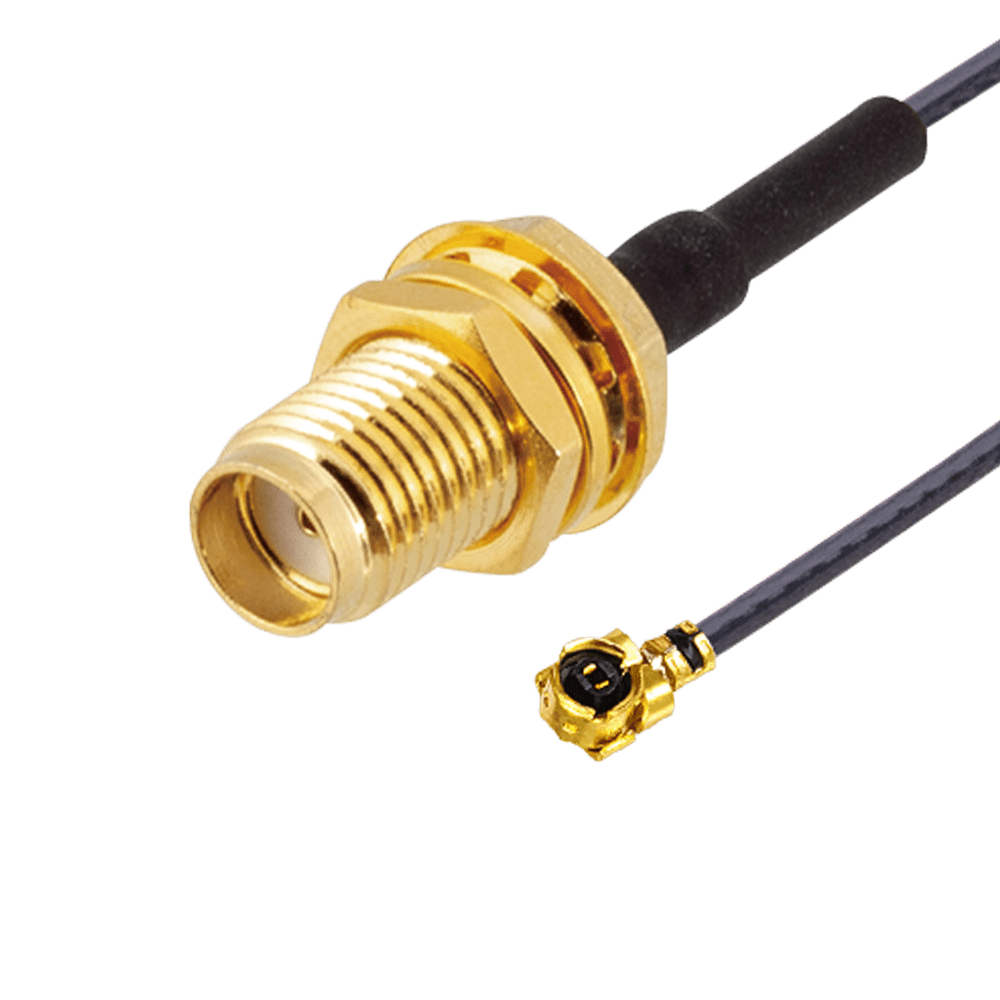

SMA(F) to IPEX/MHF/U.FL 1(F) RF 1.13 Coax Cable

Cable length: Default 170mm

Orientation: Straight-Straight

48 Hours Salt Spray Test for Connectors

Factory-direct, high-quality products with 30-day returns

OEM sourced, same quality, more competitive price

Custom cable types, lengths, and connector options are available

RoHS & Reach Compliant

LABEL

VALUE

Certificates Acquired

Reach, RoHS Compliant

Connector Style

N/A

Customization Option

Cables and Connectors

VSWR

3.0:1

Impedance (Ω)

Cable Type

RF 1.13 Coax

Cable Length (mm)

170

Frequency Range

0-6GHz RF

Voltage Rating

DC 30V

Capacitance

98±4 pF/m

Nom. Impedance

50 ohm

Attenuation at 1GHz (dB/100M)

≤2.32

Connector 1 Type

SMA

Connector 1 Orientation

Straight

Connector 1 Gender

Connector 1 Polarity

Normal

Connector 1 Material

Gold

Connector 2 Type

IPEX MHF1

Connector 2 Orientation

Straight

Connector 2 Gender

Connector 2 Polarity

Normal

Connector 2 Material

Gold

Wireless/IoT Devices

Part Number

User Story

Model

Description

Note

ACA-SMA-K TO IPEX1 001

SMA(F) to IPEX/MHF/U.FL 1(F) RF 1.13 Coax Cable, 170mm

M00-0101680R0A

Customization supported

DELIVERY INFORMATION

Antennas & GPS modules, RF Connectors / Cables

Antennas & GPS modules, RF Connectors / Cables - estimated delivery time for samples is 5-7 days

Evaluation boards

Evaluation boards - estimated delivery time for samples is 7-14 days
