ACA-RP SMA-K TO IPEX1 006

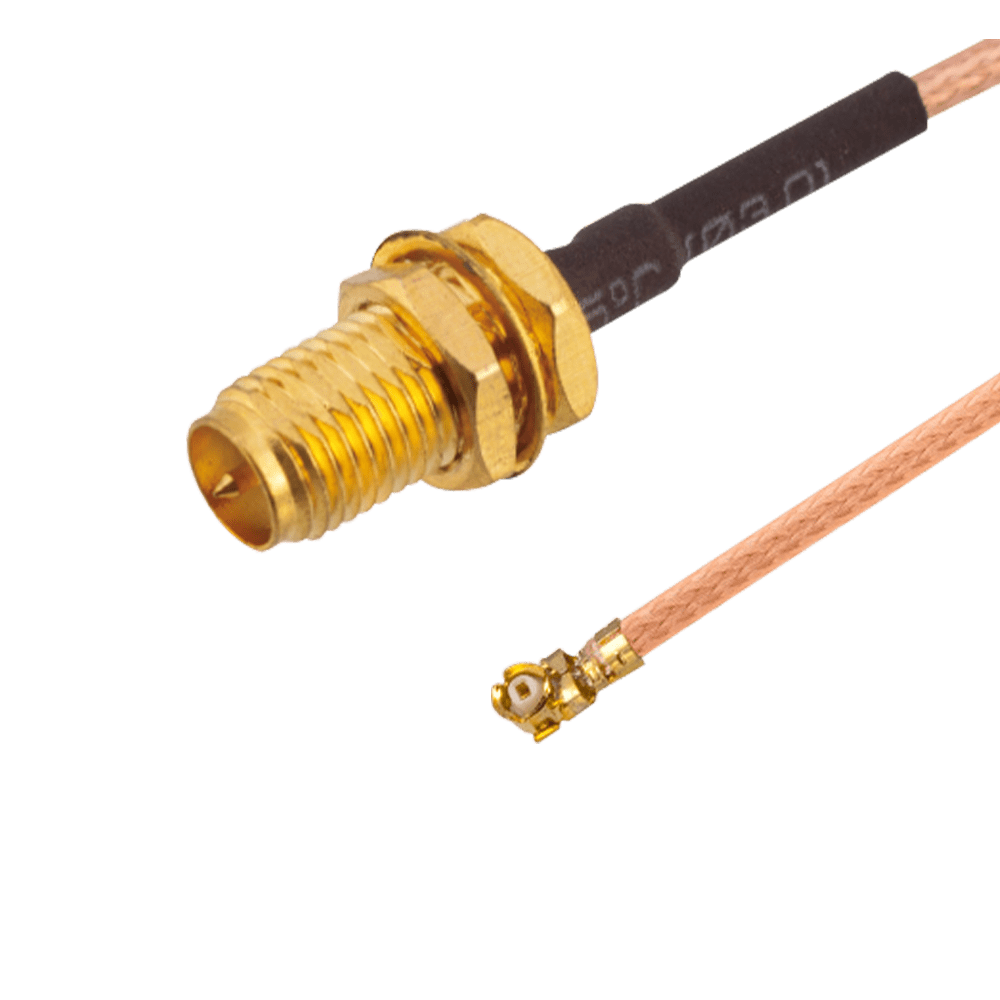

RP-SMA Female Straight to IPEX/MHF/U.FL 1 Female, RG178 Cable, 150mm

RG178

0-6GHz RF

Download

Buy Samples

Coming soon

Dealers

Coming soon

Aboosty is ready to help you tackle various wireless issues.

RP-SMA Female Straight to IPEX/MHF/U.FL 1 Female, RG178 Cable, 150mm

SKU: ACA-RP SMA-K TO IPEX1 006 Category: RF Assemblies Tag: Cables

Product Overview

Key Features

Specification

Applications

RP-SMA Female (with Pin) to IPEX/MHF/U.FL 1 Female

RG178 Cable, Cable length: Default 150mm

Orientation: Straight-Straight

48 Hours Salt Spray Test for Connectors

Factory-direct, high-quality products with 30-day returns

OEM sourced, same quality, more competitive price

Custom cable types, lengths, and connector options are available

RoHS & Reach Compliant

LABEL

VALUE

Certificates Acquired

Reach, RoHS Compliant

Connector Style

N/A

Customization Option

Cables and Connectors

VSWR

3.0:1

Impedance (Ω)

Cable Type

RG178

Cable Length (mm)

150

Frequency Range

0-6GHz RF

Voltage Rating

DC 60V

Capacitance

98 pF/m

Nom. Impedance

50 ohm

Attenuation at 1GHz (dB/100M)

≤1.7

Connector 1 Type

SMA

Connector 1 Orientation

Straight

Connector 1 Gender

Connector 1 Polarity

Reverse

Connector 1 Material

Gold

Connector 2 Type

IPEX MHF1

Connector 2 Orientation

Straight

Connector 2 Gender

Connector 2 Polarity

Normal

Connector 2 Material

Nickel

Wireless/IoT Devices

Part Number

User Story

Model

Description

Note

ACA-RP SMA-K TO IPEX1 006

RP-SMA Female to IPEX/MHF/U.FL 1(F) RG178 Cable, 150mm

M00-0104820R0A

Customization supported
