ACA-FAK-CE TO IPEX1 001

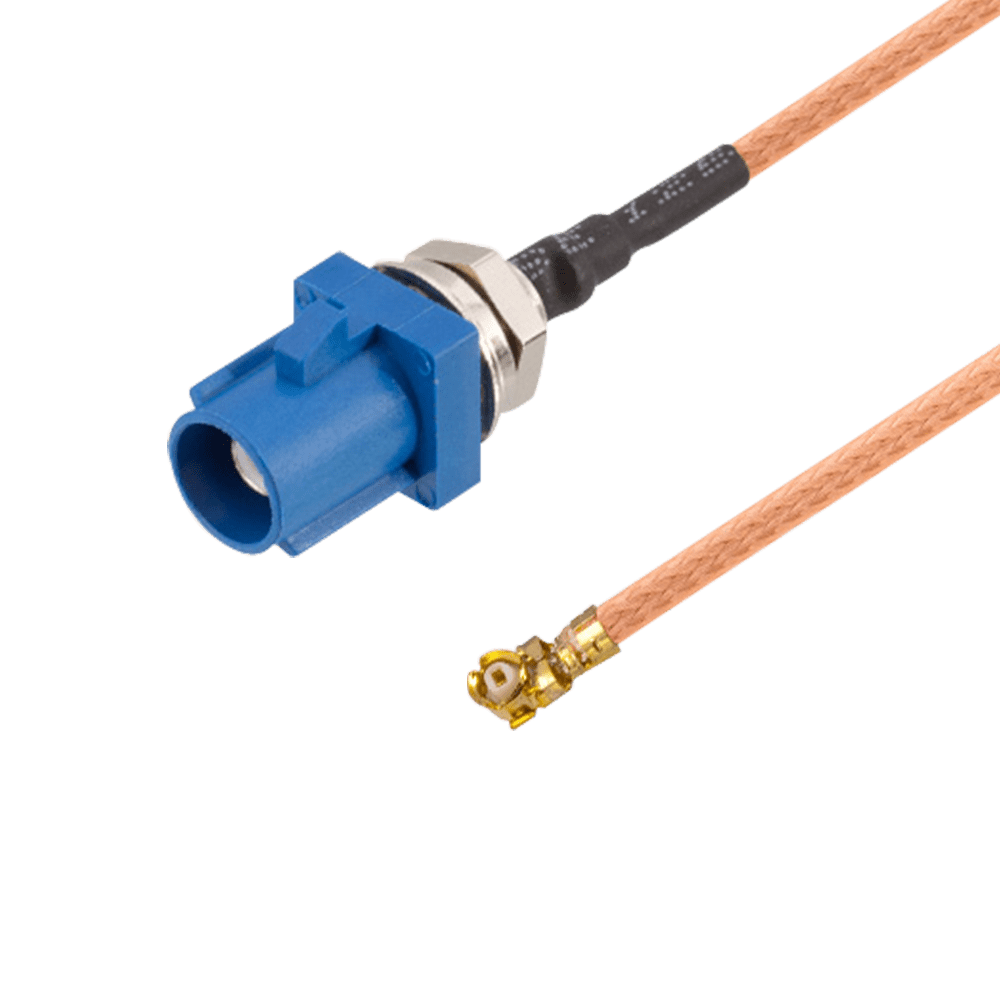

Waterproof FAKRA Code C SMB Male Plug Front Mount to IPEX/MHF 1 Plug, RG178 Cable, 200mm

RG178

0-6GHz RF

Download

Buy Samples

Coming soon

Dealers

Coming soon

Aboosty is ready to help you tackle various wireless issues.

Waterproof FAKRA Code C SMB Male Plug Front Mount to IPEX/MHF 1 Plug, RG178 Cable, 200mm

SKU: ACA-FAK-CE TO IPEX1 001 Category: RF Assemblies Tag: Cables

Product Overview

Key Features

Specification

Applications

FAKRA SMB Male Plug Front Mount Waterproof Code C to IPEX/MHF 1 Plug RG-178 Cable

Cable length:Default 200 mm

Orientation: Straight-Straight

48 Hours Salt Spray Test for Connectors

Factory-direct, high-quality products with 30-day returns

OEM sourced, same quality, more competitive price

Custom cable types, lengths, and connector options are available

RoHS & Reach Compliant

LABEL

VALUE

Certificates Acquired

Reach, RoHS Compliant

Connector Style

N/A

Customization Option

Cables and Connectors

VSWR

3.0:1

Impedance (Ω)

Cable Type

RG178

Cable Length (mm)

200

Frequency Range

0-6GHz RF

Voltage Rating

DC 60V

Conductor Resistance

50±3.0 Ω

Capacitance

98 pF/m

Nom. Impedance

50 ohm

Attenuation at 1GHz (dB/100M)

≤1.7

Connector 1 Type

Fakra SMB

Connector 1 Orientation

Straight

Connector 1 Gender

Connector 1 Polarity

Normal

Connector 1 Material

Nickel

Connector 2 Type

IPEX MHF1

Connector 2 Orientation

Straight

Connector 2 Gender

Connector 2 Polarity

Normal

Connector 2 Material

Gold

Wireless & IoT Devices

Part Number

User Story

Model

Description

Note

ACA-FAK-CE TO IPEX1 001

FAKRA-C SMB Male Plug to IPEX/MHF 1 Plug RG-178 Cable, 200mm

M00-0104770R0A

Customization supported

DELIVERY INFORMATION

Antennas & GPS modules, RF Connectors / Cables

Antennas & GPS modules, RF Connectors / Cables - estimated delivery time for samples is 5-7 days

Evaluation boards

Evaluation boards - estimated delivery time for samples is 7-14 days
