AEWK005

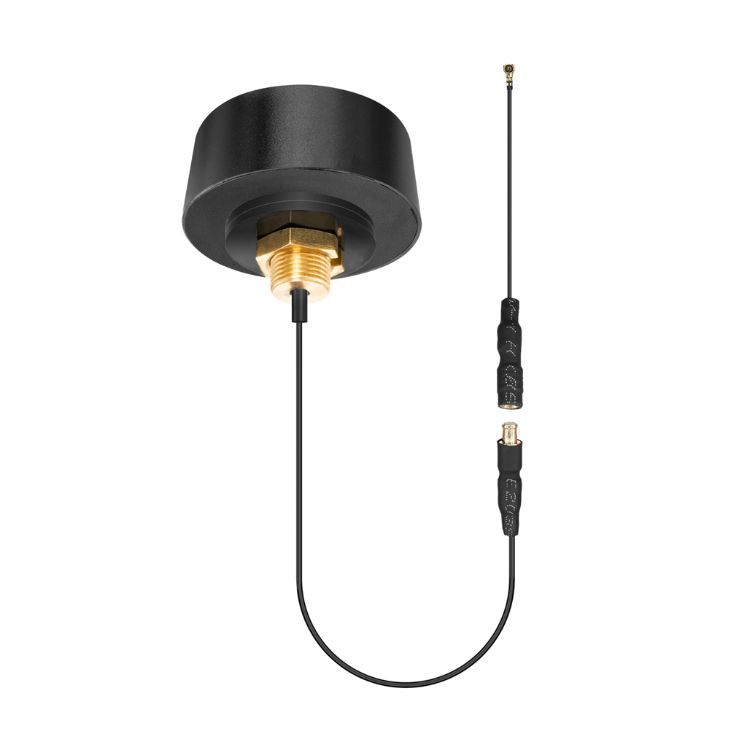

Outdoor 2.4G/5.8G WIFI External Waterproof Puck Antenna

WIFI/Bluetooth

Single External Antennas

Download

Datasheet

Buy Samples

Coming soon

Dealers

Coming soon

Aboosty is ready to help you tackle various wireless issues.

Outdoor 2.4G/5.8G WIFI External Waterproof Puck Antenna

Our 5G antennas offer an extreme boost to speed and significantly lower latency, whilst also boasting greater bandwidth.

SKU: AEWK005 Category: External Antennas Tag: Wholesale 2.4GHz Antennas

Product Overview

Key Features

Description

Specification

Applications

Peak Gain: 2.7 dBi
Cable: 100 mm RF0.81
Connector: IPEX 3

2.4G & 5.8G dual-band supported

Easy installation

Durable and robust

Waterproof : IP69 Rating

Reduced cost and time-to-market

Custom Cables and Connectors Available

RoHS Compliant

Operating Frequency: 2400-2500 MHz | 5100-5900 MHz
Dimensions: Ø48 x 22 mm

This Aboosty AEWK005 ground plane independent PIFA antenna is customized for screw mounting on metallic cabinets. The housing is manufactured with IP67/IP69 rated ABS UV stable material resisting dust, sand, and water in addition offers durability for long-term usage in outdoor or indoor applications.

The antenna offers ground-plane independent Omni-directional performance for dual bands WIFI applications. The efficient element design ensures a high first-time connection rate and an ongoing, robust communications link even in problematic coverage areas.

A rugged compact Antenna for 2.4, 5.8 GHz WIFI applications where high performance is required from a small size. The antenna is housed in a rugged profile case, making it compact and resistant to Vandalism.

LABEL

VALUE

Certificates Acquired

RoHS Compliant

Length (mm)

Ø48

Width (mm)

Height (mm)

Freq. (MHz)

2400-2500, 5100-5990

Technology Type

2.4G & 5G WIFI

Operating Temperature (℃)

-40°C to +85°C

Markets

Smart Industrial, Smart Cities, Mobility and Infrastructure, Mobile Communication

Other Attributes

Waterproof Antennas

Antenna Type

PIFA Antenna

Radiation Pattern

Omnidirectional

Polarity

Linear

Max Effi. (%)

68.85

Peak Gain

2.7 dBi

VSWR

3.8:1

Impedance (Ω)

Ingress/Impact

N/A

Termination Style

Connector

Antenna Connector Type

IPEX 3

Cable Type

RF 0.81 Coax

Cable Length (mm)

100

Mechanical Style

Dome/Puck

Mounting Style

Screw Mount

Customization Option

Logo, Packaging, Cables and Connectors

Server Racks & Electrical Cabinets
Terminal Applications
Smart Home
Home Security Systems
IoT Systems
IoT Devices
Industrial Monitoring and Control
Smart Agriculture

Part Number

User Story

Model

Description

Note

AEWK005

2.4/5.8G Screw Mount Antenna Part

M02-0600260R0A

Antenna without cable and connector

ACA-MMCX-K TO IPEX 3 001

Cable Part (IPEX 3, RF 0.81, 100 mm)

M00-0103150R0A

Customization supported
