AEGW002

External Circular Polarized Active GPS Antenna with Screw Mount

GNSS/GPS

SATCOM/IRIDIUM/SiriusXM

Single External Antennas

Direct Mount

Screw Mount

Download

Datasheet

Buy Samples

Coming soon

Dealers

Coming soon

Aboosty is ready to help you tackle various wireless issues.

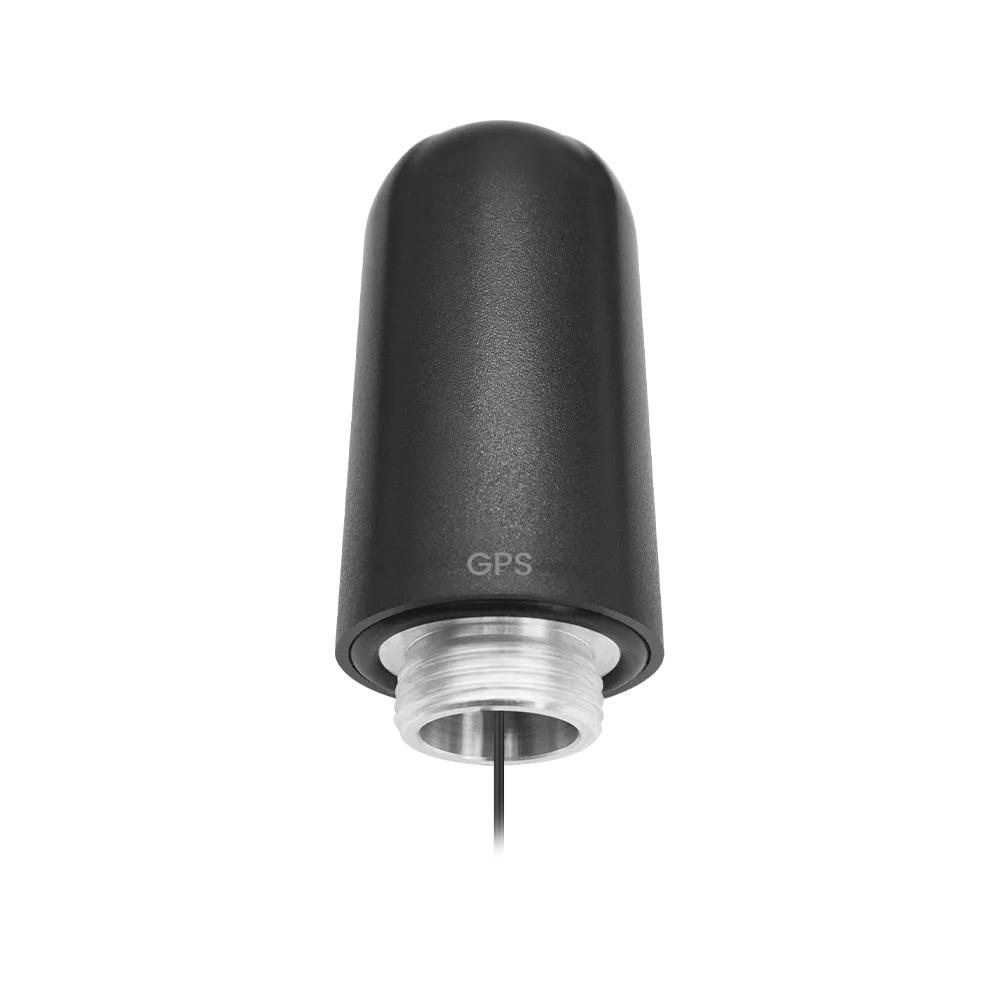

External Circular Polarized Active GPS Antenna with Screw Mount

Product Overview

Key Features

Description

Specification

Applications

28 dB LNA
Connector: IPEX 1
Cable: 100 mm RF1.13
Input Voltage 3.3V

Small Form Factor and Lightweight

Low Profile and Rugged Design

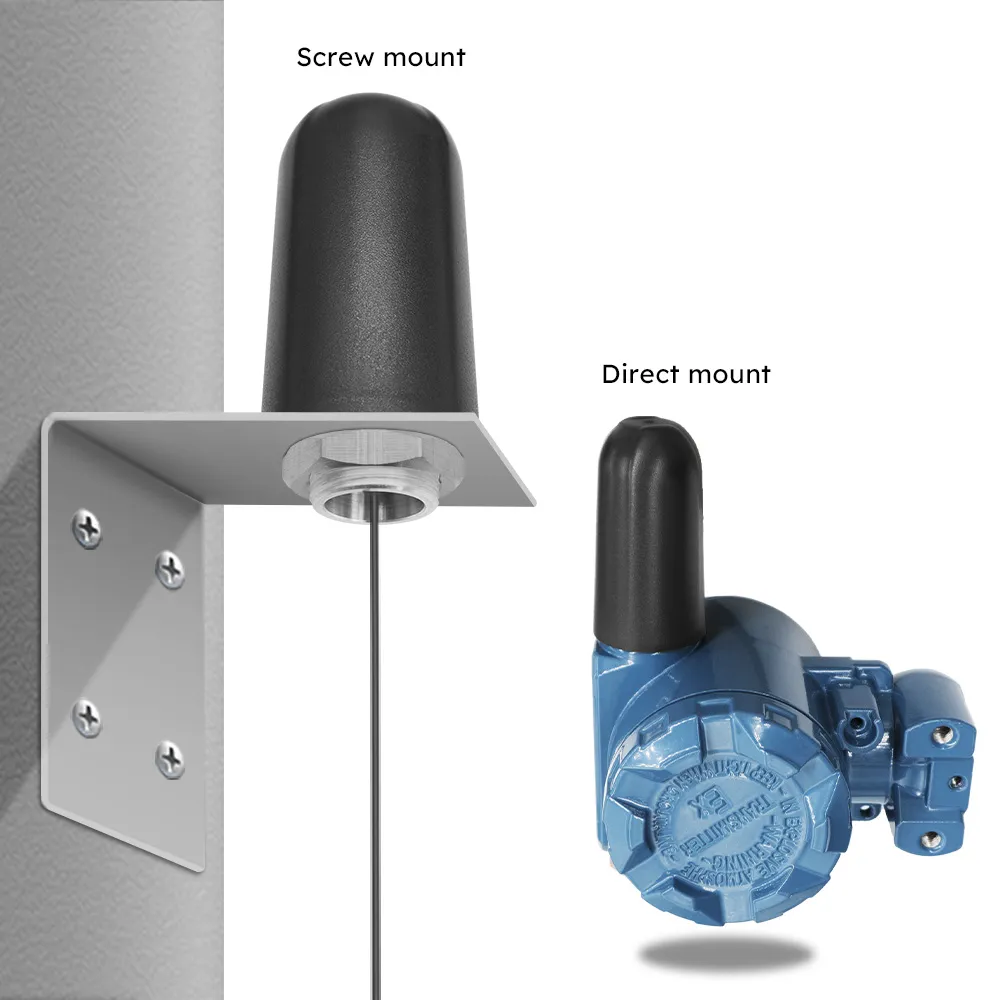

Direct Mount: Easy to install onto devices without the need for additional screws

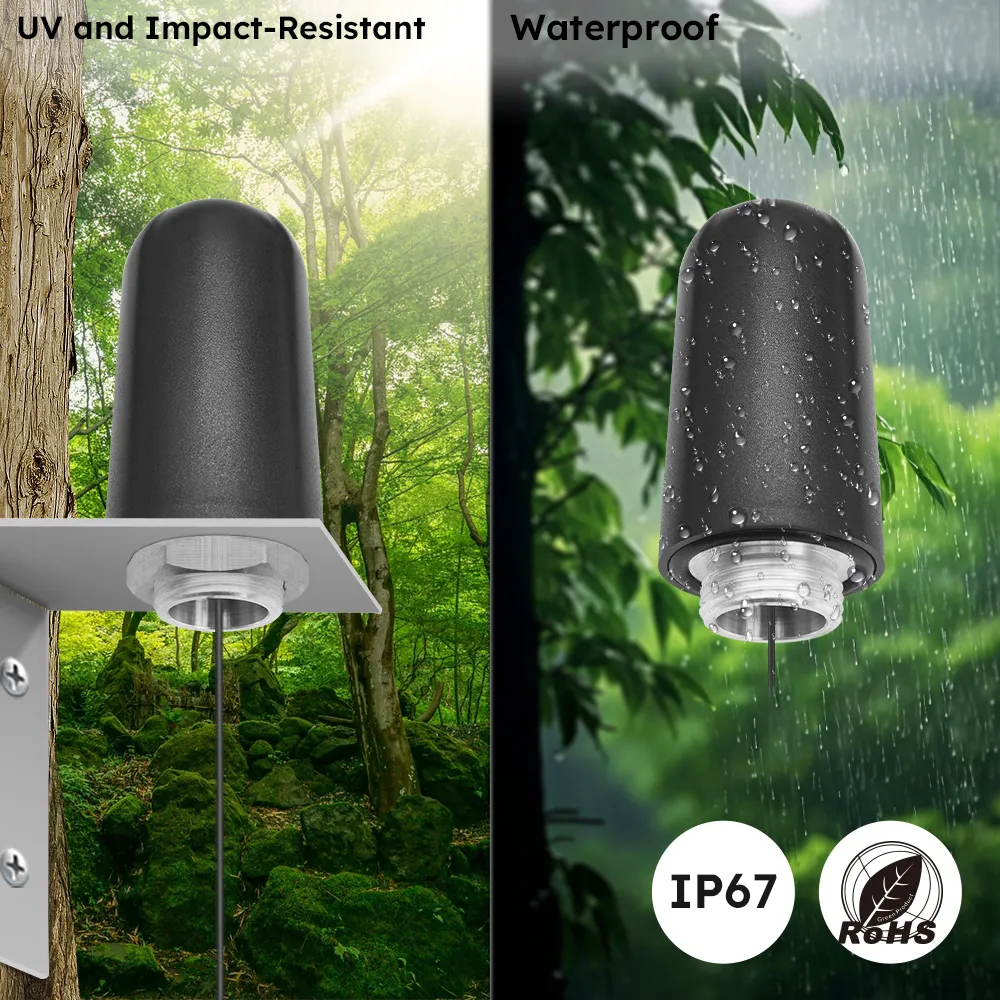

UV and Impact-Resistant Enclosure

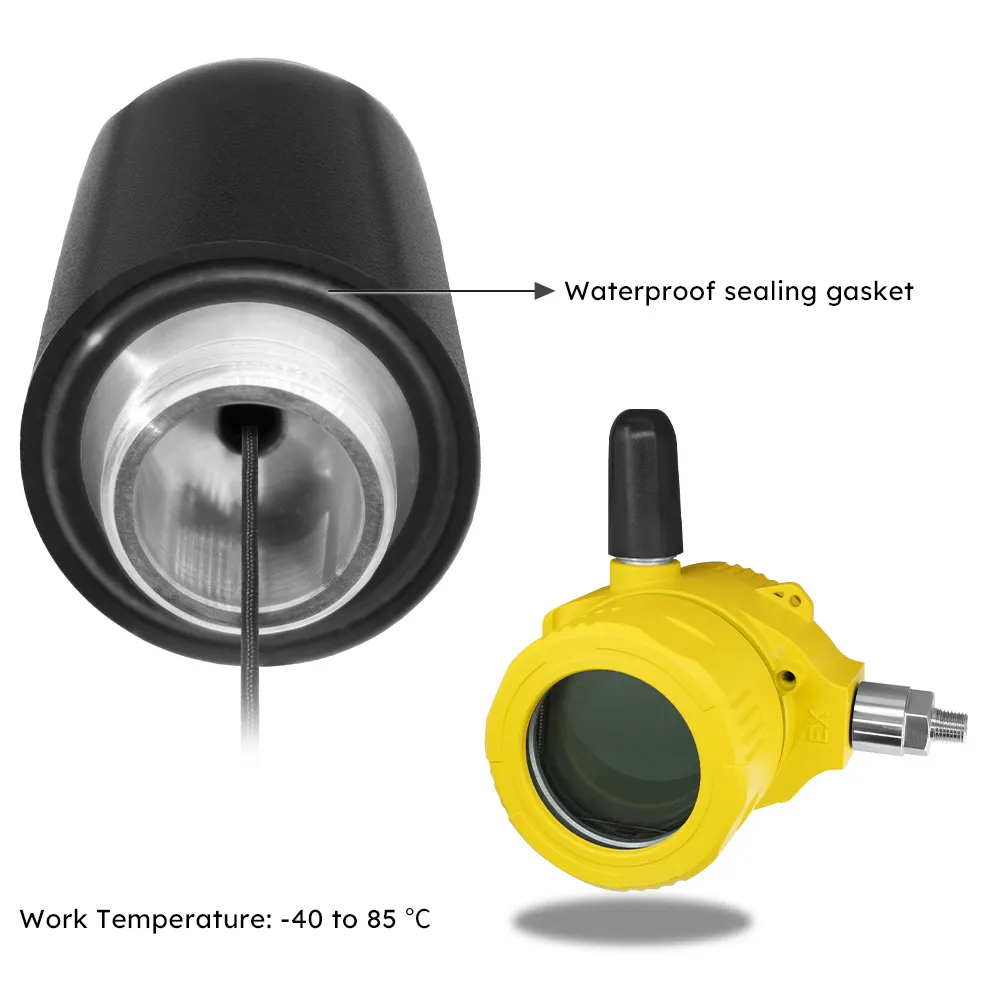

Waterproof for Outdoor Use: IP67 Rating

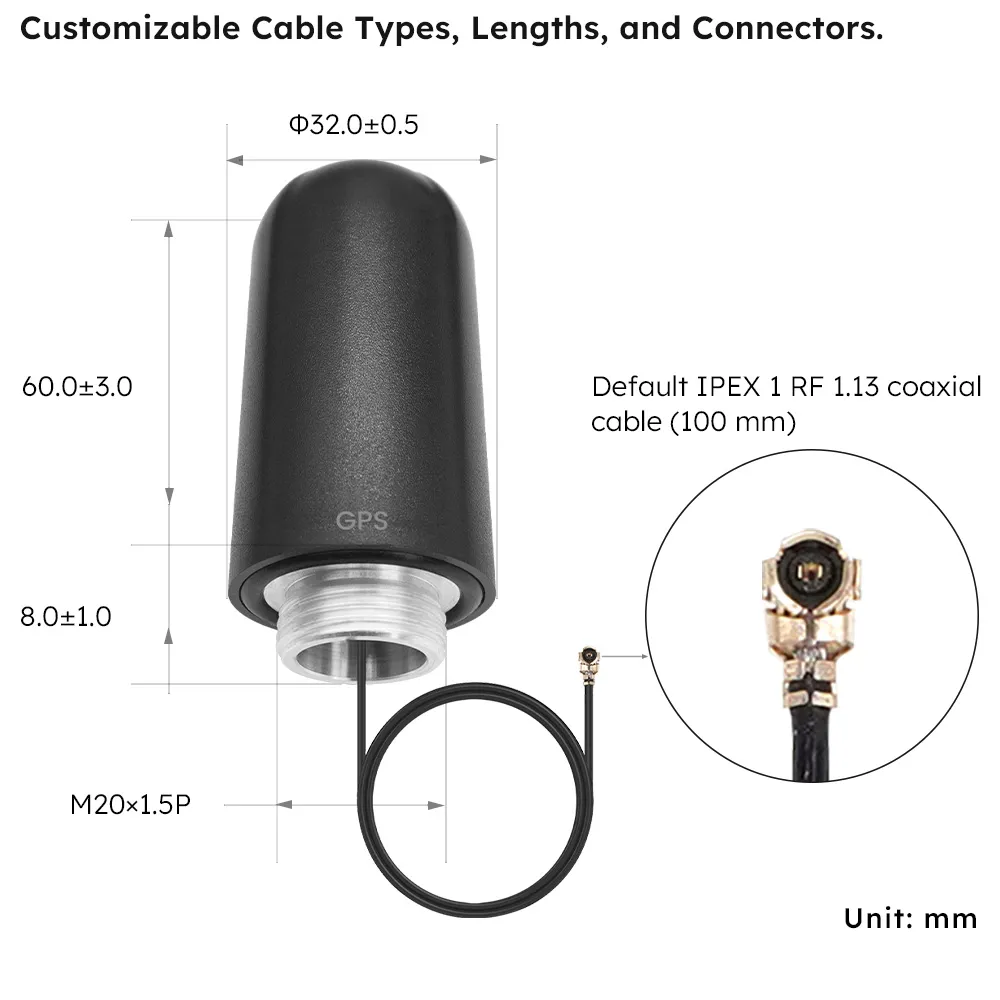

Custom Cables and Connectors Available

RoHS Compliant

Operating Frequency: 1550-1610 MHz
Covering Bands: BDS B1; GPS L1; GLONASS G1
Dimensions: Ø 32 x 59.9 mm

The Aboosty AEGW002 is a direct-mount BDS B1/GPS L1/GLONASS G1 antenna designed to be mounted directly onto a device. With a robust external enclosure, the antenna is IP67 water resistant, ideal for the harshest applications worldwide.

The connector is customizable subject to NRE and MOQ. For further information, don’t hesitate to contact the Aboosty customer support team.

Package Included: 1 x GPS Antenna

LABEL

VALUE

Certificates Acquired

RoHS Compliant

Length (mm)

Ø32

Width (mm)

Height (mm)

59.9

Product Weight (g)

Freq. (MHz)

1550-1610

Technology Type

GPS/BDS/GLONASS

Operating Temperature (℃)

-40°C to +85°C

Markets

Transportation, Smart Industrial, Mobility and Infrastructure, Smart Cities, Public Safety

Other Attributes

Waterproof Antennas

Antenna Type

Active

Connector Style

N/A

Radiation Pattern

Directional

Polarity

RHCP

Max Effi. (%)

34.24

Peak Gain

1.24 dBiC

VSWR

2.0:1

Impedance (Ω)

Ingress/Impact

IP68

Termination Style

Connector

Antenna Connector Type

IPEX 1

Cable Type

RF 1.13 Coax

Cable Length (mm)

100

Mechanical Style

PC+ABS+UV

LNA Gain

28.71 dB

Noise Figure (dB)

1.5 Max

Axial Ratio (AR) (dB)

<1.5 dB

Mounting Style

Direct Mount, Screw Mount

Customization Option

Logo, Packaging, Cables and Connectors

Military, Law Enforcement, or Private Security
Hand-held/Portable Devices
Scientific Instrumentations
M2M Applications
Precision Agriculture
BeiDou B1 Band / GPS L1 Band / GLONASS G1 Band

Part Number

User Story

Model

Description

Note

AEGW002

GPS Antenna, Black, RF1.13, 100mm Cable, IPEX-1 Connector

M02-0300220R0A

Customization supported

DELIVERY INFORMATION

Antennas & GPS modules, RF Connectors / Cables

Antennas & GPS modules, RF Connectors / Cables - estimated delivery time for samples is 5-7 days

Evaluation boards

Evaluation boards - estimated delivery time for samples is 7-14 days

Delivery & Returns >

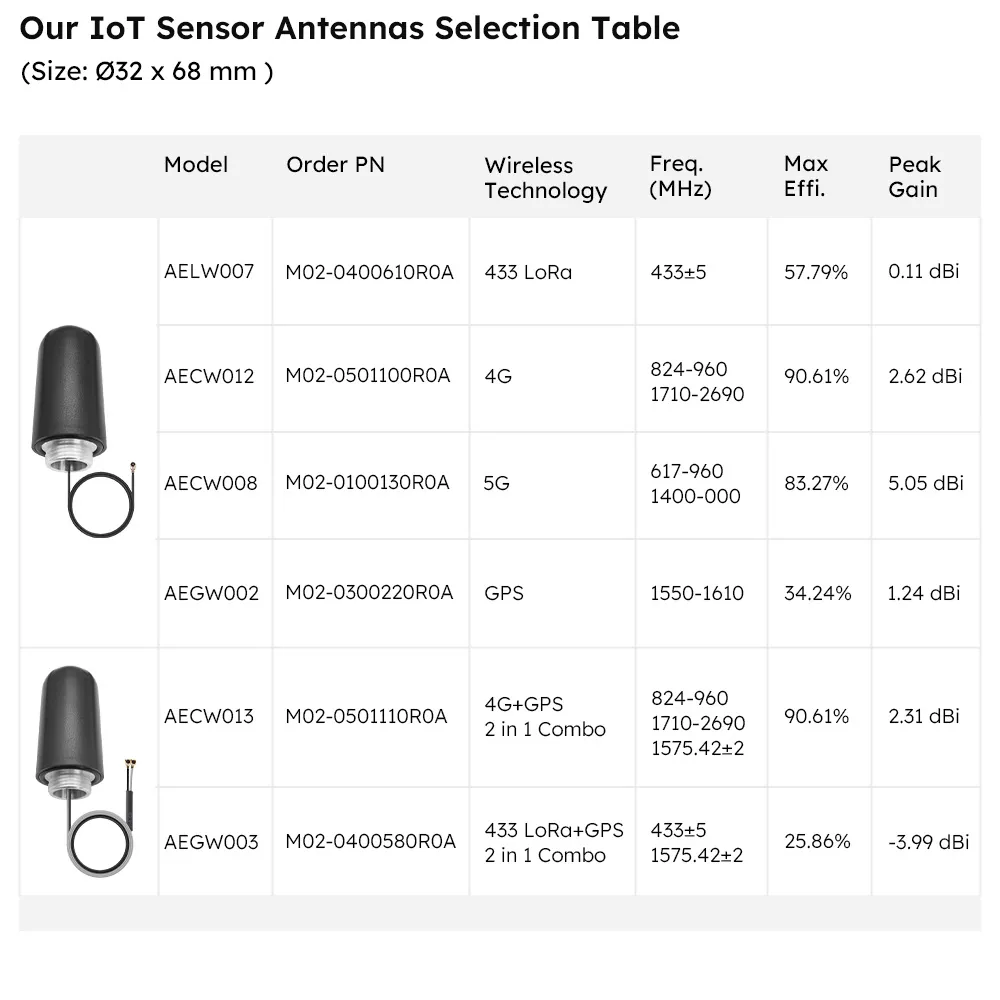

Powering Success: Bringing Client Innovations to Reality
