AECW009

Waterproof Cellular 4G LTE Direct Mount External Omni Antenna with SMA Male

LTE/CELLULAR

Single External Antennas

Download

Datasheet

Buy Samples

Coming soon

Buy now

Dealers

Coming soon

Aboosty is ready to help you tackle various wireless issues.

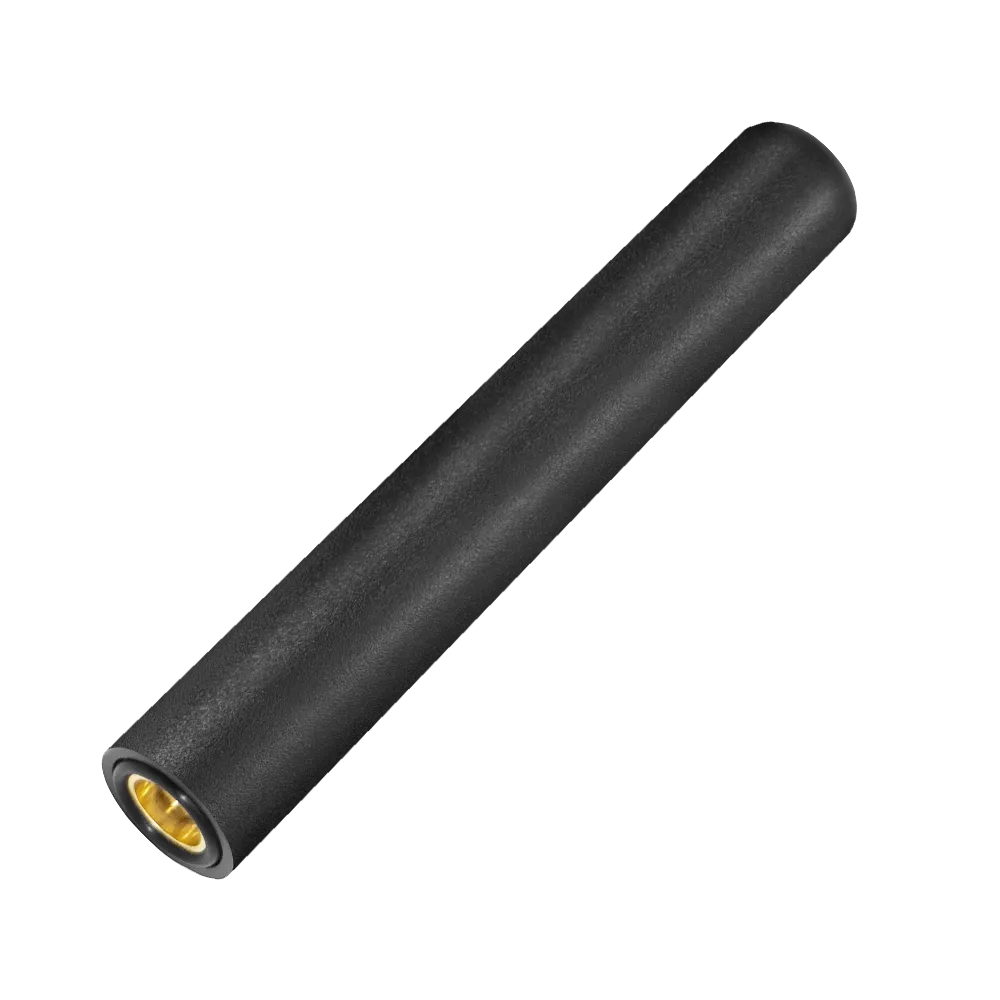

Waterproof Cellular 4G LTE Direct Mount External Omni Antenna with SMA Male

SKU: AECW009 Category: External Antennas Tags: 4G/3G/LTE/GSM, 4G/3G/NB-Iot

Product Overview

Key Features

Description

Specification

Applications

Peak Gain: 4.3 dBi

Full 4G LTE Backward Compatibility

Monopole Antenna, Ground Plane Dependent

Linear, Omnidirectional Performance

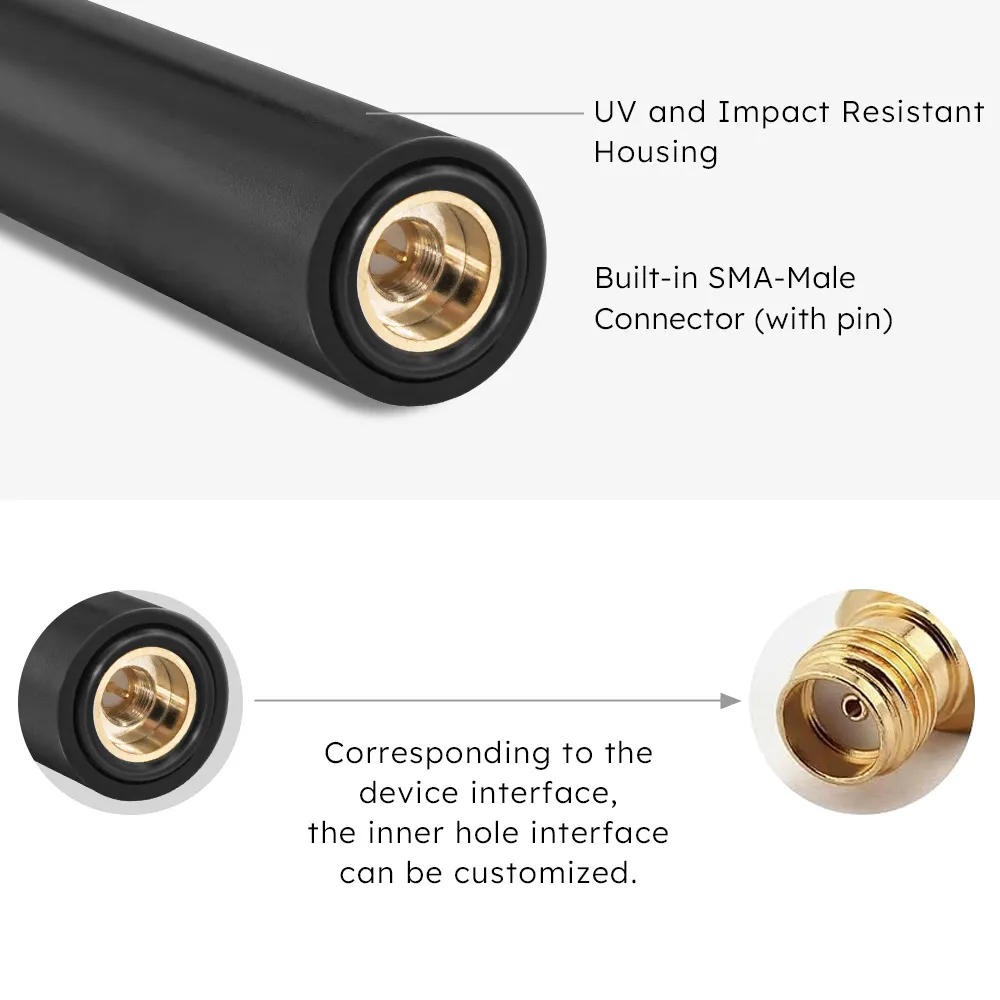

Connector Mount: SMA Male (with pin)

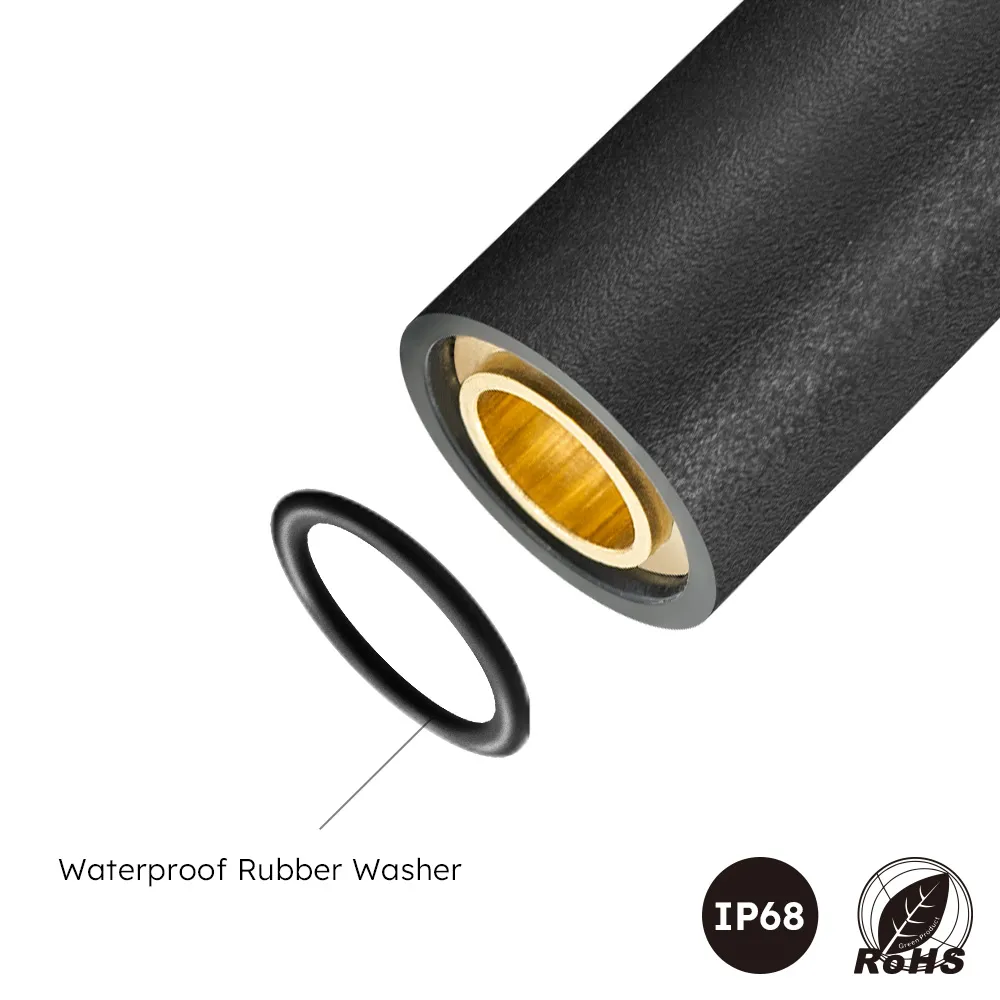

IP68 Rated Waterproof for Outdoor and Indoor Use

Custom Connector Available

RoHS Compliant

Operating Frequency: 698-960 MHz | 1710-2690 MHz

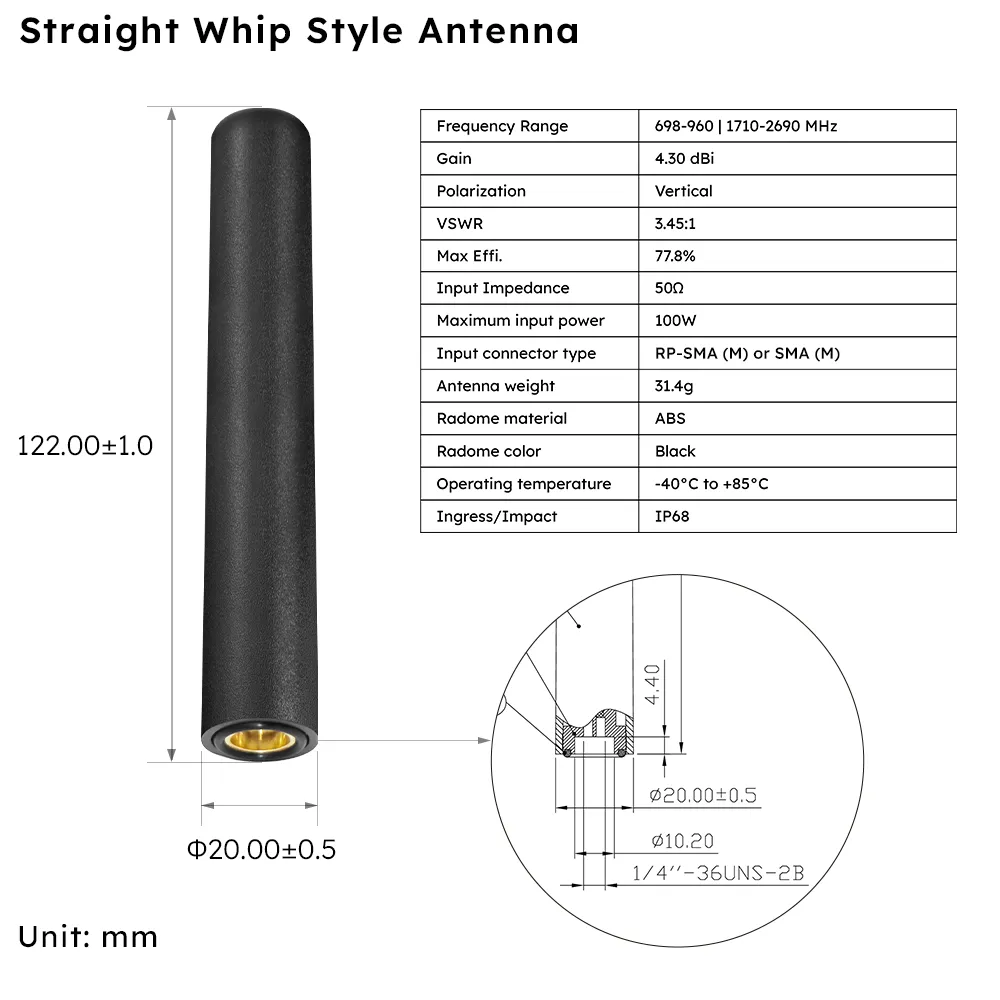

Dimensions: Ø20 x 122 mm

External 4G LTE Monopole Terminal Antenna for Indoor and Outdoor Use

The Aboosty AECW009 SMA(M) mount monopole antenna is designed for superior performance and reliability. It has an omnidirectional radiation pattern and excellent efficiency and gain on global 4G LTE bands.

The IP68-rated enclosure makes it suitable for both indoor and outdoor applications. The enclosure is impact-resistant and durable and has the added benefit of UV resistance, allowing it to meet the needs of demanding outdoor applications.

The connector is available with the RP-SMA (M) or SMA (M) option. For more information or support, please contact the Aboosty customer support team.

LABEL

VALUE

Certificates Acquired

RoHS Compliant

Length (mm)

Ø20

Width (mm)

Height (mm)

122

Freq. (MHz)

698-960, 1710-2690

Technology Type

4G LTE

Operating Temperature (℃)

-40°C to +85°C

Markets

Smart Industrial, Smart Cities, Mobile Communication, Mobility and Infrastructure

Other Attributes

Waterproof Antennas

Antenna Type

Monopole

Connector Style

Straight

Radiation Pattern

Omnidirectional

Polarity

Linear

Max Effi. (%)

77.8

Peak Gain

4.30 dBi

VSWR

3.45:1

Impedance (Ω)

Ingress/Impact

IP68

Termination Style

Connector

Antenna Connector Type

SMA-Male

Cable Type

N/A

Mechanical Style

ABS, Black

Mounting Style

Direct Mount, Connector Mount

Customization Option

Logo, Packaging, Connectors

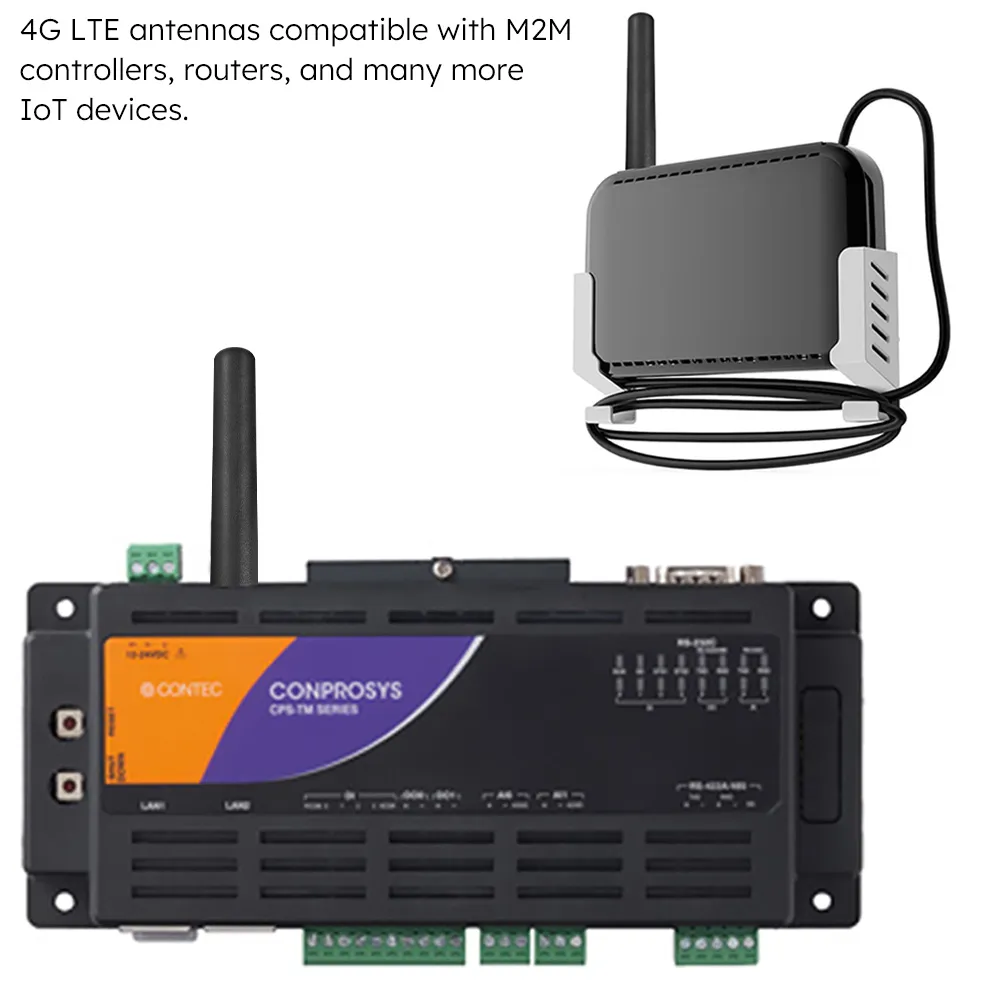

IoT Devices
Remote Monitoring Systems
Cellular Gateways and Routers
Vehicle Telematics
Smart Grid and Utility Monitoring
Industrial Automation Systems

Part Number

User Story

Model

Description

Note

AECW009

4G Straight Whip Style Antenna with SMA-Male Connector

M02-0501010R0A

Customization supported
