AEWW006

Black 2.4G WiFi Right Angle L-shaped Rubber Antenna with SMA Male Connector

WIFI/Bluetooth

Single External Antennas

Direct Mount

Download

Datasheet

Buy Samples

Coming soon

Dealers

Coming soon

Aboosty is ready to help you tackle various wireless issues.

Black 2.4G WiFi Right Angle L-shaped Rubber Antenna with SMA Male Connector

Product Overview

Description

Specification

Applications

Peak Gain: 3.08 dBi
Connector: Right Angle SMA-Male Connector

L-shaped connector mount, direct mount

Monopole, ground plane dependent

Waterproof and dustproof, durable in harsh environments

Stable performance, low attenuation, anti-jamming

RoHS compliant

Operating Frequency: 2400-2500 MHz

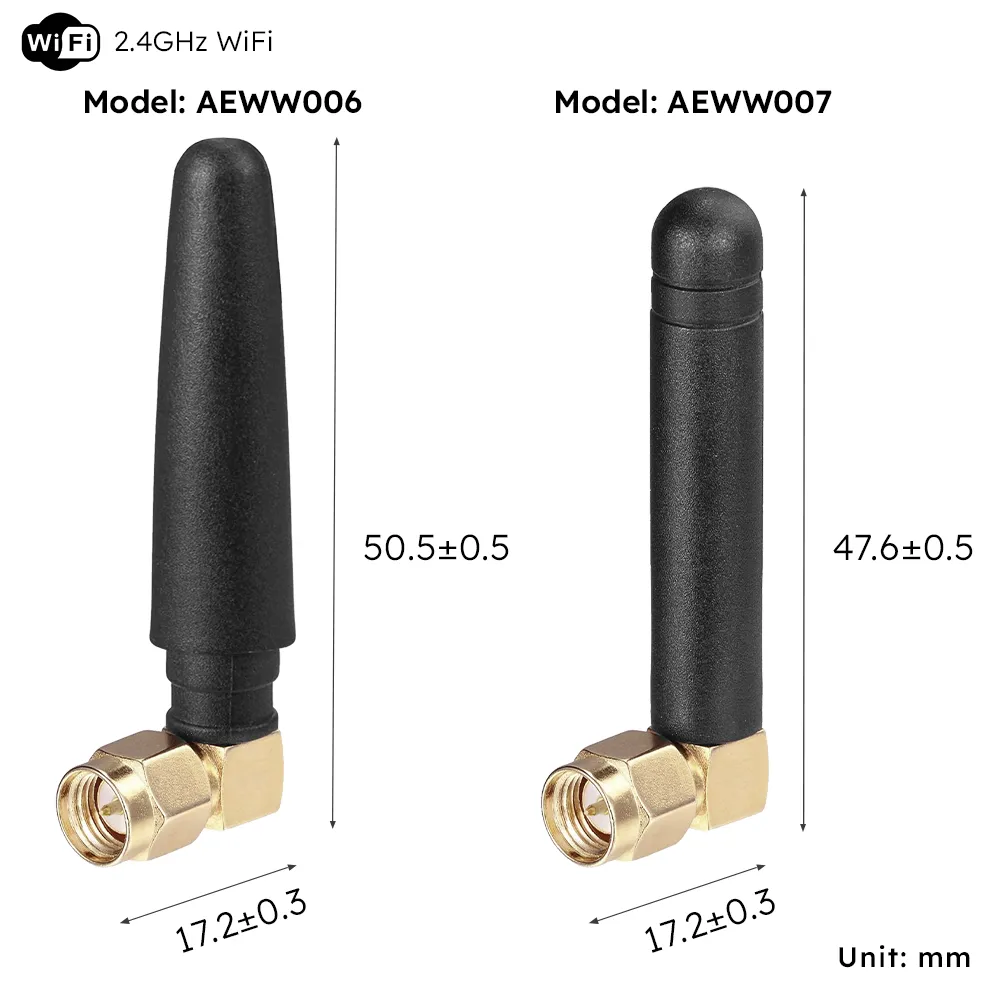

Dimensions: 50.5 x 17.2 x 10.4 mm

Aboosty AEWW006 Antenna: Reducing Lifetime Costs with High Efficiency

The Aboosty AEWW006 antenna is designed to lower the lifetime costs of M2M and mobile device installations. This high-performance LTE antenna offers robust durability and requires minimal maintenance, providing a cost-effective solution for long-term use.

With its sleek, compact design, the AEWW006 antenna delivers exceptional efficiency and performance without compromise. Engineered for Narrowband IoT LTE applications, it operates within the 2400-2500 MHz frequency range, making it ideal for Low Power Wide Area Network (LPWAN) scenarios.

Perfect for applications such as HD video transmission, dash cameras, fleet management, logistics, and LTE routers, the AEWW006 ensures reliable cellular connectivity and consistent performance across various devices.

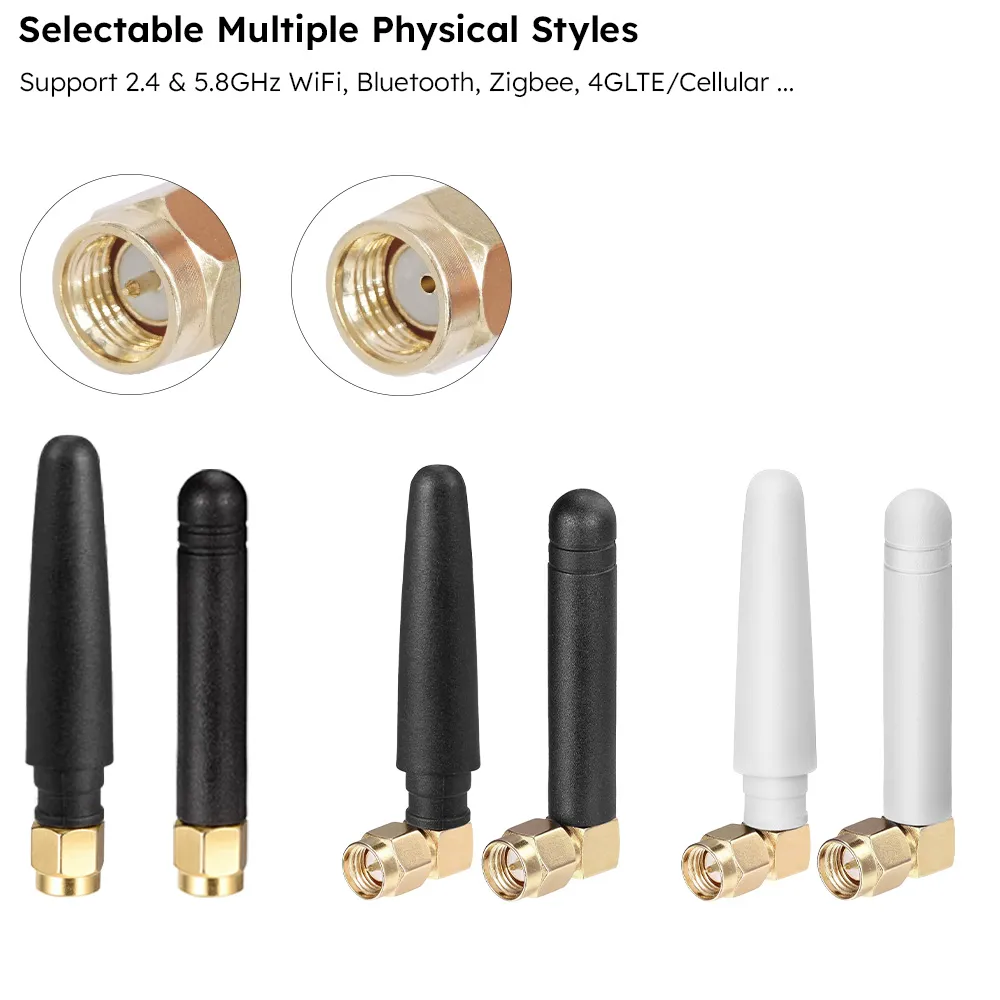

This model is also available in a white version, see the AEWW021.

LABEL

VALUE

Certificates Acquired

RoHS Compliant

Length (mm)

50.5

Width (mm)

17.2

Height (mm)

10.4

Freq. (MHz)

2400-2500

Technology Type

2.4G WIFI, Bluetooth, Zigbee

Frequency Bands

2.4 GHz

Operating Temperature (℃)

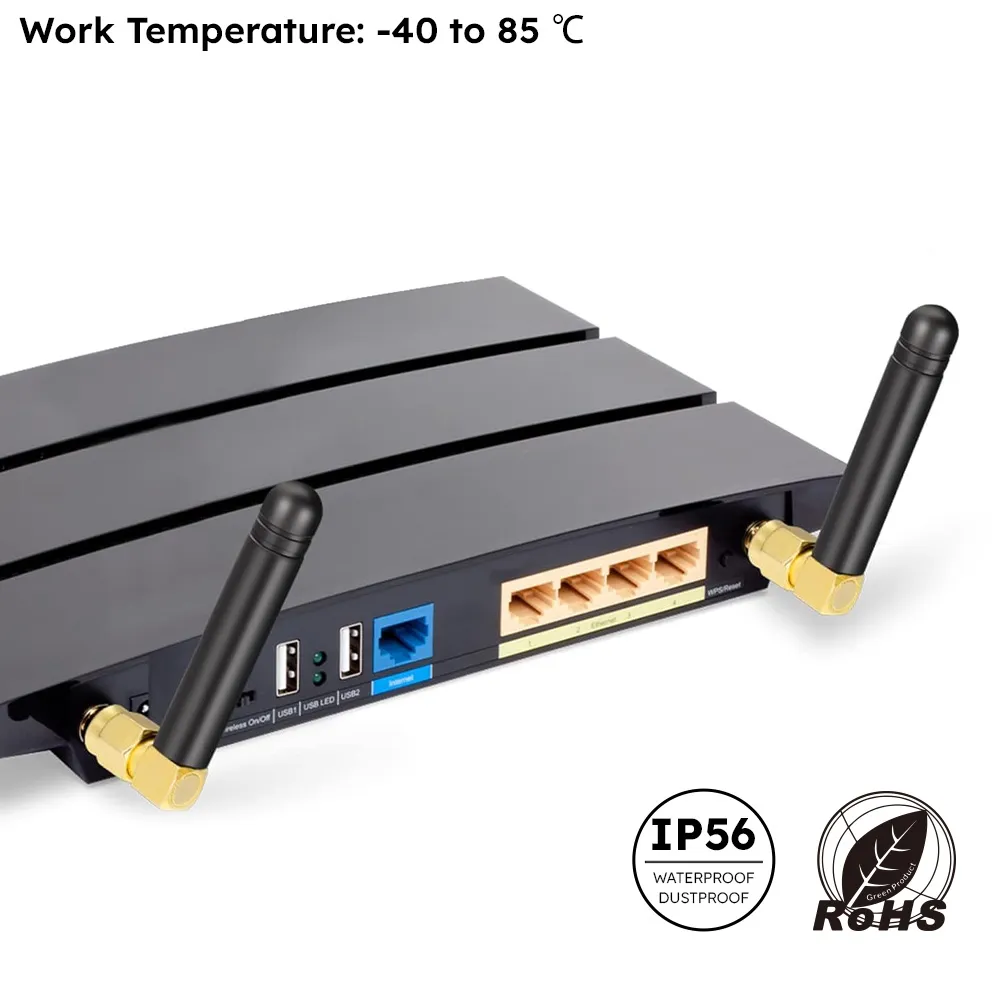

-40°C to +85°C

Markets

Smart Industrial, Smart Cities, Mobile Communication, Others

Other Attributes

N/A

Antenna Type

Monopole

Connector Style

Right Angle

Radiation Pattern

Omnidirectional

Polarity

Linear

Max Effi. (%)

62.15

Peak Gain

3.08 dBi

VSWR

3.0 : 1

Impedance (Ω)

Ingress/Impact

N/A

Termination Style

Connector

Antenna Connector Type

SMA-Male

Cable Type

N/A

Cable Length (mm)

N/A

Mechanical Style

Whip/Stick

Mounting Style

Direct Mount

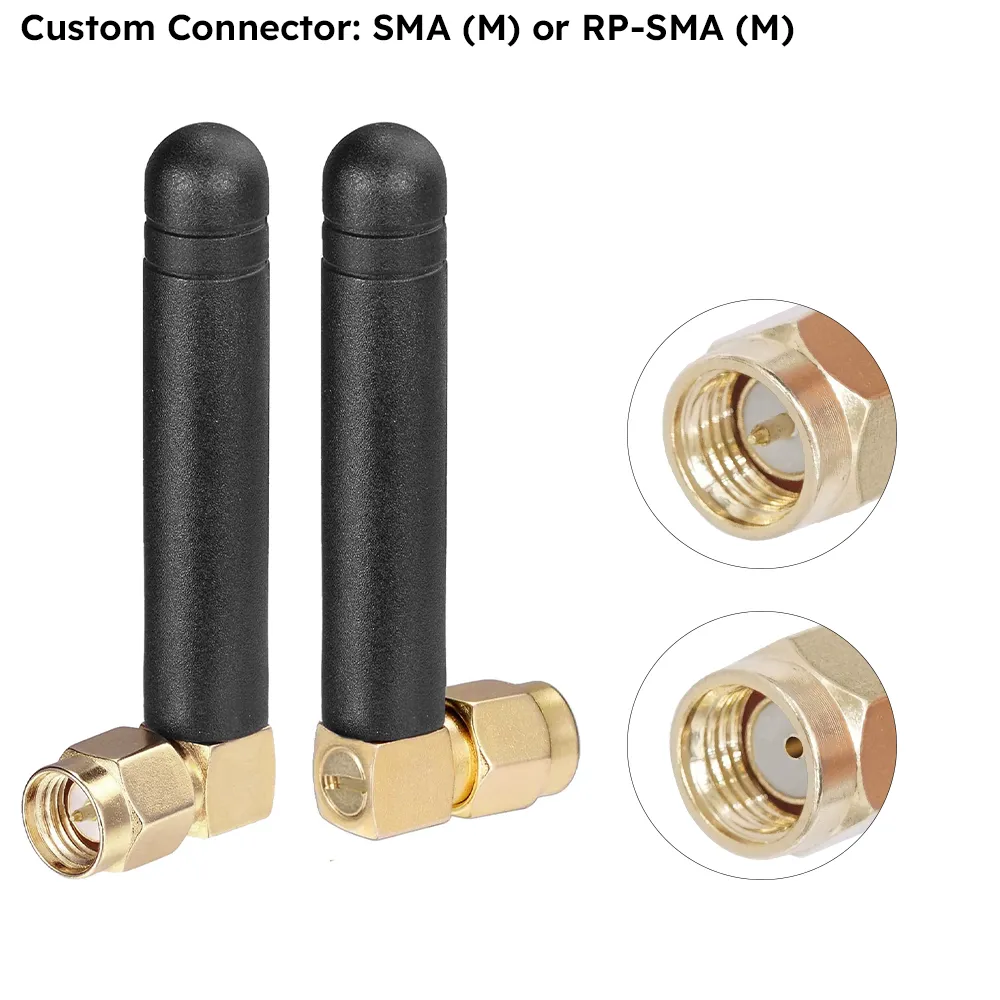

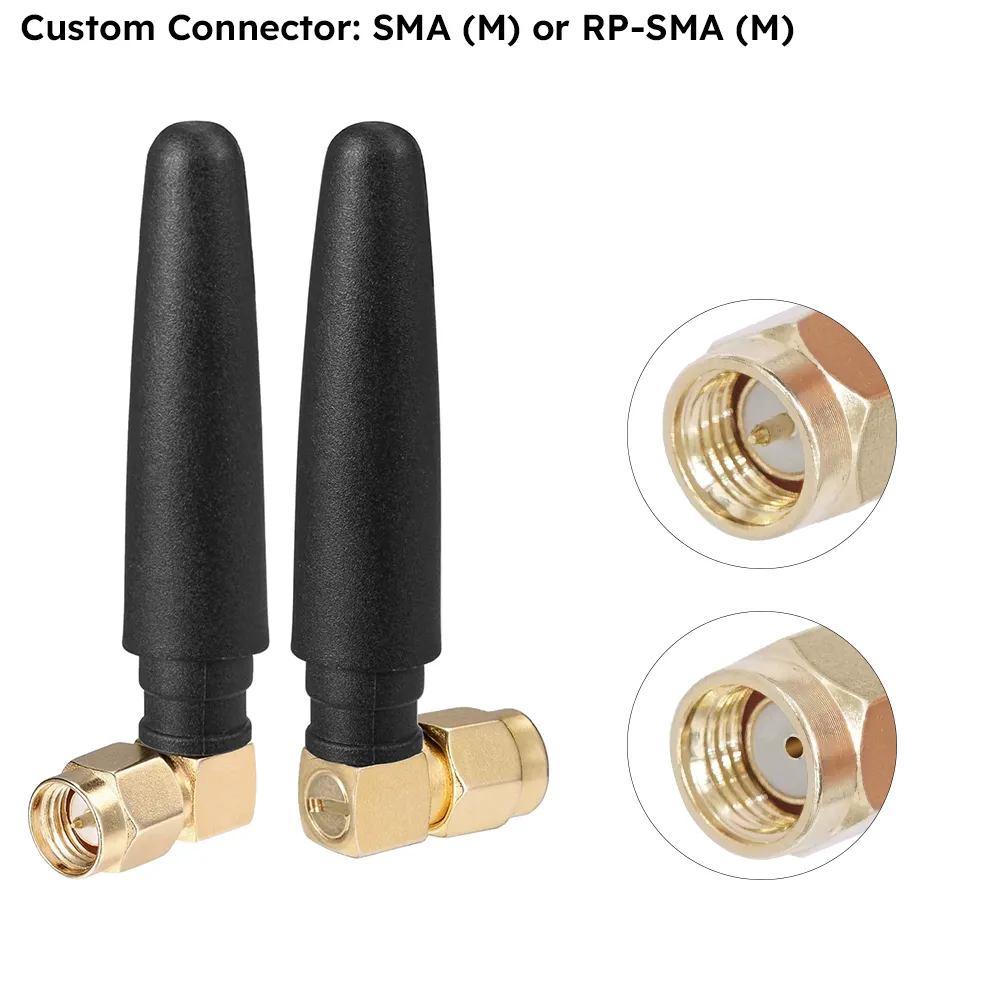

Customization Option

Connectors

Smart Home Devices
IoT Systems
IoT Devices
Wireless Sensors
Bluetooth Devices
Home Automation Systems

Part Number

User Story

Model

Description

Note

AEWW006

2.4G WIFI Black Conical Shape Antenna

M02-0600190R0A

SMA-Male Connector

AEWW007

2.4G WIFI Black Cylindrical Shape Antenna

M02-0600200R0A

SMA-Male Connector
