AIWP004

2.4G WiFi Directional Embedded PCB Antenna 60.1 x 25.6 mm

WIFI/Bluetooth/ISM

Single Internal Antennas

Embedded Antennas

Download

Datasheet

Buy Samples

Coming soon

Aboosty is ready to help you tackle various wireless issues.

2.4G WiFi Directional Embedded PCB Antenna 60.1 x 25.6 mm

Product Overview

Key Features

Description

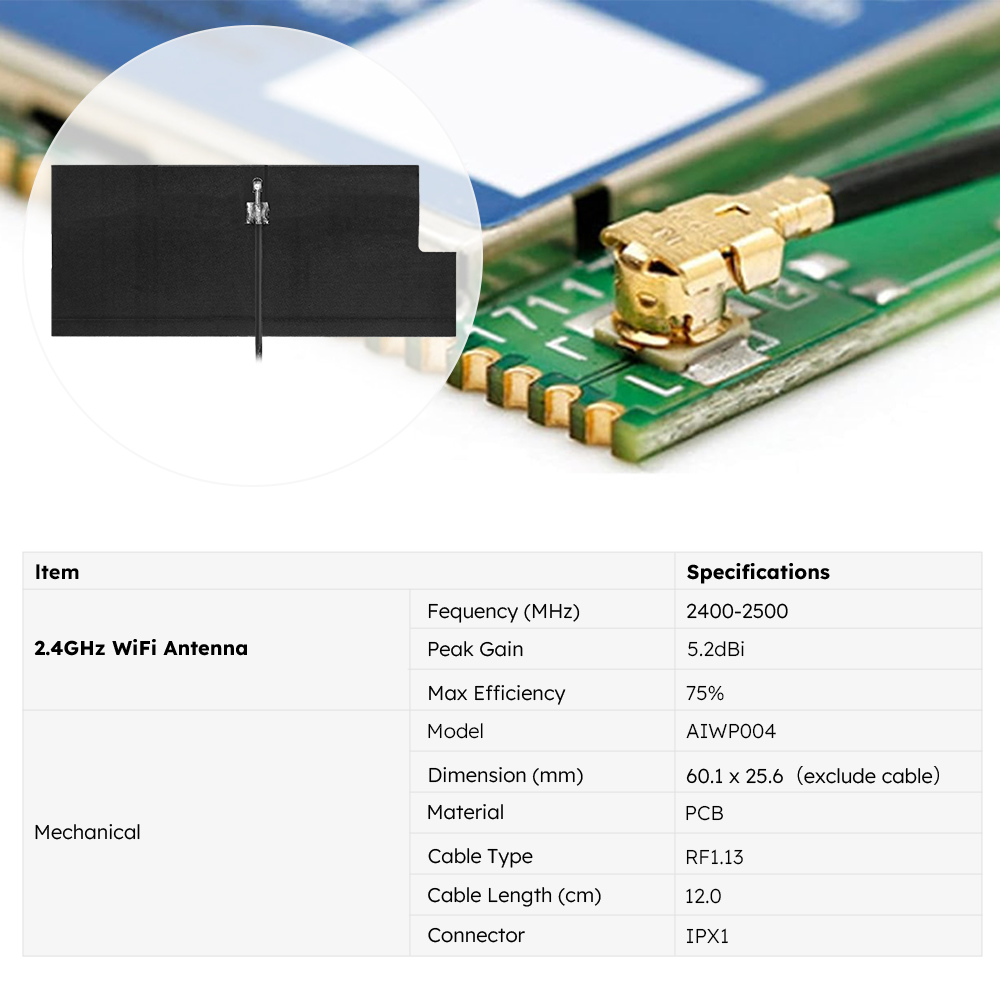

Specification

Applications

Max Efficiency: up to 76%
Cable: RF 1.13, L: 196 mm
Connector: IPEX 1

Adhesive mount PCB antenna

Ultra-thin and compact design

Omni-directional, ground plane independent

Durable with copper interface

Customizable cable and connector options

REACH/RoHS compliant

Operating Frequency: 2400-2500 MHz | 5100-5900 MHz
Dimensions: 60.1 x 25.6 x 0.6mm

Aboosty AIWP004 Internal PCB Antenna

The AboostyAIWP004 is a versatile and compact internal PCB antenna designed for smart devices and wireless systems. Its easy adhesive mounting ensures high performance and reliable global 2.4GHz WiFi connectivity.

With a 5 dBi peak gain, this antenna ensures stable and efficient signal transmission. It features an RG 1.13 cable with an IPEX connector for reliable and efficient operation. The AIWP004 delivers excellent reception and transmission performance, making it an ideal choice for IoT applications, smart home devices, and compact wireless solutions.

Package Included: 1 x PCB Antenna

LABEL

VALUE

Certificates Acquired

Reach, RoHS Compliant

Length (mm)

60.1

Width (mm)

25.6

Height (mm)

0.6

Freq. (MHz)

2400-2500

Technology Type

2.4G WIFI, Bluetooth, Zigbee

Operating Temperature (℃)

-40°C to +85°C

Markets

Transportation, Smart Industrial, Smart Cities, Connected Health, Mobility and Infrastructure, Mobile Communication

Antenna Type

Dipole

Connector Style

Right Angle

Radiation Pattern

Directional

Polarity

Linear

Max Effi. (%)

Peak Gain

5.2 dBi

VSWR

3.0:1

Impedance (Ω)

Ingress/Impact

N/A

Termination Style

Connector

Antenna Connector Type

IPEX 1

Cable Type

RF 1.13 Coax

Cable Length (mm)

196

Mechanical Style

PCB

Mounting Style

Adhesive Mount

Customization Option

Logo, Packaging, Cables and Connectors

Smart Home Devices
IoT Devices
Consumer Electronics
V2X
Industrial Equipment
Medical Devices
Drones and Robotics
Smart City Infrastructure

Part Number

User Story

Model

Description

Note

AIWP004

2.4G WiFi 60.1*25.6mm PCB Embedded Antenna

M01-0601140R0A

Customization supported
