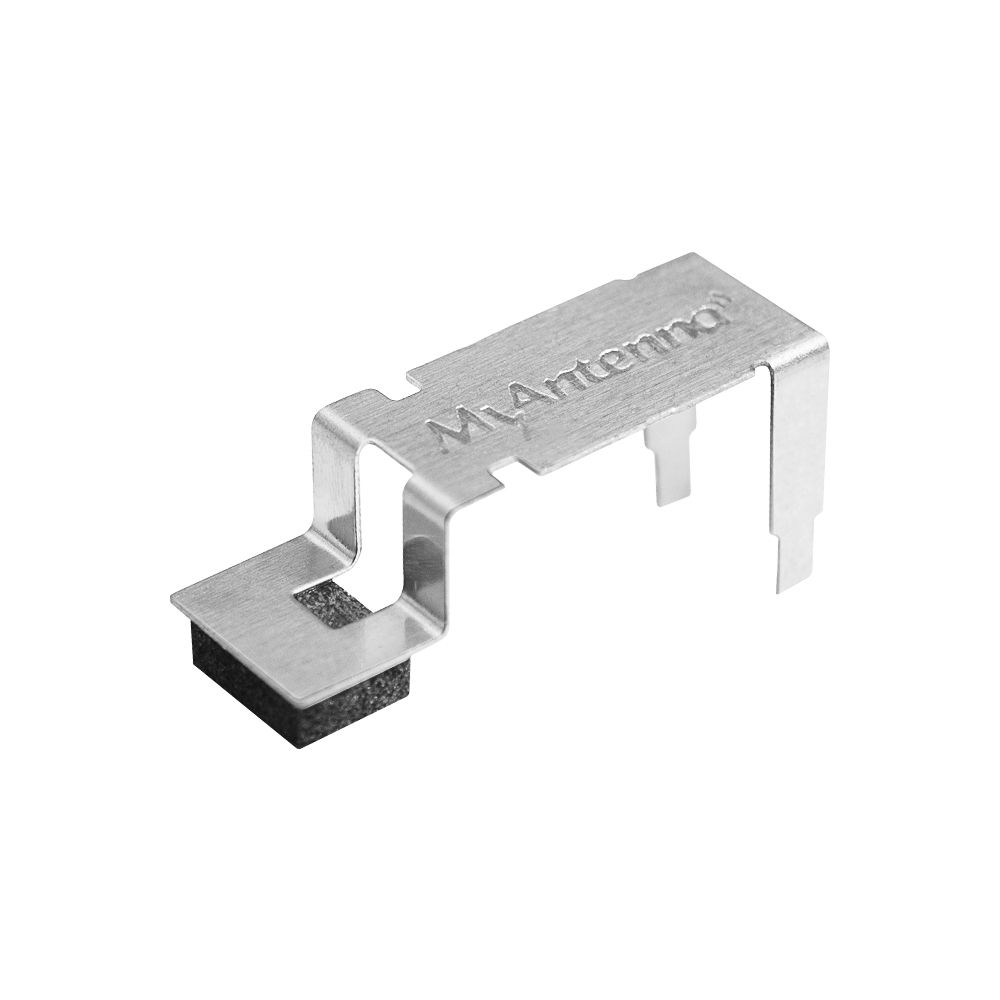

AIWM003 | Metal Stamped 2.4GHz Wi-Fi Shrapnel Antenna

Product Overview

Key Features

Description

Specification

Applications

Max Efficiency: 55%

Embedded Metal Shrapnel Antenna

Optimized for 2.4g WIFI Applications

Low Profile, Compact, Light Weight, and Durable

Excellent Performance

Easy to Integrate

Surface Mount

Reduced Cost and Time-to-Market

Customizable Cable and Connector Options

REACH/RoHS Compliant

Operating Frequency: 2400-2500 MHz
Dimensions:17.8 x 6 x 8 mm

Aboosty AIWM003 High-Efficiency Metal Shrapnel Antenna

The Aboosty AIWM003 is a high-efficiency metal shrapnel antenna optimized for 2.4 GHz WiFi and Bluetooth applications. Operating across the 2400-2500 MHz frequency range, this compact antenna is designed for ease of integration by mounting to the device’s PCB with a conventional metal shrapnel reflow process. Supplied on tape and reel, the AIWM003 is perfect for high-volume production environments. Aboosty provides comprehensive support for custom antenna solutions, including antenna design simulation, performance testing, and manufacturing services, tailored to meet your specific application needs.

LABEL

VALUE

Certificates Acquired

Reach, RoHS Compliant

Length (mm)

17.8

Width (mm)

8.0

Height (mm)

6.0

Freq. (MHz)

2400-2500

Technology Type

2.4G WIFI

Operating Temperature (℃)

-40°C to +85°C

Markets

Smart Industrial, Connected Health, Smart Cities, Others

Antenna Type

Monopole

Radiation Pattern

Omnidirectional

Polarity

Linear

Max Effi. (%)

Peak Gain

3.83 dBi

Impedance (Ω)

Ingress/Impact

N/A

Termination Style

SMD/SMT

Antenna Connector Type

N/A

Cable Type

N/A

Mechanical Style

Metal

Mounting Style

Surface Mount, SMT/SMD

Customization Option

Logo, Packaging

Smart Home Devices
IoT Devices
Medical Devices
Wireless Network Enhancement
Consumer Electronics
Industrial Applications
Commercial Applications

Part Number

User Story

Model

Description

Note

AIWM003

Aboosty 2.4GHz Wi-Fi Shrapnel Antenna

M01-0600490R0A

Customization supported
