AIWF024

Adhesive WiFi 6E WiFi 7 Embedded FPC Antenna 35.2 x 8.5 mm

WIFI/Bluetooth/ISM

Single Internal Antennas

Embedded Antennas

Download

Datasheet

Buy Samples

Coming soon

Aboosty is ready to help you tackle various wireless issues.

Adhesive WiFi 6E WiFi 7 Embedded FPC Antenna 35.2 x 8.5 mm

Product Overview

Key Features

Description

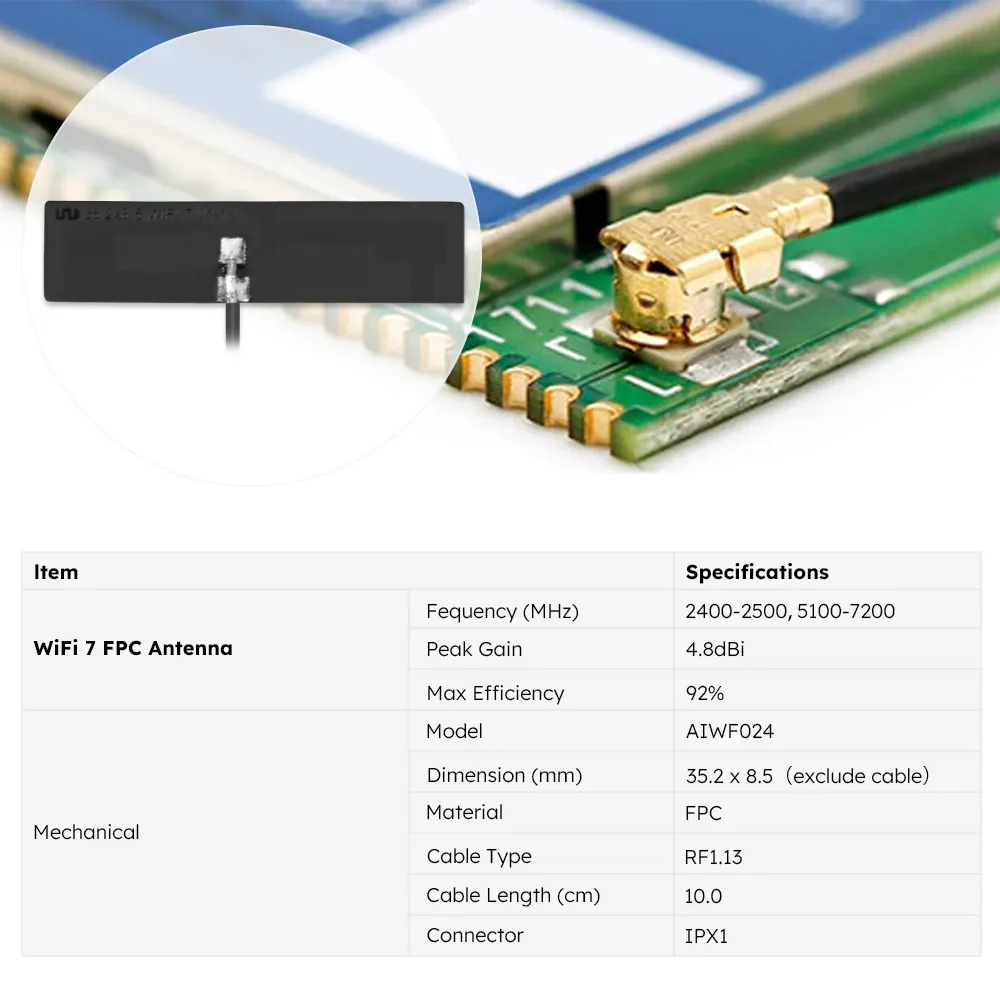

Specification

Applications

Max Efficiency: up to 92%
Cable: RF 1.13, L: 100 mm
Connector: IPEX 1

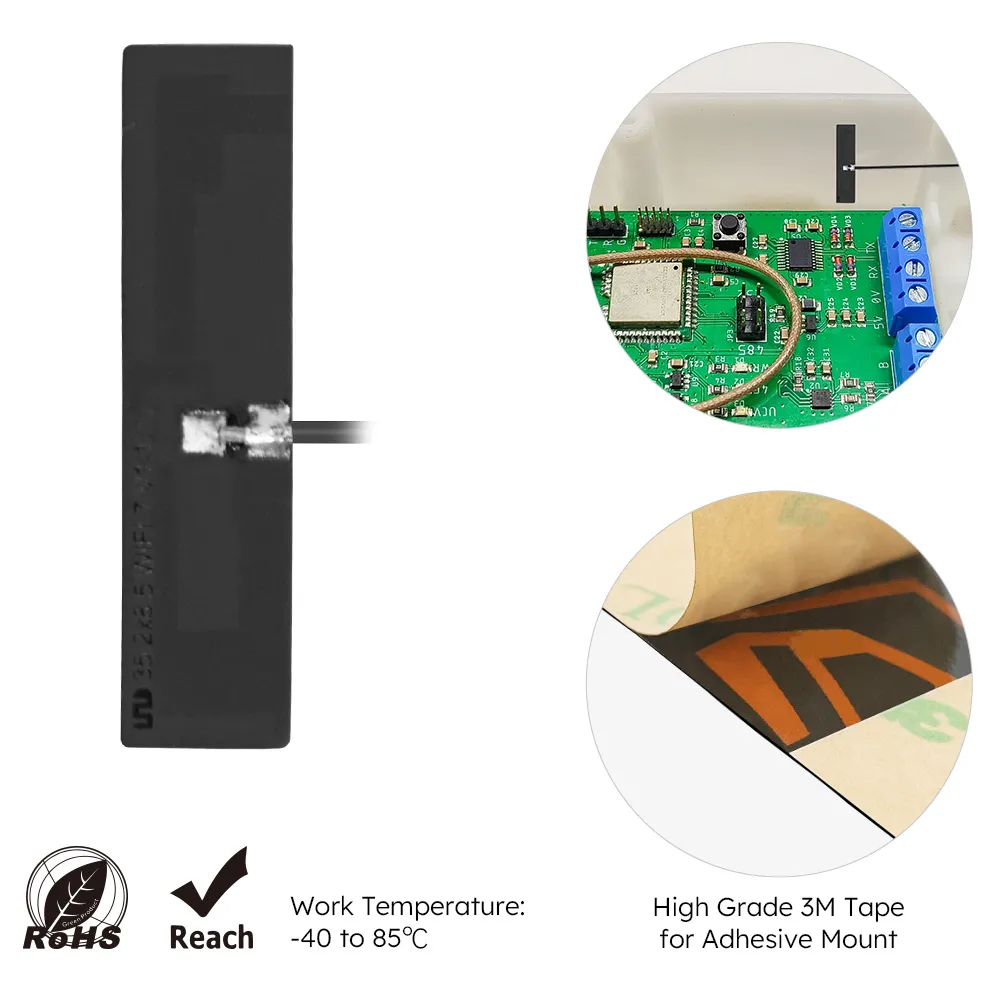

Flexible adhesive mount FPC antenna

Ultra-thin and compact design

Ground plane independent

Durable with copper interface

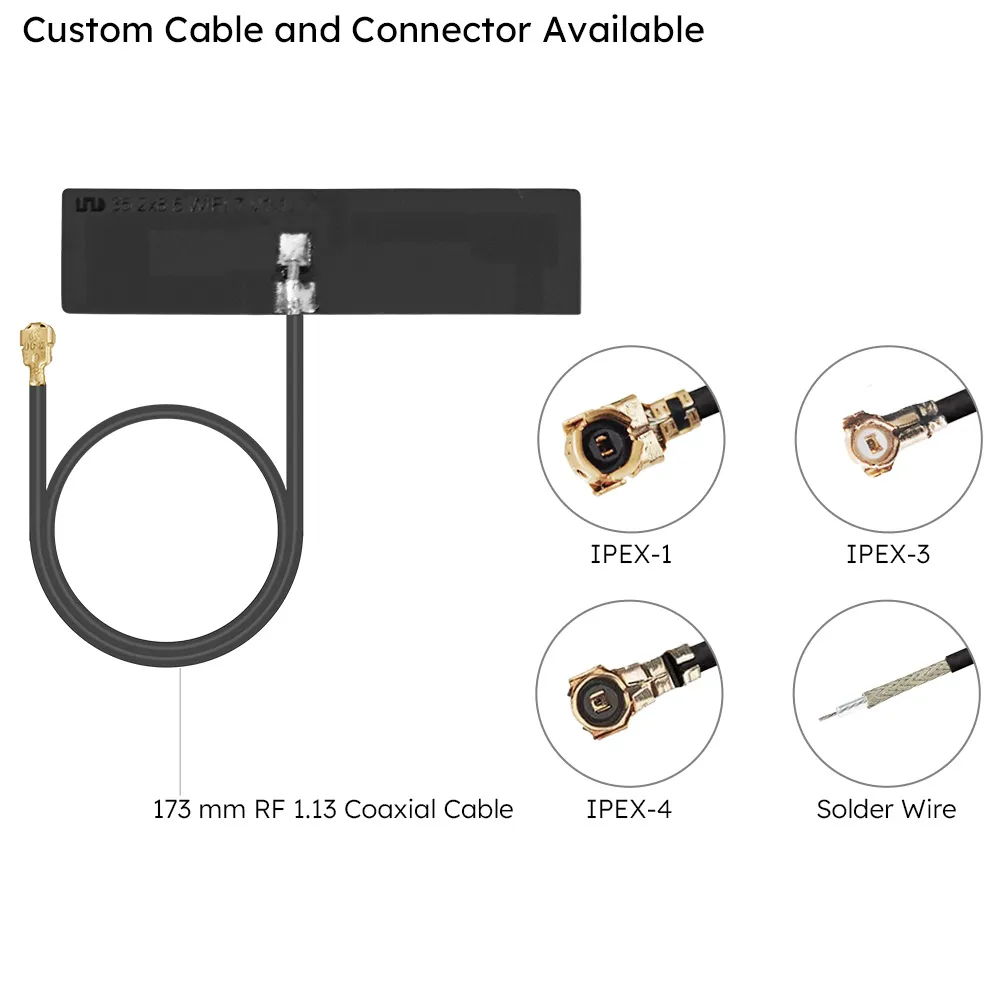

Customizable cable and connector options

REACH/RoHS compliant

Operating Frequency: 2400-2500 MHz | 5100-7200 MHz

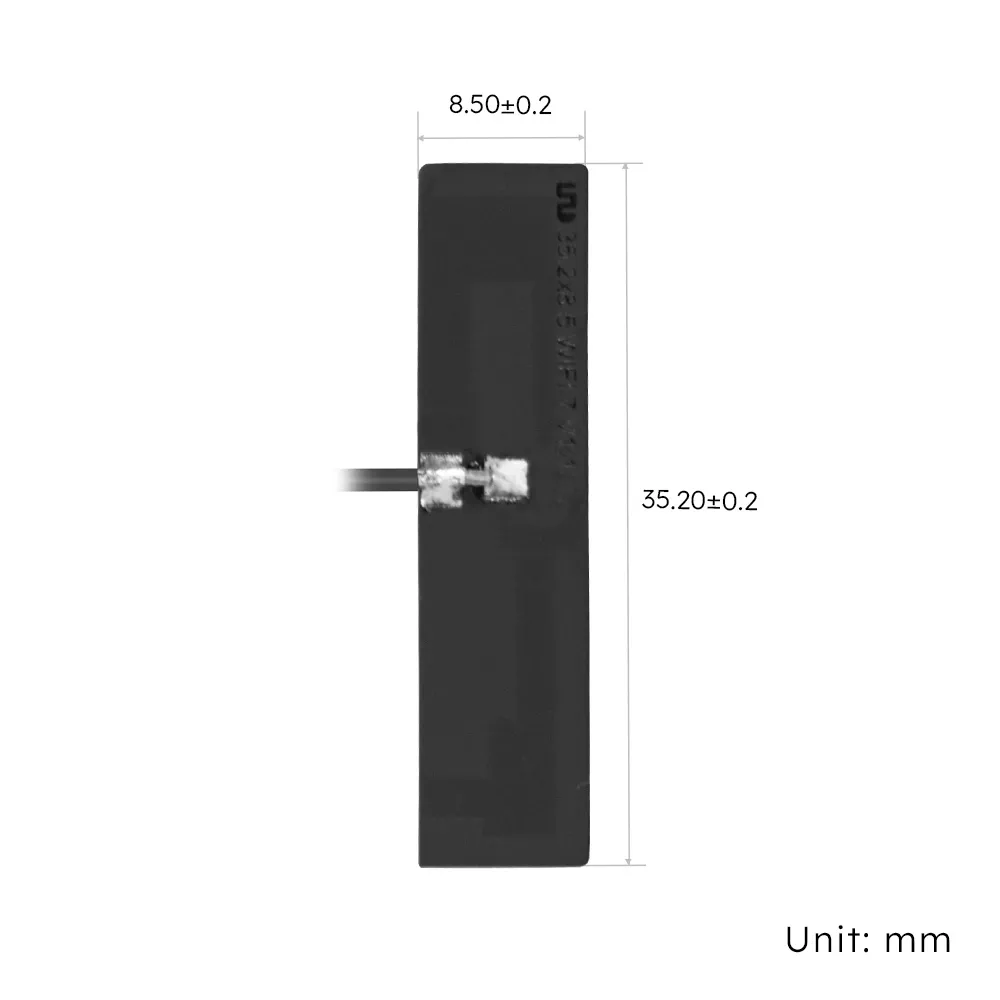

Dimensions: 35.2 x 8.5 mm

The Aboosty AIWF024 FPC antenna is a versatile and compact solution for WIFI 7, and WIFI 6E connectivity. As a flexible printed circuit board (FCB) antenna, it combines a low-profile design with high performance, making it ideal for use in smart devices, Zigbee, and Bluetooth systems. This antenna offers reliable and efficient operation. Its peelable adhesive back facilitates easy installation on non-metallic and non-conductive surfaces. To achieve optimal performance, increase the ground plane area adequately.

Package Included: 1 x FPC Antenna

LABEL

VALUE

Certificates Acquired

Reach, RoHS Compliant

Length (mm)

35.2

Width (mm)

8.5

Height (mm)

0.2

Freq. (MHz)

2400-2500, 5100-7200

Technology Type

WIFI6E, WIFI 7, Bluetooth, Zigbee

Operating Temperature (℃)

-40°C to +85°C

Markets

Transportation, Smart Industrial, Smart Cities, Connected Health, Mobility and Infrastructure, Mobile Communication

Antenna Type

Dipole

Connector Style

Right Angle

Radiation Pattern

Omnidirectional

Polarity

Linear

Max Effi. (%)

Peak Gain

4.8 dBi

VSWR

3.0:1

Impedance (Ω)

Ingress/Impact

N/A

Termination Style

Connector

Antenna Connector Type

IPEX 1

Cable Type

RF 1.13 Coax

Cable Length (mm)

100

Mechanical Style

FPC

Mounting Style

Adhesive Mount

Customization Option

Logo, Packaging, Cables and Connectors

Smart Home Devices
IoT Devices
Consumer Electronics
V2X
Industrial Equipment
Medical Devices
Drones and Robotics
Smart City Infrastructure

Part Number

User Story

Model

Description

Note

AIWF024

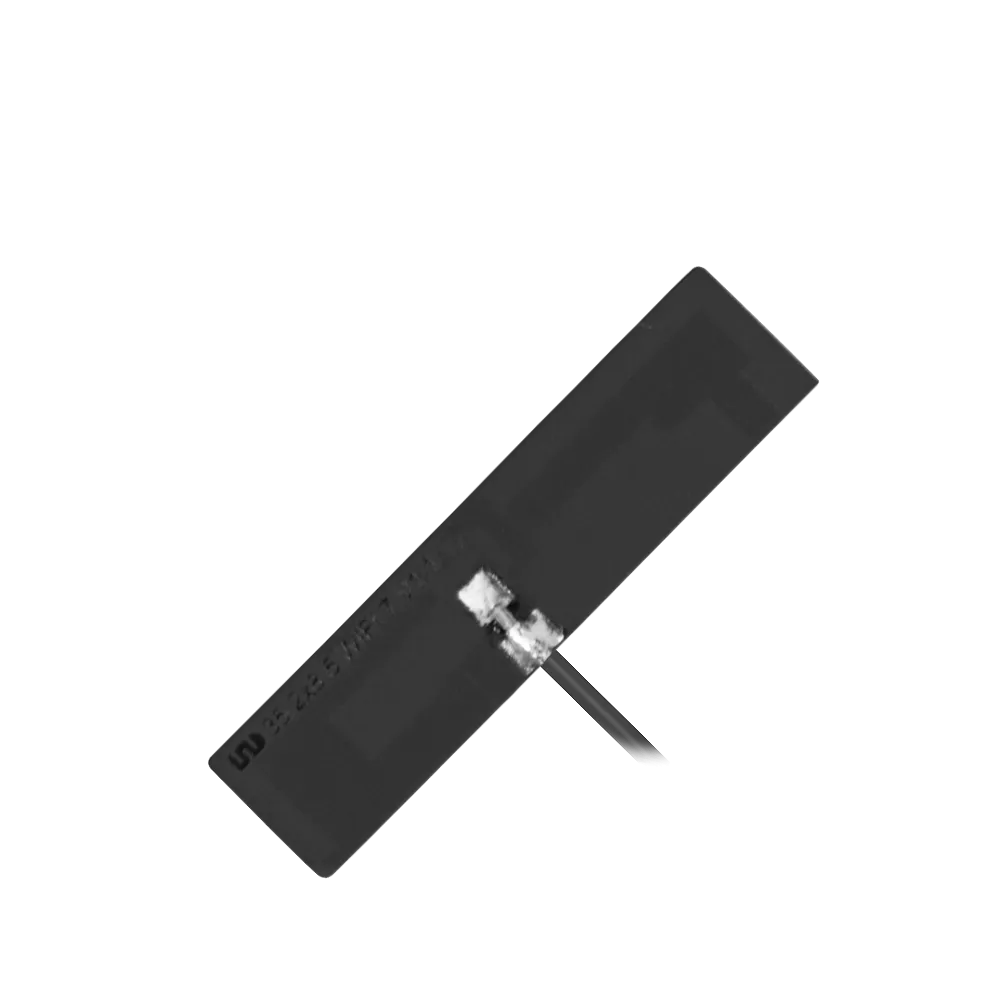

WiFi 7 35.2*8.5mm FPC Embedded Antenna

M01-0201550R0A

Customization supported
