AIWF002

Adhesive 2.4G/5.8G WiFi Embedded FPC Antenna 28.8 x 18.1 mm

WIFI/Bluetooth

Single Internal Antennas

Embedded Antennas

Download

Datasheet

Buy Samples

Coming soon

Dealers

Coming soon

Aboosty is ready to help you tackle various wireless issues.

Adhesive 2.4G/5.8G WiFi Embedded FPC Antenna 28.8 x 18.1 mm

Product Overview

Key Features

Description

Specification

Applications

Max Efficiency: up to 68%
Cable: RF 1.13, L: 146 mm
Connector: IPEX 1

Flexible adhesive mount FPC antenna

Ultra-thin and compact design

Omni-directional with dual-band support

Need Larger Ground Plane Area

Durable with copper interface

Customizable cable and connector options

REACH/RoHS compliant

Operating Frequency: 2400-2500 MHz | 5100-5900 MHz
Dimensions: 28.8 x 18.1 mm

The Aboosty AIWF002 FPC antenna is a versatile and compact solution designed for 2.4 GHz and 5.8 GHz connectivity. As a flexible printed circuit board (FCB) antenna, it combines a low-profile design with high performance, making it ideal for use in smart devices, Zigbee, and Bluetooth systems. This antenna offers reliable and efficient operation. Its peelable adhesive back facilitates easy installation on non-metallic surfaces. For optimal performance, ensure that the ground plane area is adequately increased.

Package Included: 1 x FPC Antenna

LABEL

VALUE

Certificates Acquired

Reach, RoHS Compliant

Length (mm)

28.8

Width (mm)

18.1

Height (mm)

0.2

Freq. (MHz)

2400-2500, 5100-5900

Technology Type

2.4G & 5G WIFI, Bluetooth, Zigbee

Operating Temperature (℃)

-40°C to +85°C

Markets

Transportation, Smart Industrial, Smart Cities, Connected Health, Mobility and Infrastructure, Mobile Communication

Antenna Type

Monopole

Connector Style

Right Angle

Radiation Pattern

Omnidirectional

Polarity

Linear

Max Effi. (%)

Peak Gain

3.1 dBi

VSWR

3.0:1

Impedance (Ω)

Ingress/Impact

N/A

Termination Style

Connector

Antenna Connector Type

IPEX 1

Cable Type

RF 1.13 Coax

Cable Length (mm)

143

Mechanical Style

FPC

Mounting Style

Adhesive Mount

Customization Option

Logo, Packaging, Cables and Connectors

Smart Home Devices
IoT Devices
Consumer Electronics
V2X
Industrial Equipment
Medical Devices
Drones and Robotics
Smart City Infrastructure

Part Number

User Story

Model

Description

Note

AIWF003

2.4G/5.8G WiFi 28.8*18.1mm FPC Embedded Antenna

M01-0200090R0A

Customization supported

DELIVERY INFORMATION

Antennas & GPS modules, RF Connectors / Cables

Antennas & GPS modules, RF Connectors / Cables - estimated delivery time for samples is 5-7 days

Evaluation boards

Evaluation boards - estimated delivery time for samples is 7-14 days

Delivery & Returns >

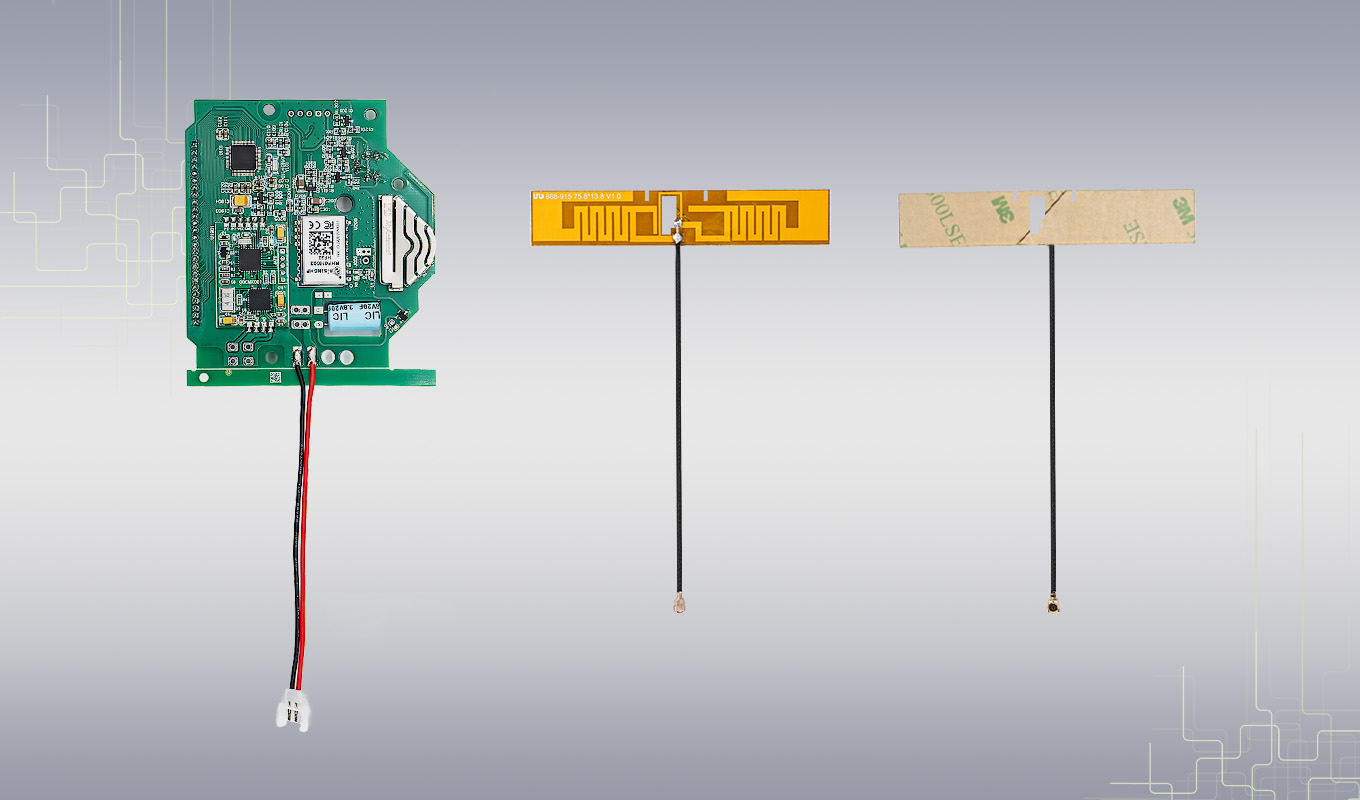

Powering Success: Bringing Client Innovations to Reality
