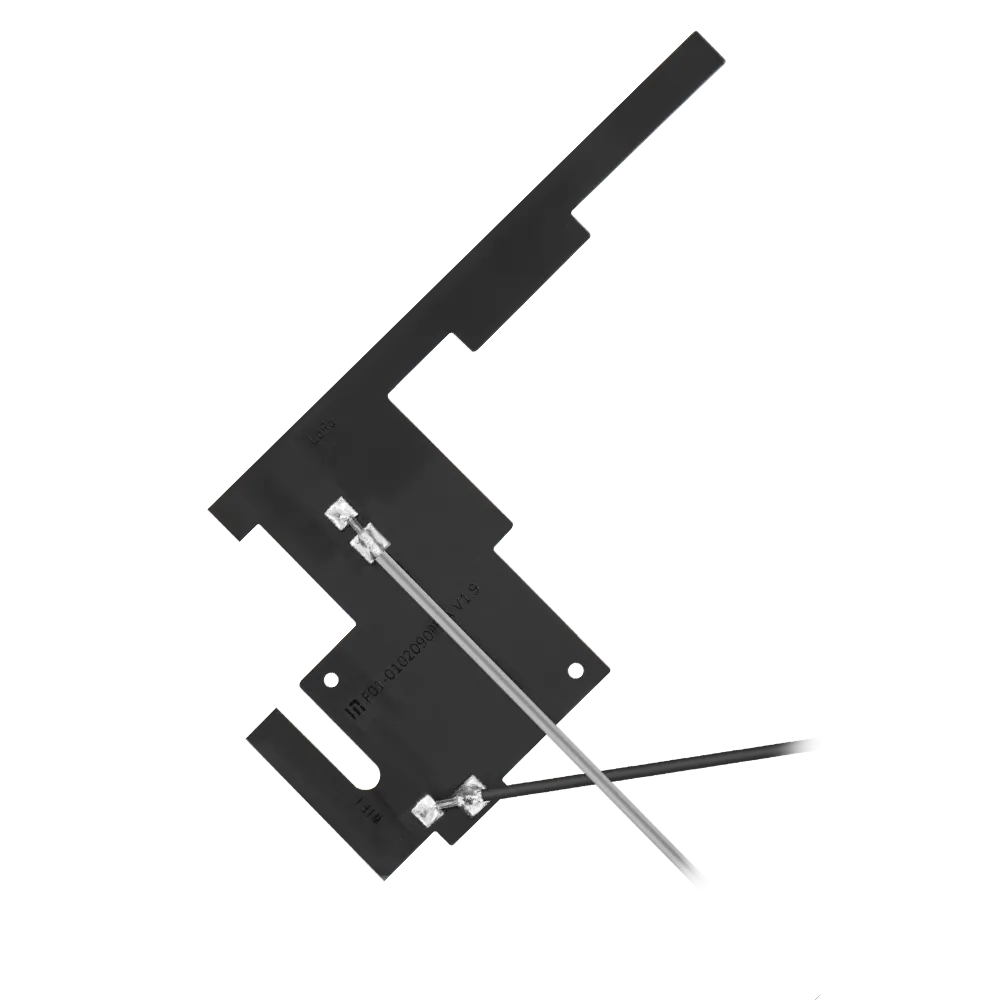

Adhesive LoRa and WiFi 2-in-1 Combination Embedded FPC Antenna for SenseCAP Indicators

SKU: AILF003 Categories: FPC Antennas, Internal Antennas Tags: LoRa, Wholesale 2.4GHz Antennas

Product Overview

Key Features

Description

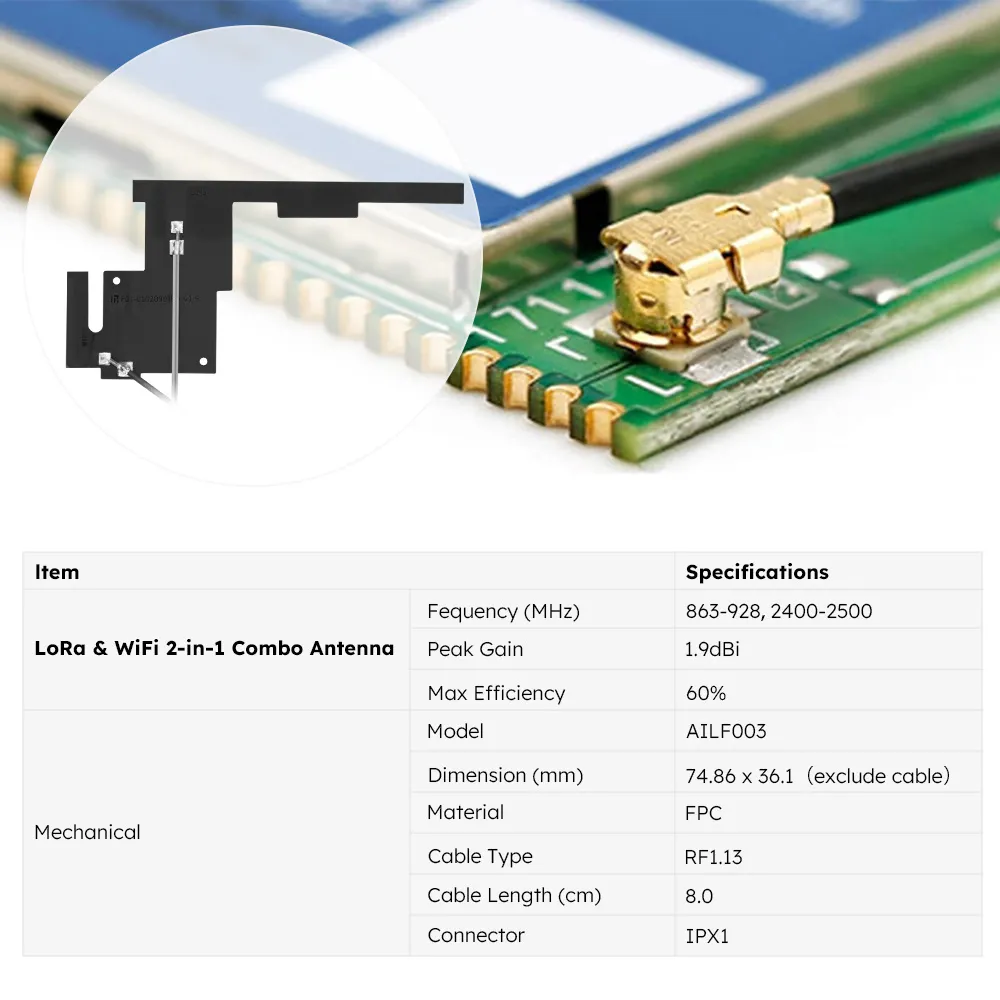

Specification

Applications

Max Efficiency: up to 60%
Cable: RF 1.13, L: 80 mm
Connector: IPEX 1

Flexible adhesive mount FPC antenna

Ultra-thin and compact design

Omni-directional with 2-in-1 multi-band support

Durable with copper interface

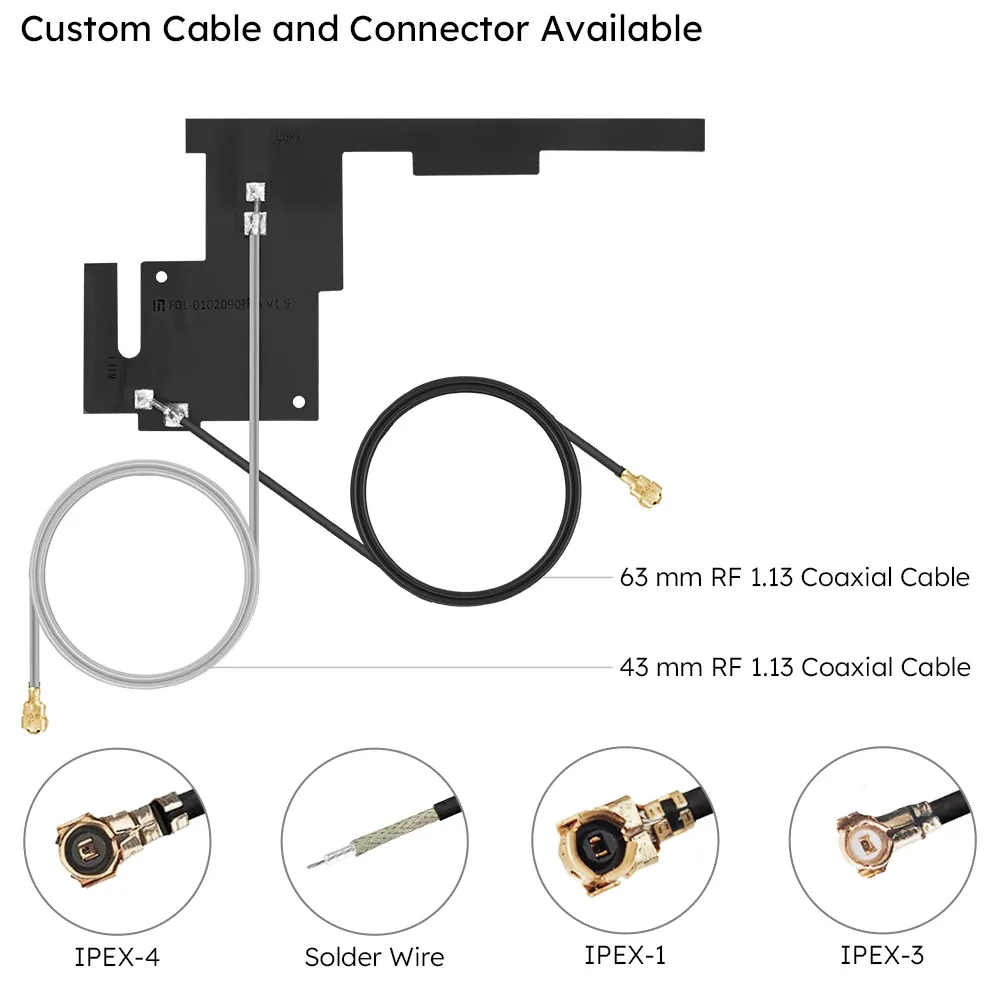

Customizable cable and connector options

REACH/RoHS compliant

Operating Frequency: 863-928 MHz | 2400-2500 MHz

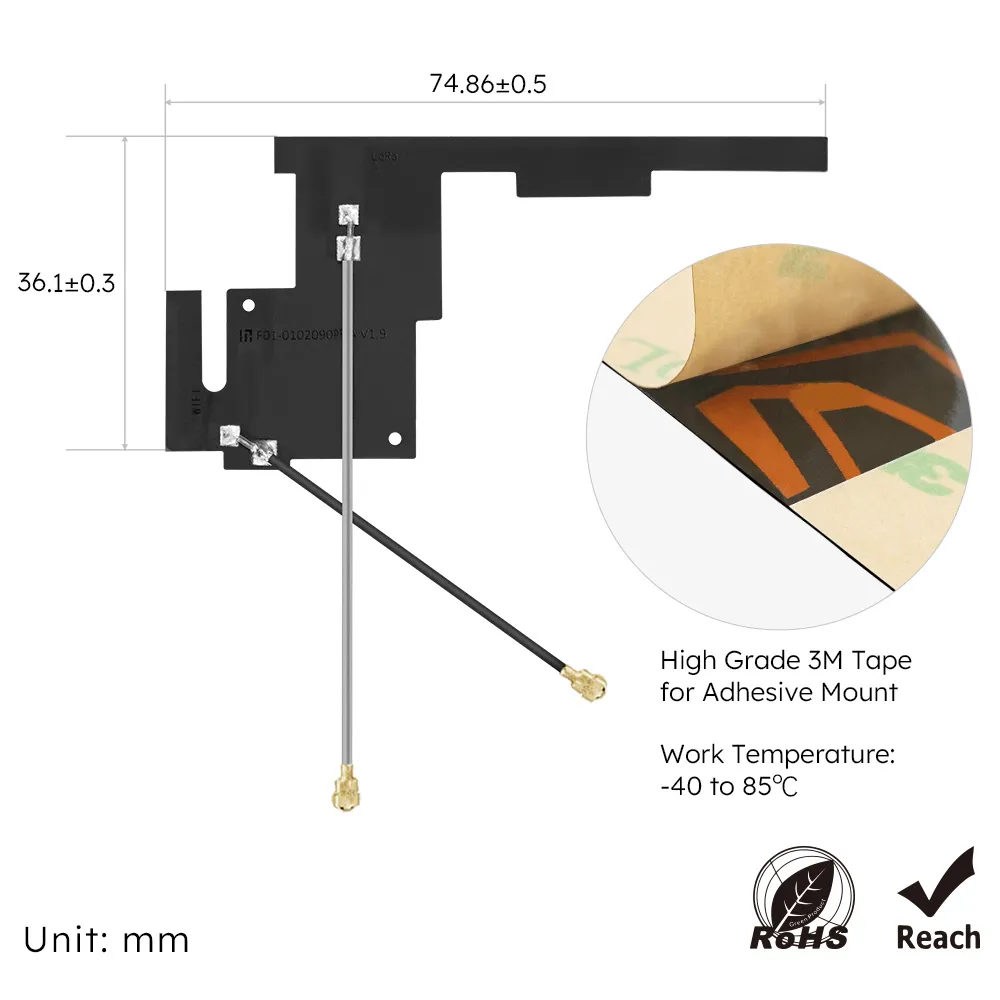

Dimensions: 74.86 x 36.1 mm

Aboosty LoRa and WiFi SenseCAP Indicator Antenna

The Aboosty AILF003 FPC antenna is a versatile and compact solution for the SenseCAP Indicators. As a flexible printed circuit board (FCB) antenna, it combines a low-profile design with high performance, making it ideal for use in smart devices, Zigbee, and Bluetooth systems. This antenna offers reliable and efficient operation at 868, 915 LoRa, and 2.4GHz WiFi frequency. Its peelable adhesive back facilitates easy installation on non-metallic surfaces. For optimal performance, ensure that the ground plane area is adequately increased.

Package Included: 1 x FPC Antenna

LABEL

VALUE

Certificates Acquired

Reach, RoHS Compliant

Length (mm)

74.86

Width (mm)

36.1

Height (mm)

0.2

Freq. (MHz)

863-928, 2400-2500

Technology Type

2.4G WIFI, Bluetooth, Zigbee, LoRa/Sigfox

Operating Temperature (℃)

-40°C to +85°C

Markets

Transportation, Smart Industrial, Smart Cities, Connected Health, Mobility and Infrastructure, Mobile Communication

Antenna Type

Monopole

Connector Style

Right Angle

Radiation Pattern

Omnidirectional

Polarity

Linear

Max Effi. (%)

Peak Gain

1.9 dBi

VSWR

3.0:1

Impedance (Ω)

Ingress/Impact

N/A

Termination Style

Connector

Antenna Connector Type

IPEX 1

Cable Type

RF 1.13 Coax

Cable Length (mm)

Mechanical Style

FPC

Mounting Style

Adhesive Mount

Customization Option

Logo, Packaging, Cables and Connectors

Smart Home Devices
IoT Devices
Consumer Electronics
V2X
Industrial Equipment
Medical Devices
Drones and Robotics
Smart City Infrastructure

Part Number

User Story

Model

Description

Note

AILF003

LoRa and WiFi 2-in-1 74.86*36.1mm FPC Embedded Antenna

M01-0400690R0A

Customization supported
