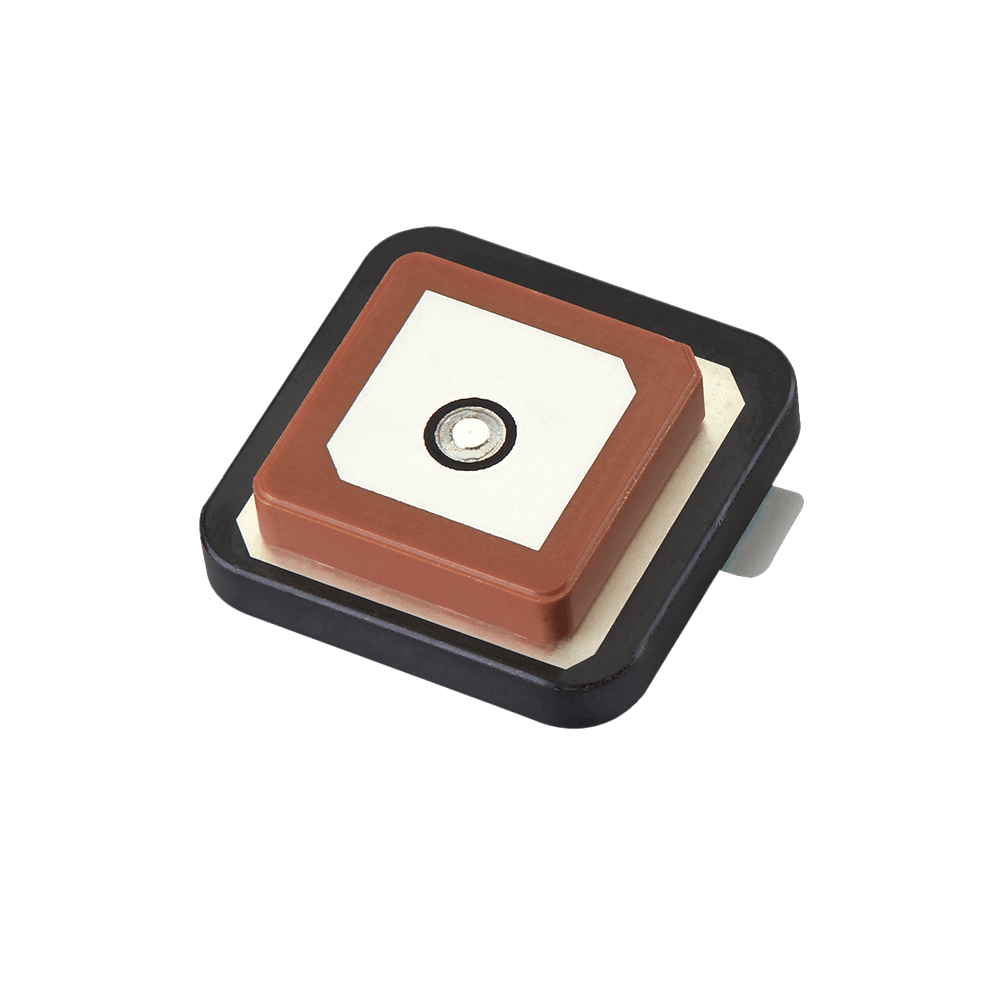

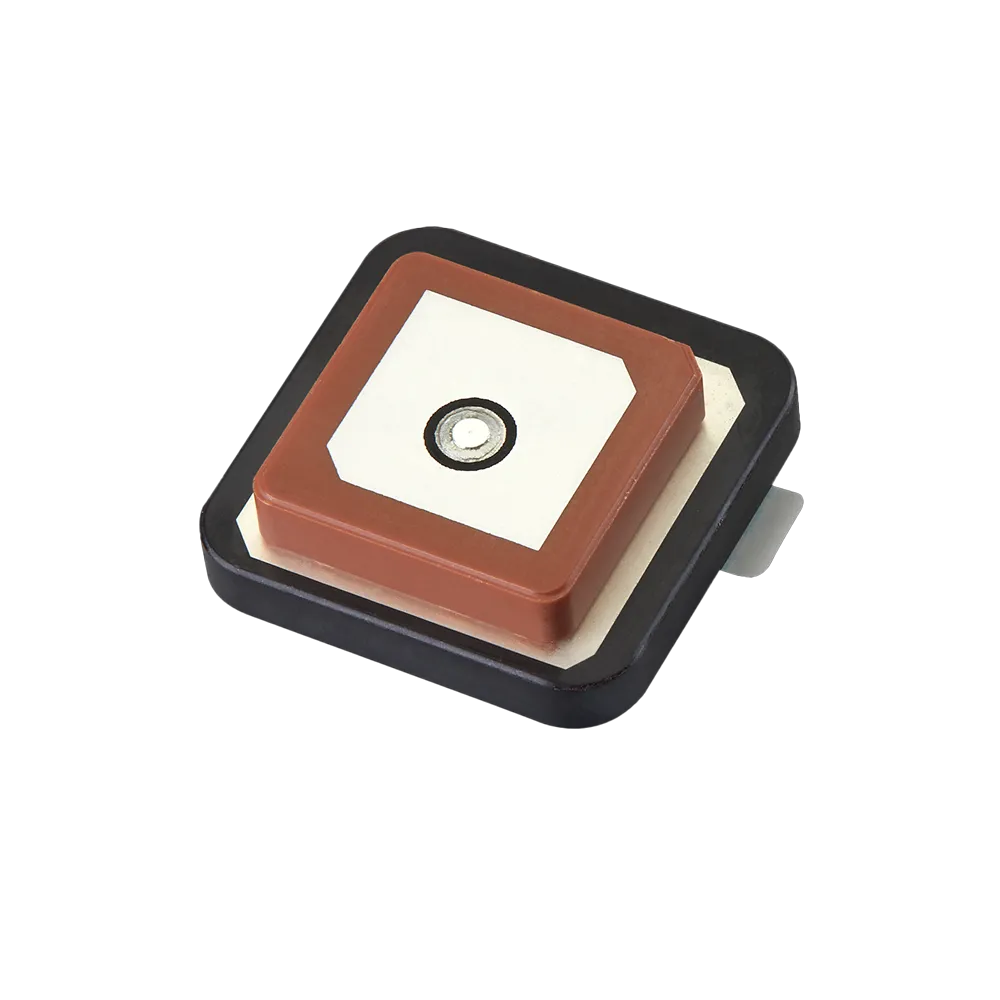

AIGC044 | Embedded GPS / BDS / GLONASS Stacked Passive Patch Antenna

Product Overview

Key Features

Specification

Applications

Covering Bands:
B1I: 1561.098±2.046 ( MHz)
B2a: 1176.45±1.023（MHz）

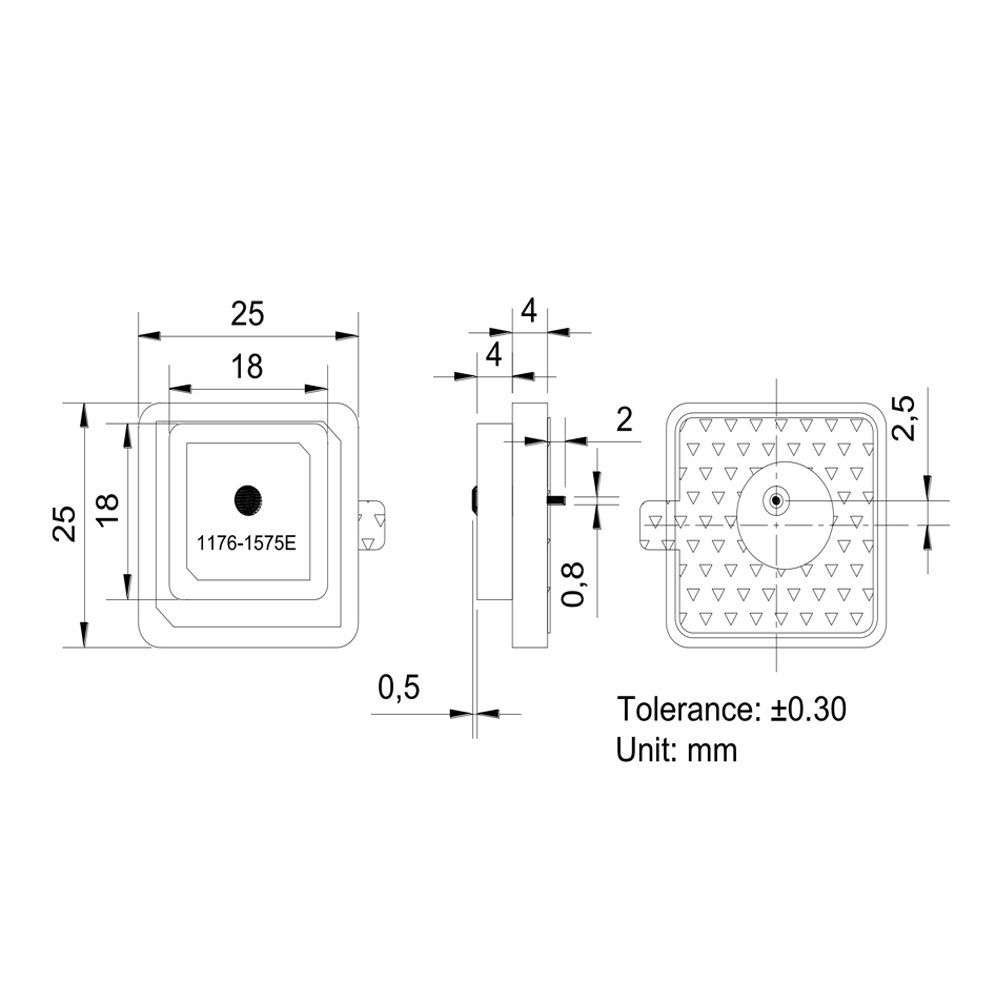

Dimensions: 25x25x2+18x18x2mm

Tuned for 36×36 mm Ground Plane

Directional Passive GNSS Ceramic Antenna

SMT Stacked Patch Embedded Antenna

Low Axial Ratio

Miniaturized, Multi-system Compatible

Custom Cables and Connectors Available

RoHS Compliant

LABEL

VALUE

Certificates Acquired

RoHS Compliant

Length (mm)

Width (mm)

Height (mm)

Freq. (MHz)

1561±2, 1176.45±1

Technology Type

GPS/BDS/GLONASS

Frequency Bands

B1, B2

Operating Temperature (℃)

-40°C to +85°C

Markets

Transportation, Mobile Communication, Others

Antenna Type

Passive

Radiation Pattern

Directional

Polarity

RHCP

Peak Gain

1 dBi

Impedance (Ω)

Ingress/Impact

N/A

Termination Style

PCB

Antenna Connector Type

N/A

Cable Type

N/A

Mechanical Style

Ceramic

Mounting Style

SMT/SMD

Customization Option

Logo, Packaging, Cables and Connectors

Satellite Navigation Receivers
Geodetic Surveying and Mapping
Channel Surveying and Mapping
Precision Agriculture
Marine Surveying
Asset and Fleet Tracking
Oil, Gas, and Mining Industries
M2M Applications
Hand-held/Portable Devices
BeiDou B1 Band / GPS L1 Band / GLONASS G1 Band

Part Number

User Story

Model

Description

Note

AIGC044

Embedded GPS/BDS/GLONASS Stacked Passive Patch Antenna

M04-0104710R0A

Customization supported

DELIVERY INFORMATION

Antennas & GPS modules, RF Connectors / Cables

Antennas & GPS modules, RF Connectors / Cables - estimated delivery time for samples is 5-7 days

Evaluation boards

Evaluation boards - estimated delivery time for samples is 7-14 days

Delivery & Returns >
