AIGC024 | GNSS Passive Stacked Patch Multi-Band Antenna

SKU: AIGC024 Categories: , , Tags: , , ,

Product Overview

Key Features
Description
Specification
Applications

Antenna Size: 35 x 35 x 4 mm
PCB Board Size: Ø 81*130*1.0 mm
Connector: SMA FEMALE
Cable: RF1.13

Comes with an internal ground plane
Embedded Implementation: Ideal for embedded GPS tracking applications.
Custom Ceramic Patch Element: Precision-tuned for maximum signal reception.
RoHS & Reach Compliant

Operating Frequency: 1550-1610 MHz

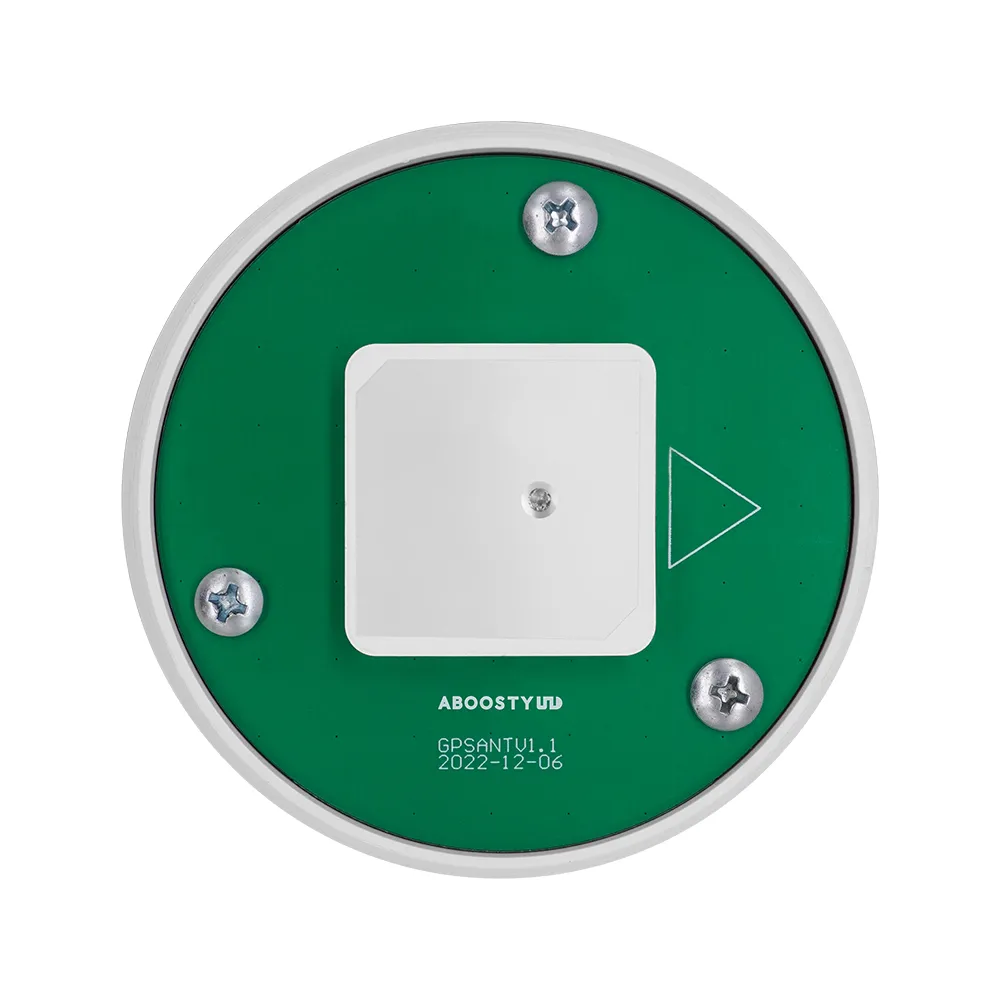

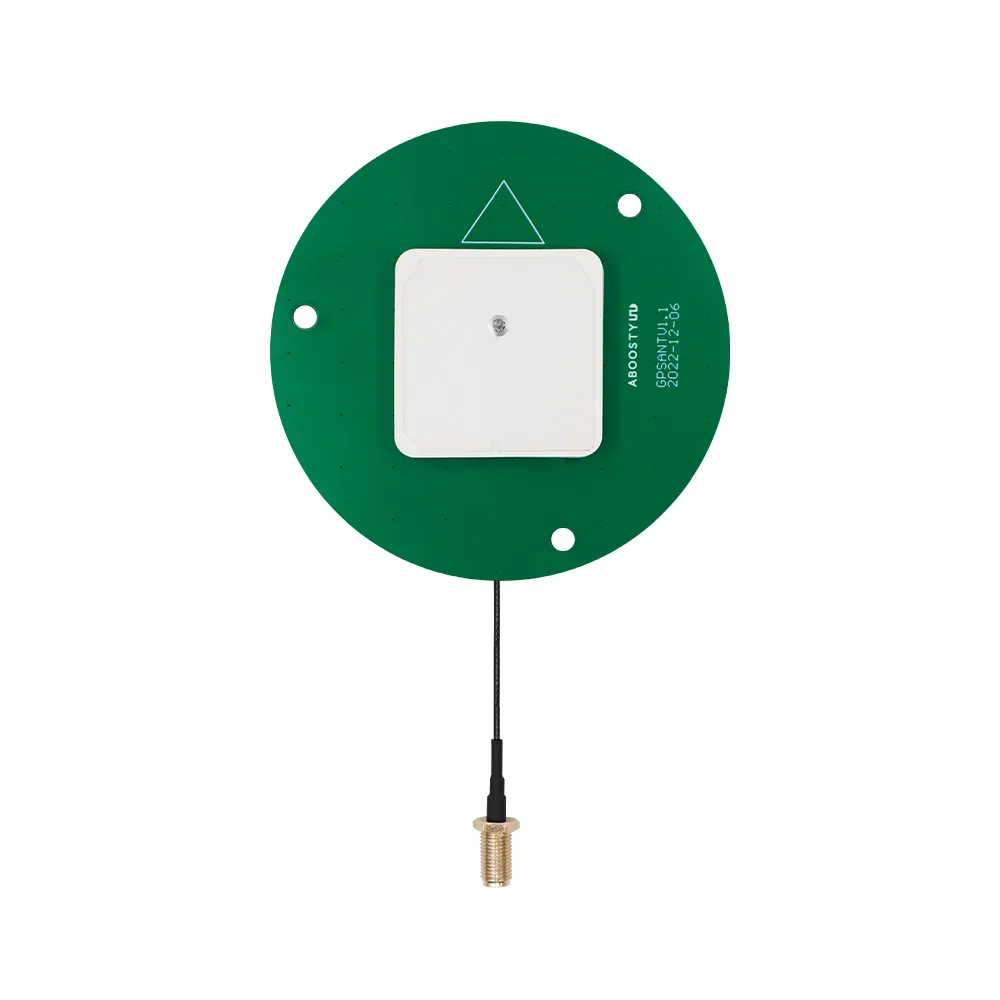

Aboosty’s AIGC024 embedded GPS patch antenna is specially designed for GPS/GNSS applications. This passive ceramic patch antenna delivers excellent stability and sensitivity through precision-tuned ceramic materials and advanced manufacturing processes.

The Aboosty AIGC024 is a low-profile, high-performance, directional, and passive antenna solution tailored for multi-band GPS applications.
The cable and connector configurations are fully customizable. For more information or additional support, don’t hesitate to get in touch with the Aboosty customer support team.

LABEL
VALUE
Certificates Acquired
Reach, RoHS Compliant
Length (mm)
35
Width (mm)
35
Height (mm)
4
Freq. (MHz)
1550-1610
Technology Type
GNSS
Frequency Bands
L1
Operating Temperature (℃)
-40°C to +85°C
Markets
Transportation, Mobile Communication, Others
Antenna Type
Passive GNSS
Connector Style
Straight
Radiation Pattern
Directional
Polarity
RHCP
Max Effi. (%)
57.89
Peak Gain
3.22 dBiC
VSWR
25:1
Impedance (Ω)
50
Ingress/Impact
N/A
Termination Style
Connector
Antenna Connector Type
SMA-Female
Cable Type
RF 1.13 Coax
Cable Length (mm)
N/A
Mechanical Style
Ceramic
Mounting Style
Screw Mount
Customization Option
Logo, Packaging
  • Automotive Navigation Systems
  • Mobile Devices
  • Drones and Robotics
  • Precision Agriculture
  • Transport and Logistics
  • Outdoor Sports Devices
Part Number
User Story
Model
Description
PN
Note
AIGC024
35x35x4 GNSS Passive Antenna
M01-0300100R0A
Customization supported
DELIVERY INFORMATION
Antennas & GPS modules, RF Connectors / Cables
Antennas & GPS modules, RF Connectors / Cables - estimated delivery time for samples is 5-7 days
Evaluation boards
Evaluation boards - estimated delivery time for samples is 7-14 days
Delivery & Returns >
