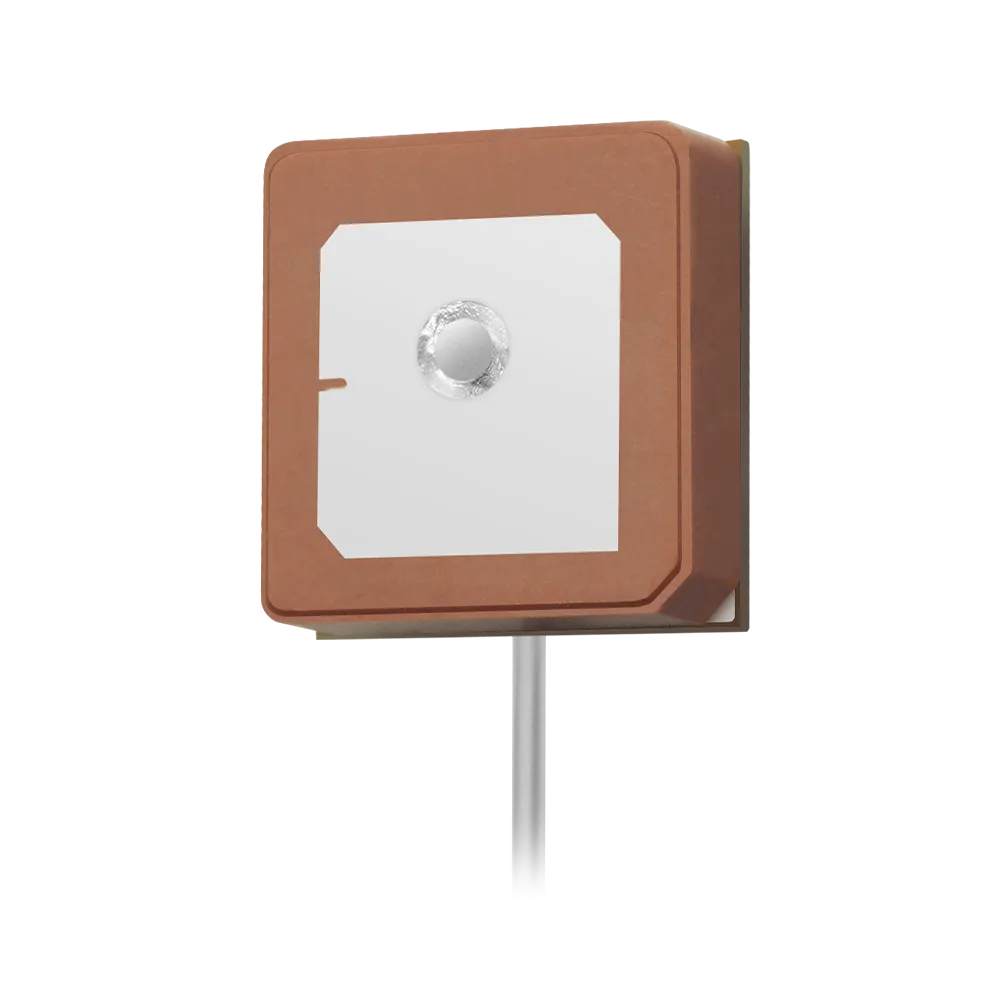

AIGC020 | Circularly Polarized Active GPS Ceramic Patch Antenna

Our 5G antennas offer an extreme boost to speed and significantly lower latency, whilst also boasting greater bandwidth.

Product Overview

Key Features

Description

Specification

Applications

24 dB LNA

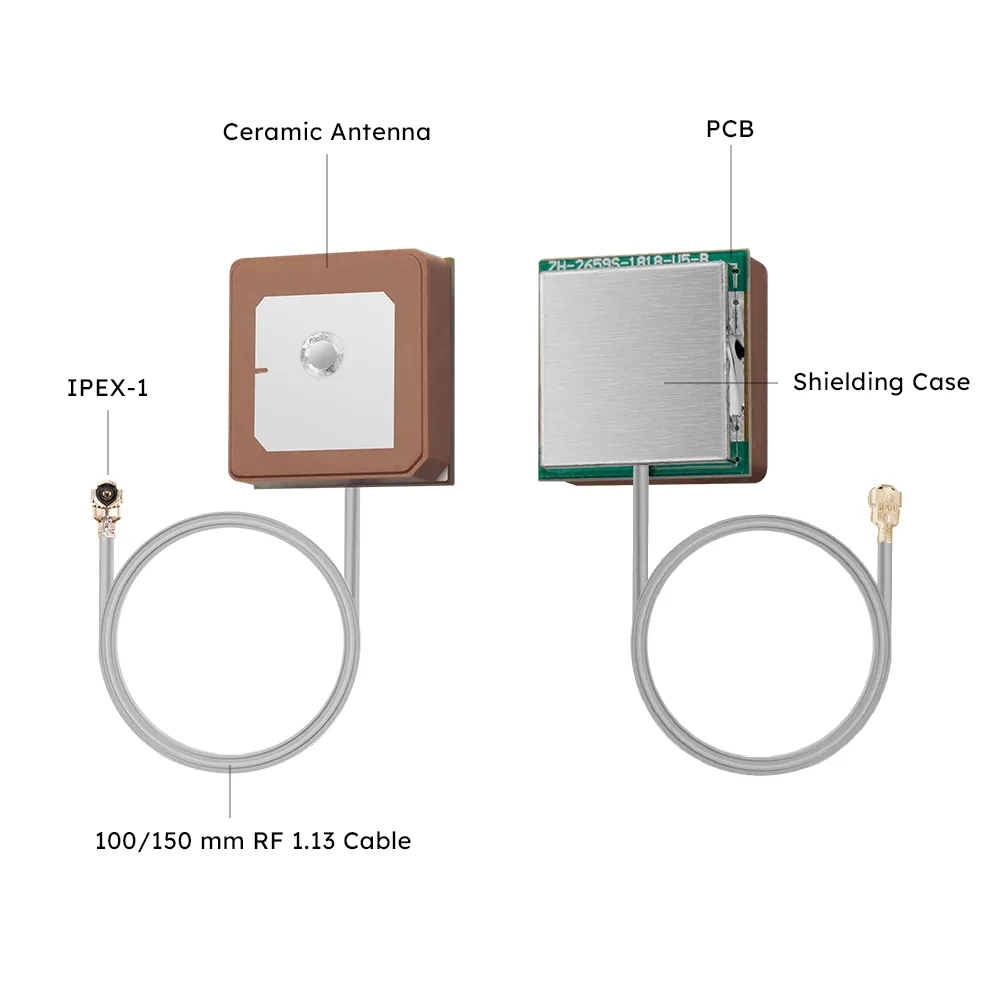

Connector: IPEX 1
Cable: 100/150 mm RF1.13
Input Voltage 3.3V

18x18x2 mm internal embedded ceramic patch antenna Miniaturized, multi-system compatible

Miniaturized, multi-system compatible

Directional, active, high performance

Low power consumption, supports multiple frequency bands

Custom Cables and Connectors Available

RoHS & Reach Compliant

Operating Frequency: 1550-1605 MHz
Covering Bands: BDS B1; GPS L1; GLONASS G1

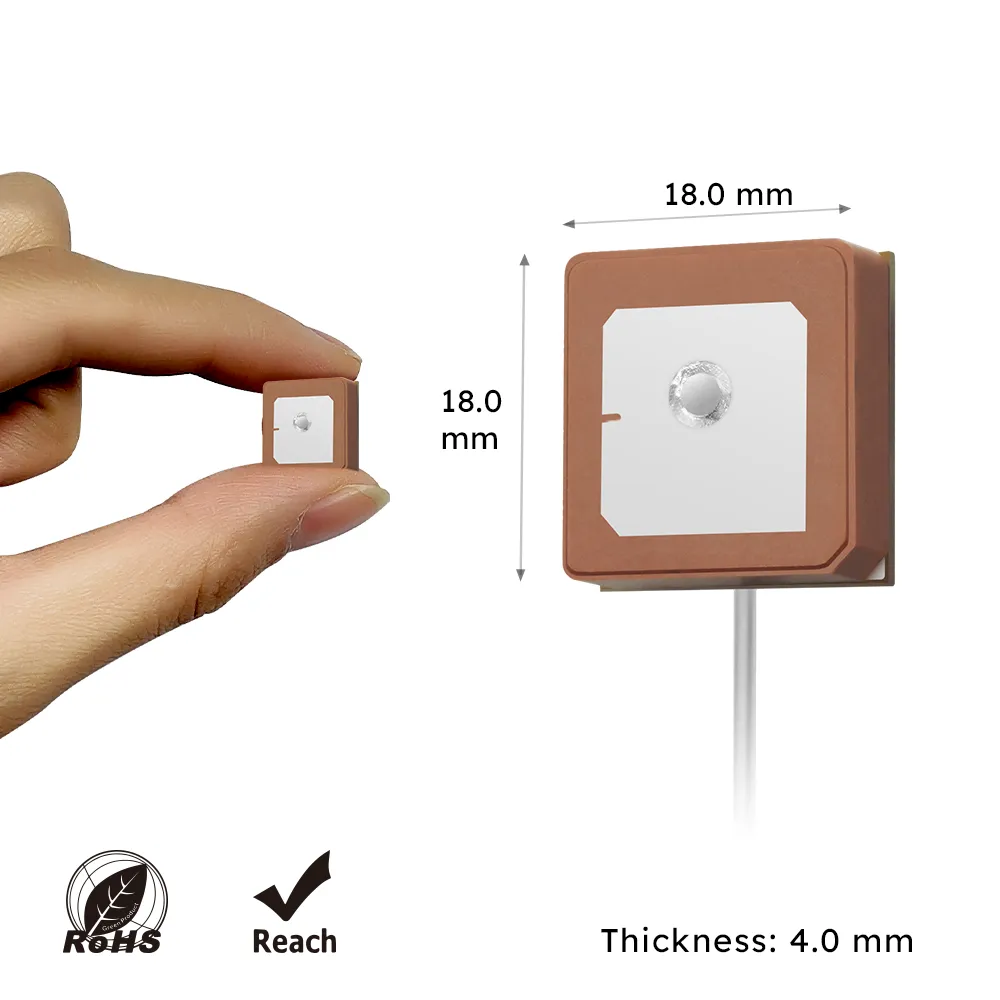

Dimensions: 18 x 18 x 4 mm

Multi-band Embedded Ceramic Patch Antenna for Precision GPS Applications

Aboosty’s AIGC020 embedded GPS patch antenna is specially designed for GPS applications. This ceramic patch antenna delivers excellent stability and sensitivity through precision-tuned ceramic materials and advanced manufacturing processes.

The Aboosty AIGC020 is a low-profile, high-performance, directional, and active antenna solution tailored for multi-band GPS applications. It was designed for embedded use and utilized an 18 x 18 x 4 mm advanced wide-band ceramic patch antenna with optimized gain to achieve high-precision GPS accuracy and rapid positioning. The Aboosty Circularly Polarized Active GPS Ceramic Patch Antenna has been optimized to support the bands required for the next generation of GPS receivers available on the market. It includes mounting holes in the PCB corners for easy integration into customer devices.

The cable and connector configurations are fully customizable. For more information or additional support, please get in touch with the Aboosty customer support team.

LABEL

VALUE

Certificates Acquired

Reach, RoHS Compliant

Length (mm)

Width (mm)

Height (mm)

Product Weight (g)

Freq. (MHz)

1550-1605

Technology Type

GPS/BDS/GLONASS

Frequency Bands

B1, L1

Operating Temperature (℃)

-40°C to +85°C

Markets

Transportation, Smart Industrial, Mobile Communication, Public Safety, Others

Antenna Type

Active

Connector Style

N/A

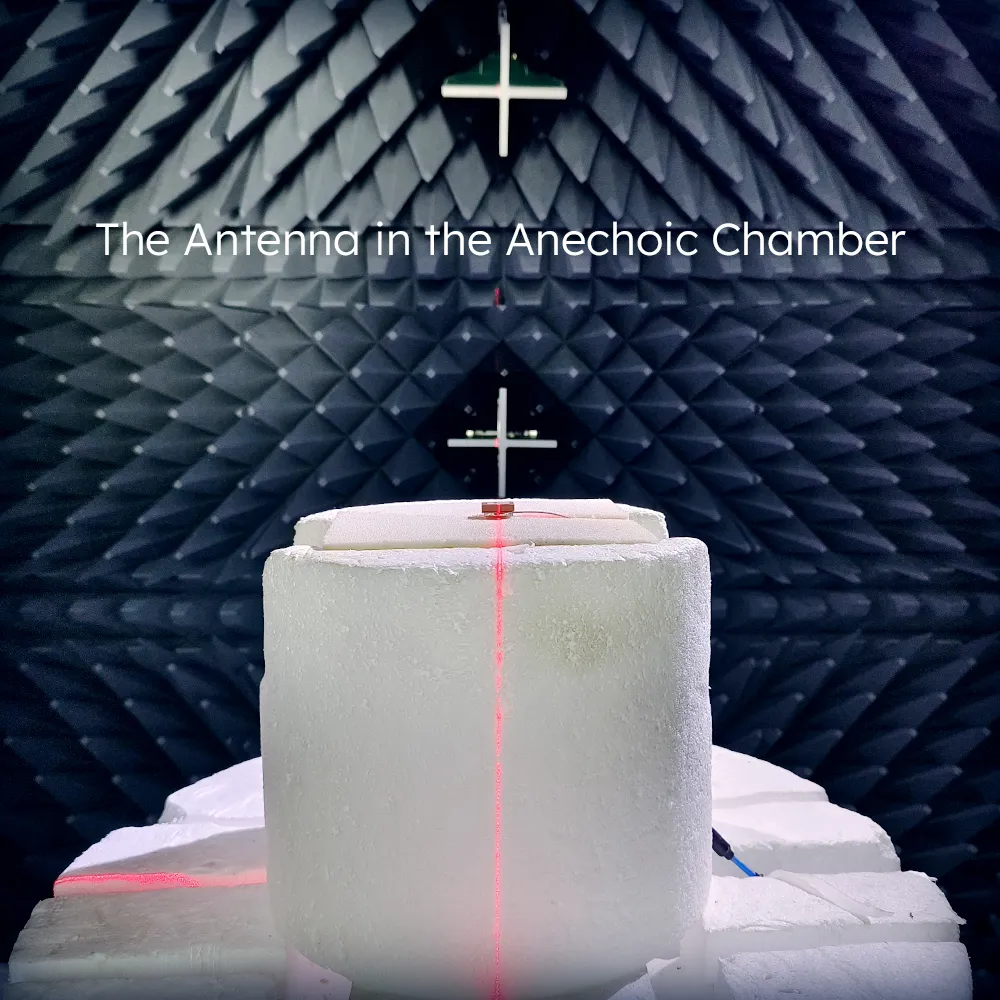

Radiation Pattern

Directional

Polarity

RHCP

Peak Gain

31.34 dB

Impedance (Ω)

Ingress/Impact

N/A

Termination Style

Connector

Antenna Connector Type

IPEX 1

Cable Type

RF 1.13 Coax

Cable Length (mm)

150

Mechanical Style

Ceramic

LNA Gain

24.24 dB

Noise Figure (dB)

1.5 Max

Axial Ratio (AR) (dB)

<1.5 dB

Mounting Style

Pin/Adhesive

Customization Option

Logo, Packaging, Cables and Connectors

Satellite Navigation Receivers
Geodetic Surveying and Mapping
Channel Surveying and Mapping
Precision Agriculture
Marine Surveying
Asset and Fleet Tracking
Oil, Gas, and Mining Industries
M2M Applications
Hand-held/Portable Devices
Wearables
Transportation
Robotics
Autonomous Vehicles
BeiDou B1 Band / GPS L1 Band / GLONASS G1 Band

Part Number

User Story

Model

Description

Note

AIGC020

Antenna with IPEX 1, 150 mm RF1.13 Cable

M04-0103720R0A

Customization supported

AIGC021

Antenna with IPEX 1, 100 mm RF1.13 Cable

M04-0103740R0A

Customization supported

DELIVERY INFORMATION

Antennas & GPS modules, RF Connectors / Cables

Antennas & GPS modules, RF Connectors / Cables - estimated delivery time for samples is 5-7 days

Evaluation boards

Evaluation boards - estimated delivery time for samples is 7-14 days

Delivery & Returns >
