AEWW010 | 2.4G WIFI Omni-directional Swivel Whip Antenna

Our 5G antennas offer an extreme boost to speed and significantly lower latency, whilst also boasting greater bandwidth.

SKU: AEWW010 Category: Tag:

Product Overview

Key Features
Description
Specification
Applications

Peak Gain: 4.05 dBi
Connector: Hinged SMA-Male Connector

Durable with Enhanced Hinge for Vibration Environments
Omni-Directional, Monopole Antenna, Ground Plane Dependent
Suitable for Both Indoor and Outdoor Use

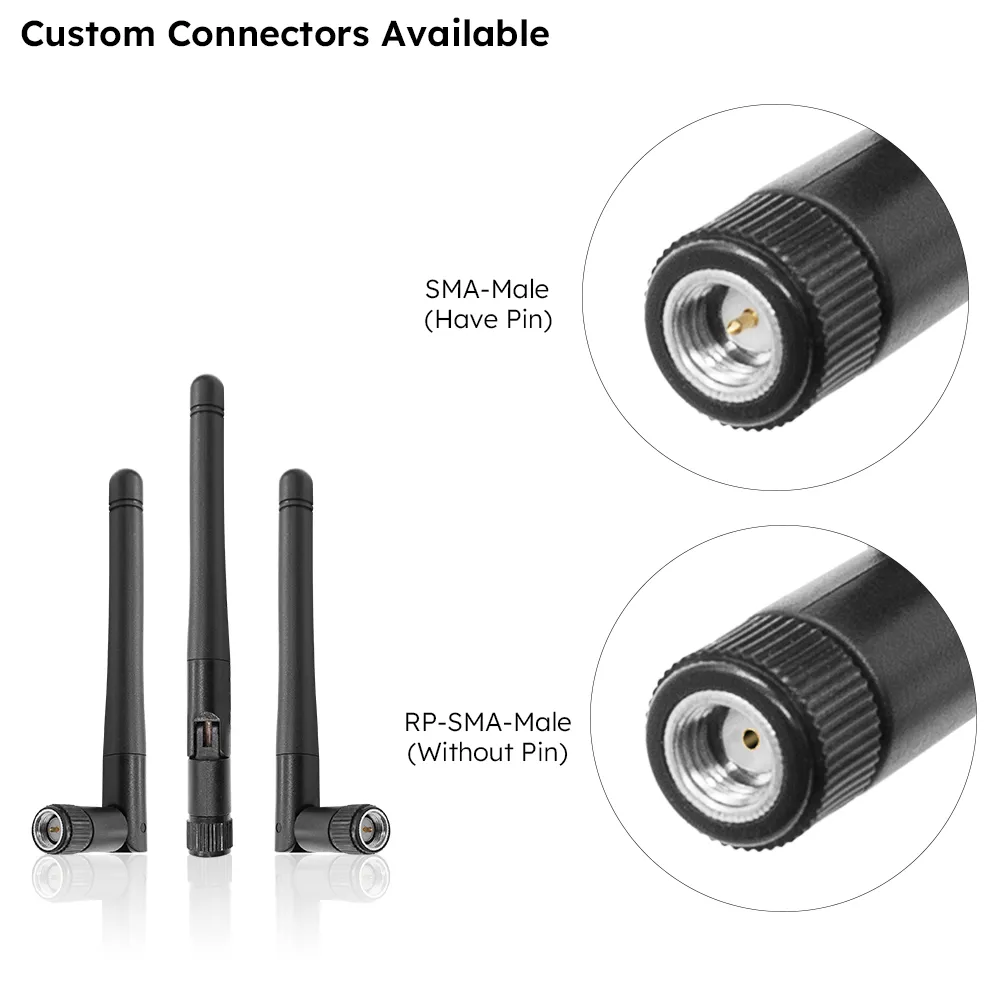

Custom Connector Available
RoHS Compliant

Operating Frequency: 2400-2500 MHz

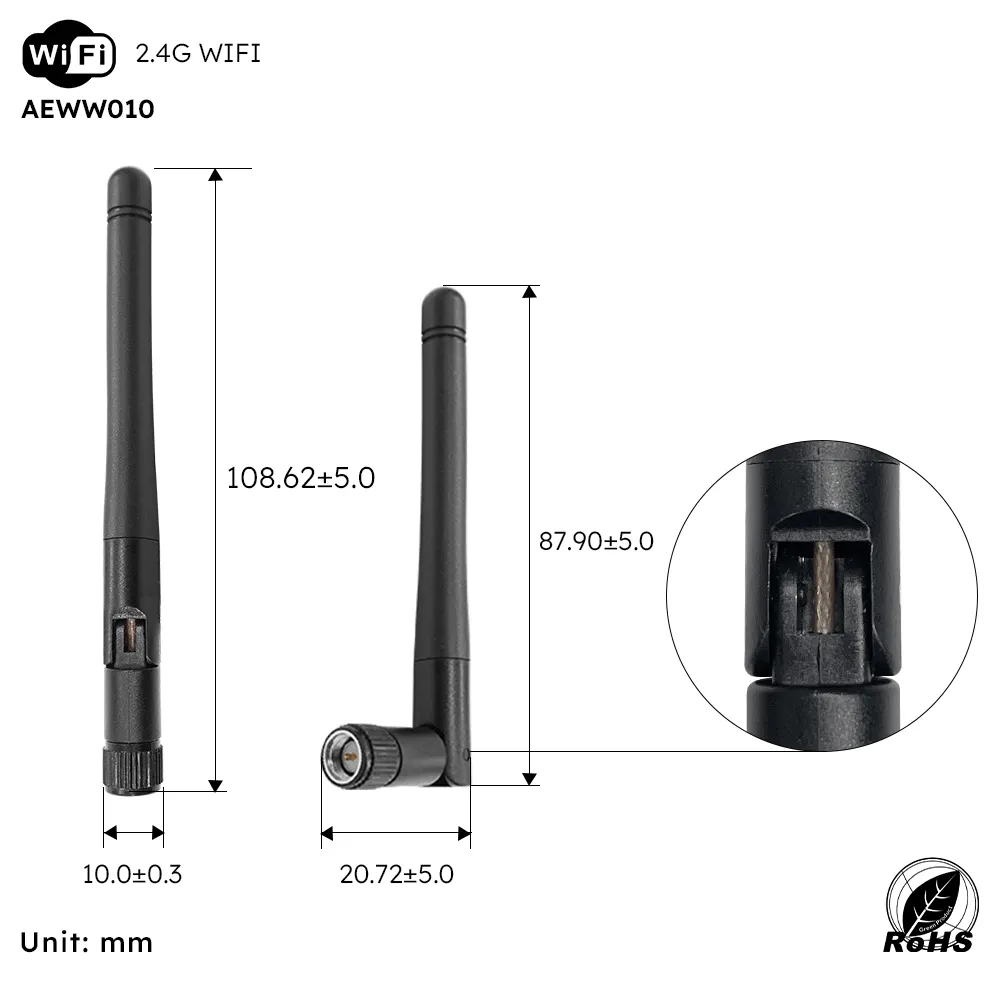

Dimensions: Ø10 x 108 mm



The Aboosty AEWW010 is a 2.4 GHz Wi-Fi monopole antenna suitable for indoor and outdoor applications.

The antenna features an enhanced hinge structure for improved vibration resistance. Its omnidirectional performance ensures reliable communication and easy installation with minimal maintenance, helping to reduce the lifetime cost of M2M and mobile device installations. For optimal performance, it is recommended to be used with a ground plane.

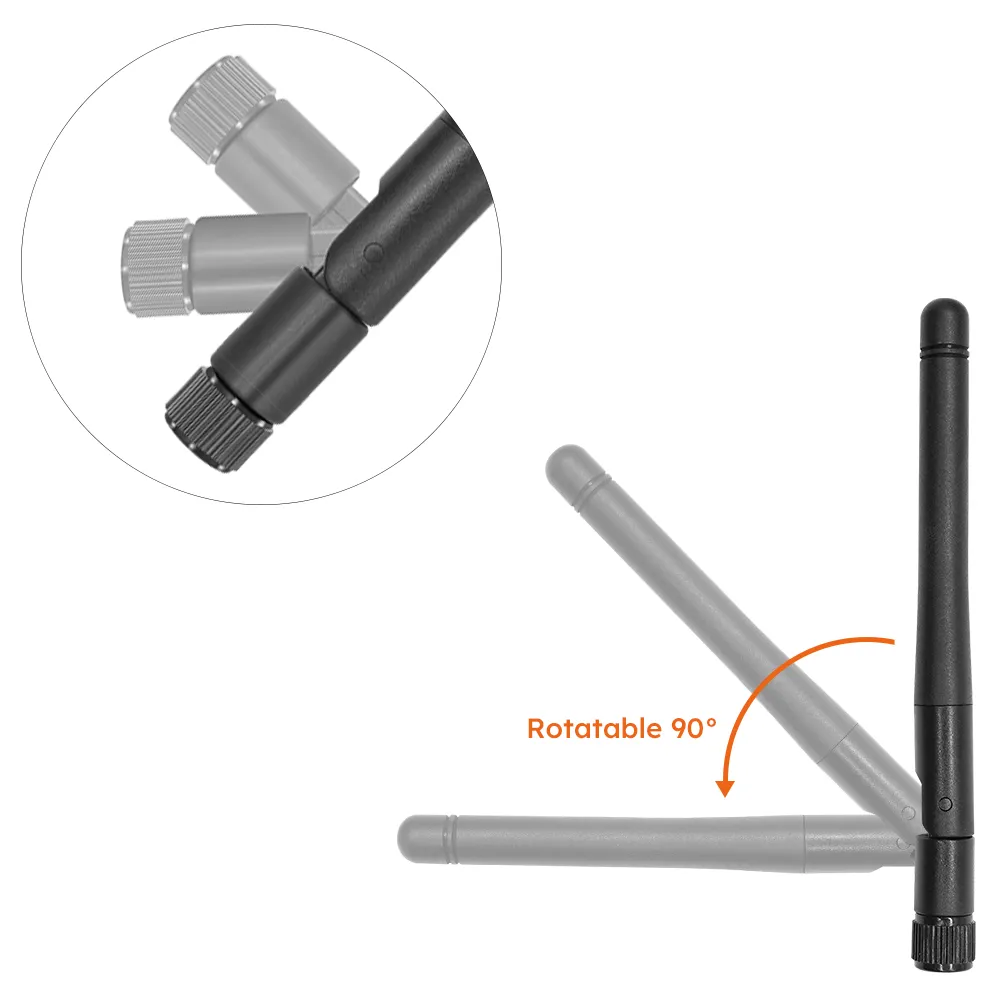

The connector is available with a hinged SMA (M) option, allowing for flexible mounting in either a straight or right-angle position, and is suitable for compact spaces.

For more information or support, don’t hesitate to get in touch with the Aboosty customer support team.



Package Included: 1 x swivel whip antenna

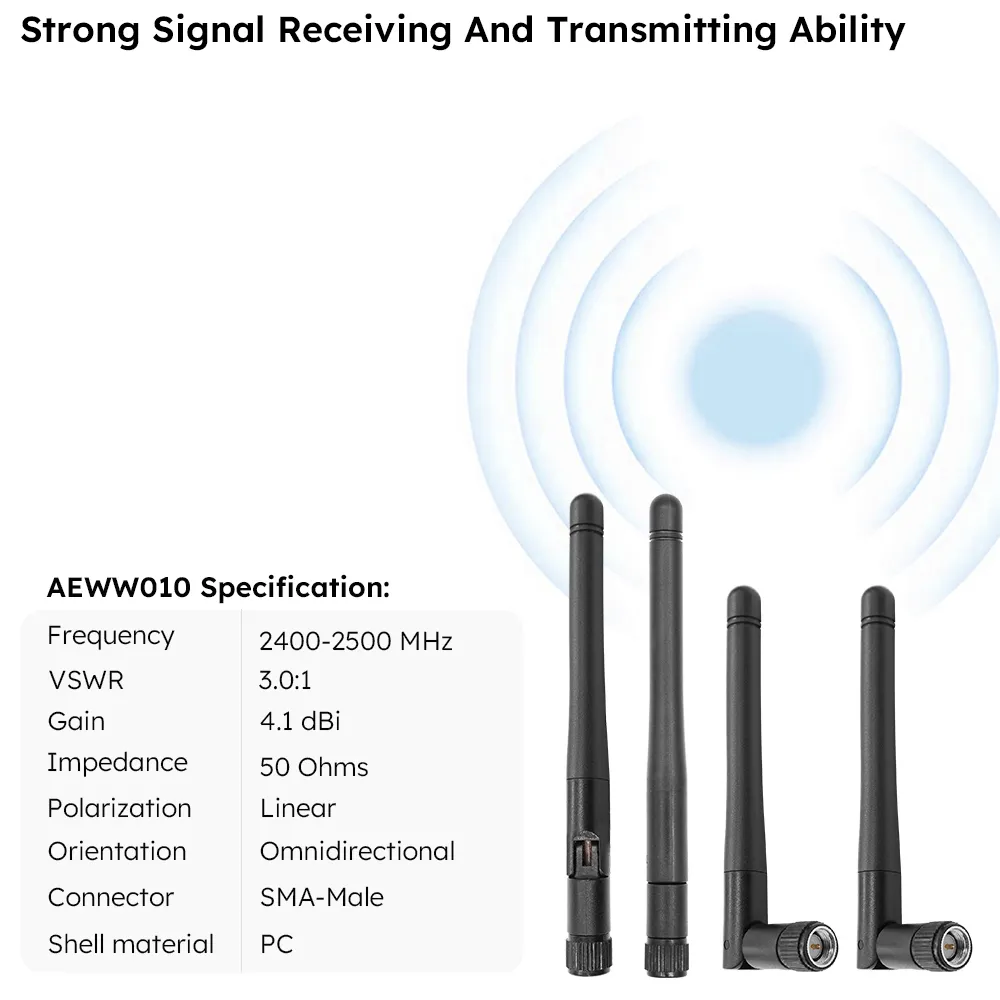

LABEL
VALUE
Certificates Acquired
RoHS Compliant
Length (mm)
Ø10
Width (mm)
Height (mm)
108
Freq. (MHz)
2400-2500
Technology Type
2.4G WIFI
Operating Temperature (℃)
-40°C to +85°C
Markets
Transportation, Smart Industrial, Smart Cities, Public Safety, Mobile Communication, Others
Antenna Type
Monopole
Connector Style
Right Angle, Straight
Radiation Pattern
Omnidirectional
Polarity
Linear
Max Effi. (%)
79.39
Peak Gain
4.05 dBi
VSWR
3.0:1
Impedance (Ω)
50
Ingress/Impact
N/A
Termination Style
Connector
Antenna Connector Type
SMA-Male
Cable Type
N/A
Cable Length (mm)
N/A
Mechanical Style
PC, Black
Mounting Style
Screw Mount
Customization Option
Logo, Packaging, Connectors
  • Home and Office Networking
  • Industrial Automation
  • IoT Systems
  • IoT Devices
  • Outdoor Hotspots
  • Vehicle and Public Spaces
  • Smart Agriculture
Part Number
User Story
Model
Description
PN
Note
AEWW010
2.4G WIFI Swivel Whip Antenna with SMA-Male Connector
M04-0100330R0A
Customization supported
