Compact Waterproof 2.4&5.8GHz Dual-band WiFi PCB Antenna

SKU: AEWP002 Category: External Antennas Tags: 5GHz WiFi, Wholesale 2.4GHz Antennas

Product Overview

Key Features

Description

Specification

Applications

Peak Gain: 5.62 dBi
Connector: SMA Male

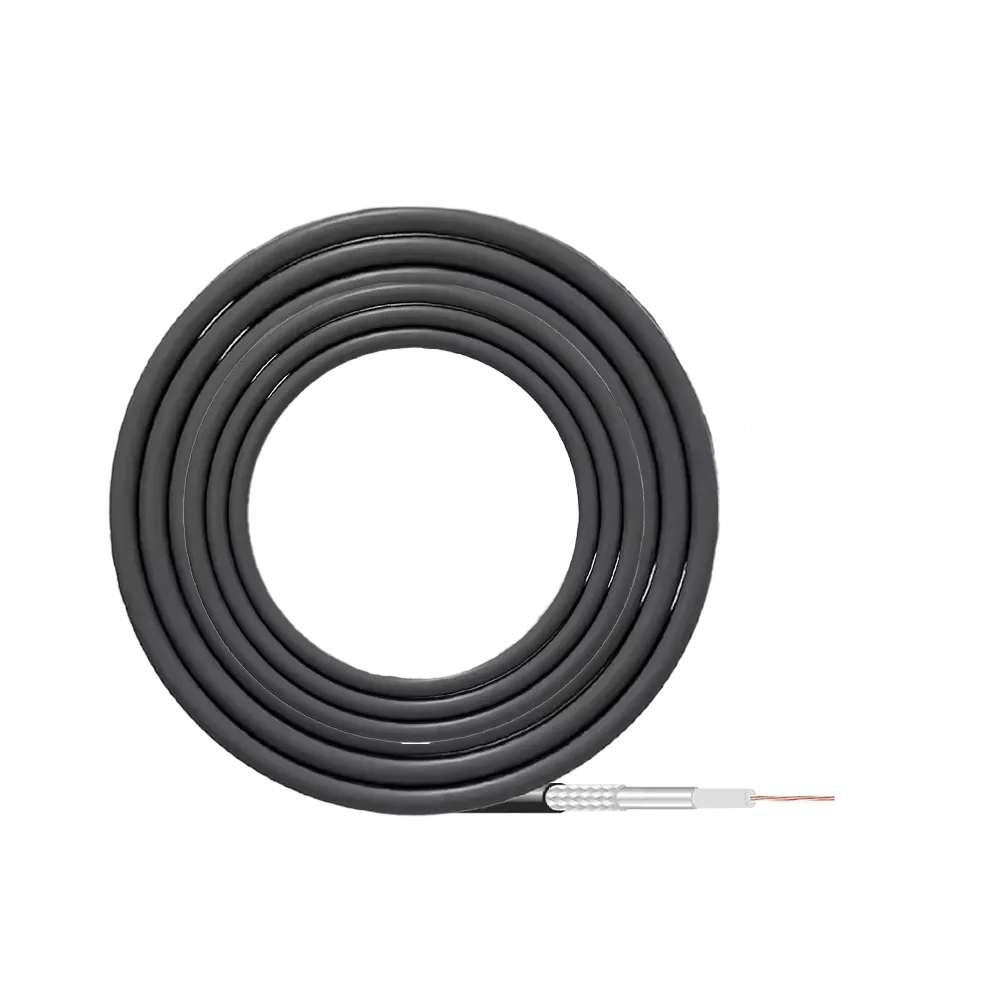

Cable: TPE jacket LMR-200-UF x 1120 mm length

2.4 & 5.8 GHz dual-band performance

Small Form Factor and Lightweight

Low Profile and Rugged Design

IP68 Rated Waterproof

Ground Plane Independent

Custom Cables and Connectors Available

RoHS Compliant

Tailored for wireless connectivity in WiFi terminals with antennas installed more than 1 meter apart.

Operating Frequency: 2400-2500 MHz | 5100-5900 MHz

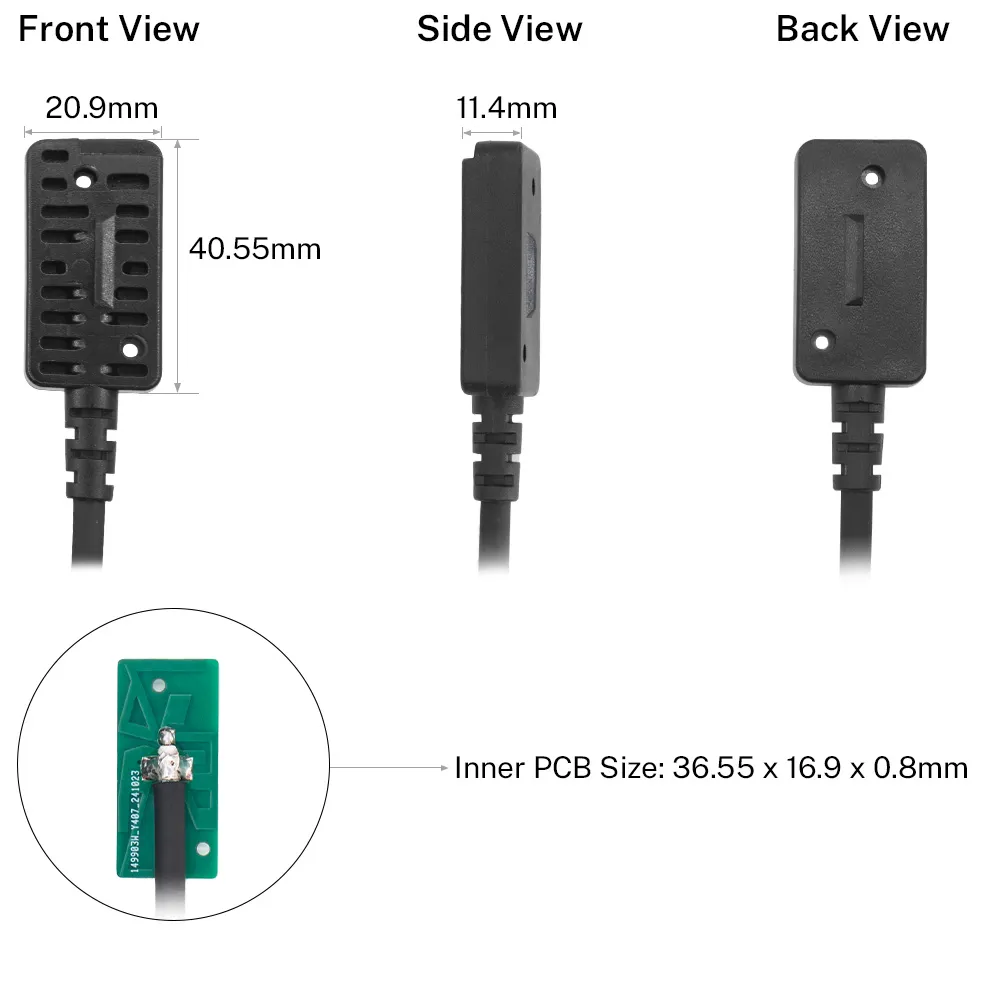

Antenna Size: 20.9 x 40.55 x 11.4 mm
Inner PCB Board Size: 36.55 x 16.9 x 0.8

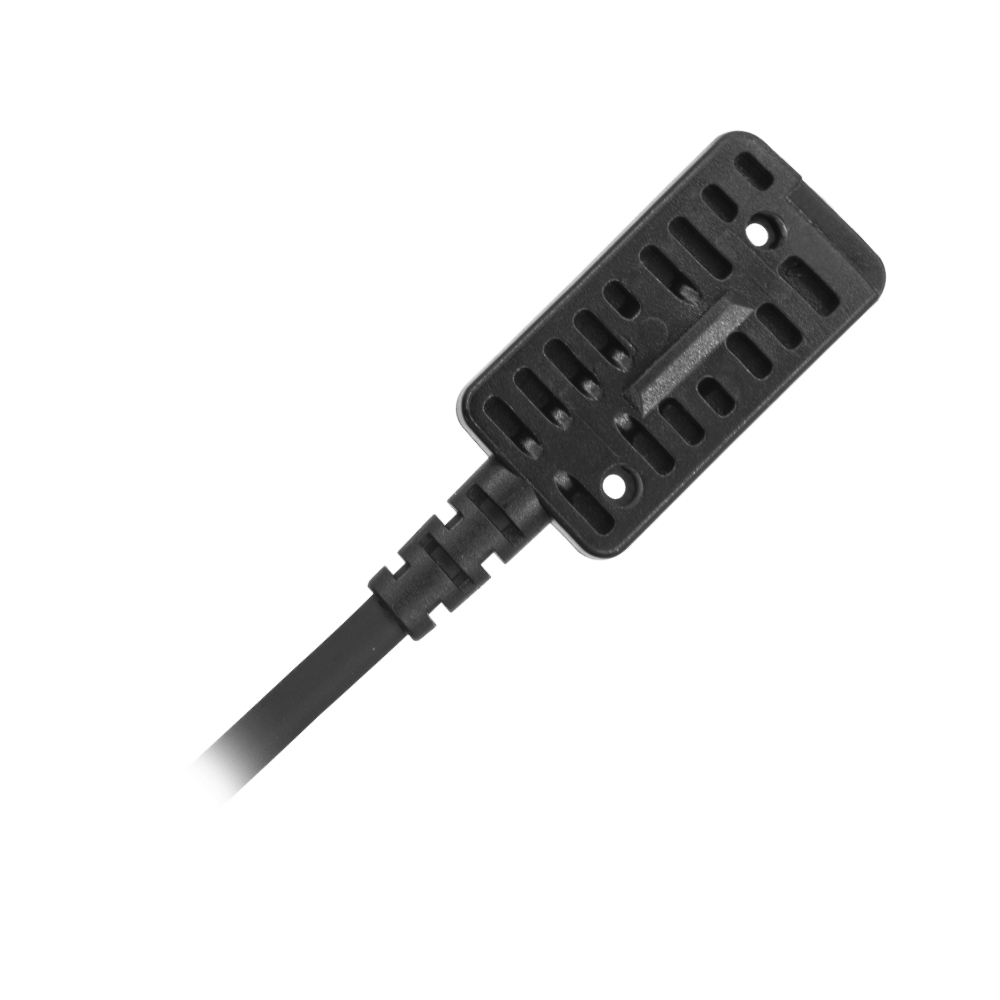

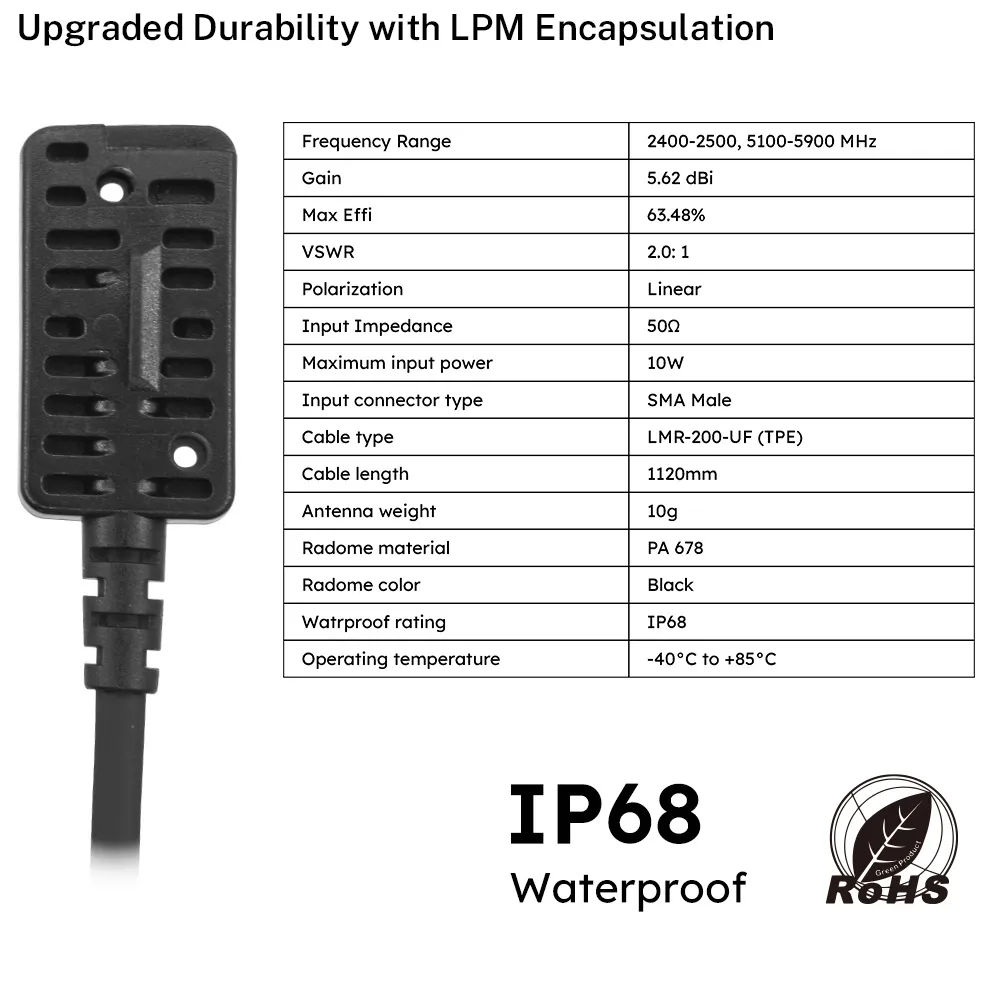

The Aboosty AEWP002 is an omnidirectional PCB antenna designed for 2.4 GHz and 5.8 GHz WiFi applications. Its durability is enhanced through low-pressure injection molding (LPM) technology. With a rugged external enclosure, the antenna is IP68-rated for water resistance, making it ideal for use in the most challenging environments worldwide.

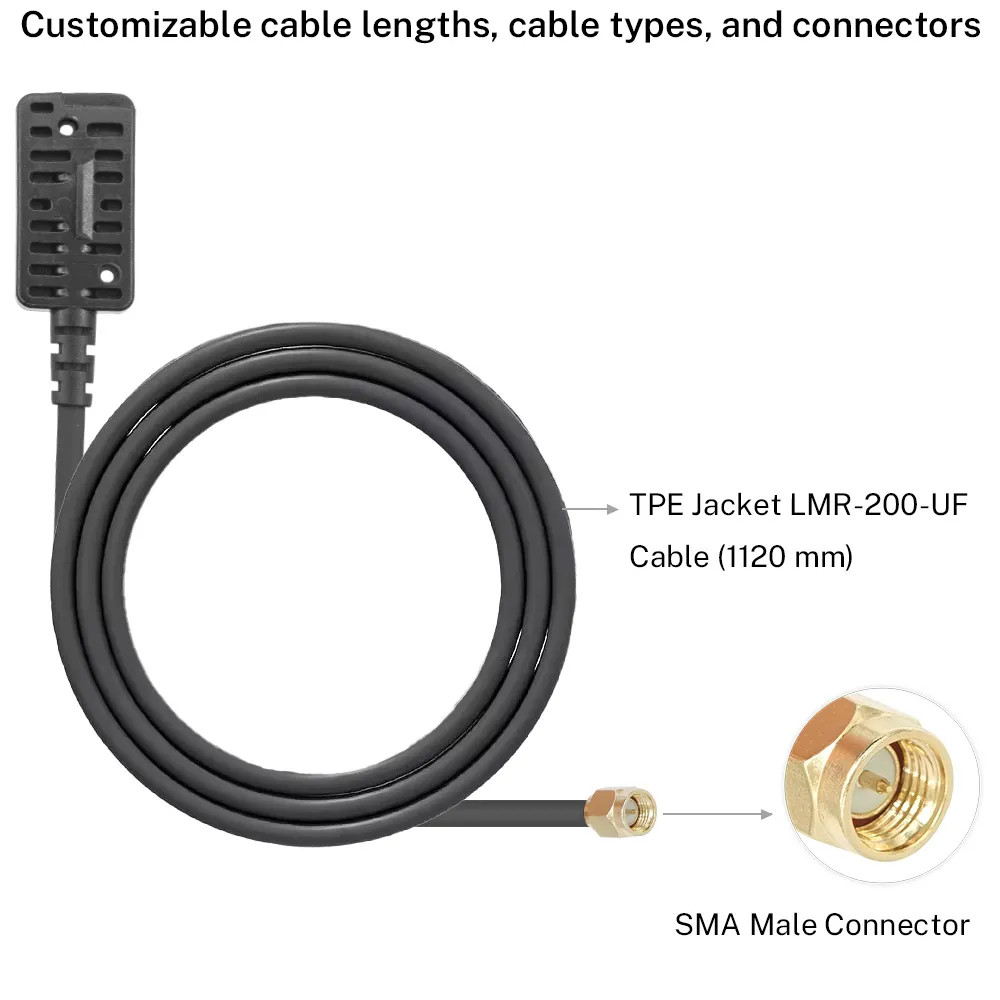

The cable and connector can be customized subject to NRE and MOQ. For further information, don’t hesitate to contact the Aboosty customer support team.

LABEL

VALUE

Certificates Acquired

RoHS Compliant

Length (mm)

40.55

Width (mm)

20.9

Height (mm)

11.4

Product Weight (g)

Freq. (MHz)

2400-2500, 5100-5900

Technology Type

2.4G & 5G WIFI

Operating Temperature (℃)

-40°C to +85°C

Markets

Transportation, Smart Industrial, Smart Cities, Connected Health, Mobility and Infrastructure, Mobile Communication

Other Attributes

Waterproof Antennas

Antenna Type

Dipole

Connector Style

Right Angle

Radiation Pattern

Omnidirectional

Polarity

Linear

Max Effi. (%)

63.48

Peak Gain

5.62 dBi

VSWR

2.0:1

Impedance (Ω)

Ingress/Impact

IP68

Termination Style

Connector

Antenna Connector Type

SMA-Male

Cable Type

LMR-200-UF

Cable Length (mm)

1120

Mechanical Style

PA 678

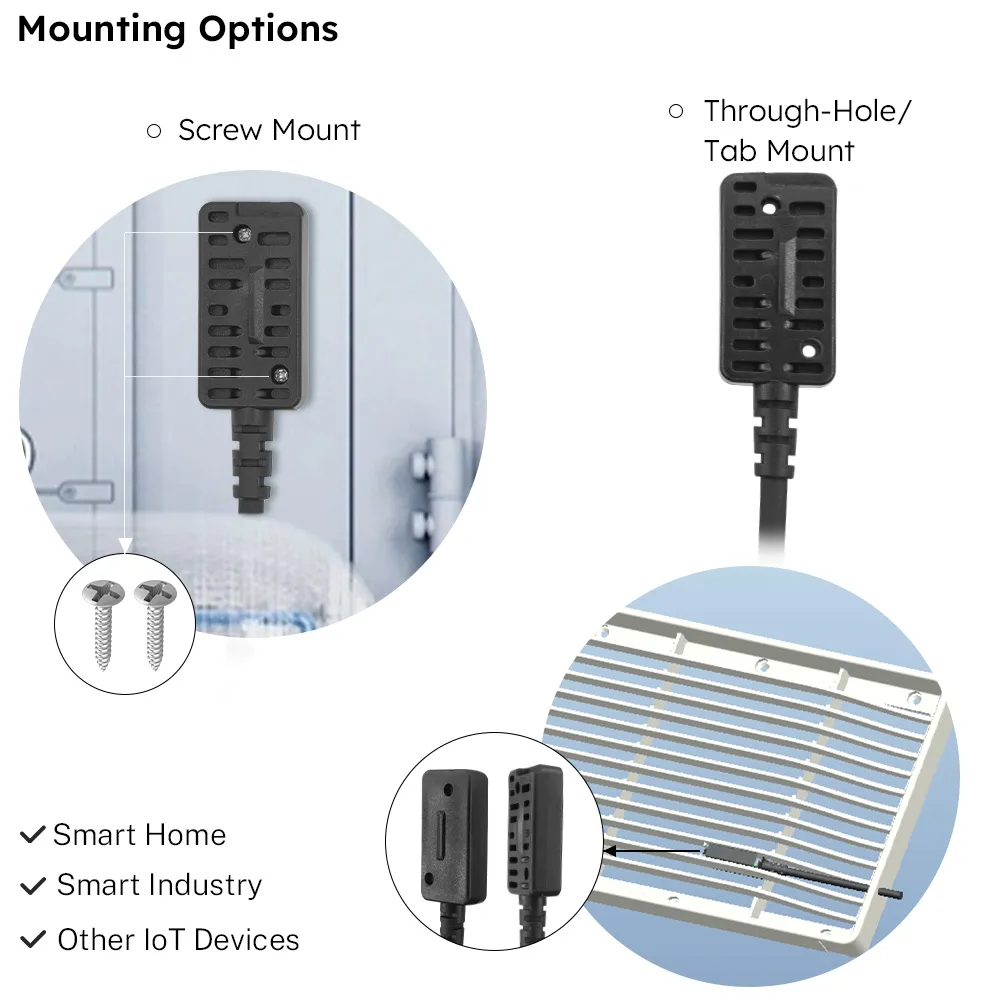

Mounting Style

Through-Hole/Tab Mount, Screw Mount

Customization Option

Logo, Packaging, Cables and Connectors

Smart Home Automation
IoT Devices
Telecommunications
Healthcare
Consumer Electronics
Transportation and Logistics
Smart Agriculture

Part Number

User Story

Model

Description

Note

AEWP002

Black PCB Antenna with TPE Jacket LMR-200-UF Cable (1120 mm), SMA-Male Connector

M02-0200370R0A

Customization supported
