AELW004

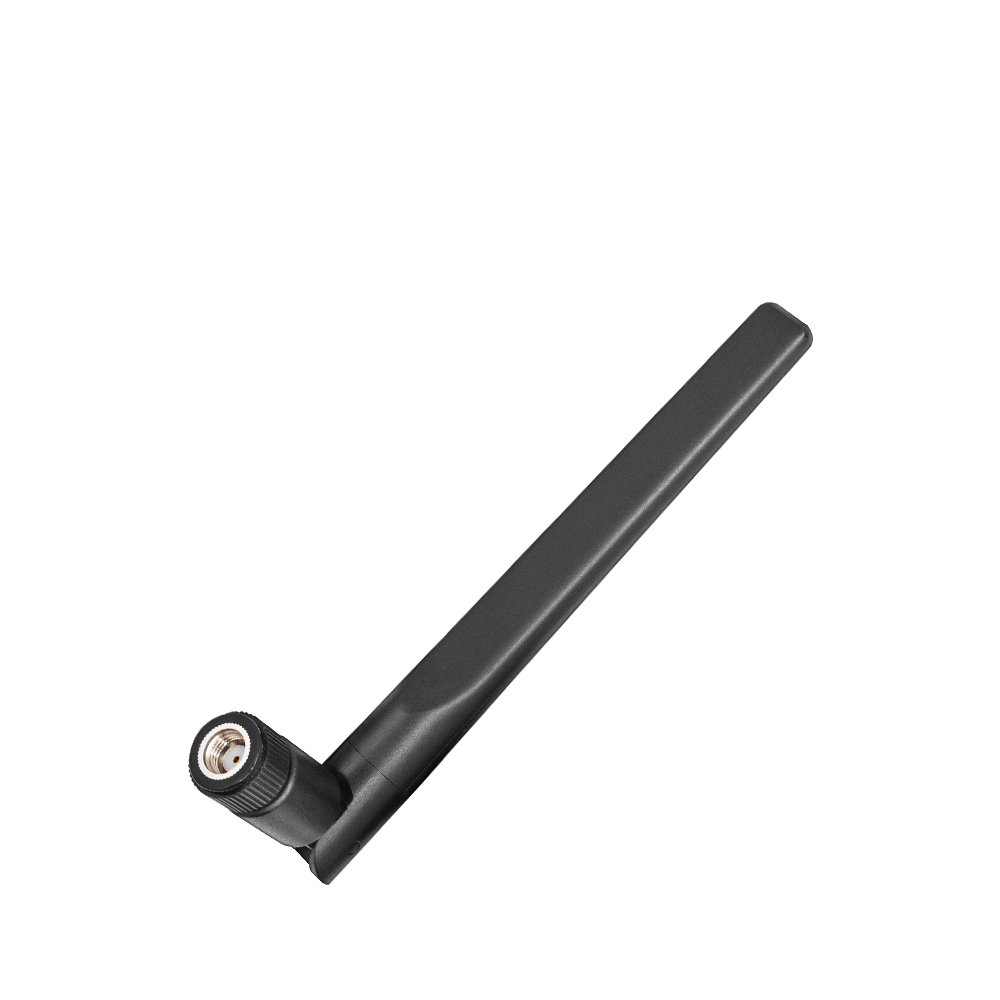

433MHz 510MHz LoRa Folding Rod Antenna with RP-SMA Male Jack (No Pin)

LPWA/ISM/LoRa

Single External Antennas

Download

Datasheet

Buy Samples

Coming soon

Dealers

Coming soon

Aboosty is ready to help you tackle various wireless issues.

433MHz 510MHz LoRa Folding Rod Antenna with RP-SMA Male Jack (No Pin)

SKU: AELW004 Category: External Antennas Tags: ISM, LoRa, LPWA

Product Overview

Key Features

Description

Specification

Applications

Peak Gain: 3.3 dBi

Enhanced hinge structure for vibration environments

Designed for RFID, LoRa, Helium

Monopole Antenna, Ground Plane Dependent

Linear, Omnidirectional Performance

Rotatable: 180° horizontal, 90° vertical for compact multi-antenna setups

Custom Connector Available

RoHS Compliant

Operating Frequency: 433-510 MHz
Dimensions: Ø13 x 134 mm

The Aboosty AELW004 is a LoRa/ISM/LPWA monopole antenna suitable for indoor and outdoor applications. The antenna features an enhanced hinge structure for improved vibration resistance. Its omnidirectional performance ensures reliable communication and easy installation with minimal maintenance, helping to reduce the lifetime cost of M2M and mobile device installations.

The connector is available with a hinged RP-SMA (M) or SMA (M) option, allowing for flexible mounting in either a straight or right-angle position, and is suitable for compact spaces.

For more information or support, please contact the Aboosty customer support team.

Package Included: 1 x swivel whip antenna

LABEL

VALUE

Certificates Acquired

RoHS Compliant

Length (mm)

Ø13

Width (mm)

Height (mm)

134

Product Weight (g)

12.2

Freq. (MHz)

433-510

Technology Type

ISM, LPWA, LoRa/Sigfox

Operating Temperature (℃)

-40°C to +85°C

Markets

Smart Industrial, Smart Cities, Mobility and Infrastructure, Others

Other Attributes

M2M Antennas

Antenna Type

Monopole

Connector Style

Right Angle, Straight

Radiation Pattern

Omnidirectional

Polarity

Linear

Max Effi. (%)

Peak Gain

3.3 dBi

VSWR

3.0:1

Impedance (Ω)

Ingress/Impact

N/A

Termination Style

Connector

Antenna Connector Type

RP-SMA-Male

Cable Type

N/A

Cable Length (mm)

N/A

Mechanical Style

Mounting Style

Direct Mount

Customization Option

Connectors

IoT Devices
Smart Home
Smart Cities
Wireless Network Enhancement
Long-Distance Communication
Environmental Monitoring
Industrial Automation

Part Number

User Story

Model

Description

Note

AELW004

433-510 MHz LoRa Antenna with RP-SMA Male Connector

M02-0400390R0A

Customization supported

AELW008

433-510 MHz LoRa Antenna with SMA Male Connector

M02-0400380R0A

Customization supported
