AELF005 | 915MHz 3dBi LoRa, Helium Fiberglass Antenna

Our 5G antennas offer an extreme boost to speed and significantly lower latency, whilst also boasting greater bandwidth.

SKU: AELF005 Category: External Antennas Tags: ISM, LoRa, LPWA

Product Overview

Key Features

Description

Specification

Applications

Peak Gain: 3 dBi

Fiberglass antenna designed for LoRa IoT Application

Waterproof, rainproof, UV-resistant

N-type male connector

Suitable for both indoor and outdoor use

Mounting bracket included

RoHS Compliant

Operating Frequency: 915 MHz
Dimensions: Ø23.5 x 550 mm

Indoor/Outdoor Omnidirectional Fiberglass Antenna

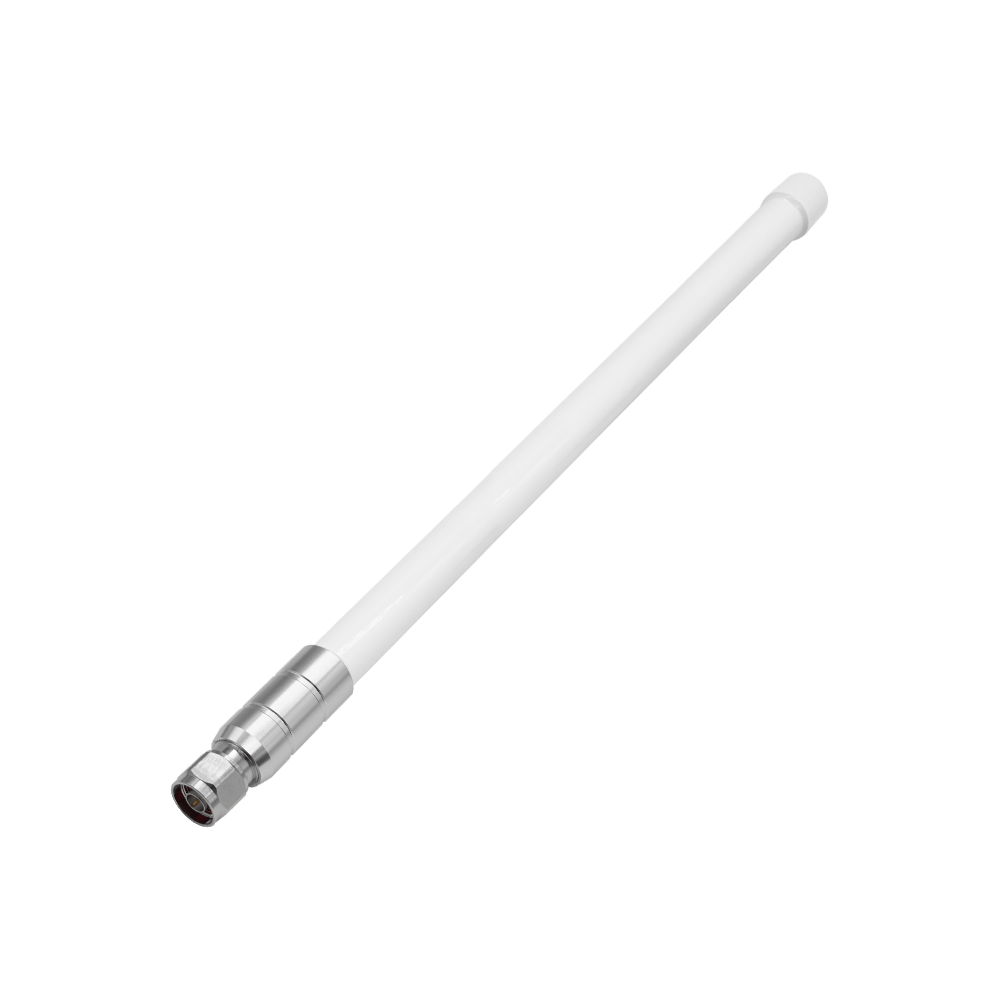

The Aboosty AELF005 is a LoRa fiberglass omnidirectional outdoor antenna, operating at a 915 MHz frequency band with a maximum gain of 3 dBi.

This omnidirectional antenna provides uniform radiation across the azimuth for extended coverage, reducing the network nodes required. Its UV-resistant fiberglass construction ensures durability in harsh weather conditions, making it more robust and secure than conventional whip antennas.

The antenna can be directly connected to access points or telemetry units and includes wall or surface mounting options with an N-type connector. It also comes with both pole and wall mounting brackets. For further information, please contact Aboosty’s customer service team.

Package Included: 1 x 55 cm Fiberglass Antenna ; 1 x Mounting Bracket

LABEL

VALUE

Length (mm)

Ø23.5

Width (mm)

Height (mm)

550

Freq. (MHz)

902-930

Technology Type

LPWA, ISM, LoRa/Sigfox

Frequency Bands

915 MHz

Operating Temperature (℃)

-40°C to +85°C

Markets

Smart Industrial, Mobility and Infrastructure, Smart Cities, Others

Antenna Type

Monopole

Connector Style

Straight

Radiation Pattern

Omnidirectional

Polarity

Linear

Max Effi. (%)

79.8

Peak Gain

3.31 dBi

VSWR

3.0:1

Impedance (Ω)

Ingress/Impact

IP68

Termination Style

Connector

Antenna Connector Type

N-Type Male

Cable Type

N/A

Cable Length (mm)

N/A

Mechanical Style

Fiberglass Pipe, White

Mounting Style

Direct Mount

Customization Option

Logo

IoT Systems
IoT Devices
Smart Home
Smart Cities
Helium Miners
Wireless Network Enhancement
Long-Distance Communication
Environmental Monitoring

Part Number

User Story

Model

Description

Note

AELF005

915MHz 3dBi Fiberglass Antenna Ø23.5 x 550 mm

M02-0400330R0A

Customization supported
