AELF002 | 868MHz 5dBi LoRa,Helium Fiberglass Antenna

Our 5G antennas offer an extreme boost to speed and significantly lower latency, whilst also boasting greater bandwidth.

SKU: AELF002 Category: External Antennas Tags: ISM, LoRa, LPWA

Product Overview

Key Features

Description

Specification

Applications

Peak Gain: 5 dBi
Connector: N-Type Male Connector

Omni-Directional Performance

Monopole, Ground Plane Dependent

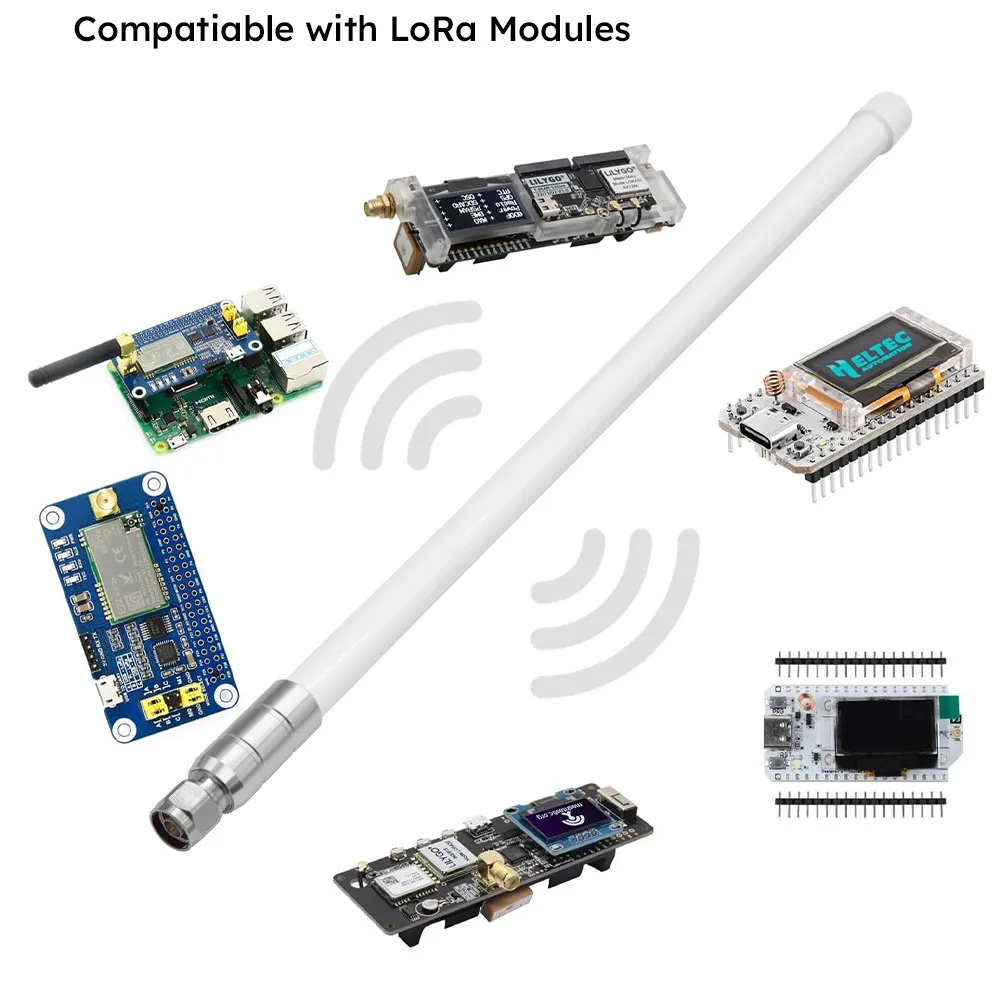

Fiberglass Antenna Designed for LoRa IoT Application

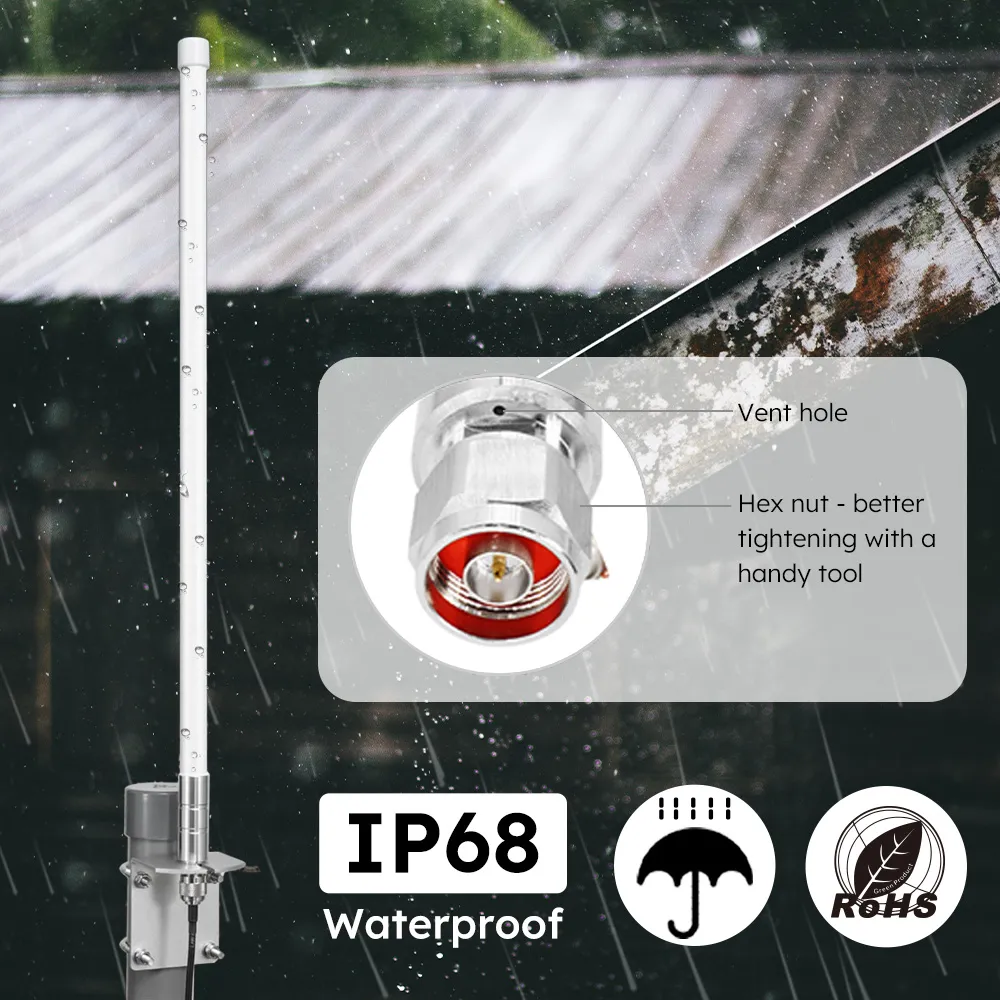

IP68 Rating Waterproof, rainproof, UV-resistant

Suitable for Both Indoor and Outdoor Use

Mounting Bracket Included

RoHS Compliant

Operating Frequency: 868 MHz
Dimensions: Ø23.5 x 780 mm

Indoor/Outdoor Omnidirectional Fiberglass Antenna

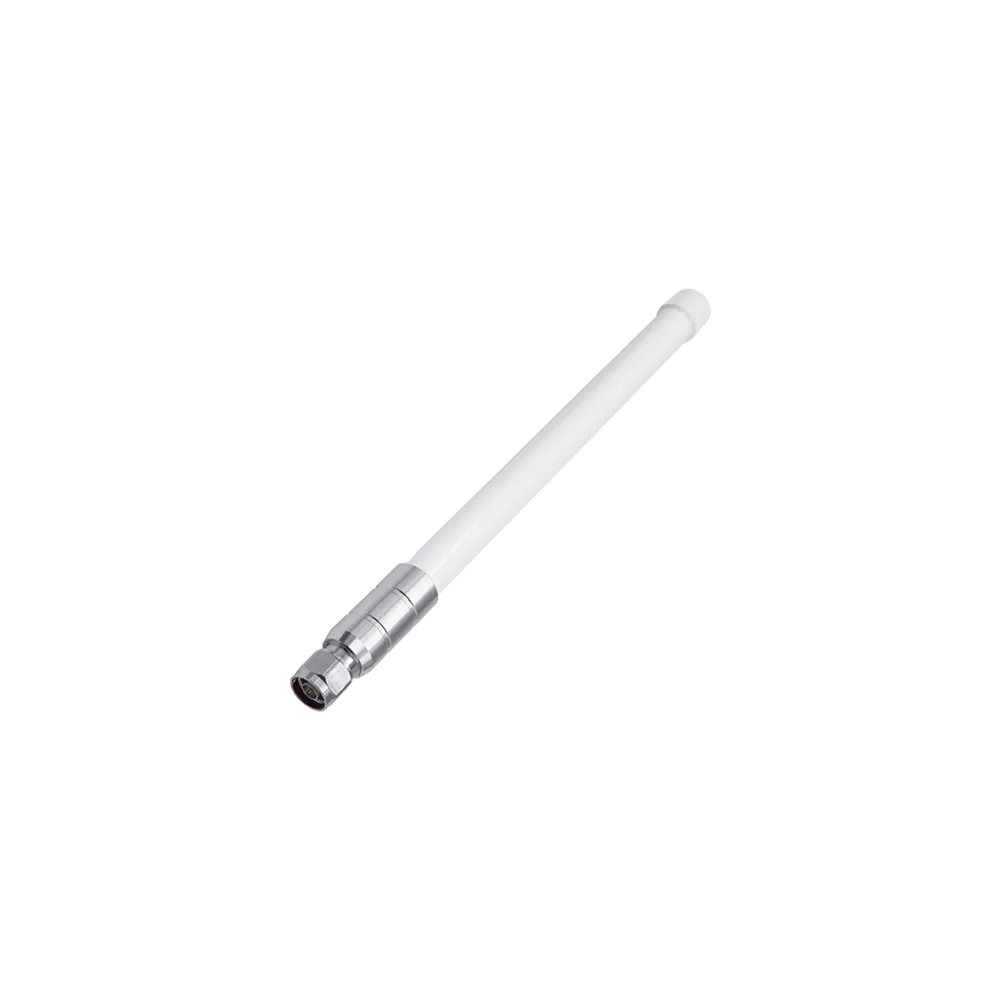

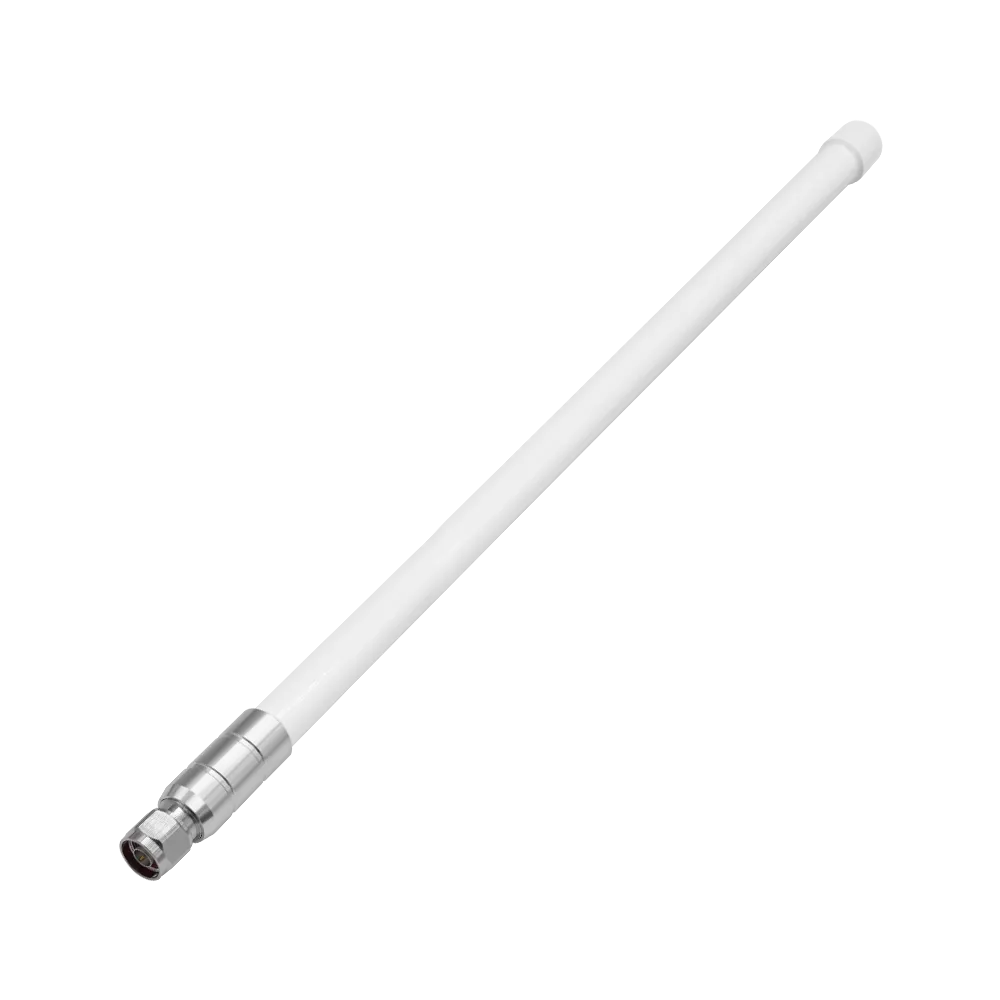

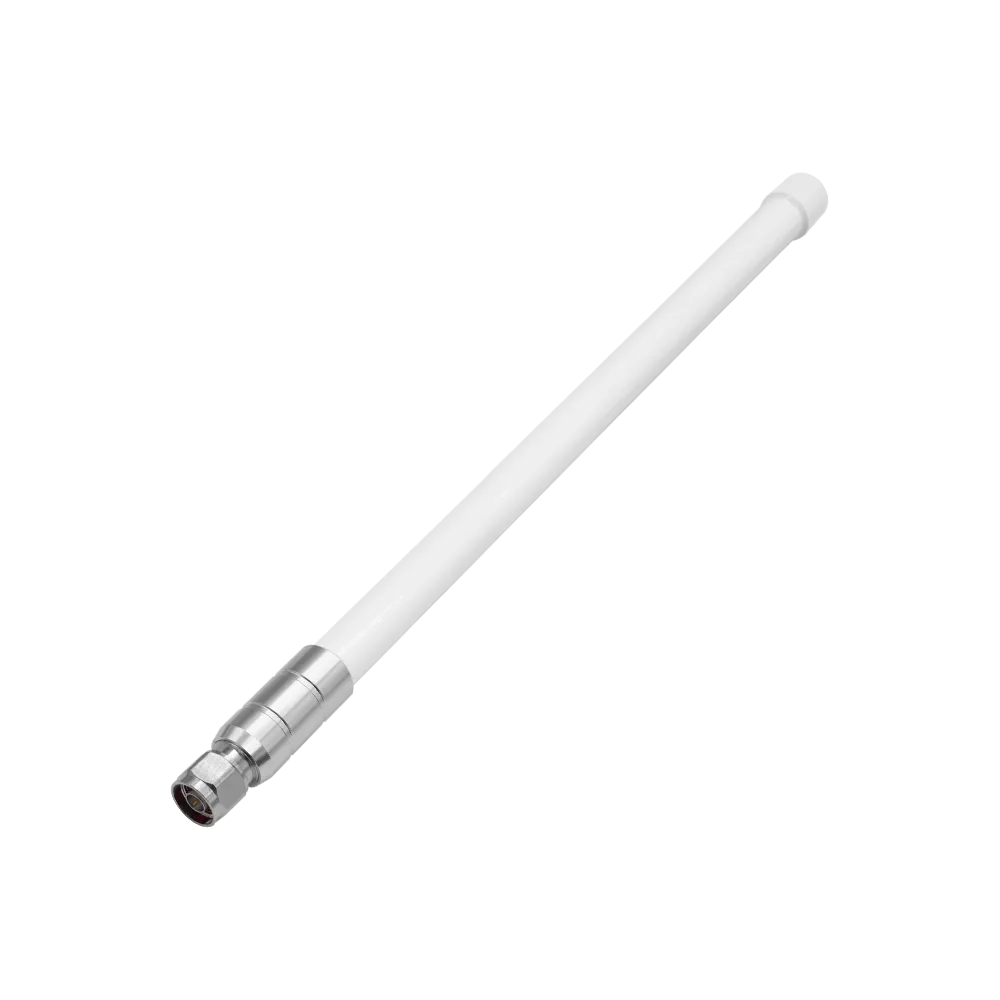

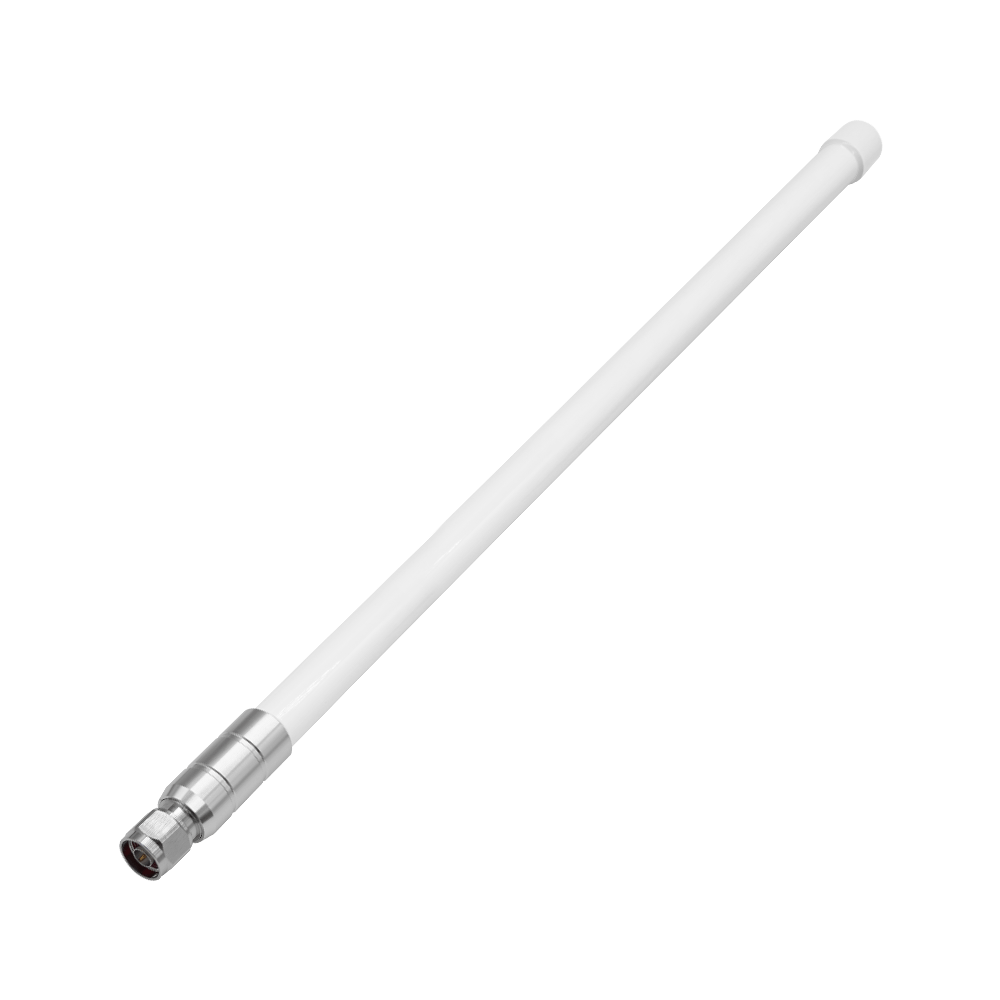

The Aboosty AELF002 is a LoRa fiberglass omnidirectional outdoor antenna with a maximum gain of 5 dBi.

This omnidirectional antenna provides uniform radiation across the azimuth for extended coverage, reducing the number of network nodes required. Its UV-resistant fiberglass construction ensures durability in harsh weather conditions, making it more robust and secure than conventional whip antennas.

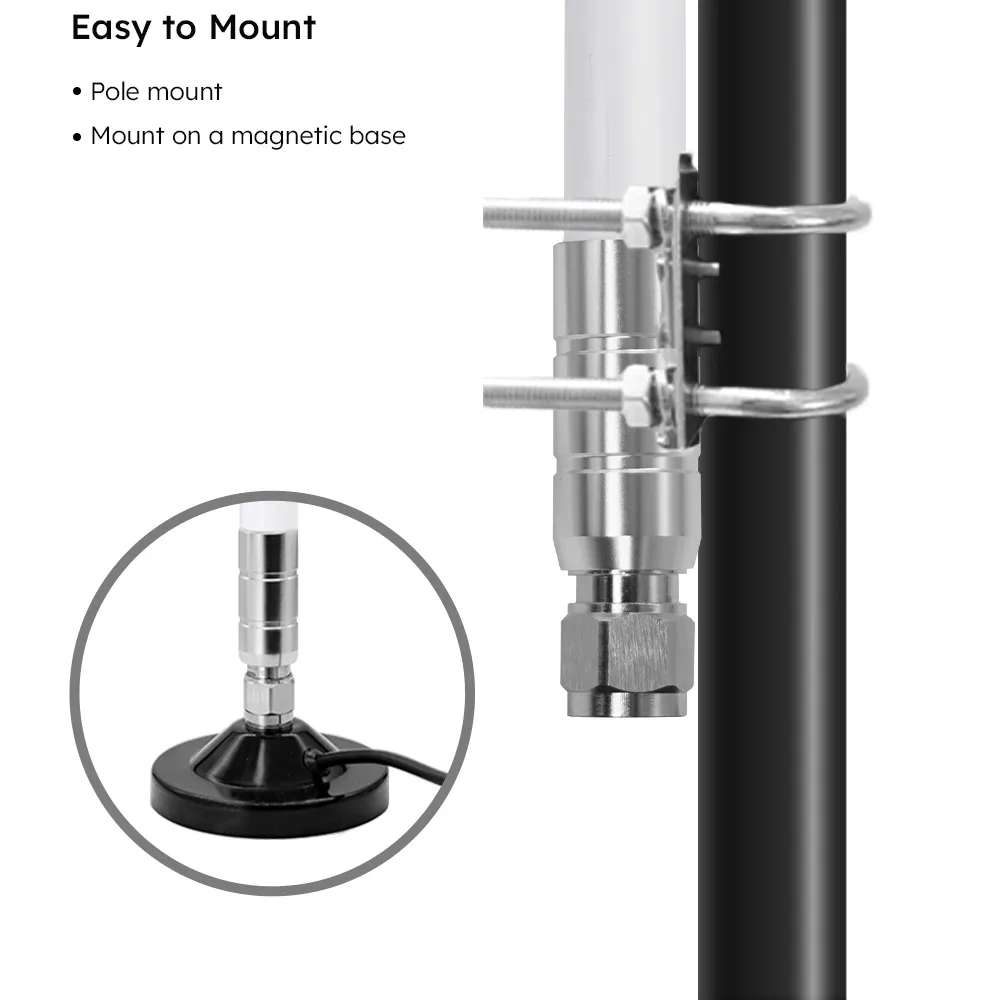

The antenna can be directly connected to access points or telemetry units and includes options for wall or surface mounting with an N-type connector. It also comes with both pole and wall mounting brackets. For further information, please contact Aboosty’s customer service team.

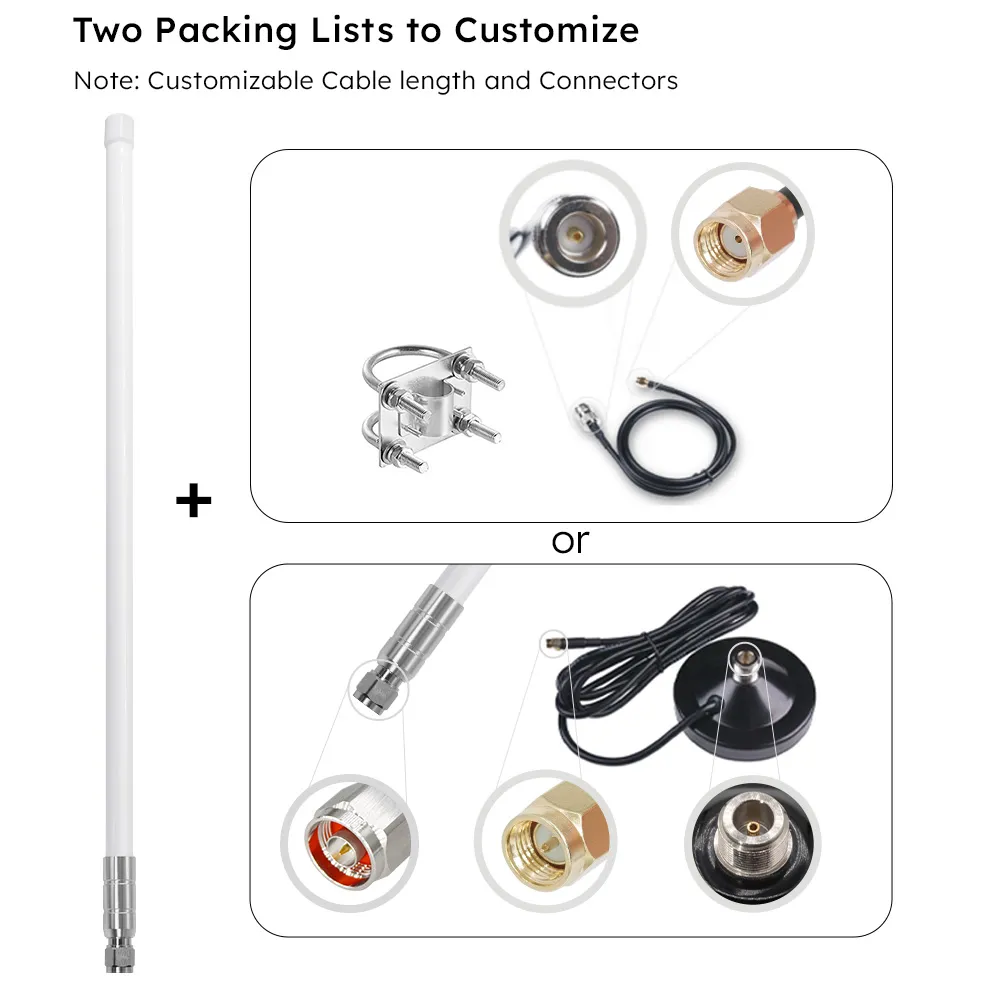

Package Included: 1 x 78 cm Fiberglass Antenna ; 1 x Mounting Bracket

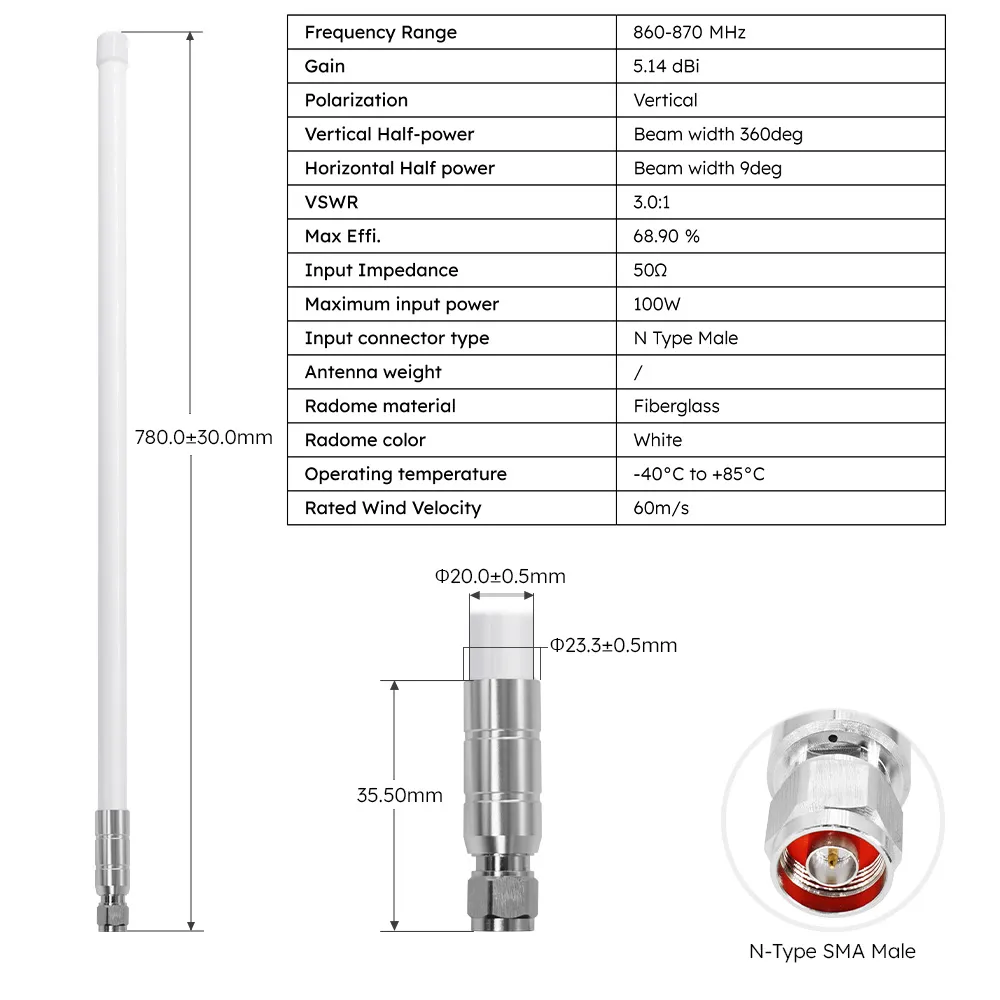

LABEL

VALUE

Certificates Acquired

RoHS Compliant

Length (mm)

Ø23.5

Width (mm)

Height (mm)

780

Freq. (MHz)

860-870

Technology Type

LPWA, ISM, LoRa/Sigfox

Operating Temperature (℃)

-40°C to +85°C

Markets

Smart Industrial, Mobility and Infrastructure, Smart Cities, Others

Antenna Type

Monopole

Connector Style

Straight

Radiation Pattern

Directional

Polarity

Linear

Max Effi. (%)

68.9

Peak Gain

5.14 dBi

VSWR

3.0:1

Impedance (Ω)

Ingress/Impact

IP68

Termination Style

Connector

Antenna Connector Type

N-Type Male

Cable Type

N/A

Cable Length (mm)

N/A

Mechanical Style

Fiberglass Pipe, White

Mounting Style

Direct Mount

Customization Option

Logo, Packaging, Connectors

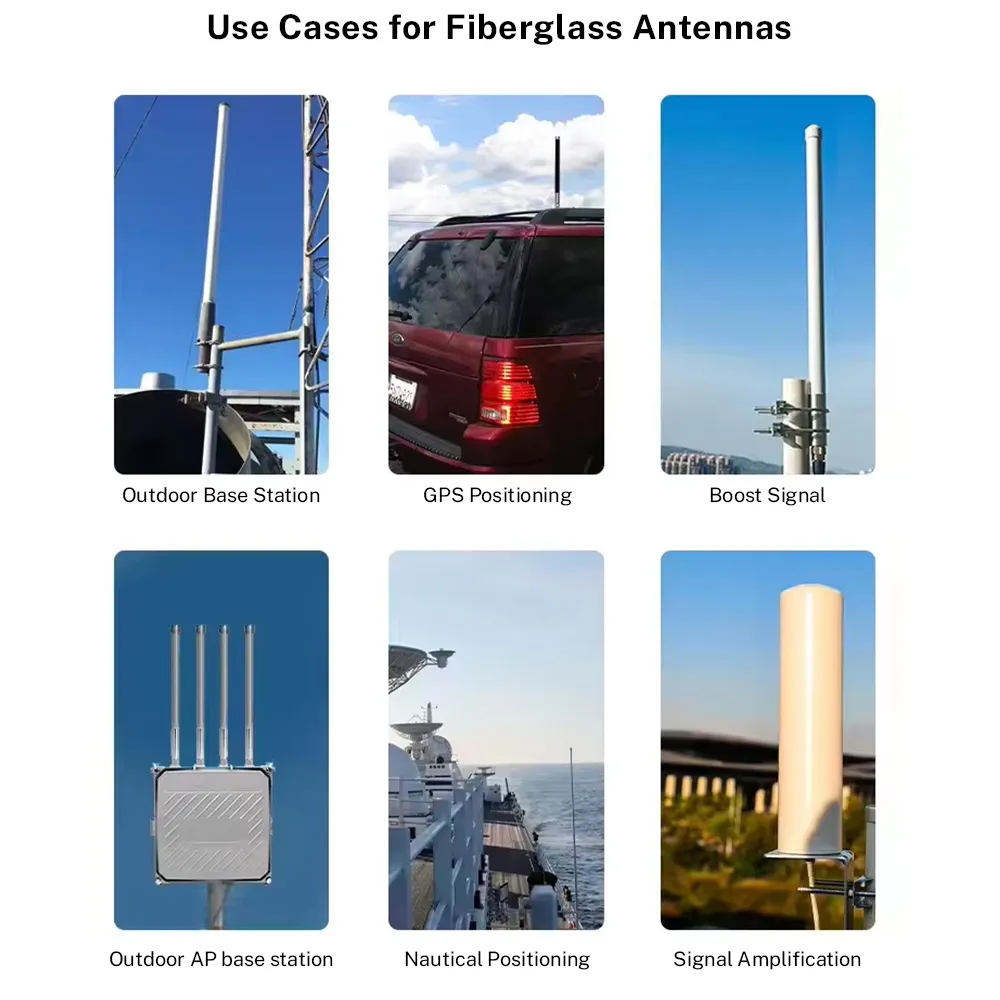

IoT Systems
IoT Devices
Smart Home
Smart Cities

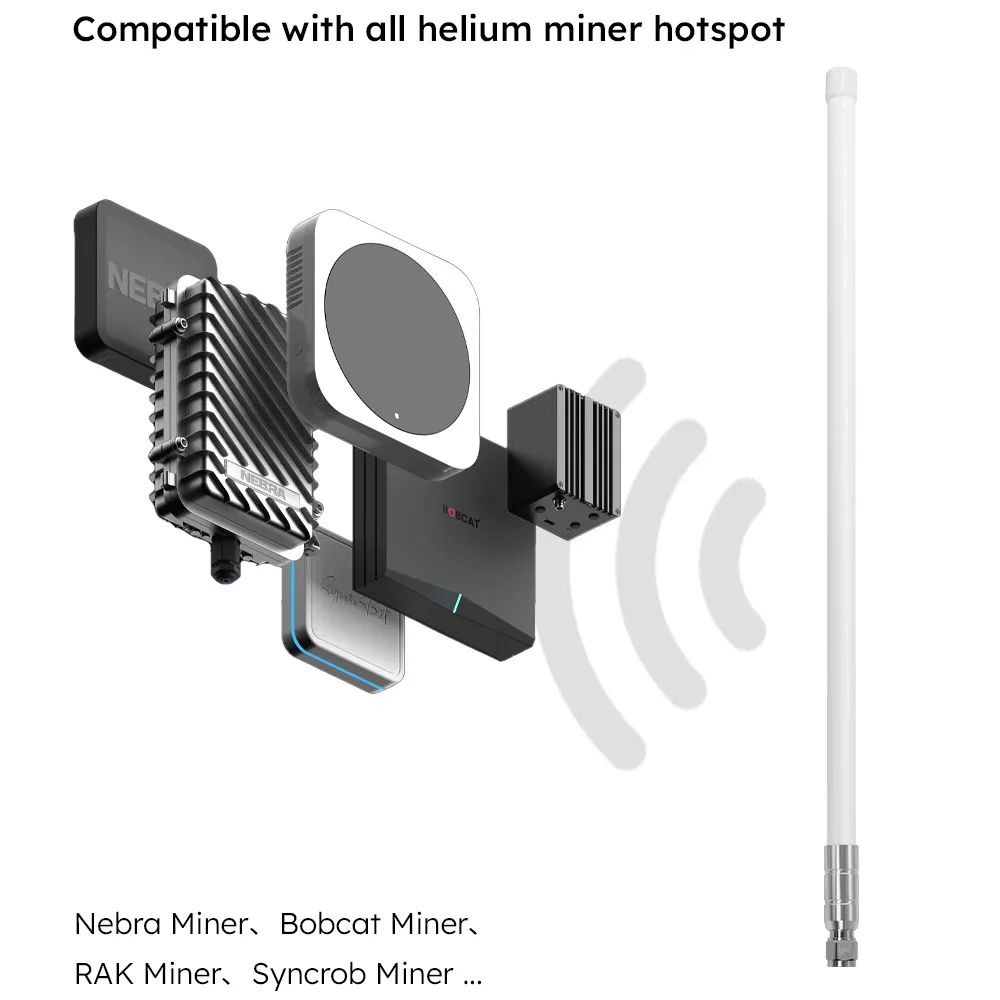

Helium Miners
Wireless Network Enhancement
Long-Distance Communication
Environmental Monitoring

Part Number

User Story

Model

Description

Note

AELF002

868MHz 5dBi Fiberglass Antenna Ø23.5 x 780 mm

M02-0400300R0A

Customization supported
