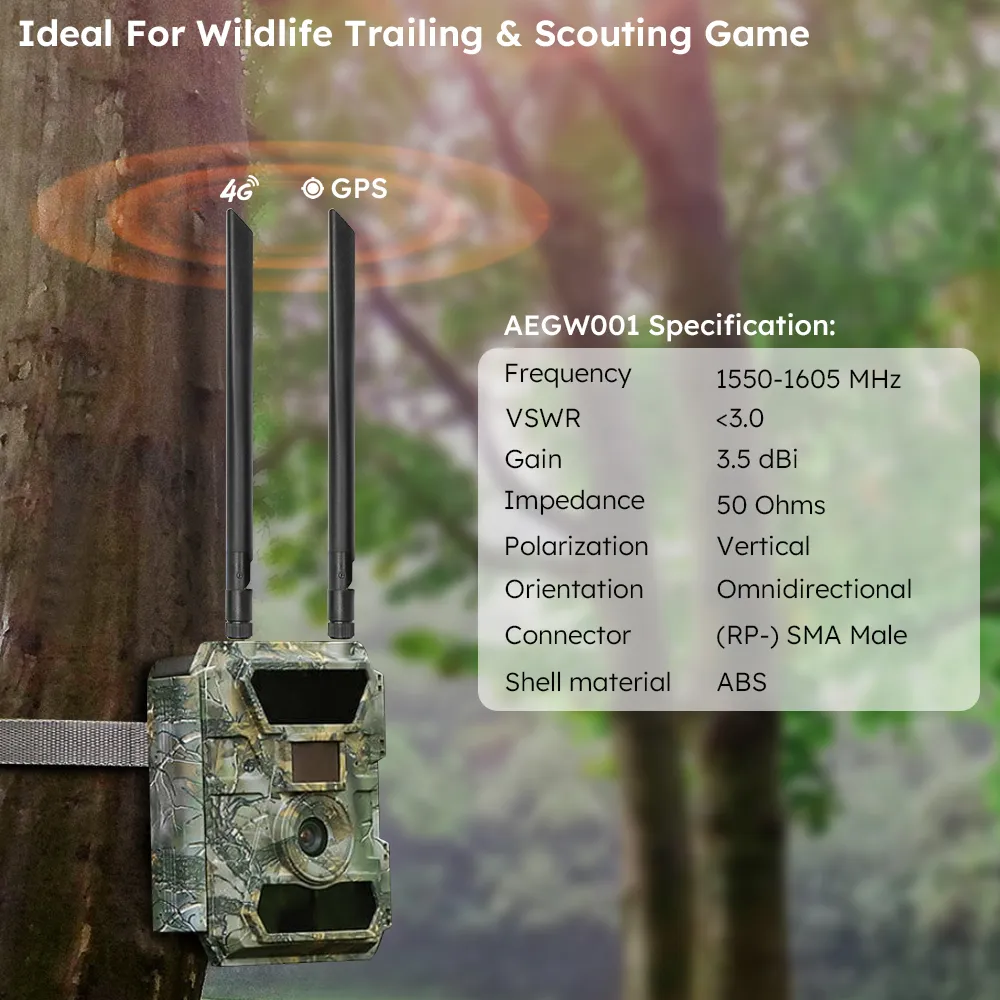

External Passive GPS Omni-directional Swivel Rod Antenna for Wild Hunting Cameras and Gateways

Operating Frequency: 1550-1605 MHz

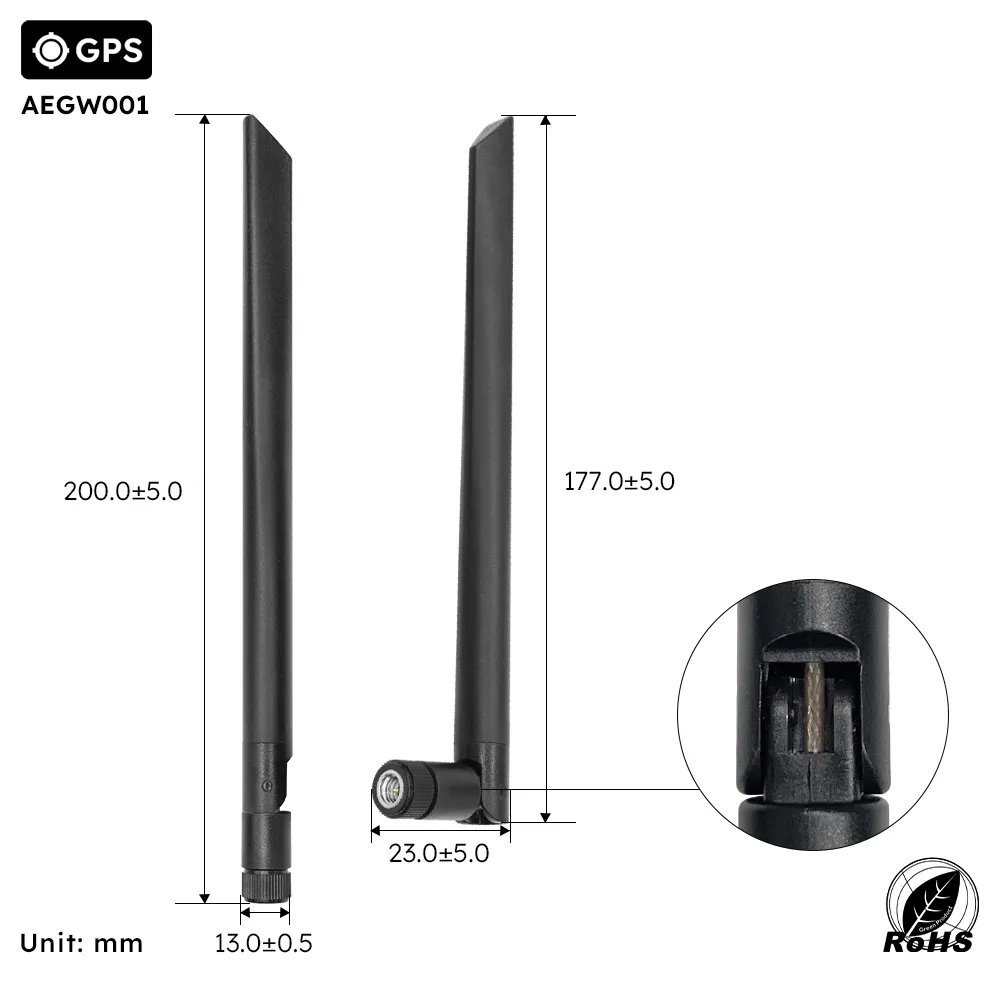

Dimensions: Ø13 x 200 mm

The Aboosty AEGW001 is a special passive GPS antenna suitable for indoor and outdoor applications. The antenna features an enhanced hinge structure for improved vibration resistance. Its omnidirectional performance ensures reliable communication and easy installation with minimal maintenance, helping to reduce the lifetime cost of M2M and mobile device installations.

The connector is available with a hinged RP-SMA (M) or SMA (M) option, allowing for flexible mounting in either a straight or right-angle position, and is suitable for compact spaces.

In addition to cellular networks like 4G and 5G, we often need private networks for reasons like data security, cost savings, and power efficiency. For example, LoRa has much lower power consumption compared to cellular networks, where mobile terminals can consume dozens of times more power.

Take Zhangjiajie Scenic Area as an example. With just 10 compact LoRa gateways, I can cover the entire park. Inside each trash bin, I can place a LoRa-enabled sensor that detects when the bin is full. This allows for efficient coordination of garbage collection staff.

With our this type of GPS antenna, engineers can use the gateway’s built-in GPS antennas to help maintenance personnel quickly locate a specific gateway—right down to which tree it’s installed under—without needing handover instructions from others.

Don’t hesitate to contact the Aboosty customer support team for more information or support.

Package Included: 1 x swivel whip antenna
