AECW004

External 4G LTE/Cellular Omni-directional Monopole Swivel Blade Antenna

LTE/CELLULAR

Single External Antennas

Download

Datasheet

Buy Samples

Coming soon

Dealers

Coming soon

Aboosty is ready to help you tackle various wireless issues.

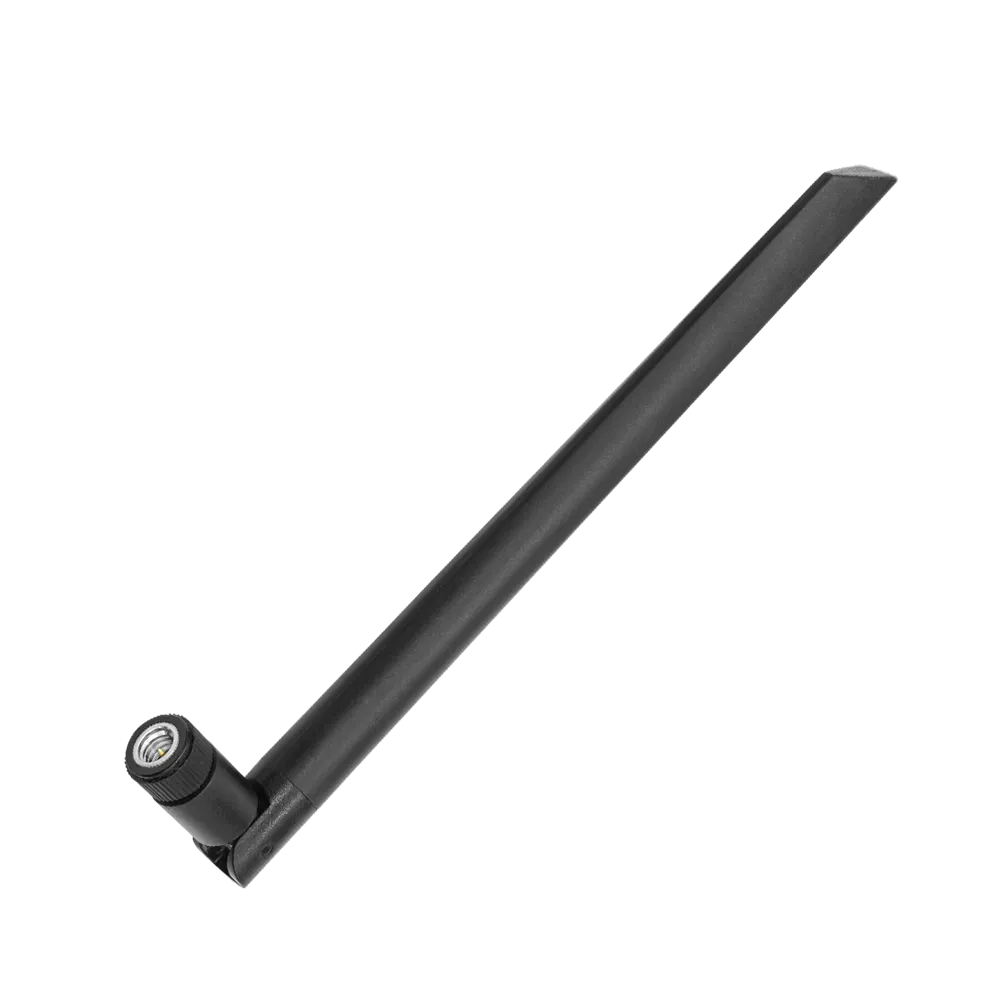

External 4G LTE/Cellular Omni-directional Monopole Swivel Blade Antenna

SKU: AECW004 Category: External Antennas Tags: 4G/3G/LTE/GSM, 4G/3G/NB-Iot

Product Overview

Key Features

Description

Specification

Applications

Peak Gain: 3.8 dBi

Dipole Antenna, Ground Plane Independent

Linear, Omnidirectional Performance

Rotatable: 180° horizontal, 90° vertical for compact multi-antenna setups

Enhanced hinge structure for vibration environments

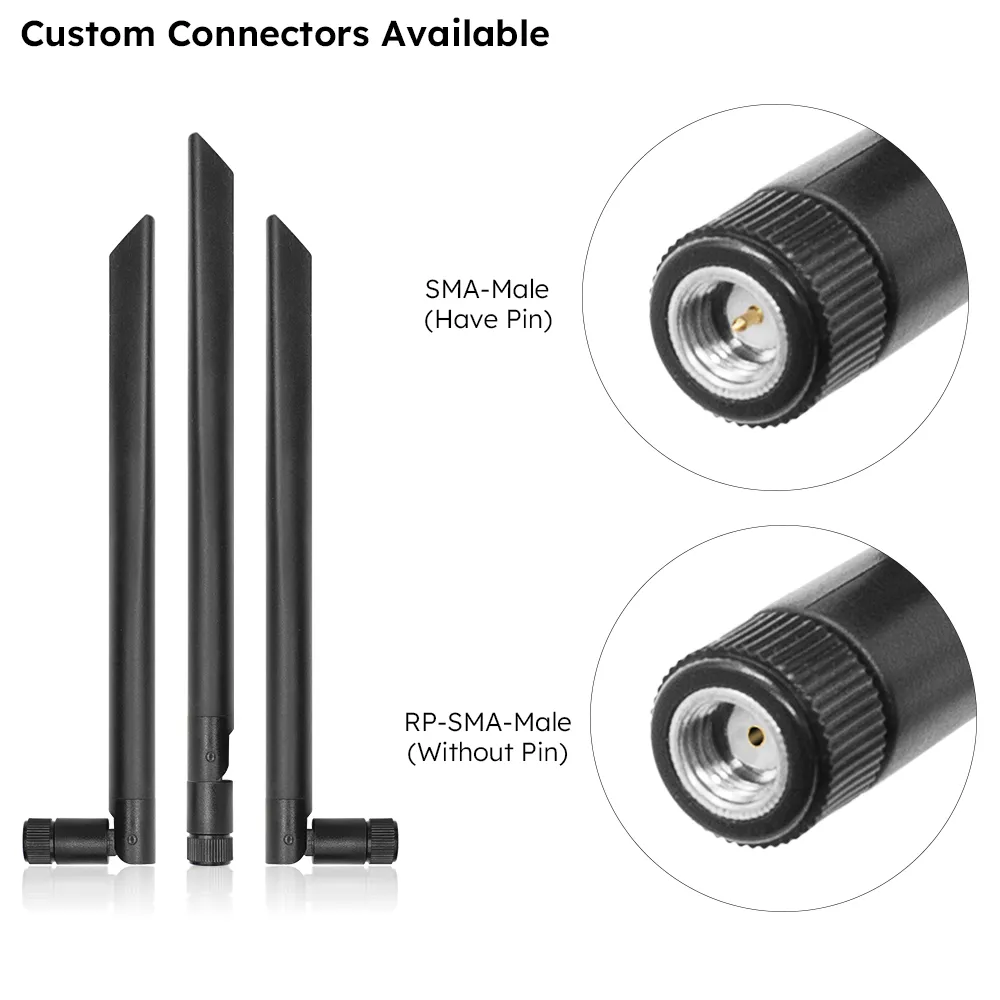

Custom Connector Available

RoHS Compliant

Operating Frequency: 824-960 MHz | 1710-2690 MHz
Dimensions: Ø13 x 198 mm

The Aboosty AECW004 is a 4G LTE/GSM/Cellular monopole antenna suitable for indoor and outdoor applications. The antenna features an enhanced hinge structure for improved vibration resistance. Its ground-plane-dependent design and omnidirectional performance ensure reliable communication and easy installation with minimal maintenance, helping to reduce the lifetime cost of M2M and mobile device installations.

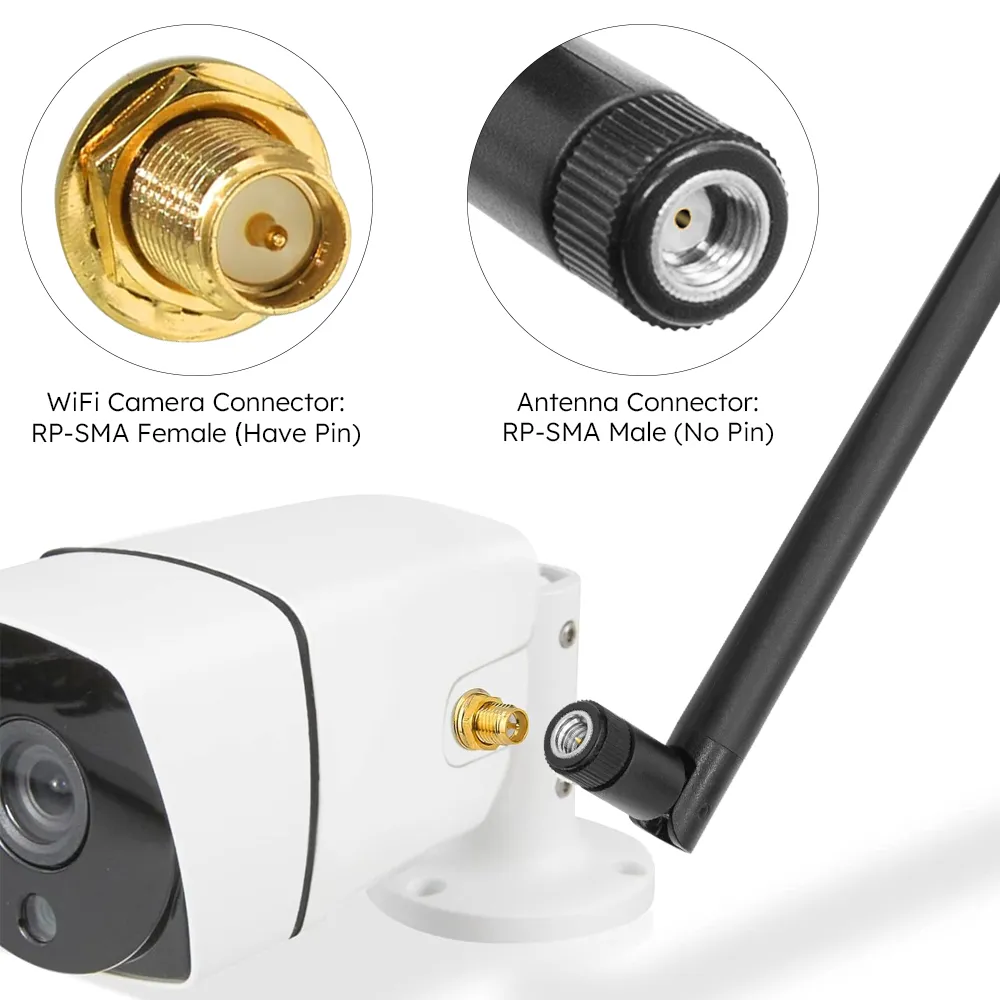

The connector is available with a hinged RP-SMA (M) or SMA (M) option, allowing for flexible mounting in either a straight or right-angle position, and is suitable for compact spaces.

Don’t hesitate to contact the Aboosty customer support team for more information or support.

Package Included: 1 x swivel whip antenna

LABEL

VALUE

Certificates Acquired

RoHS Compliant

Length (mm)

Ø13

Width (mm)

Height (mm)

198

Product Weight (g)

Freq. (MHz)

824-960, 1710-2690

Technology Type

4G/3G/LTE/GSM

Operating Temperature (℃)

-40°C to +85°C

Markets

Mobility and Infrastructure, Smart Industrial, Public Safety, Others

Antenna Type

Monopole

Connector Style

Straight, Right Angle

Radiation Pattern

Omnidirectional

Polarity

Linear

Max Effi. (%)

Peak Gain

3.8 dBi

VSWR

3.0:1

Impedance (Ω)

Ingress/Impact

N/A

Termination Style

Connector

Antenna Connector Type

SMA-Male

Cable Type

N/A

Cable Length (mm)

N/A

Mechanical Style

Mounting Style

Direct Mount

Customization Option

Logo, Packaging, Connectors

Long-Range IoT
Smart Agriculture
Industrial Monitoring
Urban and Rural Tracking
Environmental Monitoring

Part Number

User Story

Model

Description

Note

AECW004

4G LTE Blade Antenna with SMA-Male Connector

M02-0500550R0A

Customization supported

AECW014

4G LTE Blade Antenna with RP-SMA-Male Connector

M02-0500570R0A

Customization supported

DELIVERY INFORMATION

Antennas & GPS modules, RF Connectors / Cables

Antennas & GPS modules, RF Connectors / Cables - estimated delivery time for samples is 5-7 days

Evaluation boards

Evaluation boards - estimated delivery time for samples is 7-14 days
