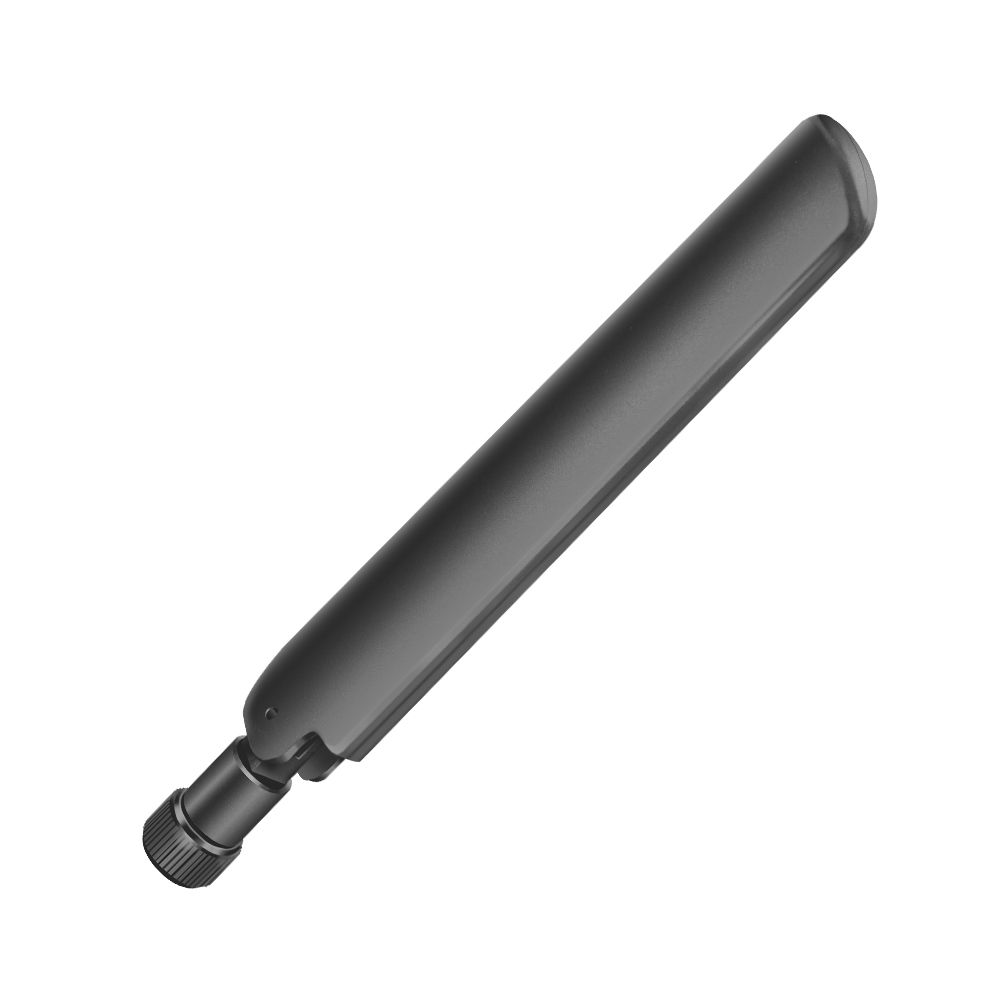

AECW001 | Cellular 5G Omni Rubber Rod Antenna

SKU: AECW001 Category: External Antennas Tags: 4G/3G/LTE/GSM, 5G NR, NB-IoT

Product Overview

Key Features

Description

Specification

Applications

Peak Gain: 4.0 dBi
Connector: Hinged SMA-Male or RP-SMA-Male Connector

Durable with Enhanced Hinge for Vibration Environments

Omni-directional, Ground Plane Independent Dipole Antenna

Rotatable: 180° horizontal, 90° vertical for compact multi-antenna setups

Custom Connector Available

RoHS Compliant

Operating Frequency: 617-960 MHz | 1710-5850 MHz
Dimensions: Ø13 x 135.3 x 23.9 mm

The Aboosty AECW001 is a global cellular and LTE bands dipole antenna suitable for indoor and outdoor applications.

The antenna features an enhanced hinge structure for improved vibration resistance. Its ground-plane independent design and omnidirectional performance ensure reliable communication and easy installation with minimal maintenance, helping to reduce the lifetime cost of M2M and mobile device installations.

The connector is available with a hinged RP-SMA (M) or SMA (M) option, allowing for flexible mounting in either a straight or right-angle position, and is suitable for compact spaces.

For more information or support, please contact the Aboosty customer support team.

LABEL

VALUE

Certificates Acquired

RoHS Compliant

Length (mm)

Ø13

Width (mm)

23.9

Height (mm)

135.3

Product Weight (g)

15.8

Freq. (MHz)

617-960, 1710-2690, 5150-5850

Technology Type

4G/3G/LTE/GSM, 4G 3G/NB-lot, 5G NR, 5G LTE

Operating Temperature (℃)

-40°C to +85°C

Markets

Smart Industrial, Mobility and Infrastructure, Smart Cities, Mobile Communication, Public Safety, Others

Antenna Type

Dipole

Connector Style

Right Angle, Straight

Radiation Pattern

Omnidirectional

Polarity

Linear

Max Effi. (%)

96.07

Peak Gain

4.18 dBi

VSWR

6.2:1

Impedance (Ω)

Ingress/Impact

N/A

Termination Style

Connector

Antenna Connector Type

SMA-Male

Cable Type

N/A

Mechanical Style

ABS, Black

Mounting Style

Direct Mount

Customization Option

Logo, Packaging, Connectors

M2M Applications
Mobile Devices
Telematics and Transportation
Smart Cities
IoT Systems
IoT Devices
Public Safety and Emergency Response
Precision Agriculture

Part Number

User Story

Model

Description

Note

AECW001

5G Rubber Rod Antenna with SMA-Male Connector

M02-0100080R0A

Customization supported

AECW010

5G Rubber Rod Antenna with RP-SMA-Male Connector

M02-0100050R0A

Customization supported
