AECM003 | 5G Cellular LTE GSM Magnetic Base Blade Antenna

SKU: AECM003 Category: External Antennas Tag: 5G NR

Product Overview

Key Features

Description

Specification

Applications

Peak Gain: 4.96 dBi
Cable: 1000mm Length RG174 Cable
Connector: SMA-Male Connector

Full 5G LTE backward compatibility

Omni-directional & Monopole Antenna, Ground Plane dependent

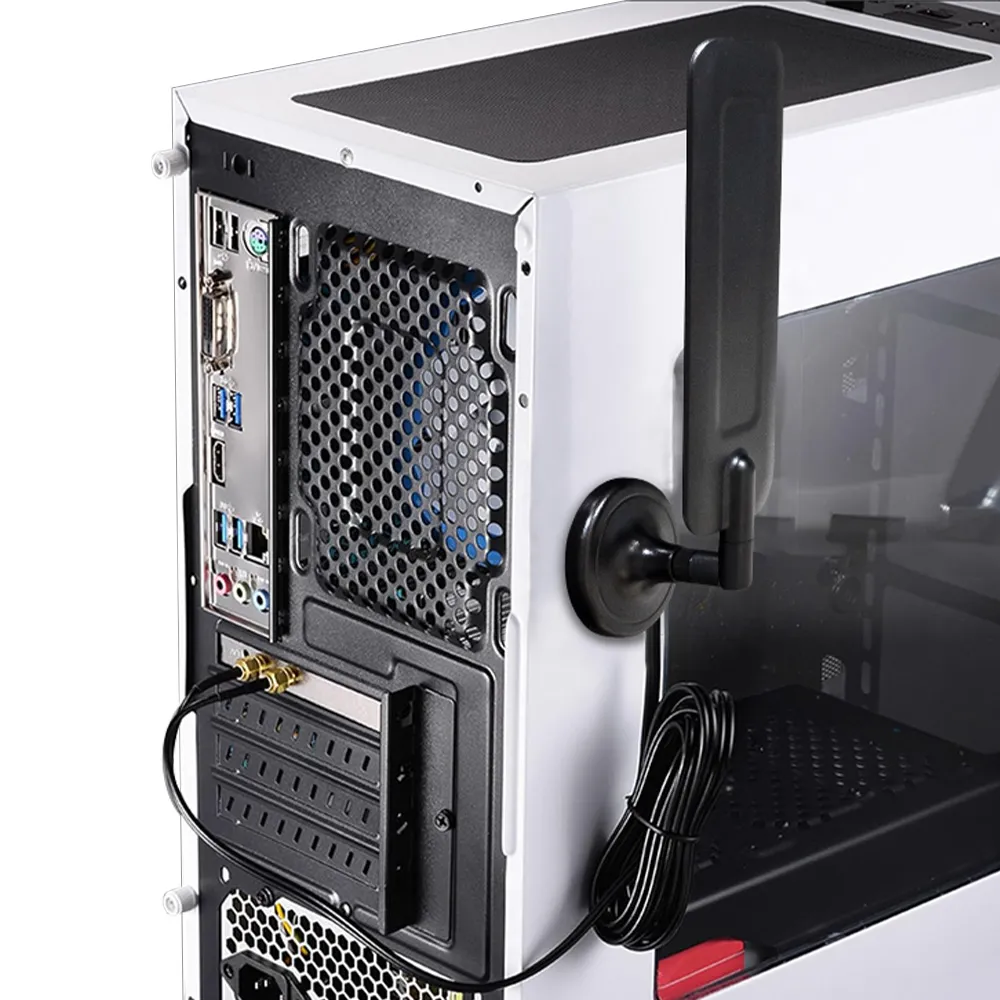

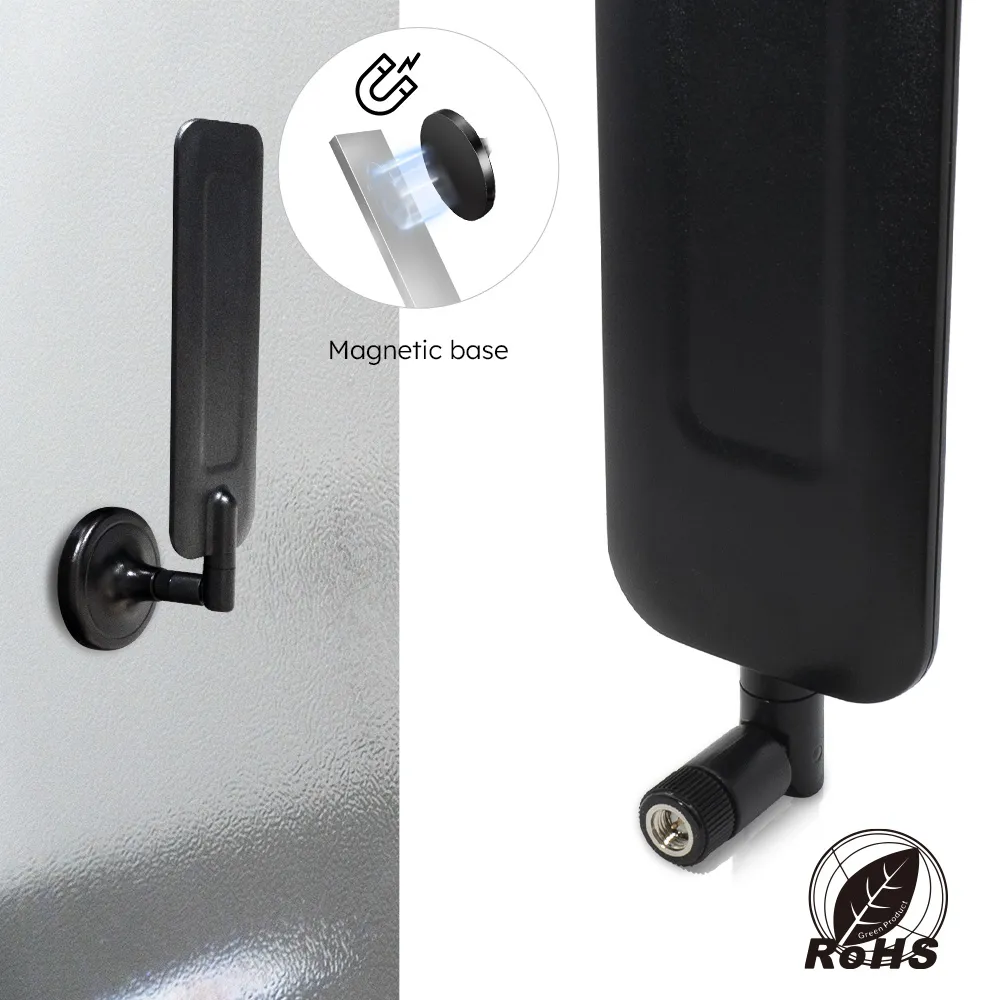

Large magnetic base for easy and quick installation on metal surfaces

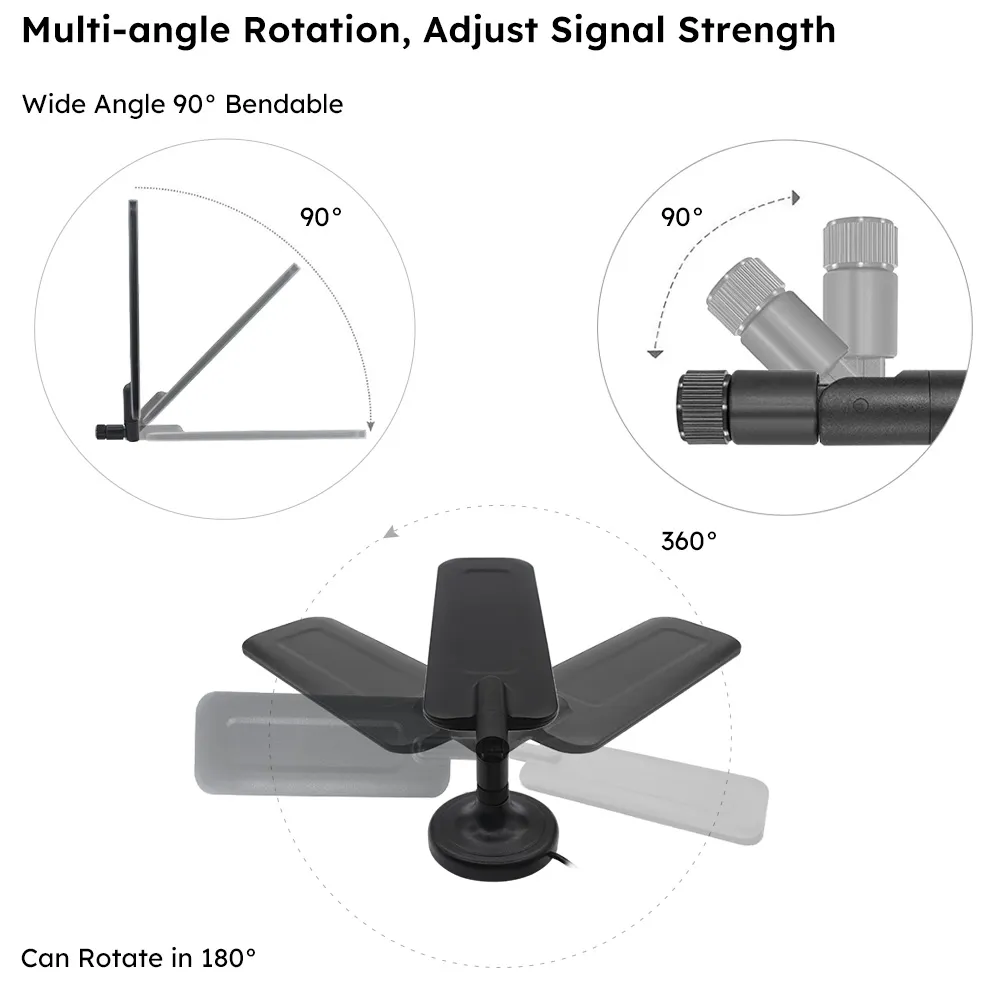

Enhanced hinge for vibration environments

Compact and portable, suitable for mobile applications and temporary setups

Custom cables and connectors available

RoHS compliant

Operating Frequency: 617-960 MHz | 1400-6000 MHz

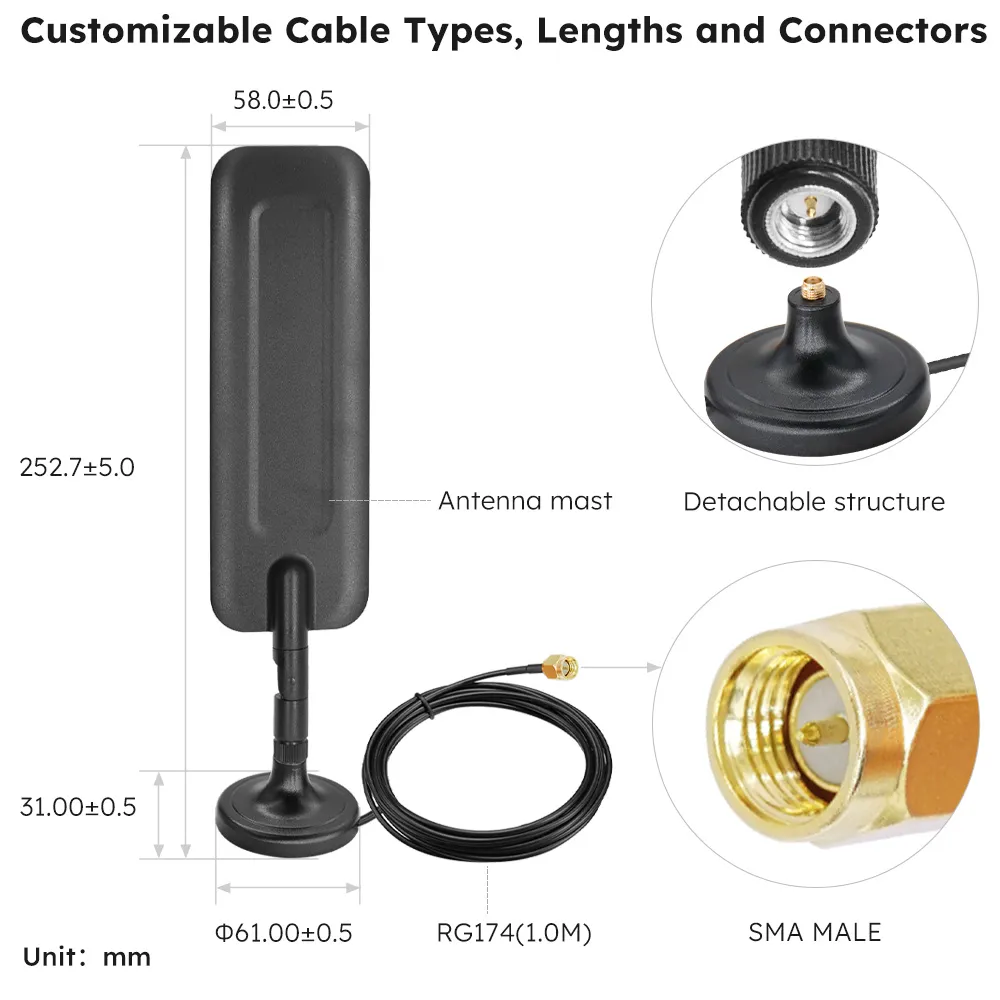

Dimensions: Ø61 x 252.7 mm

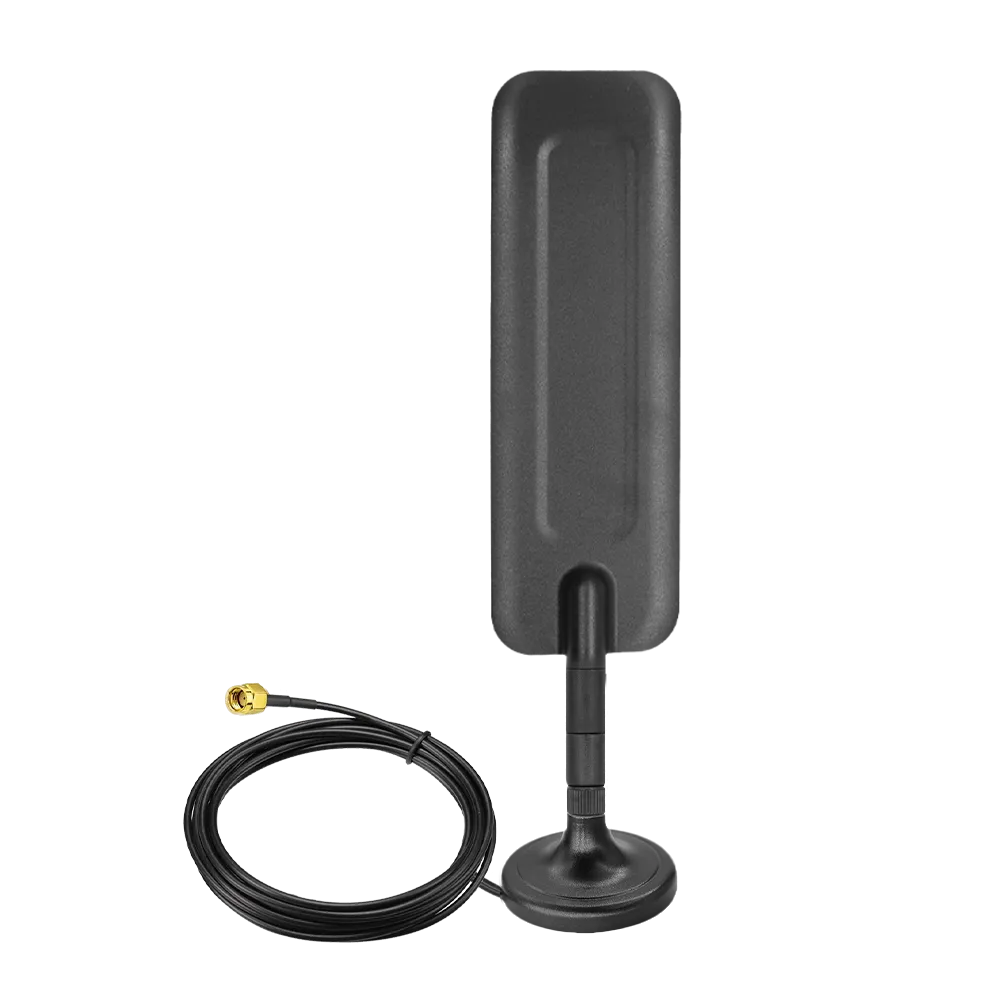

The Aboosty AECM003 is a high-performance antenna designed for wideband coverage across 5G NR, 4G LTE, and 3G applications. This antenna delivers superior gain and efficiency with its omnidirectional radiation pattern, ensuring reliable connectivity in various environments. Featuring a strong magnetic base made of high-quality neodymium magnets, this antenna guarantees a secure mount with exceptional pull force. This design makes it a robust solution for easy installation on metal surfaces while offering enhanced durability in harsh conditions.

The AECM003 is engineered for seamless integration into mobile and IoT devices, offering customizable cable lengths and connectors to meet specific needs. For optimal performance, it is recommended to mount it with a ground plane.

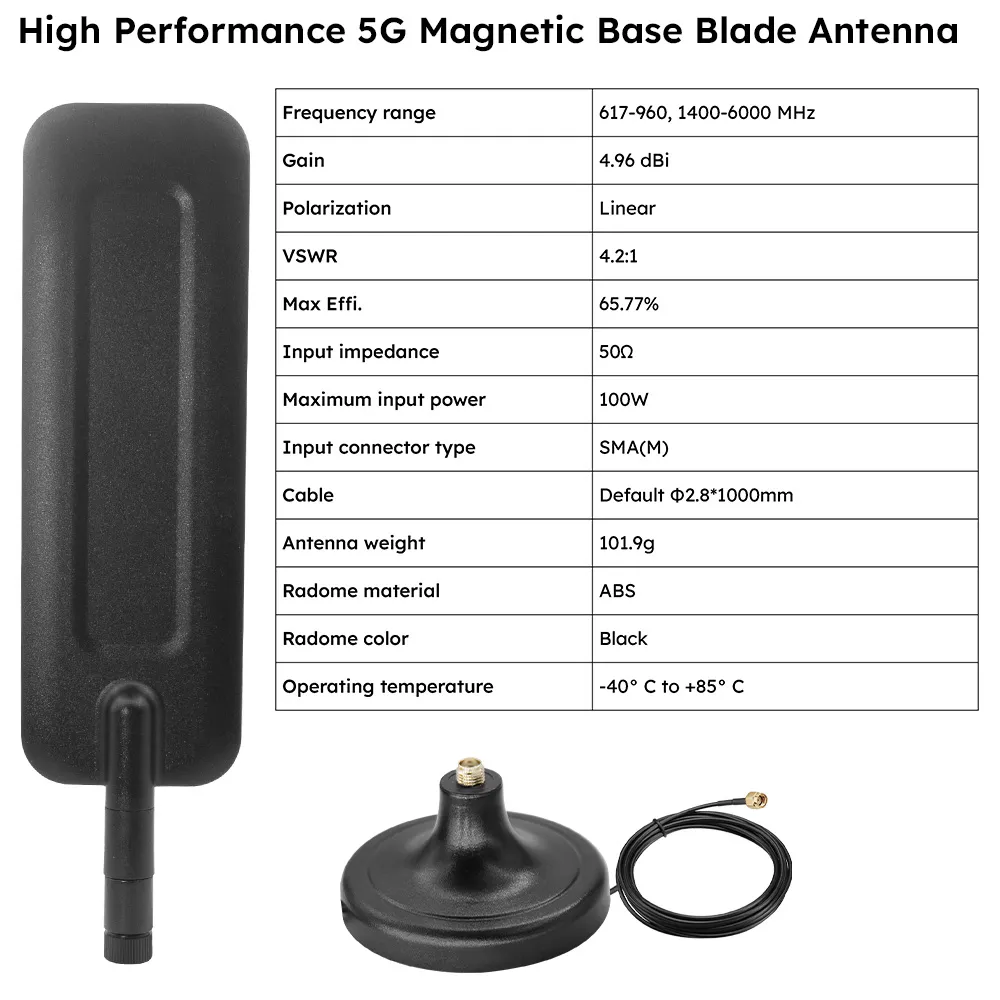

LABEL

VALUE

Certificates Acquired

RoHS Compliant

Length (mm)

Ø61

Width (mm)

Height (mm)

252.7

Product Weight (g)

101.9

Freq. (MHz)

617-960, 1400-6000

Technology Type

5G LTE, 5G NR

Operating Temperature (℃)

-40°C to +85°C

Markets

Transportation, Mobile Communication, Mobility and Infrastructure, Smart Industrial, Smart Cities, Public Safety

Antenna Type

Monopole

Connector Style

Straight

Radiation Pattern

Omnidirectional

Polarity

Linear

Max Effi. (%)

65.77

Peak Gain

4.96 dBi

VSWR

4.2:1

Impedance (Ω)

Ingress/Impact

N/A

Termination Style

Connector

Antenna Connector Type

SMA-Male

Cable Type

RG174

Cable Length (mm)

1000

Mechanical Style

ABS, Black

Mounting Style

Surface Mount, Magnetic Mount

Customization Option

Logo, Packaging, Cables and Connectors

IoT Devices, M2M
Outdoor Events and Activities
Vehicle Connectivity

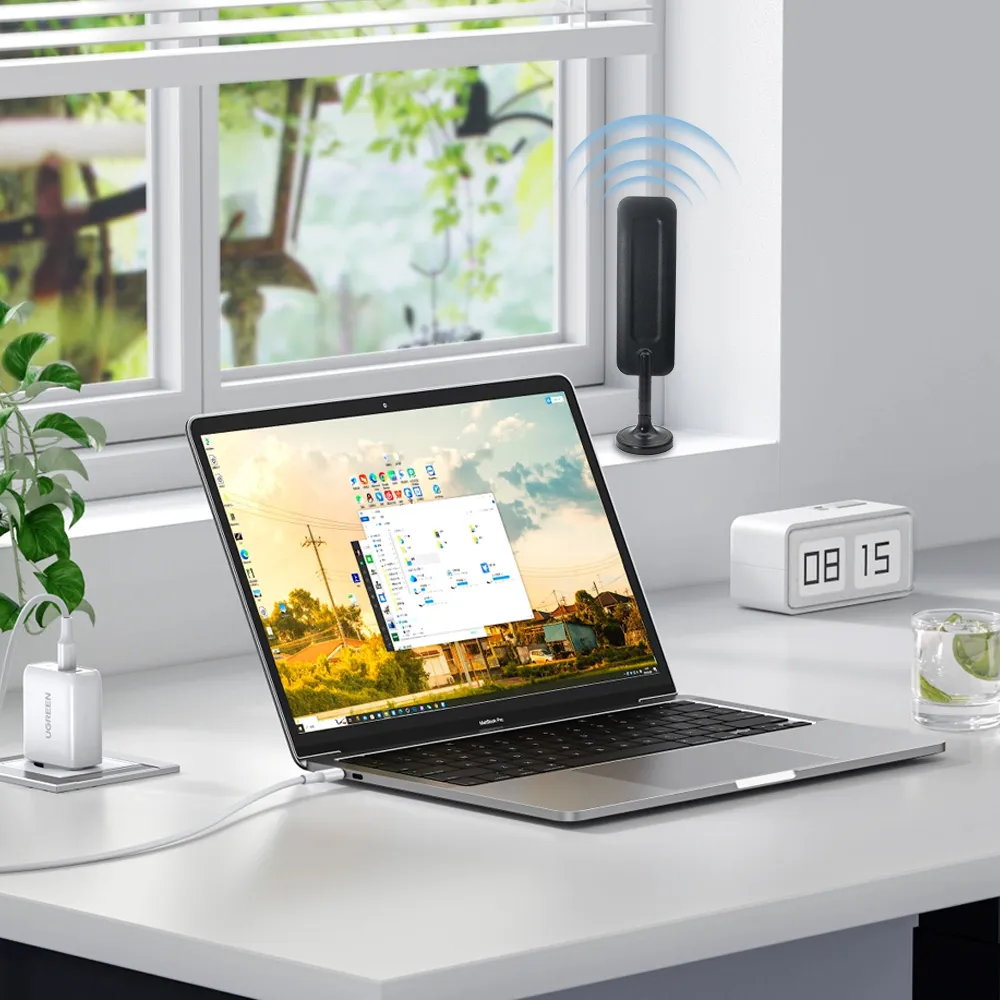

Remote Work and Temporary Sites
Public Safety and Emergency Response
Mobile Homes and Boats
Temporary Connectivity Solutions such as disaster recovery, temporary offices, or pop-up events

Part Number

User Story

Model

Description

Note

AECM003

5G Antenna with 1000 mm Long RG174 Cable and SMA-Male Connector

M02-0100150R0A

Customization supported
