AECB005

Waterproof 5G/BLUETOOTH/ZIGBEE Adhesive Blade Antenna

LTE/CELLULAR

Single External Antennas

Download

Datasheet

Buy Samples

Cooming soon

Dealers

Cooming soon

Aboosty is ready to help you tackle various wireless issues.

Waterproof 5G/BLUETOOTH/ZIGBEE Adhesive Blade Antenna

SKU: AECB005 Category: External Antennas Tags: 4G/3G/LTE/GSM, 5G NR

Product Overview

Description

Specification

Applications

Peak Gain: 5.8 dBi
Cable: 1000 mm Length RG174 Cable
Connector: FAKRA type C Female Head

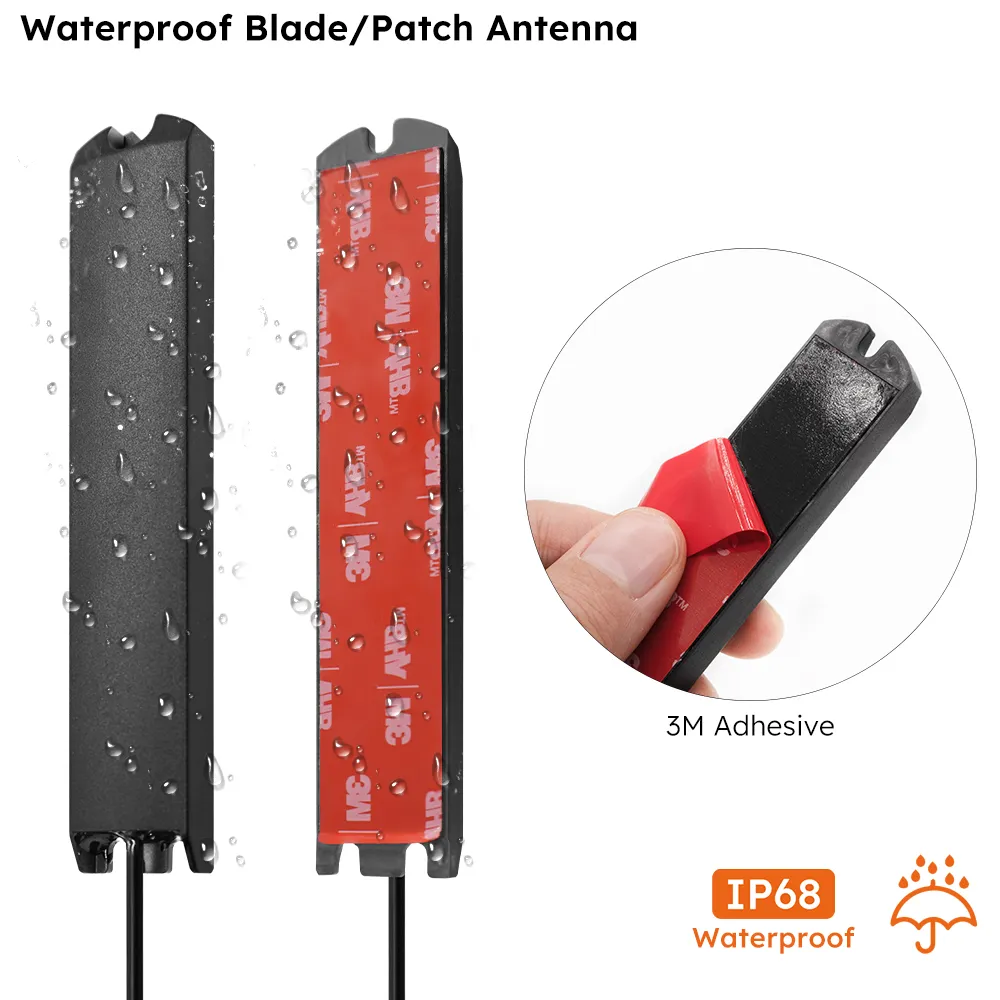

Waterproof, Low Profile & Adhesive Mount

Ground Plane Independent

Full 5G LTE Backward Compatibility

Custom Cable and Connector Available

RoHS compliant

Operating Frequency: 698-960 MHz | 1710-2690 MHz

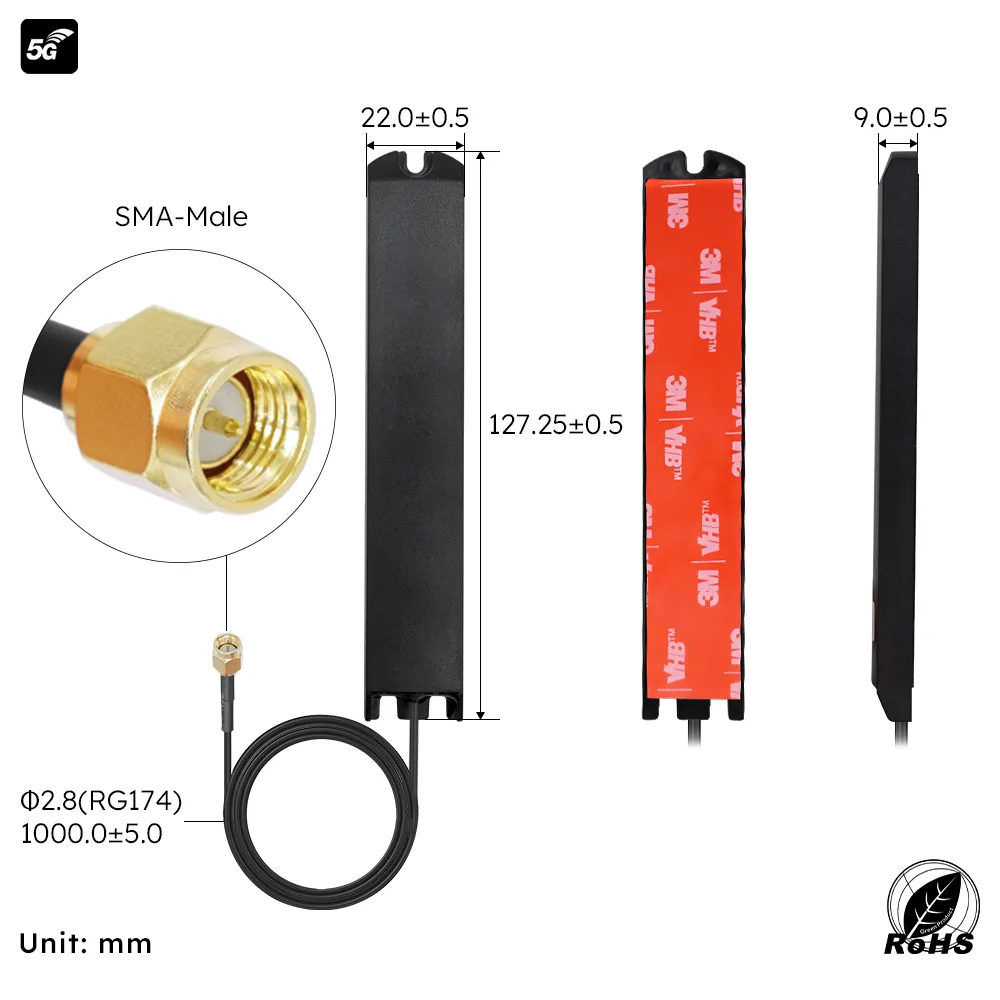

Dimensions: 127.25 x 22.0 x 9.0 mm

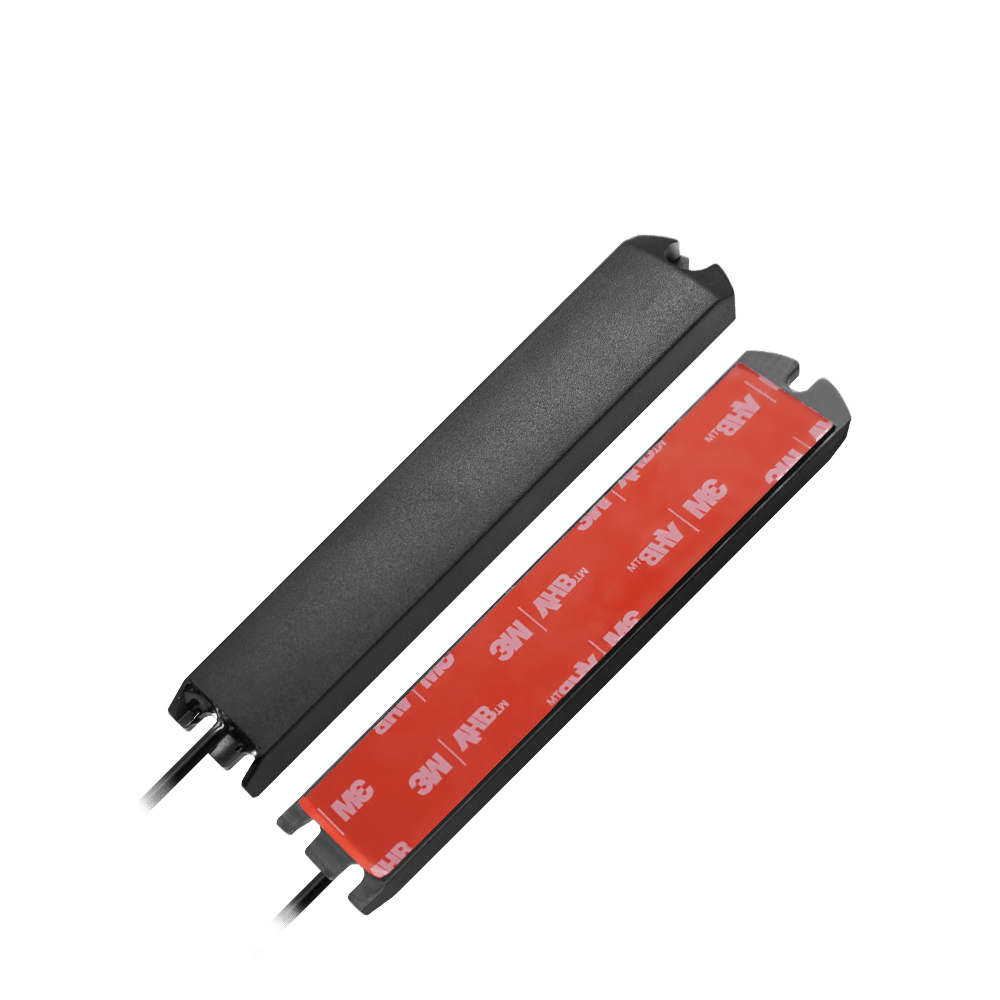

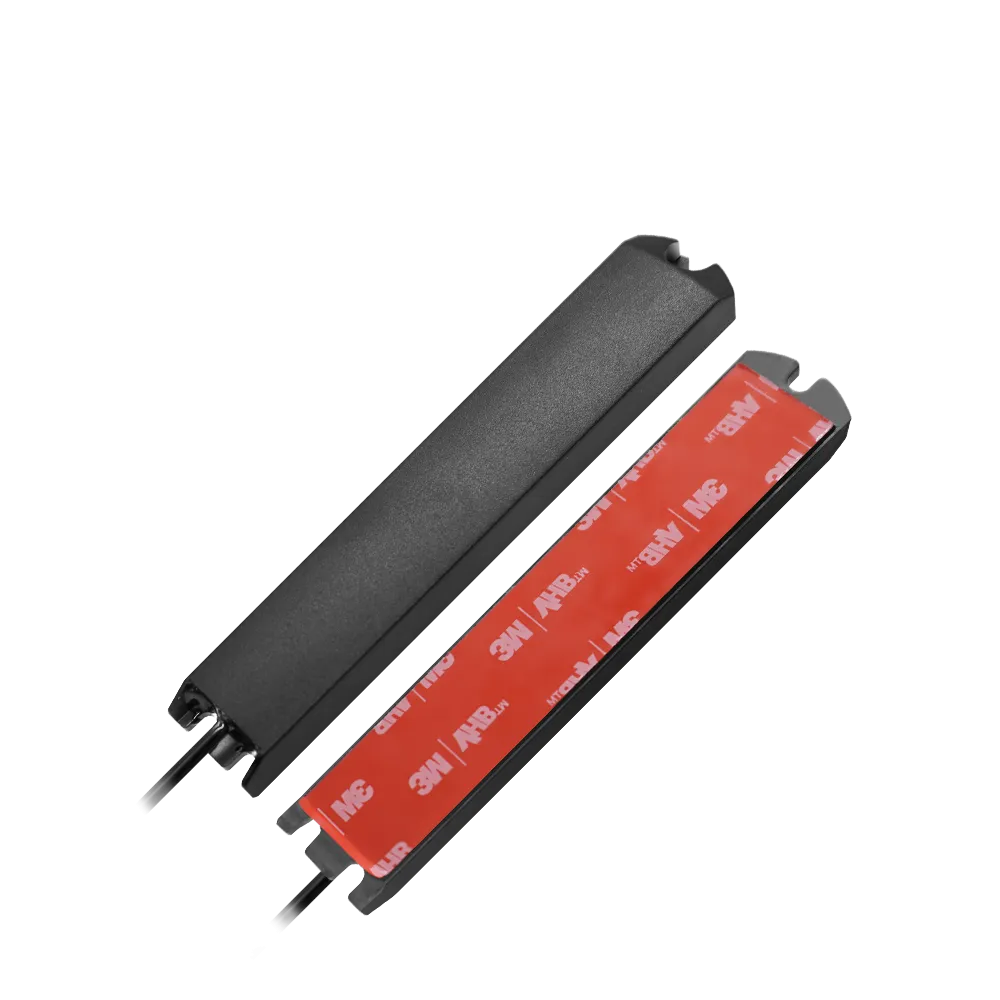

The AECB005 is a compact, adhesive mount and waterproof 5G band antenna designed for remote control and IoT devices. With dimensions of 127.25 x 22.0 x 9.0 mm, it features high-quality adhesive tape and PC/ABS UV stable housing, allowing it to be securely installed on glass or ABS surfaces in extreme outdoor environments.

This antenna provides ground-plane independent Omni-directional performance across global cellular and 5G bands, making it a versatile solution for various applications. Its efficient design ensures a high first-time connection rate and robust communications in challenging coverage areas.

Custom cable lengths and connector types are available for volume orders.

Packaging Included: 1 x 5G Patch Antenna with 3M Stick Back

LABEL

VALUE

Certificates Acquired

RoHS Compliant

Length (mm)

127.25

Width (mm)

22.0

Height (mm)

9.0

Product Weight (g)

Freq. (MHz)

617-6000

Technology Type

4G/3G/LTE/GSM, 5G NR, 5G LTE

Operating Temperature (℃)

-40°C to +85°C

Antenna Type

Dipole

Connector Style

N/A

Radiation Pattern

Omnidirectional

Polarity

Linear

Max Effi. (%)

75.66

Peak Gain

4.67 dBi

VSWR

3.0:1

Impedance (Ω)

Ingress/Impact

N/A

Termination Style

Connector

Antenna Connector Type

FAKRA type C Female Head

Cable Type

RG174

Cable Length (mm)

1000

Mechanical Style

Blade Antenna

Mounting Style

Adhesive Mount

Customization Option

Logo, Packaging, Cables and Connectors

Smart Transportation
Vehicle Networking
Smart Cities
IoT Systems
IoT Devices
Outdoor Advertising
Emergency Communication
Agriculture Monitoring
Environmental Monitoring

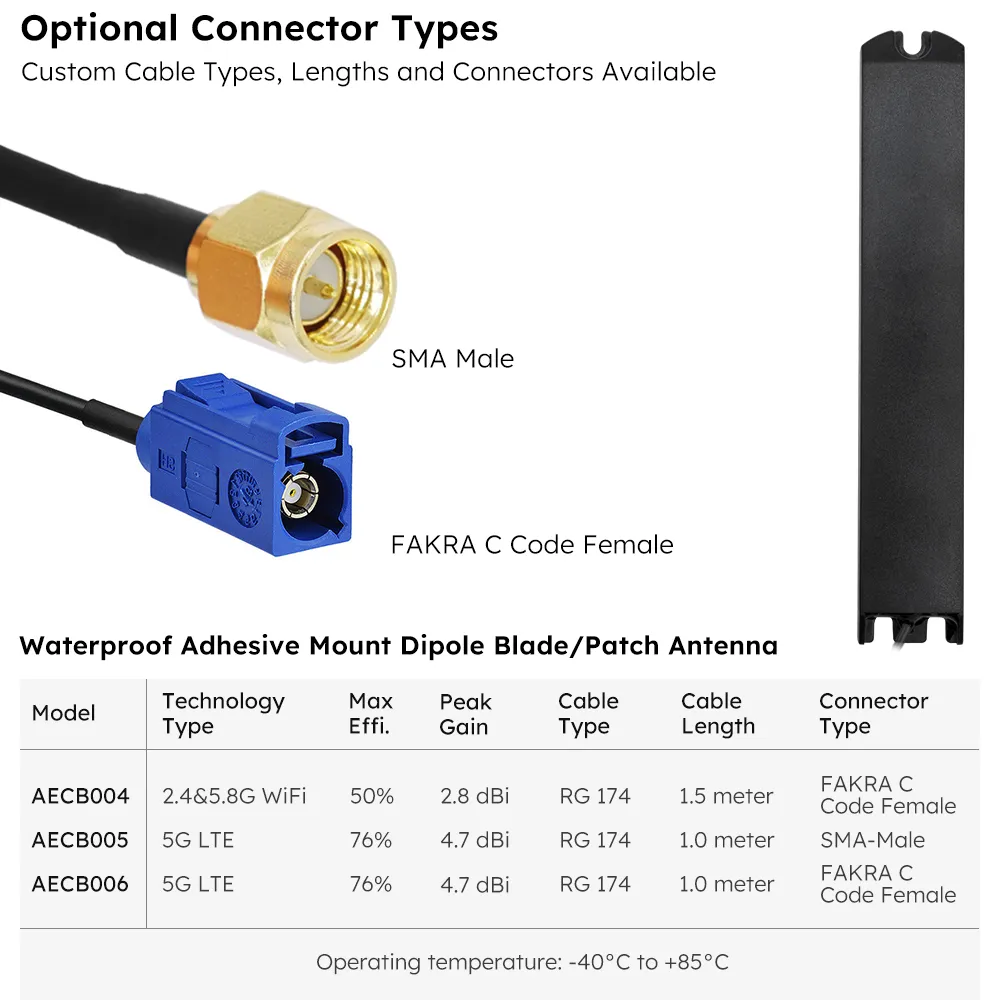

Part Number

User Story

Model

Description

Note

AECB005

5G Blade Antenna with SMA Connector

M02-0100200R0A

Customization supported

AECB006

5G Blade Antenna with FAKRA Connector

M02-0100060R0A

Customization supported
