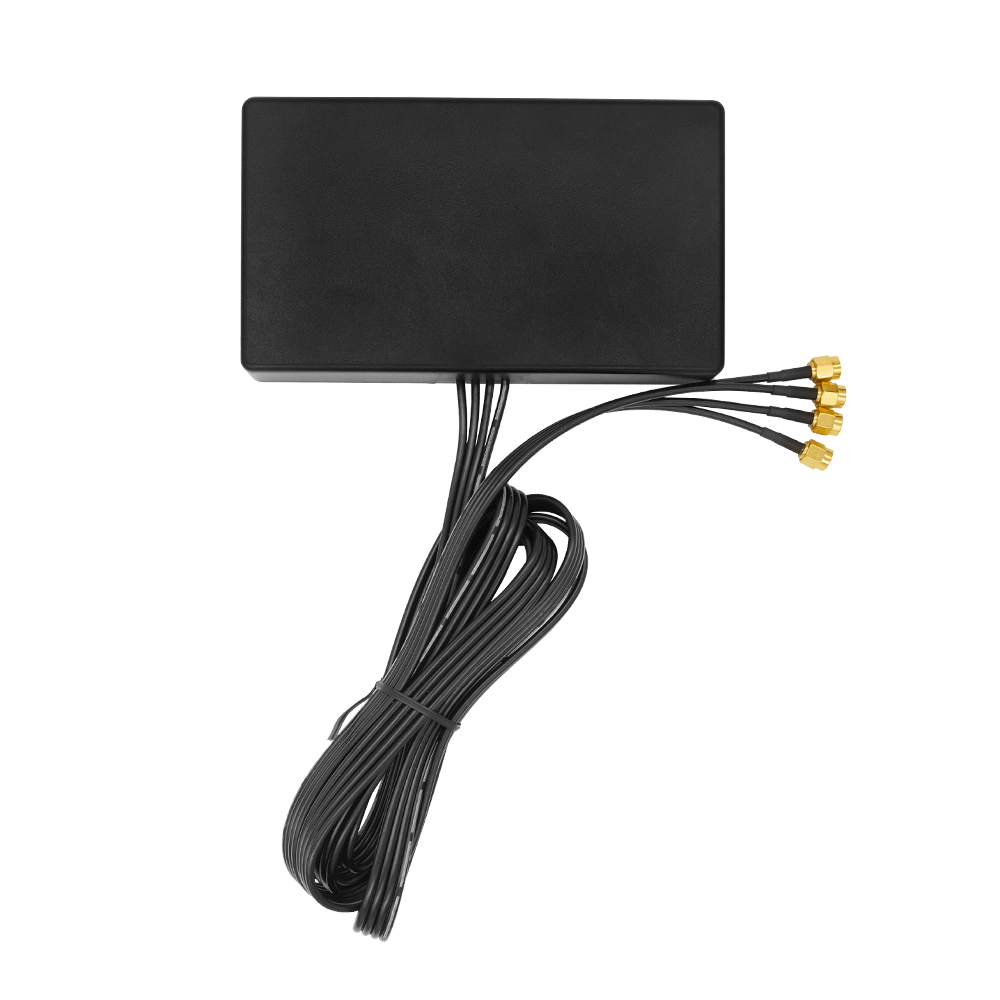

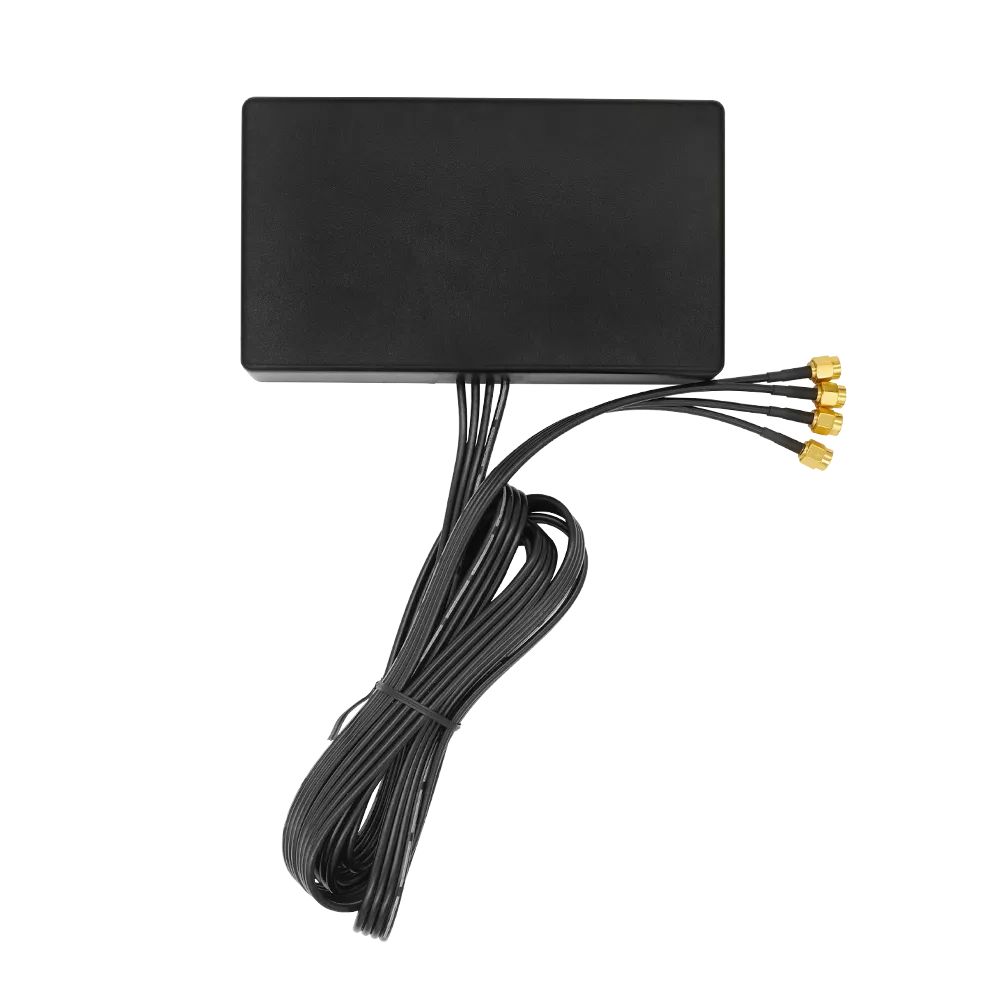

Outdoor 5G 4G LTE and GPS 4 in 1 Combination MIMO Panel Antenna | Adhesive & Magnetic Mount

SKU: AECA006 Categories: Combo, External Antennas Tags: 4G LTE, 5G NR, GPS

Product Overview

Key Features

Description

Specification

Applications

Peak Gain: 4.6 dBi

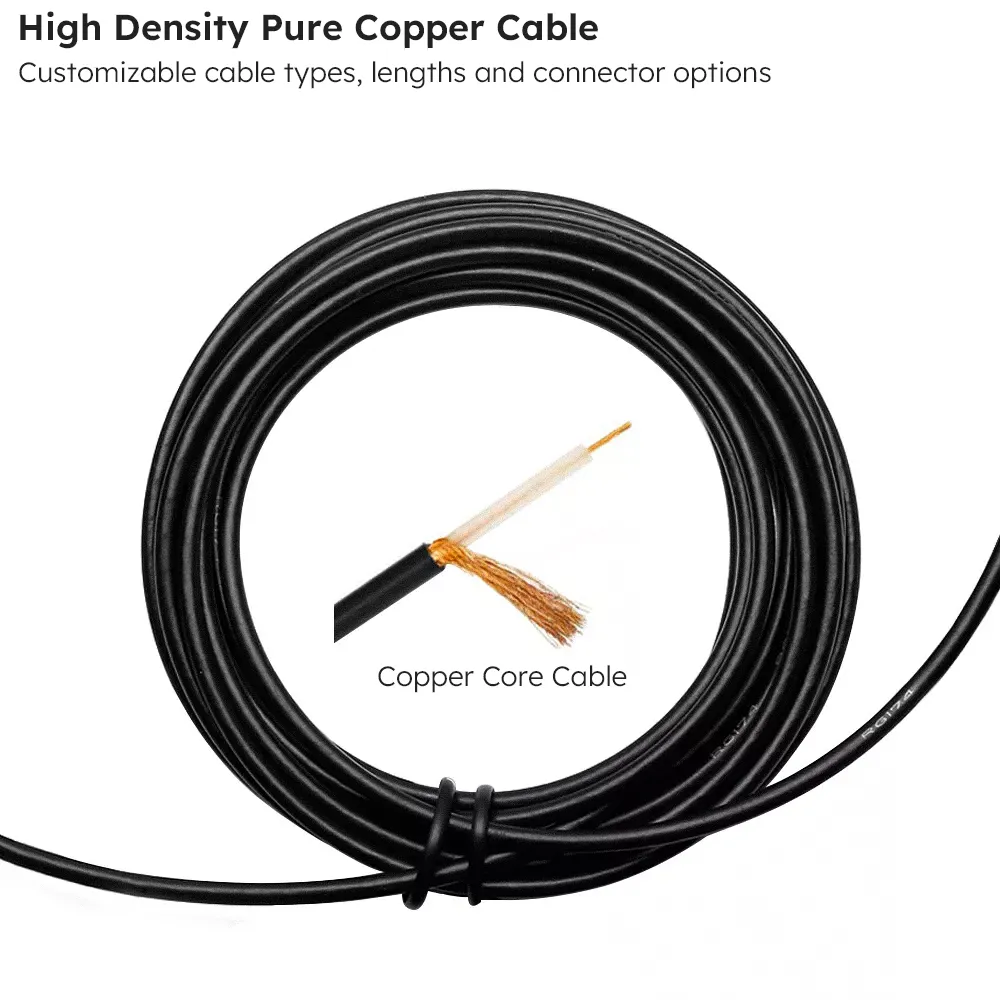

Cable: 2000 mm Length RG174 (Ø2.80 mm)
Connector: SMA-Male Connector

Omni-directional 4 x 4 MIMO Performance

Ground Plane Independent

4G/5G LTE Worldwide Ready

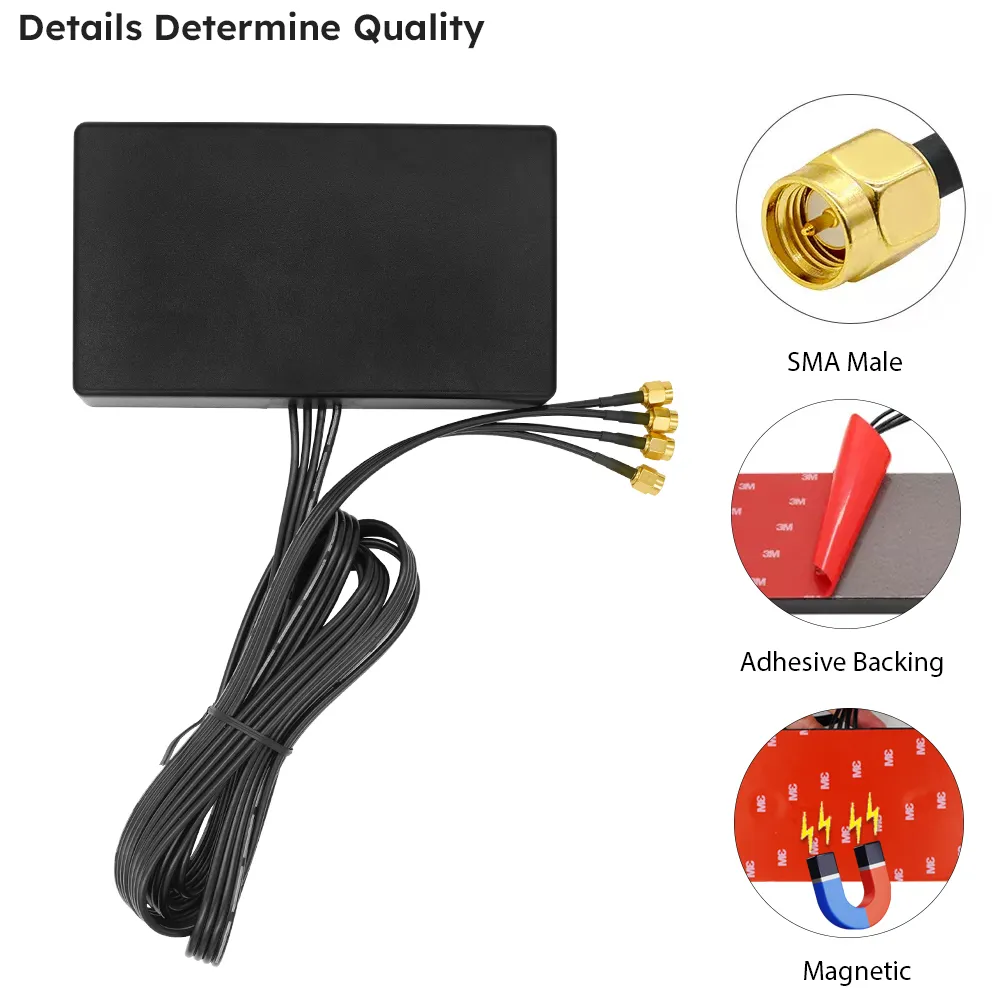

Multiple Mounting Options

Perfect for Indoor or Outdoor Use

Custom Cables and Connectors Available

RoHS Compliant

Operating Frequency: 600-6000 MHz | 1575.42 MHz

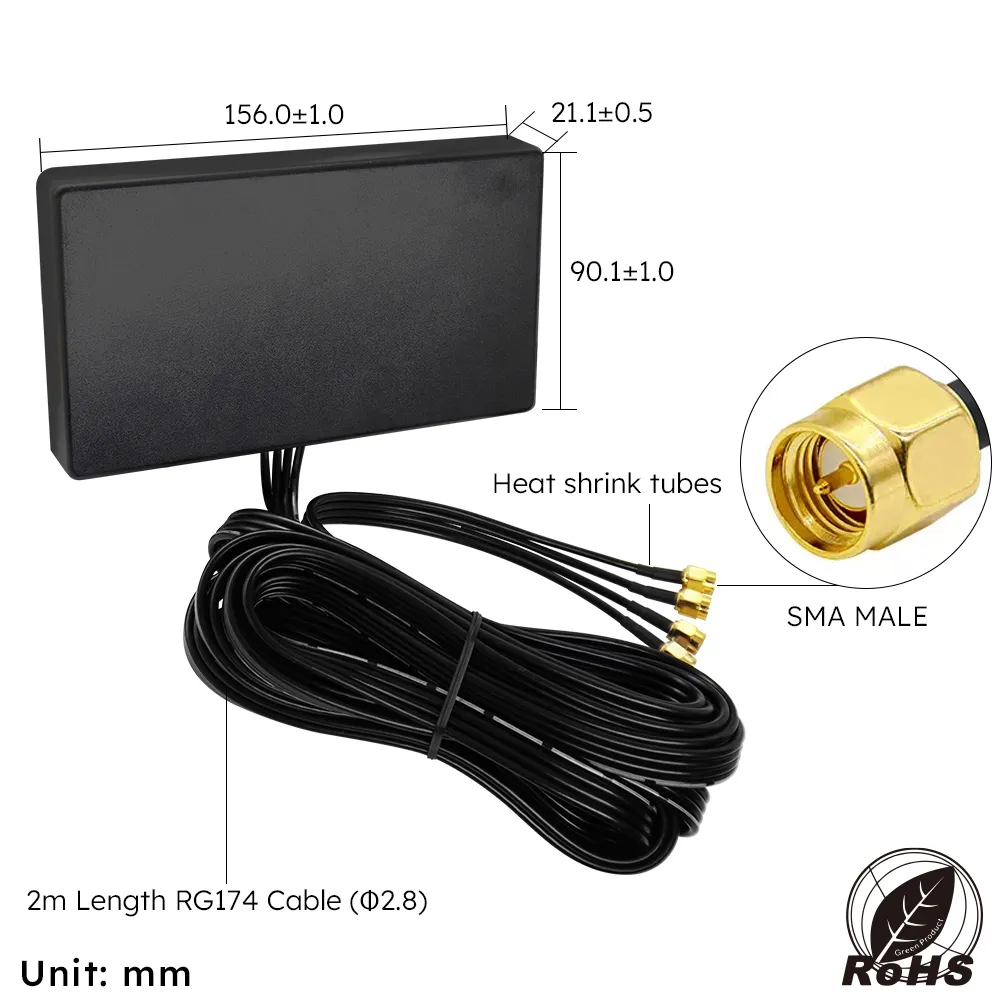

Dimensions:156 x 90.1 x 21.1 mm

Aboosty AECA006: 4×4 External MIMO Wideband 5G/4G & GPS Antenna with Versatile Mounting

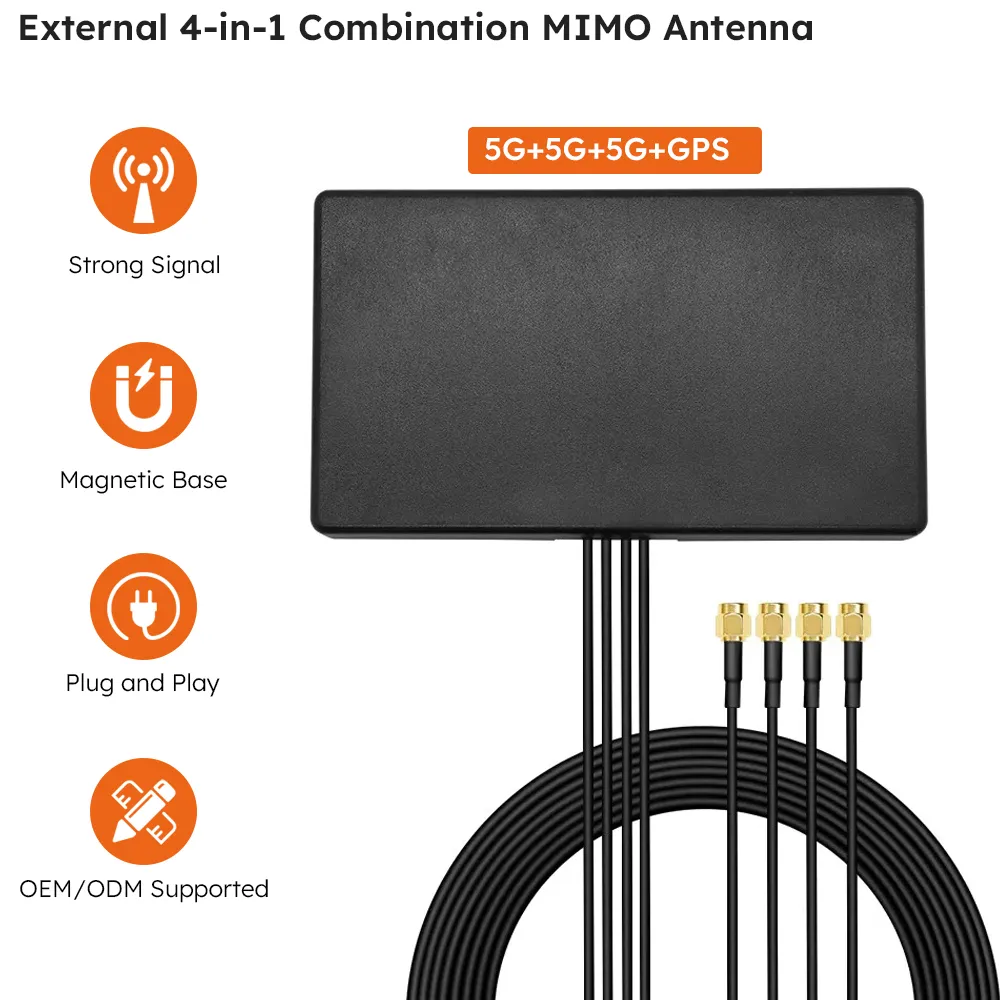

The AECA006 5G+5G+5G+GPS 4-in-1 antenna offers multifunctionality by integrating three 5G and one GPS signal antenna, enabling high-speed wireless connectivity and precise positioning on the same device. Its 4-in-1 design saves space, making it ideal for compact mobile and wireless communication equipment. By combining multiple functions into a single unit, this antenna simplifies device design, reduces manufacturing costs, and enhances overall reliability. Specifically engineered for 5G and GPS signals, it delivers excellent communication speeds and positioning accuracy.

Suitable for a wide range of applications — from smartphones and tablets to in-car communication systems and IoT devices — this antenna provides seamless connectivity and precise navigation, making it a crucial component of modern communication technology. It can be mounted on metal and non-metallic surfaces, ensuring versatile installation options.

Package Included:
1 x 5G + GPS MIMO Antenna
1 x Mini Assistant Tool

LABEL

VALUE

Certificates Acquired

RoHS Compliant

Length (mm)

156

Width (mm)

90.1

Height (mm)

21.1

Product Weight (g)

208

Freq. (MHz)

600-6000, 1575.42±2

Technology Type

4G/3G/LTE/GSM, 4G 3G/NB-lot, 5G NR, GPS

Operating Temperature (℃)

-40°C to +85°C

Markets

Transportation, Smart Industrial, Smart Cities, Mobile Communication, Mobility and Infrastructure, Public Safety

Other Attributes

MIMO Antennas, Panel Antennas

Antenna Type

Dipole

Connector Style

Straight

Radiation Pattern

Omnidirectional

Polarity

Linear

Max Effi. (%)

Peak Gain

4.6 dBi

VSWR

3.0:1

Impedance (Ω)

Ingress/Impact

IP56

Termination Style

Connector

Antenna Connector Type

SMA-Male

Cable Type

RG174

Cable Length (mm)

2000

Mechanical Style

Panel

Mounting Style

Wall/Pole Mount, Adhesive Mount, Magnetic Mount

Customization Option

Logo, Packaging, Cables and Connectors

Combination

4 in 1

Number of Antennas

GNSS Antennas

Cellular Antennas

Smart Cities
Smart Agriculture
Public spaces, small cells and hotspots
Residential areas, tourist destinations
IoT Devices
Transportation Hubs
Maritime & Port Areas
Branch Office & Enterprise
Failover
Rural Broadband

Part Number

User Story

Model

Description

Note

AECA006

5G+GPS 4 x 4 MIMO Panel Antenna

M04-0103070R0A

Customization supported
