AECA004

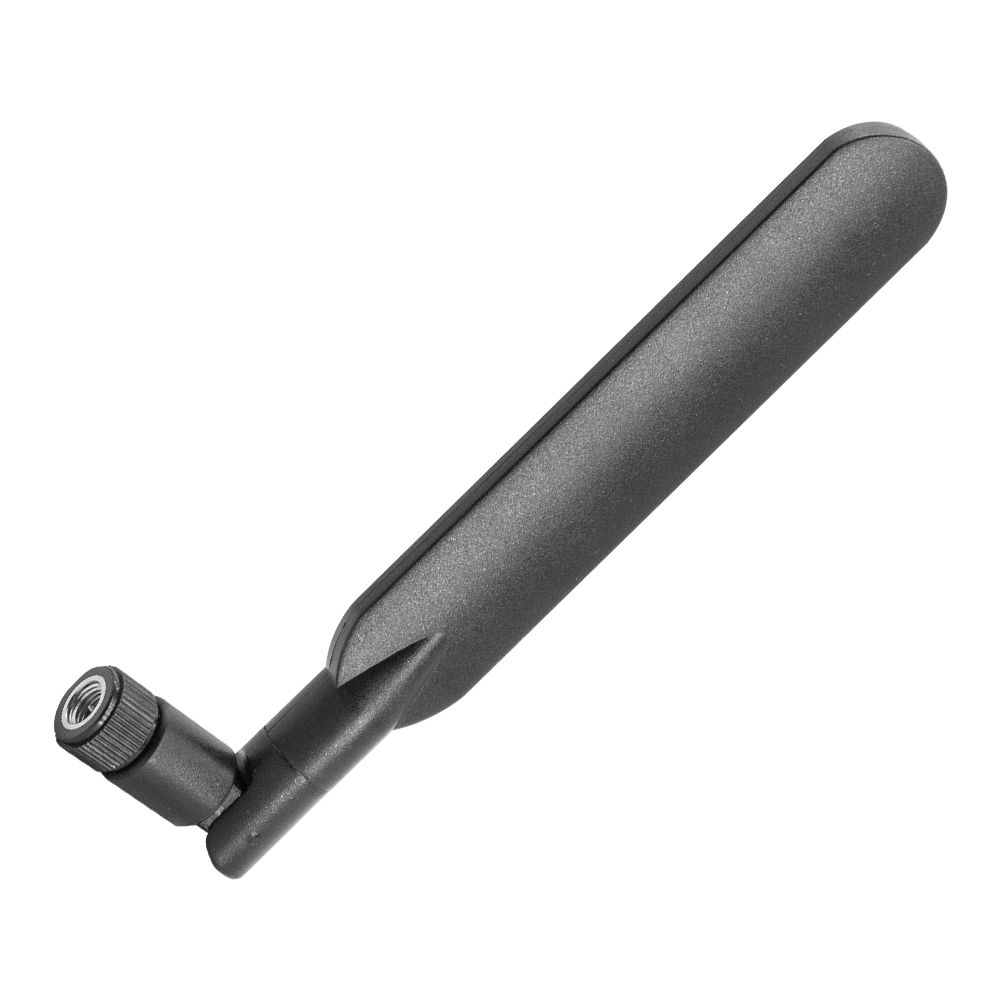

AECA004 | 4G External Swivel Blade Monopole Antenna

LTE/CELLULAR

Single External Antennas

Download

Datasheet

Buy Samples

Coming soon

Dealers

Coming soon

Aboosty is ready to help you tackle various wireless issues.

AECA004 | 4G External Swivel Blade Monopole Antenna

SKU: AECA004 Category: External Antennas Tag: 4G/3G/LTE/GSM

Product Overview

Key Features

Description

Specification

Applications

4.1 dBi Peak Gain
Connector: Foldable SMA-Male

Dipole Antenna — Ground Plane Independent

Full 4G LTE Backward Compatibility

Connector Mount, Direct Mount

Enhanced Hinge Structure For Vibration Environments

Rotatable: 180° Horizontal, 90° Vertical For Compact Multi-Antenna Setups

RoHS Compliant

Operating Frequency: 698-960 MHz | 1710-2690 MHz
Dimensions: 161.57 x 21.94 x 13.0 mm

The Aboosty AECA004 is a high-performance dipole antenna that covers frequencies from 698 to 5850 MHz, including 5G/4G and ISM bands. It provides exceptional efficiency and wideband coverage, making it ideal for IoT and high-speed data applications. The antenna features ground-plane independence, a swivel SMA(M) connector with a robust 90° hinge, and supports 3G/2G functionalities. Its omnidirectional design ensures stable radiation patterns across all bands. The AECA004 offers reliable performance and easy installation, maintaining robust communications even in challenging coverage areas.

Packaging Included: 1 x 4G Blade Antenna (Black)

LABEL

VALUE

Certificates Acquired

RoHS Compliant

Length (mm)

161.57

Width (mm)

21.94

Height (mm)

13.0

Product Weight (g)

Freq. (MHz)

698-960, 1710-2690

Technology Type

4G/3G/LTE/GSM

Operating Temperature (℃)

-40°C to +85°C

Markets

Mobility and Infrastructure, Transportation, Smart Industrial, Smart Cities, Public Safety, Others

Antenna Type

Monopole

Radiation Pattern

Omnidirectional

Polarity

Linear

Max Effi. (%)

69.18

Peak Gain

4.14 dBi

VSWR

3.0:1

Impedance (Ω)

Ingress/Impact

N/A

Termination Style

Connector

Antenna Connector Type

SMA-Male

Cable Type

N/A

Cable Length (mm)

N/A

Mechanical Style

Blade Antenna

Mounting Style

Direct Mount

Customization Option

Logo, Packaging, Connectors

4G LTE Network Connectivity
Access points, routers and small base station
M2M Appications
Mobile Devices
IoT Systems
IoT Devices
Automotive Communication
Public Safety Equipment
Home and Office Wireless Networks

Part Number

User Story

Model

Description

Note

AECA004

4G Blade Monopole Antenna

M02-0500390R0A

Customization supported

DELIVERY INFORMATION

Antennas & GPS modules, RF Connectors / Cables

Antennas & GPS modules, RF Connectors / Cables - estimated delivery time for samples is 5-7 days

Evaluation boards

Evaluation boards - estimated delivery time for samples is 7-14 days
