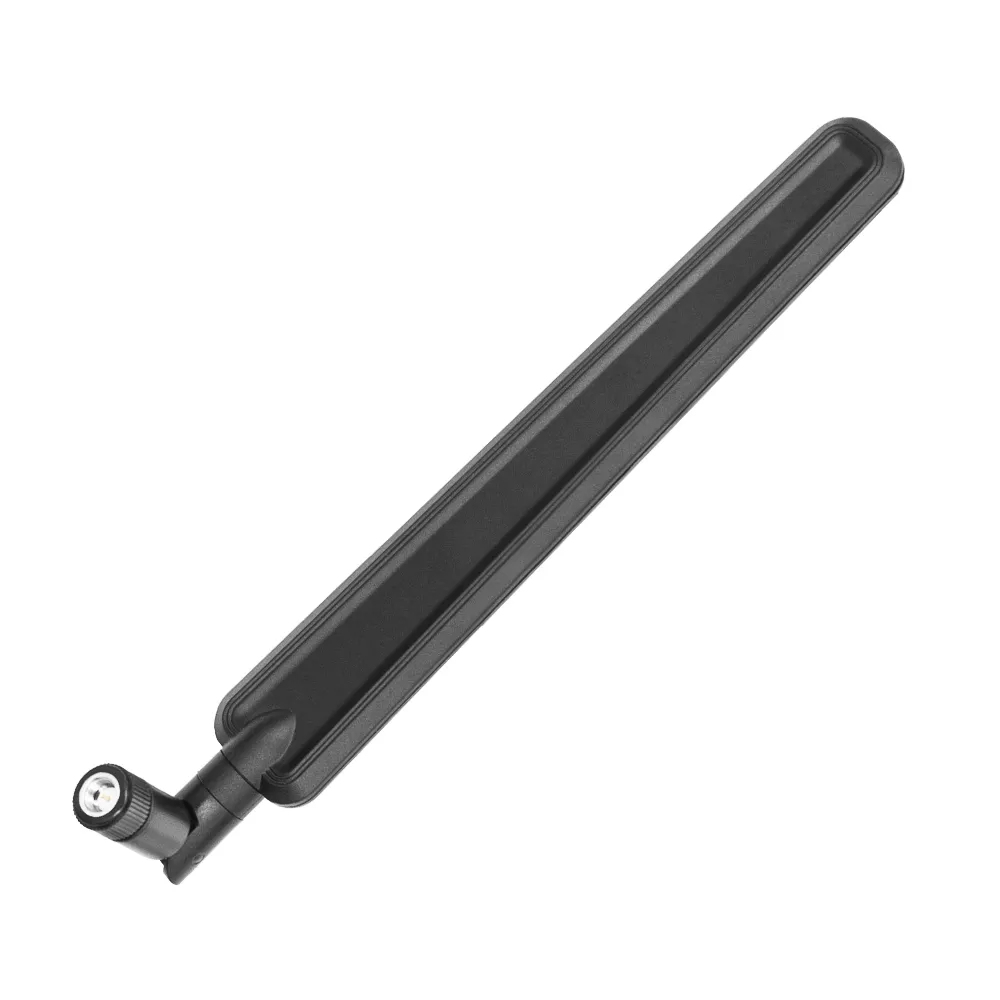

AECA001 | 5G Swivel Blade Dipole Antenna

SKU: AECA001 Category: External Antennas Tags: 4G/3G/LTE/GSM, 5G NR, NB-IoT

Product Overview

Description

Specification

Applications

4.6 dBi Peak Gain

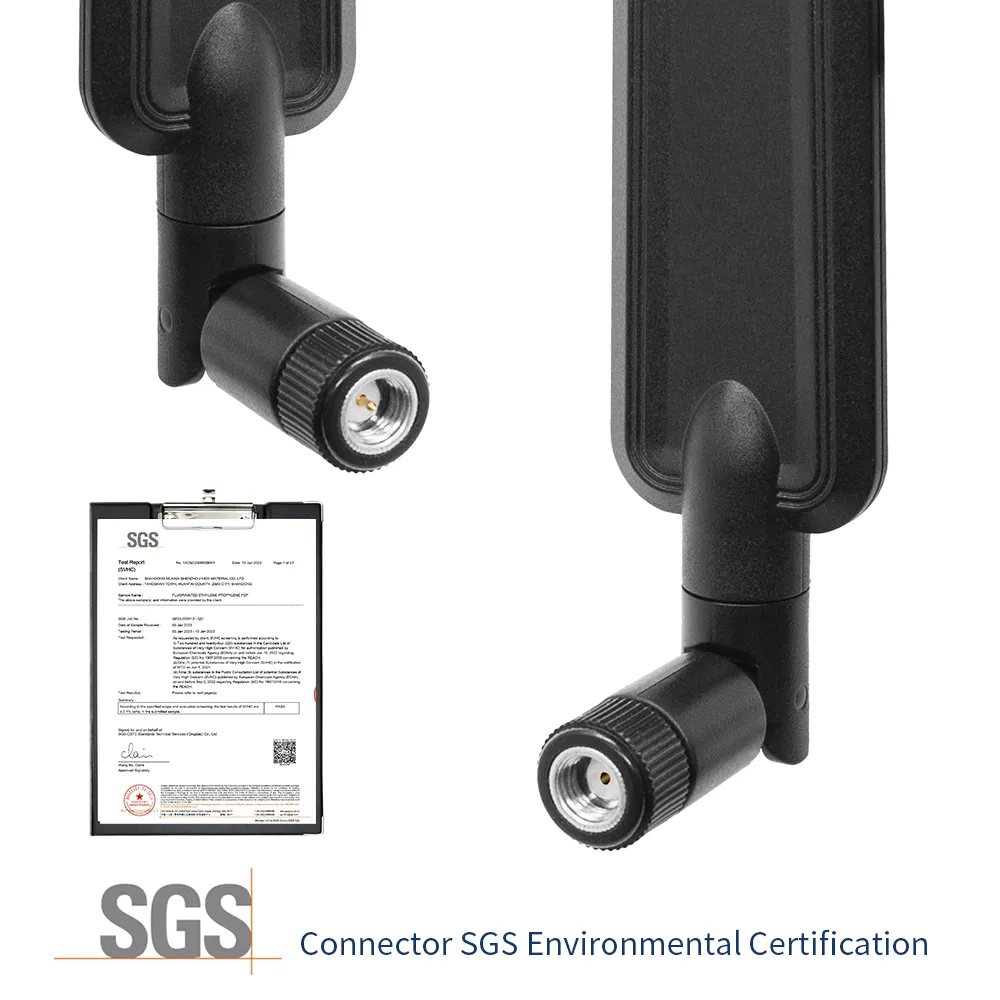

Connector: Foldable SMA-Male

Dipole Antenna — Ground Plane Independent

Wideband Frequency Coverage

Enhanced Hinge Structure For Vibration Environments

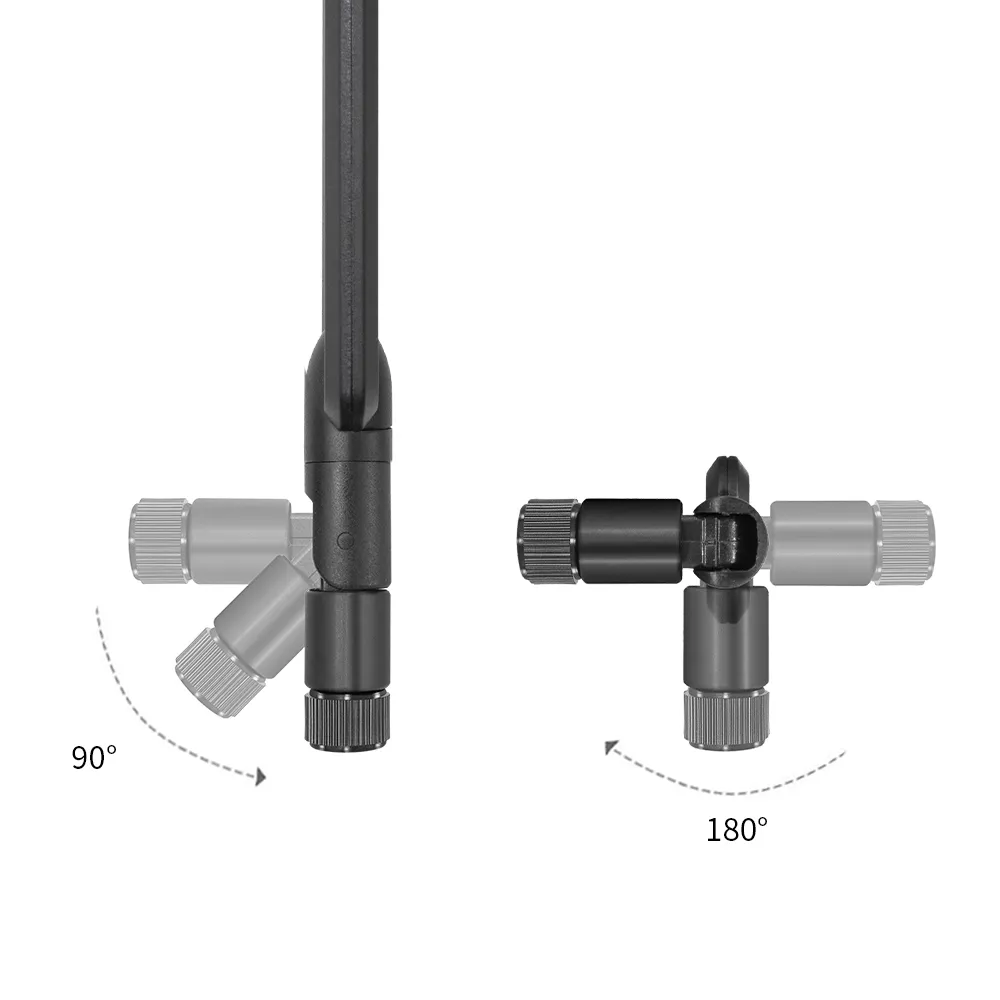

Rotatable: 180° Horizontal, 90° Vertical For Compact Multi-Antenna Setups

RoHS Compliant

Operating Frequency: 698-960 MHz | 1710-5850 MHz

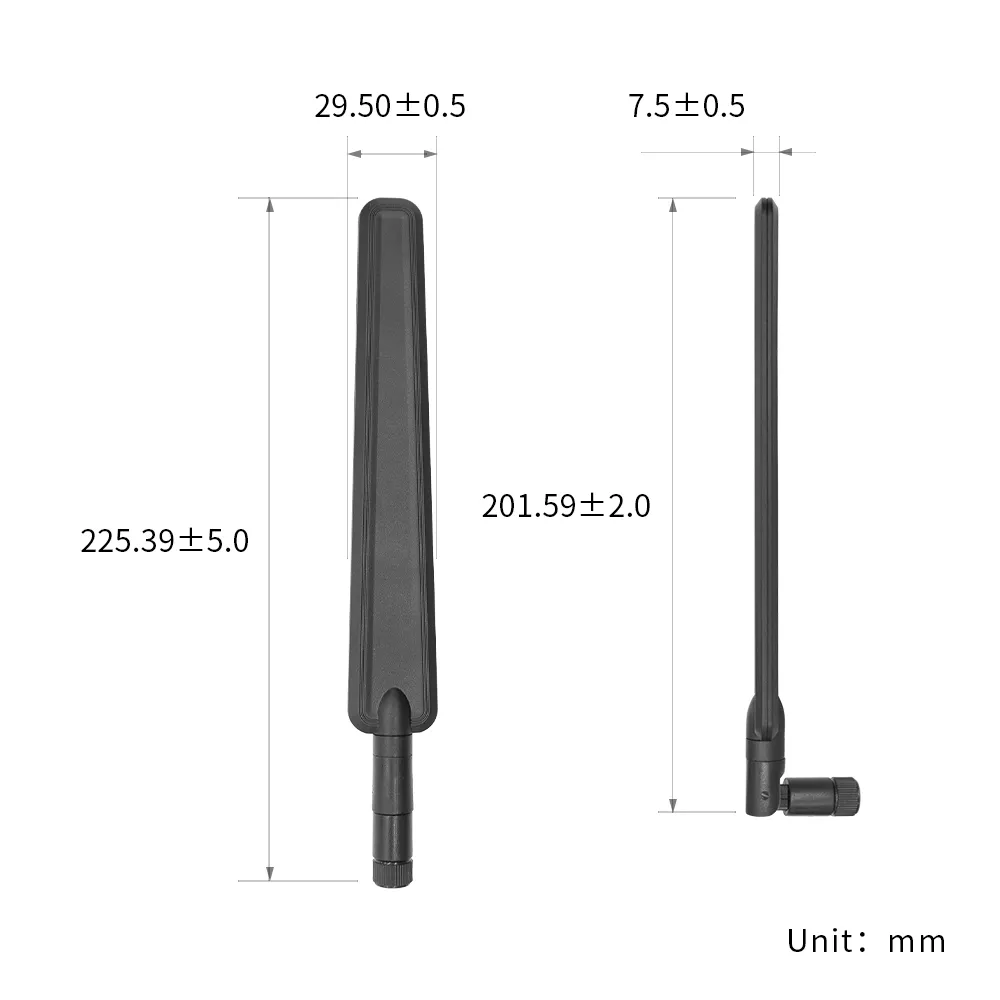

Dimensions: 225.39 x 29.5 x 7.5 mm

The Aboosty AECA001 is a high-performance dipole antenna that covers frequencies from 698 to 6000 MHz, including Sub 6GHz, 5G/4G, and ISM bands. It provides exceptional efficiency and wideband coverage, making it ideal for IoT and high-speed data applications. The antenna features ground-plane independence, a swivel SMA(M) connector with a robust 90° hinge, and supports 3G/2G functionalities. Its omnidirectional design ensures stable radiation patterns across all bands. Designed to reduce lifetime costs for M2M and mobile device installations, the AECA001 offers reliable performance and easy installation, maintaining robust communications even in challenging coverage areas.

Packaging Included: 1 x 5G Blade Antenna (Black)

LABEL

VALUE

Certificates Acquired

RoHS Compliant

Length (mm)

225.39

Width (mm)

29.5

Height (mm)

7.5

Freq. (MHz)

698-960, 1710-2690, 5150-5850

Technology Type

4G/3G/LTE/GSM, 4G 3G/NB-lot, 5G NR, 5G LTE

Operating Temperature (℃)

-40°C to +85°C

Markets

Mobile Communication, Mobility and Infrastructure, Transportation, Public Safety, Smart Cities, Others

Antenna Type

Dipole

Connector Style

Right Angle, Straight

Radiation Pattern

Omnidirectional

Polarity

Linear

Max Effi. (%)

97.17

Peak Gain

4.6 dBi

VSWR

3.0:1

Impedance (Ω)

Ingress/Impact

N/A

Termination Style

Connector

Antenna Connector Type

SMA-Male

Cable Type

N/A

Mechanical Style

PC, Black

Mounting Style

Direct Mount

Customization Option

Logo, Packaging, Connectors

5G & 4G LTE Network Connectivity
Access points, routers and small base station
Mobile Devices
IoT Devices
Automotive Communication
Public Safety Equipment
Home and Office Wireless Networks

Part Number

User Story

Model

Description

Note

AECA001

5G Swivel Blade Dipole Antenna

M02-0100020R0A

Customization supported

DELIVERY INFORMATION

Antennas & GPS modules, RF Connectors / Cables

Antennas & GPS modules, RF Connectors / Cables - estimated delivery time for samples is 5-7 days

Evaluation boards

Evaluation boards - estimated delivery time for samples is 7-14 days
