ADWM001 | 2.4GHz WIFI Bluetooth OnBoard SMD Stamped Metal Antenna

Product Overview

Key Features

Description

Specification

Applications

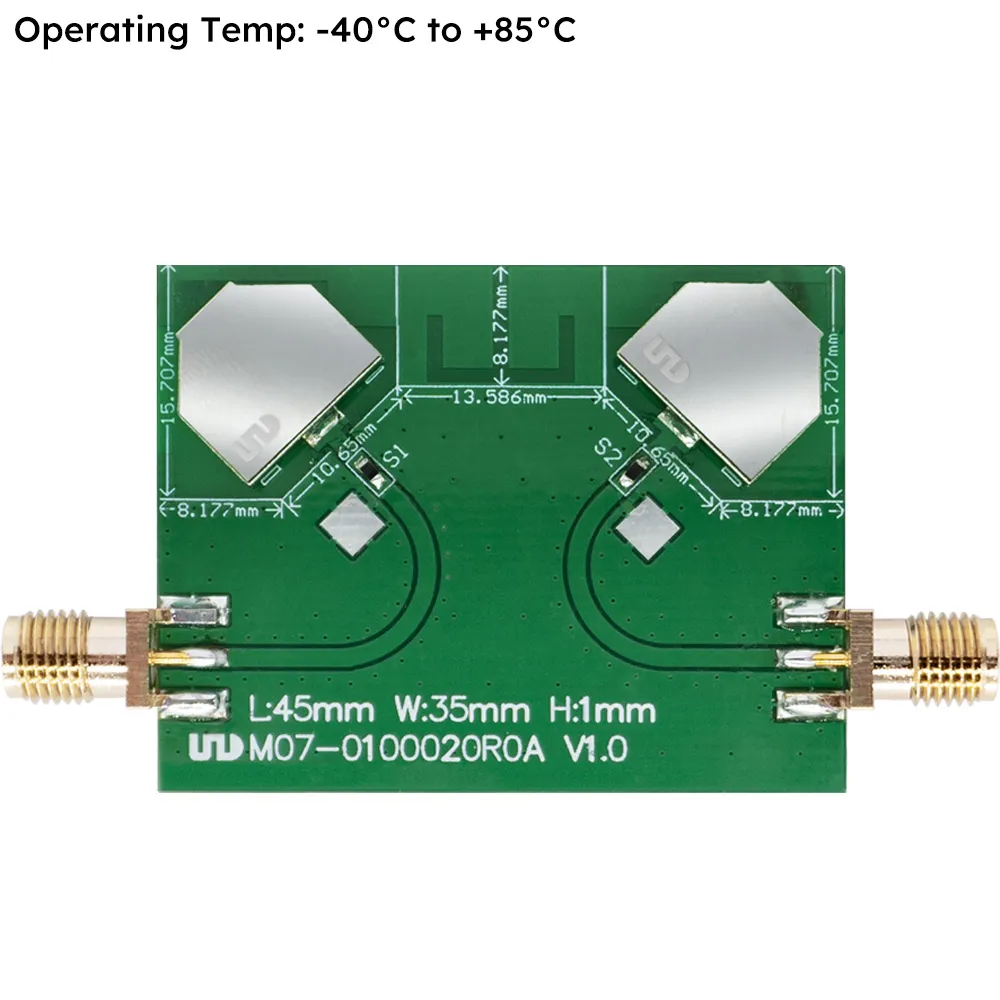

Peak Gain:2.48 dBi (45 x 35 mm Demo Board)
Max Efficiency: 84%

Ground Plane Dependent

Low Profile, Compact, Light Weight

Easy to Integrate

Intended for SMD Mounting

Reduced Cost and Time-to-Market

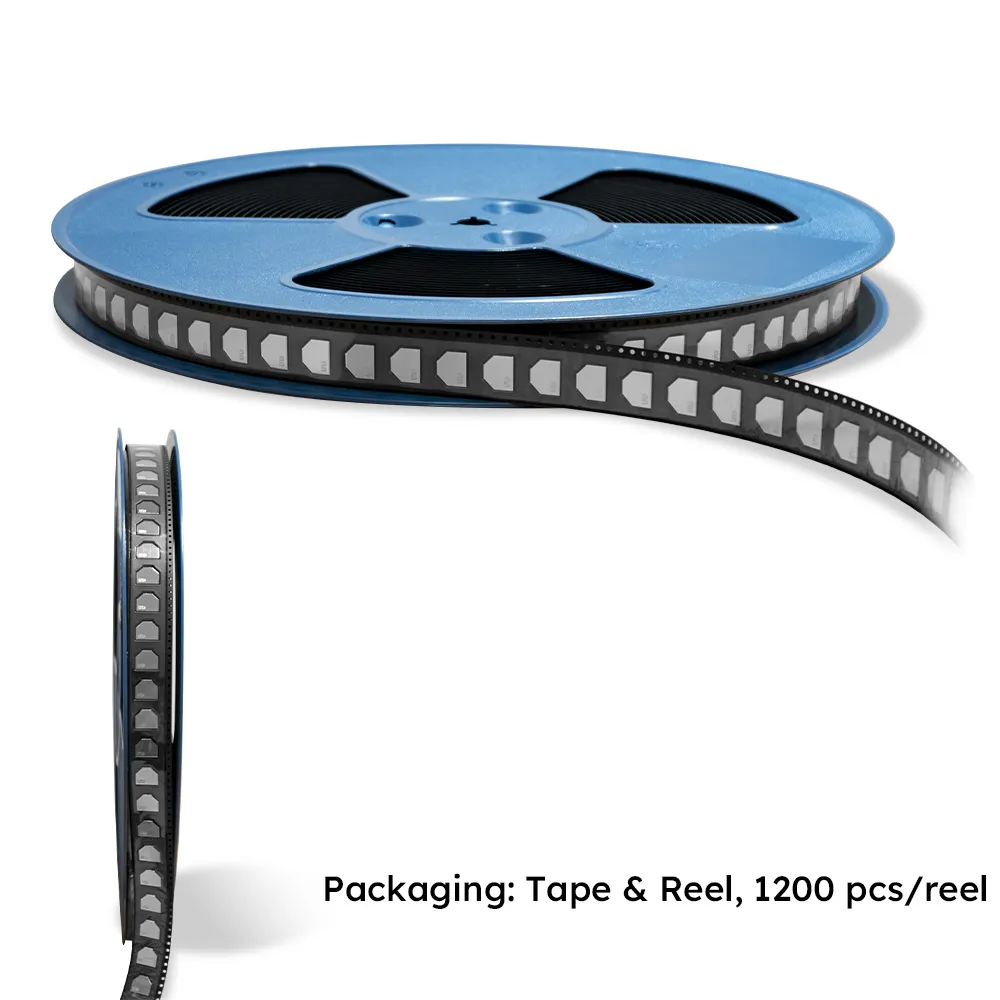

Tape & Reel Packaging（1200 pcs per reel）

REACH/RoHS Compliant

Operating Frequency: 2400-2500 MHz

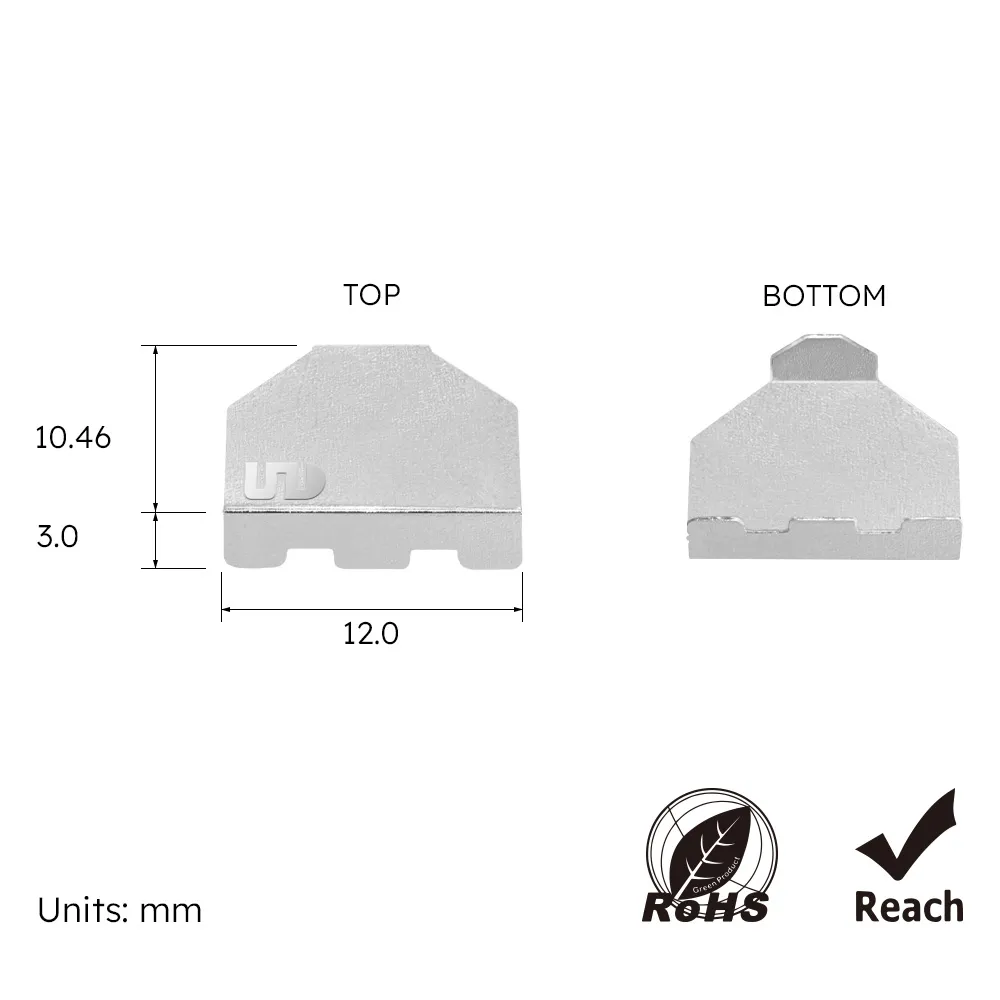

Dimensions:12.0 x 10.46 x 3 mm

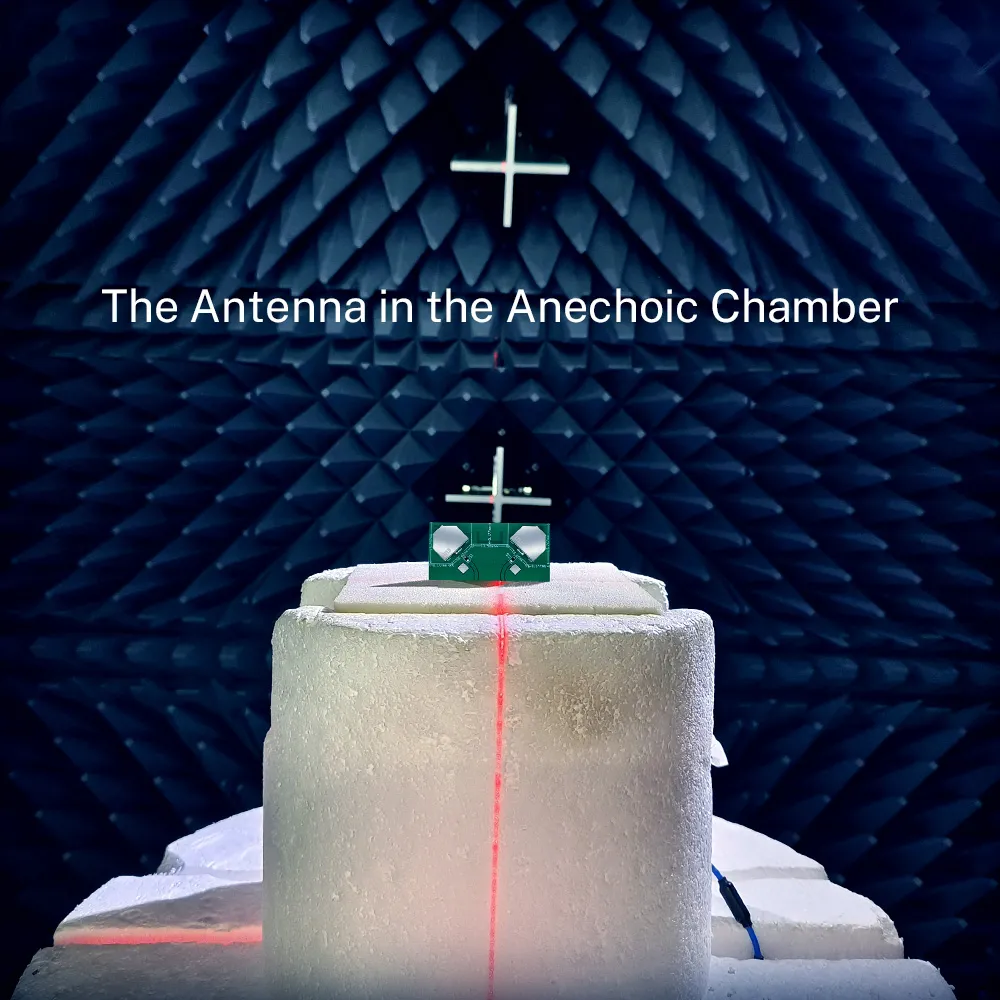

Aboosty ADWM001 High-Efficiency Onboard Metal Shrapnel Antenna

The Aboosty ADWM001 SMD antenna offers reliable and strong connectivity for your wireless applications. It’s a secure choice for customers to maximize the performance of their devices by using this antenna.

This high-efficiency antenna is designed to be mounted directly onto the host PCB using a standard metal shrapnel antenna reflow process. It is particularly well-suited for 2.4G WIFI applications. We also tuned additional frequency bands available to support global Cat M and NB-IoT standards. The antennas are supplied on tape and reel high-volume production.

Benefits

Very high efficiency
Stable frequency performance
Compact and space-saving

Aboosty provides comprehensive support for custom antenna solutions, including antenna design simulation, performance testing, and manufacturing services, tailored to your specific application needs.

LABEL

VALUE

Certificates Acquired

Reach, RoHS Compliant

Length (mm)

12.0

Width (mm)

10.46

Height (mm)

Product Weight (g)

0.35

Freq. (MHz)

2400-2500

Technology Type

2.4G WIFI

Operating Temperature (℃)

-40°C to +85°C

Markets

Transportation, Smart Industrial, Smart Cities, Connected Health, Mobile Communication, Others

Other Attributes

Shrapnel Antennas, Compact

Antenna Type

Monopole

Radiation Pattern

Omnidirectional

Polarity

Linear

Max Effi. (%)

84.18

Peak Gain

2.48 dBi

VSWR

1.22:1

Impedance (Ω)

Ingress/Impact

N/A

Termination Style

SMD/SMT

Antenna Connector Type

N/A

Cable Type

N/A

Mechanical Style

Metal

Mounting Style

SMT/SMD

Customization Option

Logo, Packaging, Frequency

Smartphones and Tablets
Wireless Payment Terminals like POS machines
IoT Devices
Wearables
Industrial Equipment
Commercial Equipment
Routers and Gateway Devices
Indoor Location Tracking and Positioning
Consumer Tracking
Smart Metering

Part Number

User Story

Model

Description

Note

ADCM001

Trm 2 UWB 6.1-8.5GHz SMD Antenna

M01-X01210U231

Frequency customization supported

ADWM001

Trm 2 2.4G WIFI SMD Antenna

M01-X01210W231

Frequency customization supported

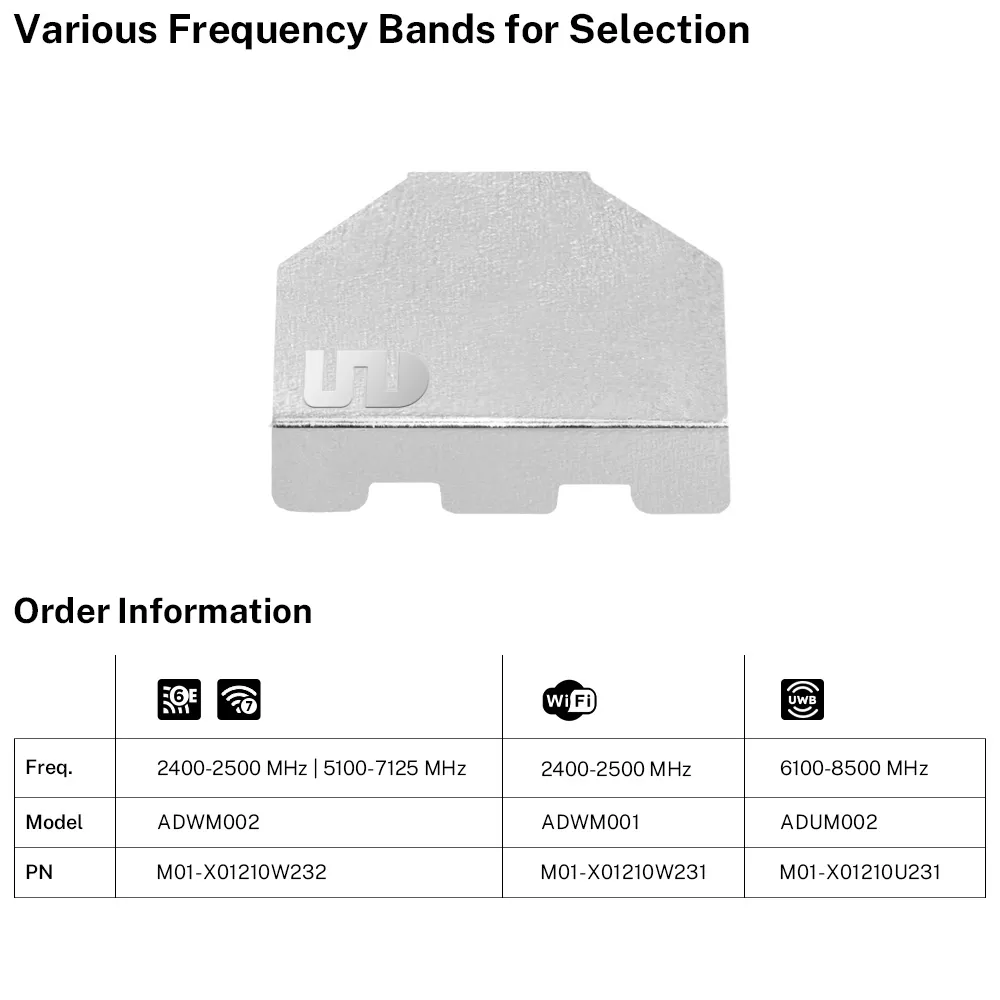

ADWM002

Trm 2 WIFI6E, WIFI7 SMD Antenna

M01-X01210W232

Frequency customization supported
