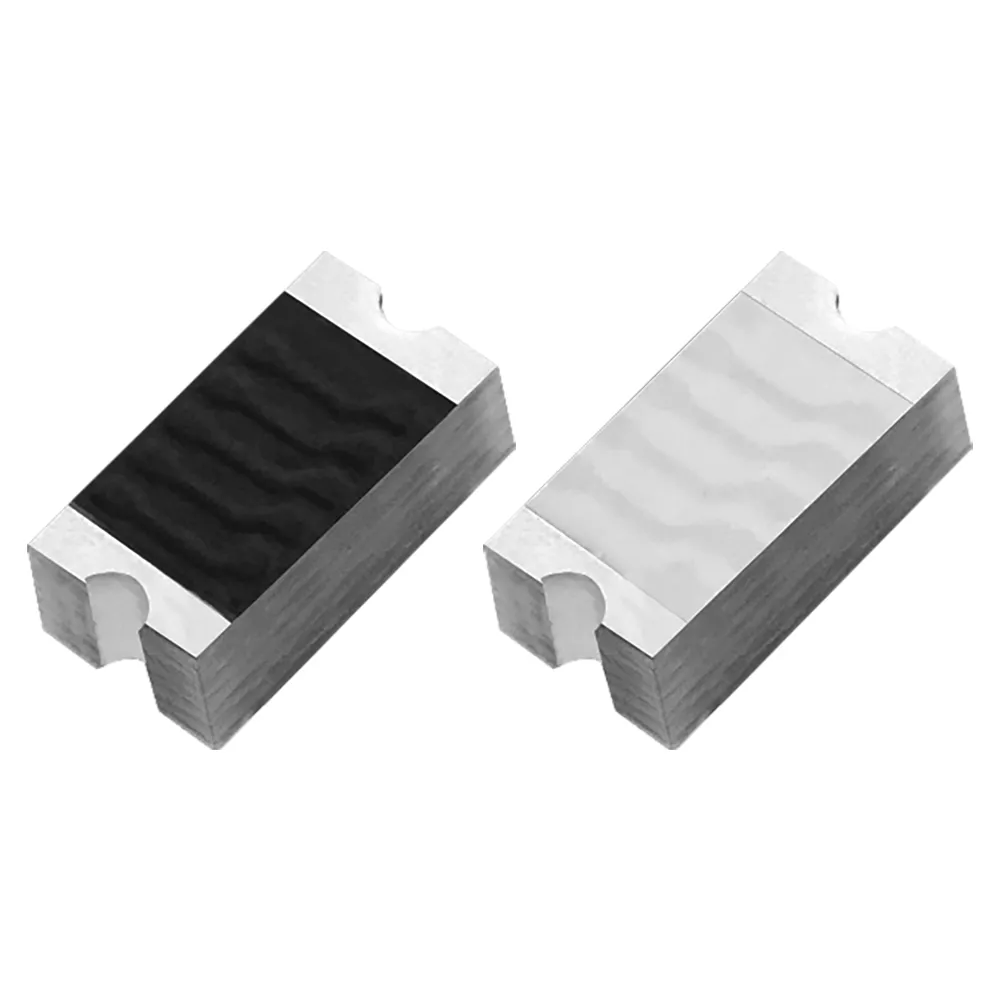

ADWH001 | 2.4G Bluetooth, WIFI, ZigBee Chip Antenna

SKU: ADWH001 Categories: Internal Antennas, SMD Antennas, Uncategorized Tags: 4G/3G/LTE/GSM, BT, Wholesale 2.4GHz Antennas, Zigbee

Product Overview

Key Features

Description

Specification

Applications

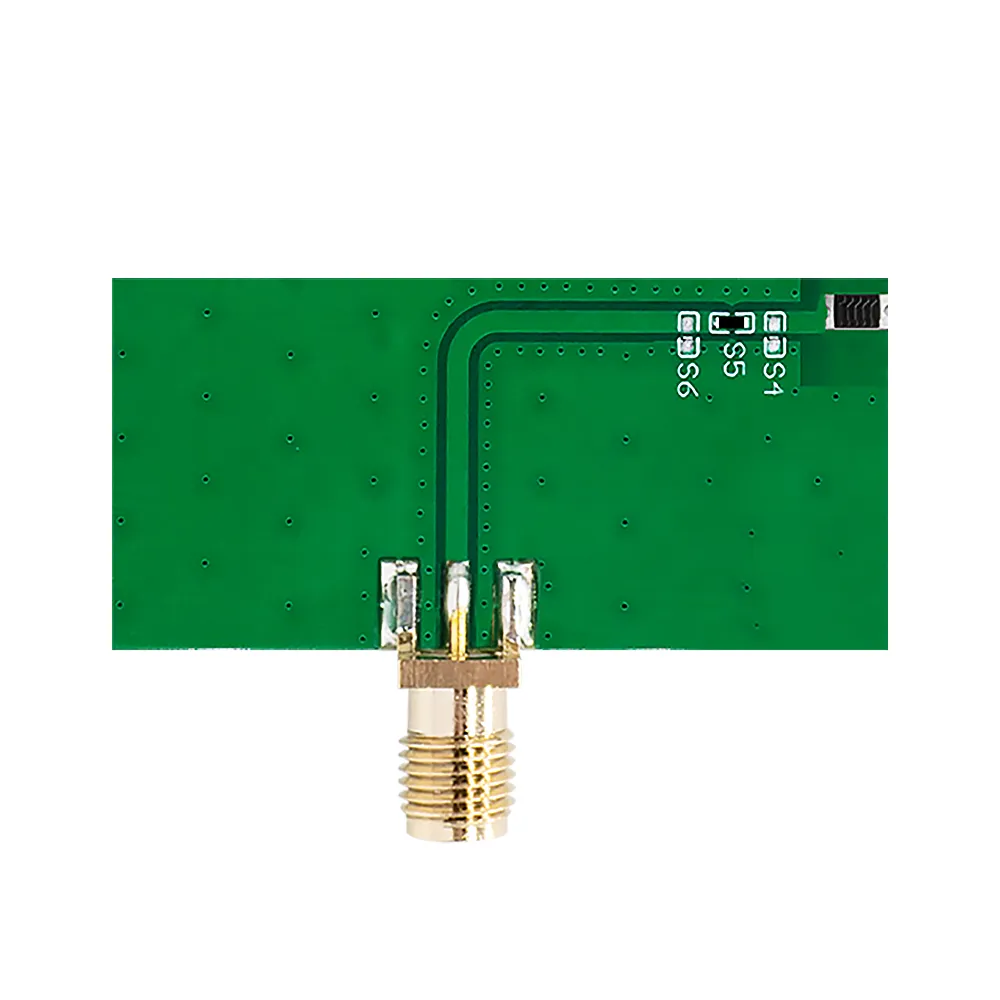

Demo Board: 65 x 40 x 1.0 mm
Peak Gain: 0.87 dBi
Max Efficiency: 46.6%

Low Profile, Compact, Light Weight, and Durable

Excellent Performance

Ground Plane Dependent

Easy to Integrate

Intended for SMD Mounting

Tape & Reel Packing

Reduced Cost and Time-to-Market

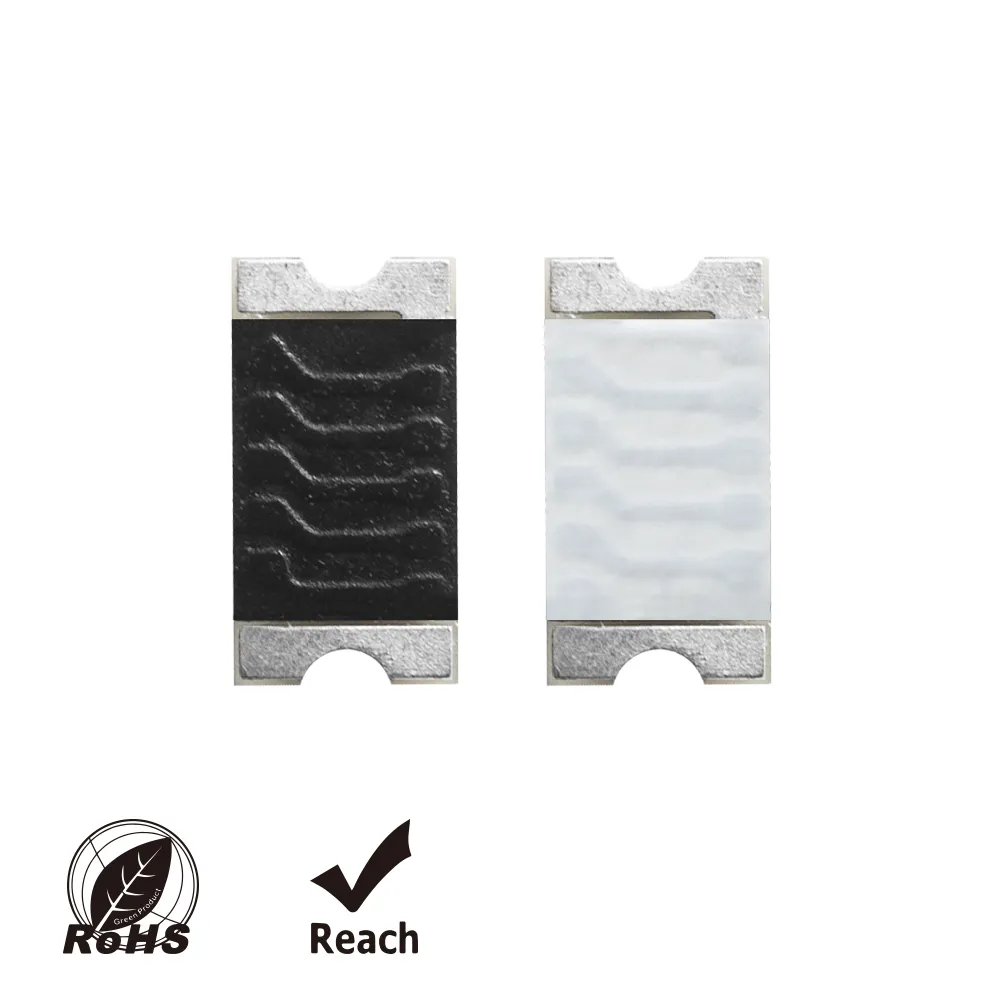

REACH/RoHS compliant

Operating Frequency: 2450 ± 50 MHz

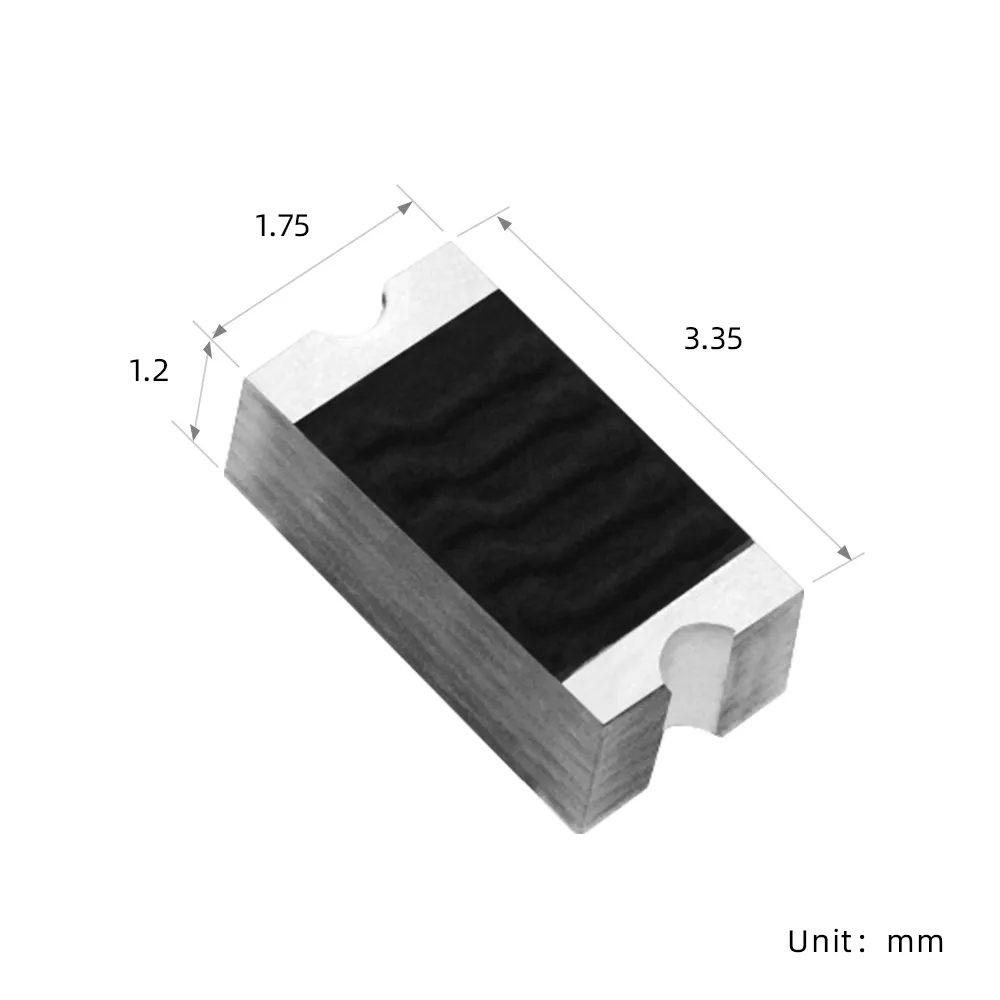

Dimensions: 3.35 x 1.75 x 1.2 mm

The Aboosty ADWH001 wideband WIFI, Bluetooth antenna is engineered for versatile 2.4GHz applications. The antenna features a ground plane for enhanced radiation efficiency but requires proper clearance underneath for optimal performance. Supplied on tape and reel, the ADWH001 is perfect for high-volume production environments.
Aboosty provides extensive design support, including simulation, testing, and manufacturing services, to develop custom antenna solutions that meet your specific requirements. For more details, feel free to contact the Aboosty team.

LABEL

VALUE

Certificates Acquired

Reach, RoHS Compliant

Length (mm)

48.6

Width (mm)

8.0

Height (mm)

3.2

Product Weight (g)

0.3

Freq. (MHz)

2450±50

Technology Type

2.4G WIFI, Bluetooth, Zigbee

Operating Temperature (℃)

-40°C to +85°C

Markets

Transportation, Smart Industrial, Smart Cities, Connected Health, Mobile Communication, Public Safety, Others

Antenna Type

Monopole

Connector Style

N/A

Radiation Pattern

Omnidirectional

Polarity

Linear

Max Effi. (%)

46.57

Peak Gain

0.87 dBi

VSWR

2:1

Impedance (Ω)

Ingress/Impact

N/A

Termination Style

SMD/SMT

Antenna Connector Type

N/A

Cable Type

N/A

Mechanical Style

HPM

Mounting Style

SMT/SMD

Customization Option

Logo, Packaging

Smartphones, tablets, laptops, and notebooks
Networking equipment like WiFi routers, WiFi extenders, and repeaters
Smart Home Devices
Home Security Systems
IoT Devices
Wearables
E-Health
Asset Tracking
Public WiFi hotspots
Point of Sale (POS) Systems
V2X
Smart City Infrastructure
Environmental Monitoring

Part Number

User Story

Model

Description

Note

ADWH001

3.35 x 1.75 x 1.2 SMD Mini Antenna

M01-X100010R0A

Frequency customization supported

DELIVERY INFORMATION

Antennas & GPS modules, RF Connectors / Cables

Antennas & GPS modules, RF Connectors / Cables - estimated delivery time for samples is 5-7 days

Evaluation boards

Evaluation boards - estimated delivery time for samples is 7-14 days
