AICF001

Adhesive LTE/4G/5G/BT Embedded FPC Antenna 42.2 x 26.5 mm

LTE/CELLULAR

Single Internal Antennas

Embedded Antennas

Download

Datasheet

Buy Samples

Coming soon

Dealers

Coming soon

Aboosty is ready to help you tackle various wireless issues.

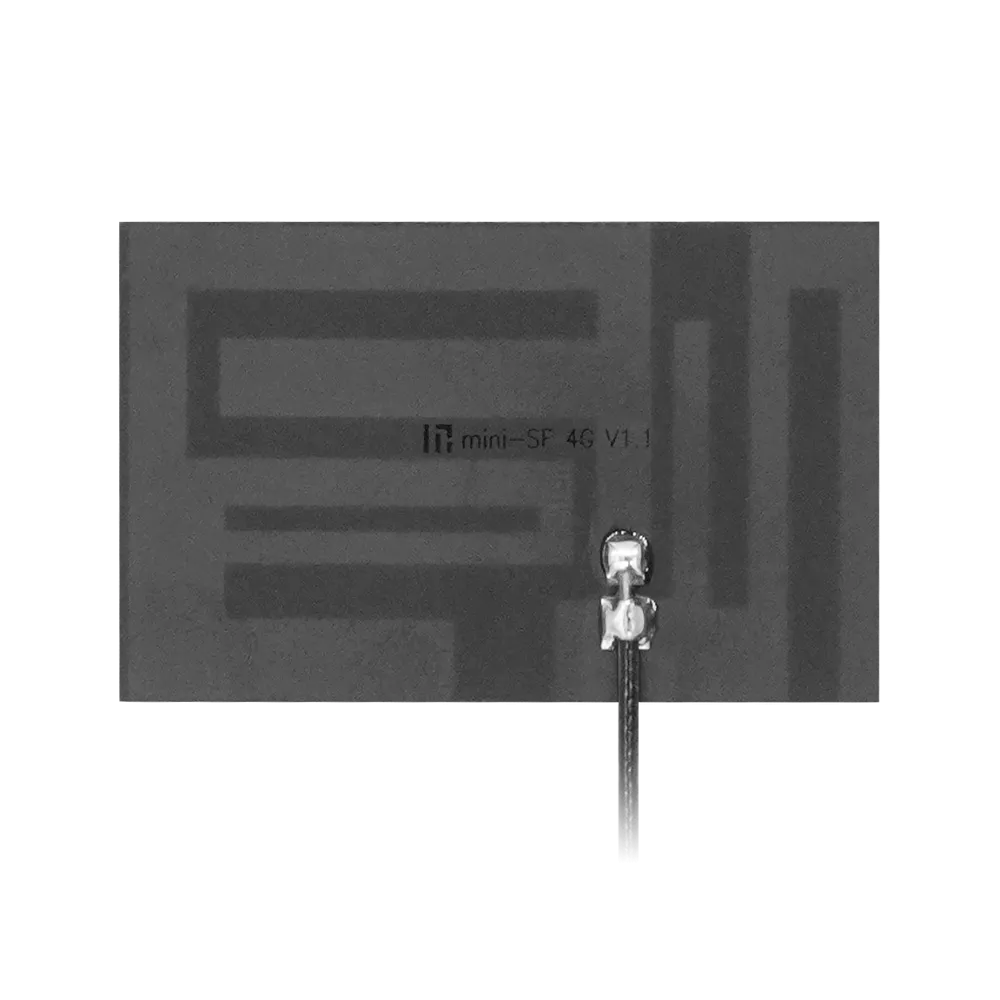

Adhesive LTE/4G/5G/BT Embedded FPC Antenna 42.2 x 26.5 mm

Our 5G antennas offer an extreme boost to speed and significantly lower latency, whilst also boasting greater bandwidth.

SKU: AICF001 Categories: FPC Antennas, Internal Antennas Tags: 4G/3G/LTE/GSM, 5G NR

Product Overview

Description

Specification

Applications

Max Efficiency: up to 47%

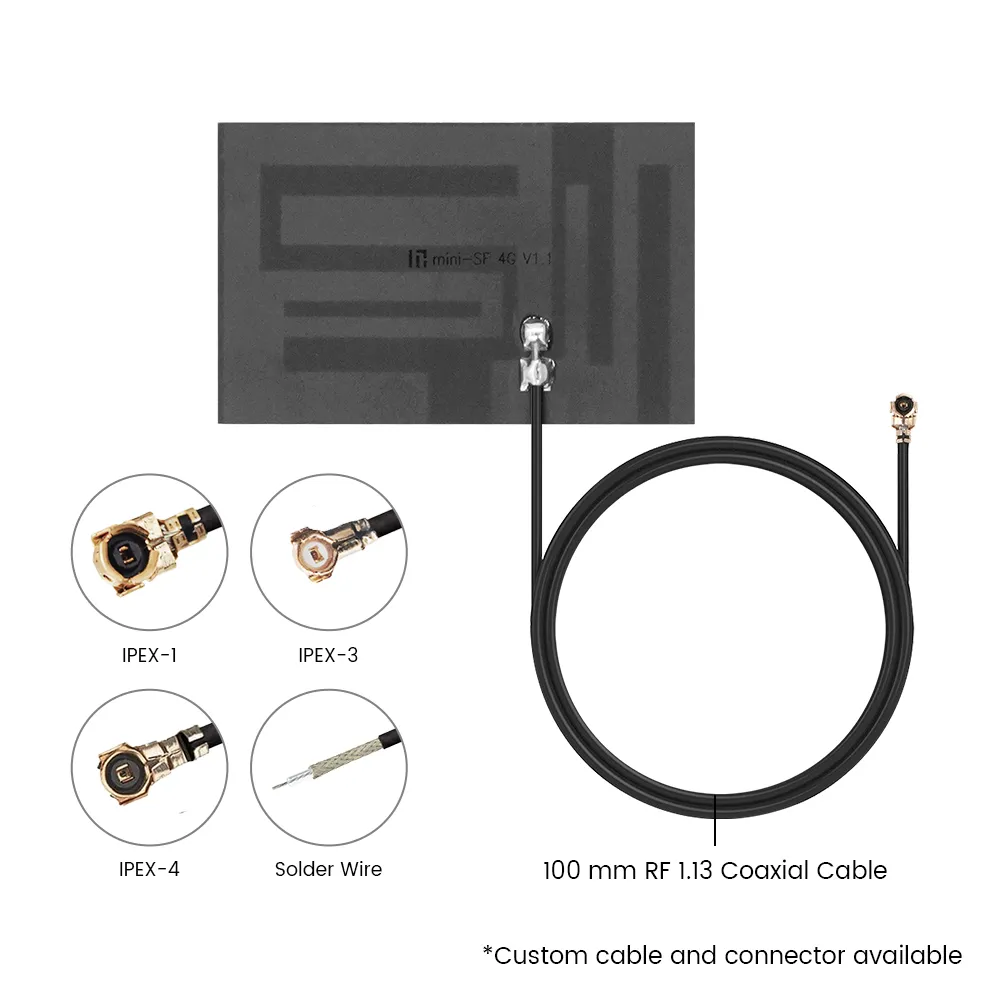

Cable: RF 1.13, L: 100 mm
Connector: IPEX 1

Flexible adhesive mount FPC antenna

Ultra-thin and compact design

Omni-directional with Worldwide Cellular, LTE bands

Customizable cable and connector options

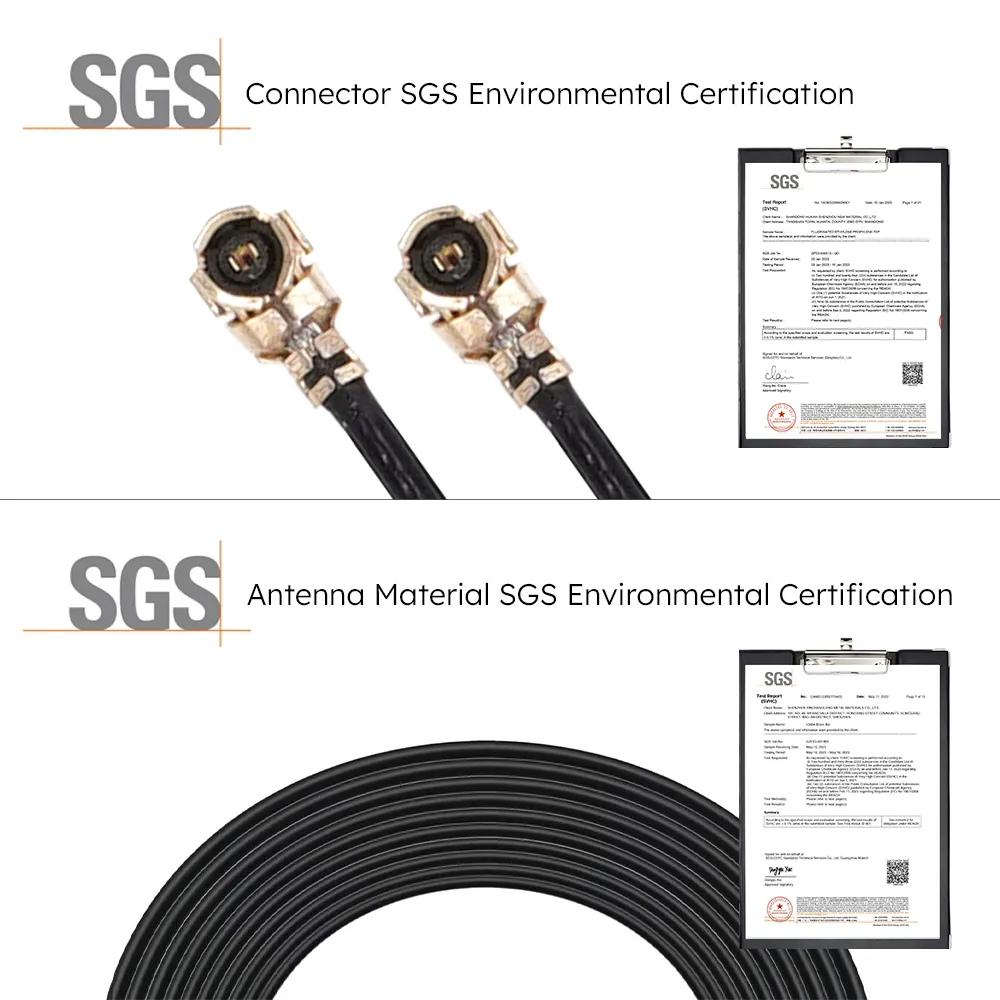

REACH/RoHS compliant

Operating Frequency: 698-960 MHz | 1710-2690 MHz

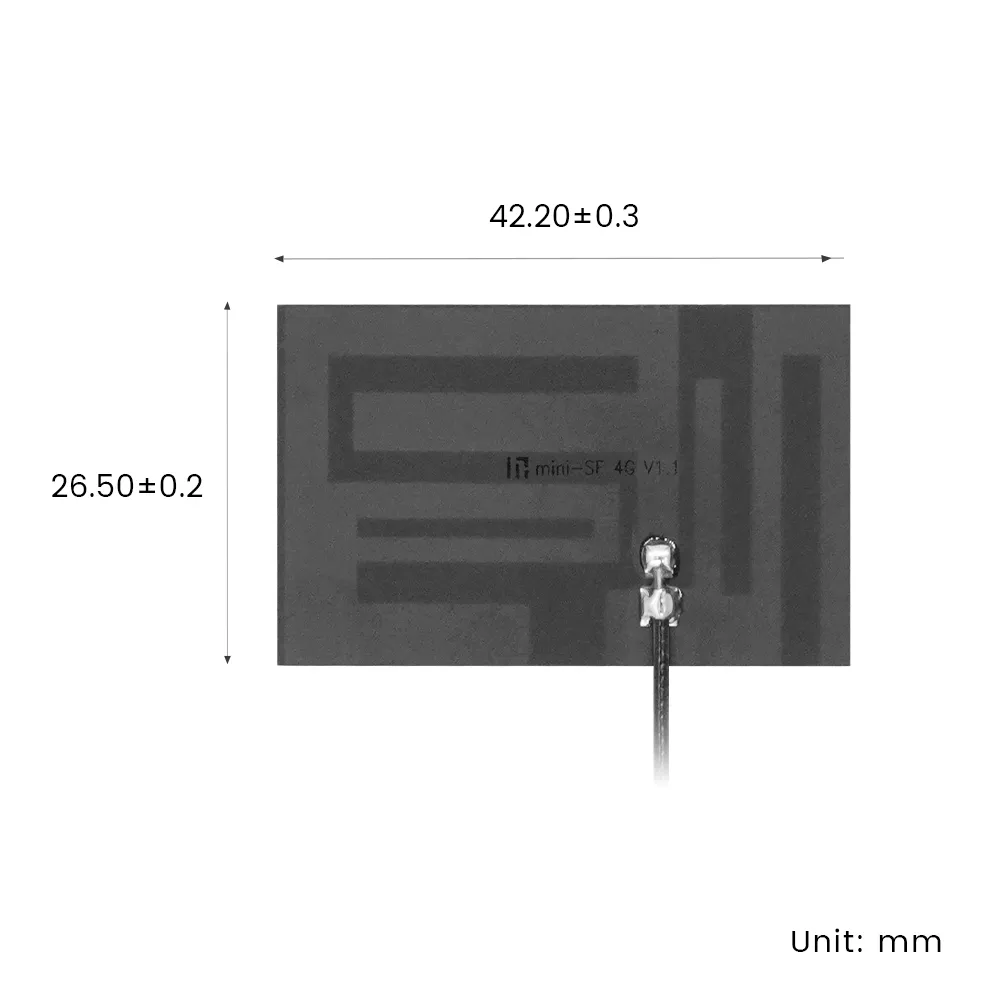

Dimensions: 42.2 x 26.5 mm

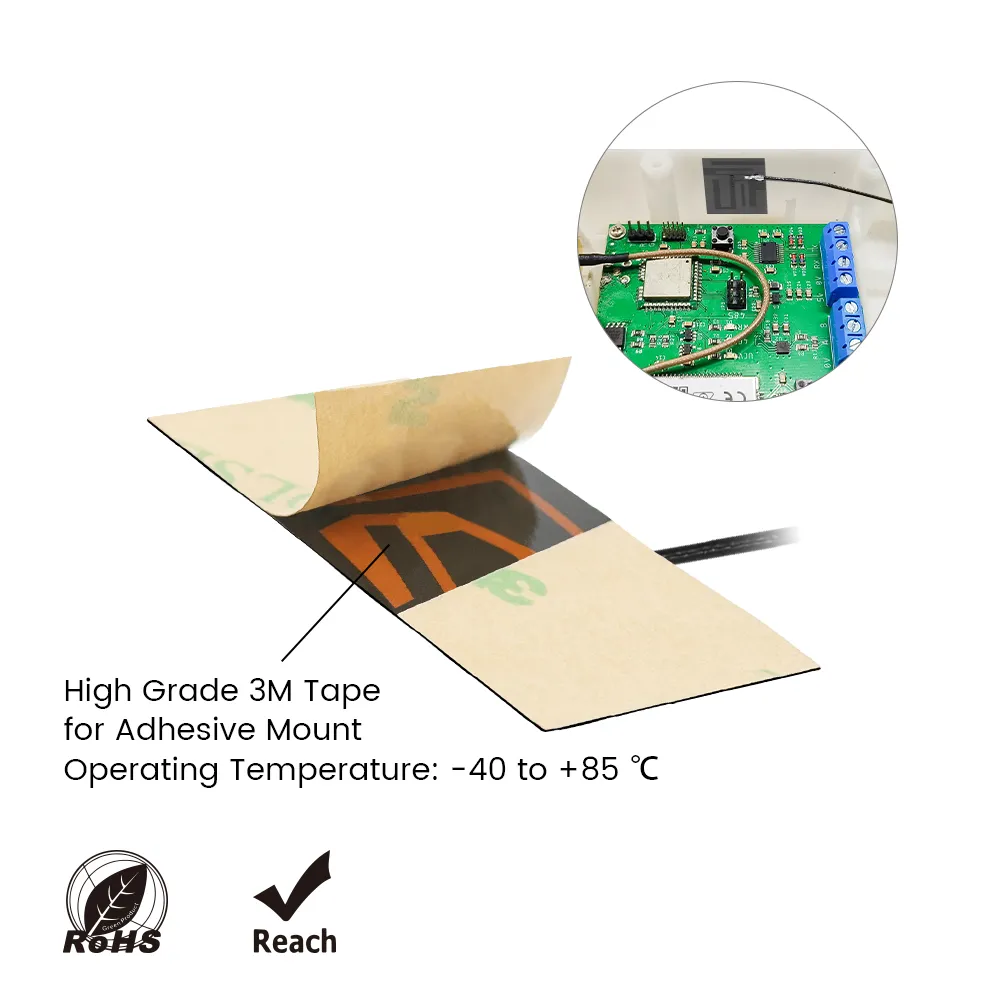

The Aboosty AICF001 FPC antenna is a versatile and compact solution designed for Cellular 4G, and 5G connectivity. As a flexible printed circuit board (FCB) antenna, it combines a low-profile design with high performance, making it ideal for use in smart devices, LTE, Zigbee, and Bluetooth systems. This antenna offers reliable and efficient operation. Its peelable adhesive back facilitates easy installation on non-metallic surfaces. For optimal performance, ensure that the ground plane area is adequately increased.

Package Included: 1 x FPC Antenna

LABEL

VALUE

Certificates Acquired

Reach, RoHS Compliant

Length (mm)

42.2

Width (mm)

26.5

Height (mm)

0.5

Product Weight (g)

0.7

Freq. (MHz)

698-960, 1710-2690

Technology Type

4G/3G/LTE/GSM, 5G LTE, Zigbee, Bluetooth

Operating Temperature (℃)

-40°C to +85°C

Markets

Transportation, Smart Industrial, Smart Cities, Connected Health, Mobile Communication, Mobility and Infrastructure, Others

Antenna Type

Monopole

Connector Style

N/A

Radiation Pattern

Omnidirectional

Polarity

Linear

Max Effi. (%)

46.72

Peak Gain

2.71 dBi

VSWR

9:1

Impedance (Ω)

Ingress/Impact

N/A

Termination Style

Connector

Antenna Connector Type

IPEX 1

Cable Type

RF 1.13 Coax

Cable Length (mm)

100

Mechanical Style

FPC

Mounting Style

Adhesive Mount

Customization Option

Logo, Packaging, Cables and Connectors

Smart Home Devices
IoT Devices
Consumer Electronics
V2X
Industrial Equipment
Medical Devices
Drones and Robotics
Smart City Infrastructure

Part Number

User Story

Model

Description

Note

AICF001

4G 42.2*26.5mm FPC Embedded Antenna

M01-0500700R0A

Customization supported
