AICF002

Adhesive 4G LTE BT Embedded FPC Antenna 40 x 7 mm

LTE/CELLULAR

Single Internal Antennas

Embedded Antennas

Download

Datasheet

Buy Samples

Coming soon

Aboosty is ready to help you tackle various wireless issues.

Adhesive 4G LTE BT Embedded FPC Antenna 40 x 7 mm

SKU: AICF002 Categories: FPC Antennas, Internal Antennas Tags: 2G/3G LTE, 4G LTE, 5G NR, BT

Product Overview

Key Features

Description

Specification

Applications

Max Efficiency: up to 33%
Cable: RF 1.37, L: 150 mm
Connector: IPEX 1

Flexible adhesive mount FPC antenna

Ultra-thin and compact design

Ground plane independent

Omni-directional with Worldwide Cellular, LTE bands

Customizable cable and connector options

REACH/RoHS compliant

Operating Frequency: 698-960 MHz | 1710-2700 MHz
Dimensions: 40.0 x 7.0 x 0.2 mm

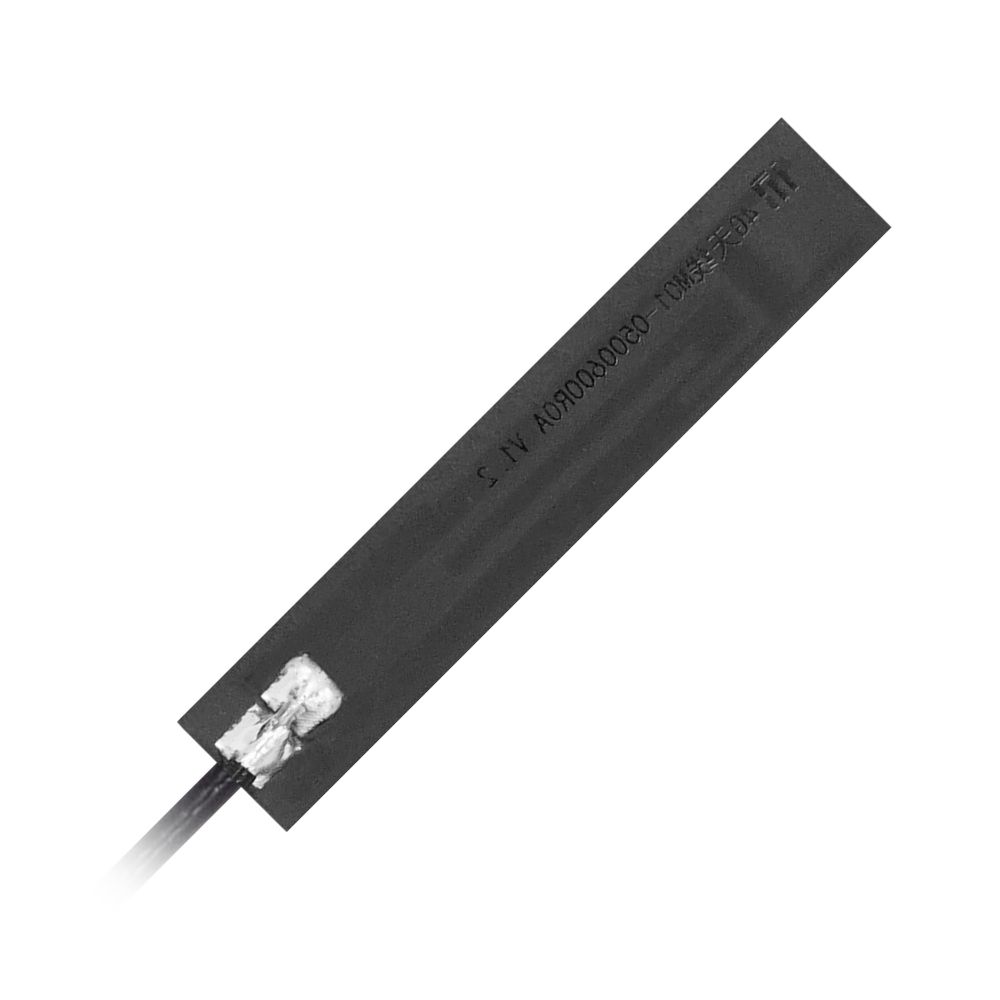

The Aboosty AICF002 FPC antenna is a versatile and compact solution for Cellular 4G, and 5G connectivity. As a flexible printed circuit board (FCB) antenna, it combines a low-profile design with high performance, making it ideal for use in smart devices, LTE, Zigbee, and Bluetooth systems. This antenna offers reliable and efficient operation. Its peelable adhesive back facilitates easy installation on non-metallic surfaces.

Package Included: 1 x FPC Antenna

LABEL

VALUE

Certificates Acquired

Reach, RoHS Compliant

Length (mm)

Width (mm)

Height (mm)

0.2

Product Weight (g)

0.43

Freq. (MHz)

698-960, 1710-2170, 2500-2700

Technology Type

4G/3G/LTE/GSM, 4G 3G/NB-lot, Bluetooth

Operating Temperature (℃)

-40°C to +85°C

Markets

Smart Industrial, Smart Cities, Mobility and Infrastructure, Connected Health, Others

Antenna Type

Dipole

Connector Style

Right Angle

Radiation Pattern

Omnidirectional

Polarity

Linear

Max Effi. (%)

Peak Gain

1 dBi

VSWR

9.0:1

Impedance (Ω)

Ingress/Impact

N/A

Termination Style

Connector

Antenna Connector Type

IPEX 1

Cable Type

RF 1.37 Coax

Cable Length (mm)

150

Mechanical Style

FPC

Mounting Style

Adhesive Mount

Customization Option

Logo, Packaging, Cables and Connectors

IoT Devices
Smart Home Devices
Consumer Electronics
V2X
Industrial Equipment
Medical Devices
Drones and Robotics
Smart City Infrastructure

Part Number

User Story

Model

Description

Note

AICF002

4G 40 x 7 mm FPC Embedded Antenna

M01-0500600R0A

Customization supported
