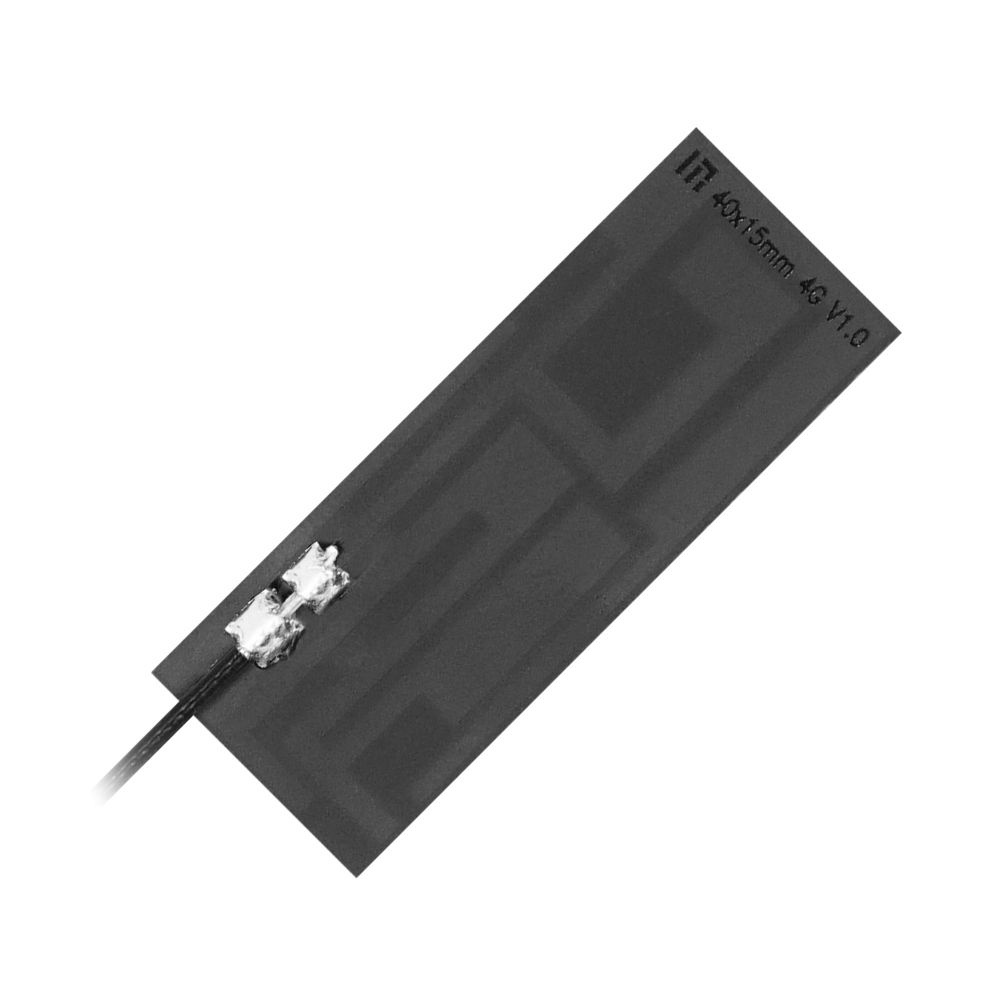

Adhesive LTE/4G/5G/BT Embedded FPC Antenna 40 x 15 mm

SKU: AICF003 Categories: , Tags: , ,

Product Overview

Key Features
Description
Specification
Applications

Max Efficiency: up to 48.2%
Cable: RF 1.13, L: 100 mm
Connector: IPEX 1

Flexible adhesive mount FPC antenna
Ultra-thin and compact design
Ground plane independent
Omni-directional with Worldwide Cellular, LTE bands
Customizable cable and connector options
REACH/RoHS compliant

Operating Frequency: 698-960 MHz | 1710-2690 MHz
Dimensions: 40.0 x 15 mm



The Aboosty AICF003 FPC antenna is a versatile and compact solution designed for Cellular 4G, 5G connectivity. As a flexible printed circuit board (FCB) antenna, it combines a low-profile design with high performance, making it ideal for use in smart devices, LTE, Zigbee, and Bluetooth systems. This antenna offers reliable and efficient operation. Its peelable adhesive back facilitates easy installation on non-metallic surfaces.


Package Included: 1 x FPC Antenna

LABEL
VALUE
Certificates Acquired
Reach, RoHS Compliant
Length (mm)
40
Width (mm)
15
Height (mm)
0.2
Product Weight (g)
0.6
Freq. (MHz)
698-960, 1710-2690
Technology Type
4G/3G/LTE/GSM, 5G LTE, Zigbee, Bluetooth
Operating Temperature (℃)
-40°C to +85°C
Markets
Transportation, Smart Industrial, Smart Cities, Connected Health, Mobility and Infrastructure, Mobile Communication, Others
Antenna Type
Dipole
Connector Style
Right Angle
Radiation Pattern
Omnidirectional
Polarity
Linear
Max Effi. (%)
48.19
Peak Gain
1.61 dBi
VSWR
10.0:1
Impedance (Ω)
50
Ingress/Impact
N/A
Termination Style
Connector
Antenna Connector Type
IPEX 1
Cable Type
RF 1.13 Coax
Cable Length (mm)
100
Mechanical Style
FPC
Mounting Style
Adhesive Mount
Customization Option
Logo, Packaging, Cables and Connectors
  • Smart Home Devices
  • IoT Devices
  • Consumer Electronics
  • V2X
  • Industrial Equipment
  • Medical Devices
  • Drones and Robotics
  • Smart City Infrastructure
Part Number
User Story
Model
Description
PN
Note
AICF003
4G 40.0 x 15.0mm FPC Embedded Antenna
M01-0500710R0A
Customization supported
