Adhesive 2.4G WiFi Embedded FPC Antenna 85 x 8.5 mm

Product Overview

Key Features

Description

Specification

Applications

Max Efficiency: up to 61.3%

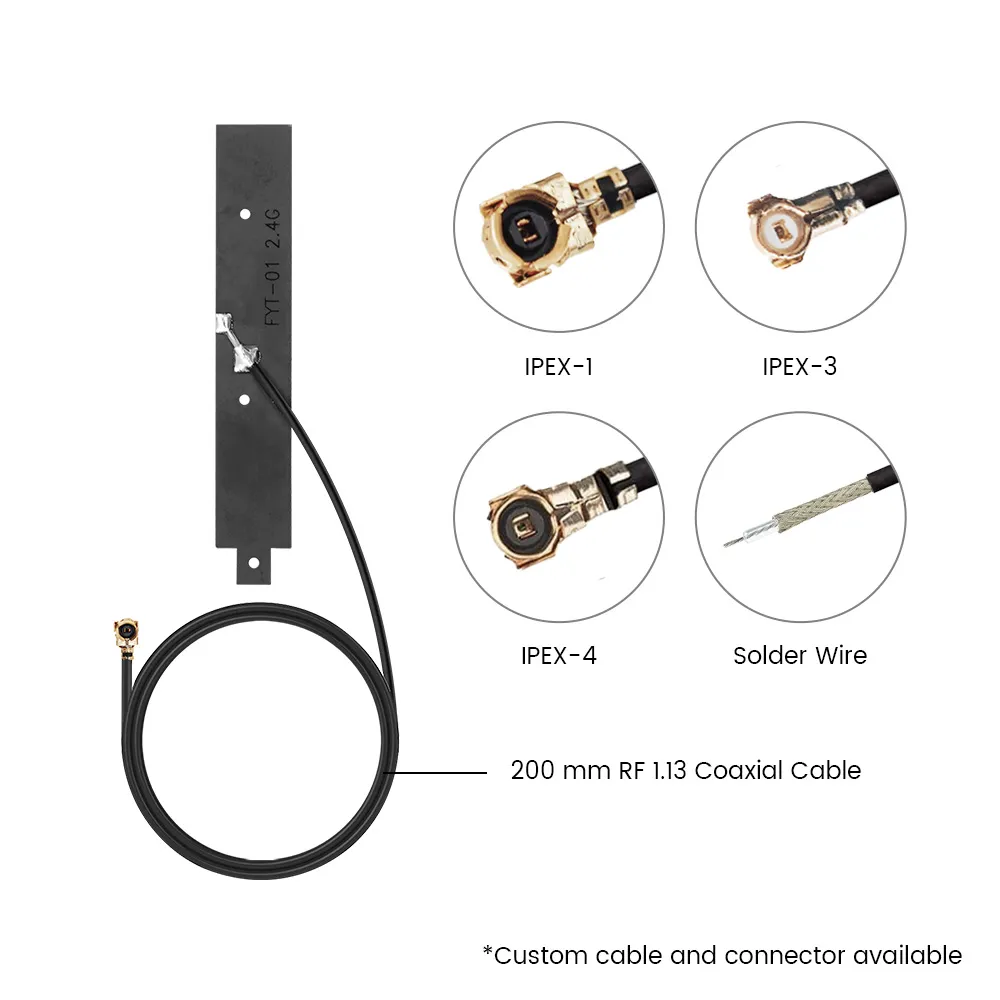

Cable: RF 1.13, L: 200 mm
Connector: IPEX 1

Flexible adhesive mount FPC antenna

Ultra-thin and compact design

Omni-directional

Ground plane independent

Customizable cable and connector options

REACH/RoHS compliant

Operating Frequency: 2400-2500 MHz

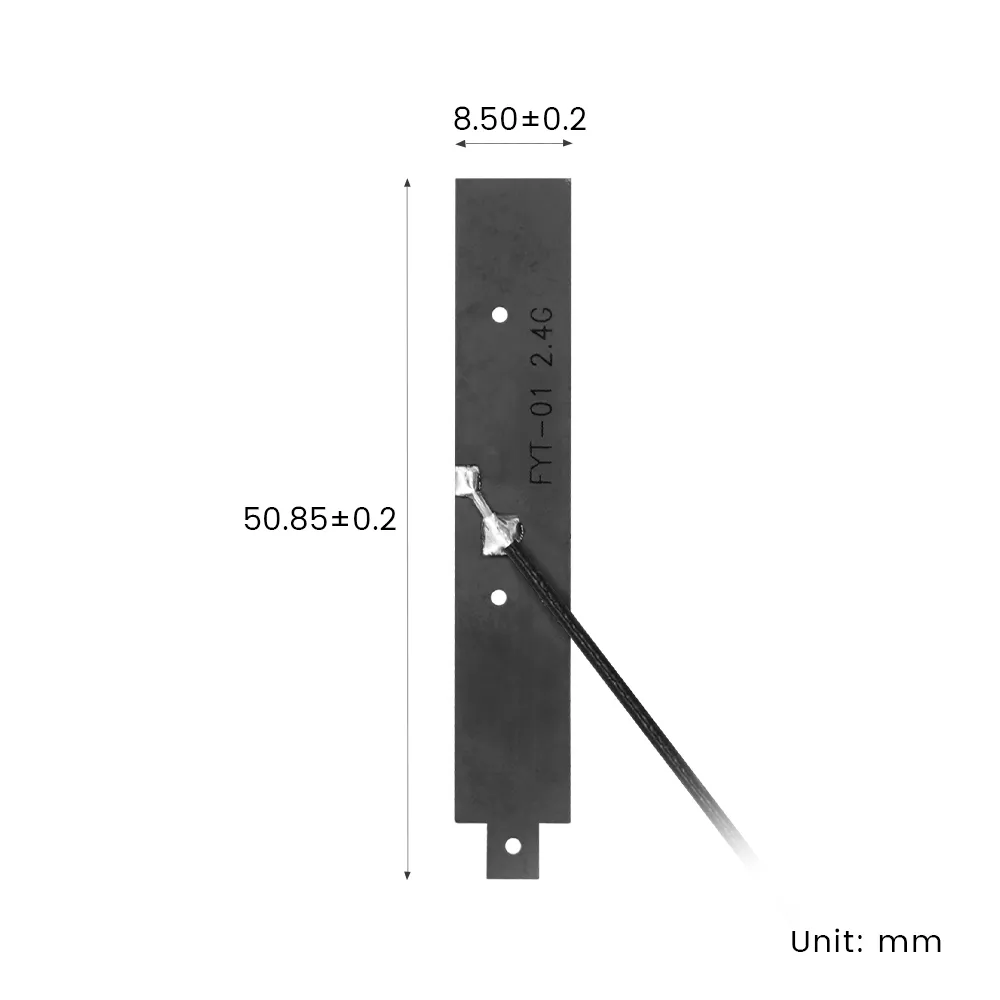

Diemensions: 50.85 x 8.5 mm

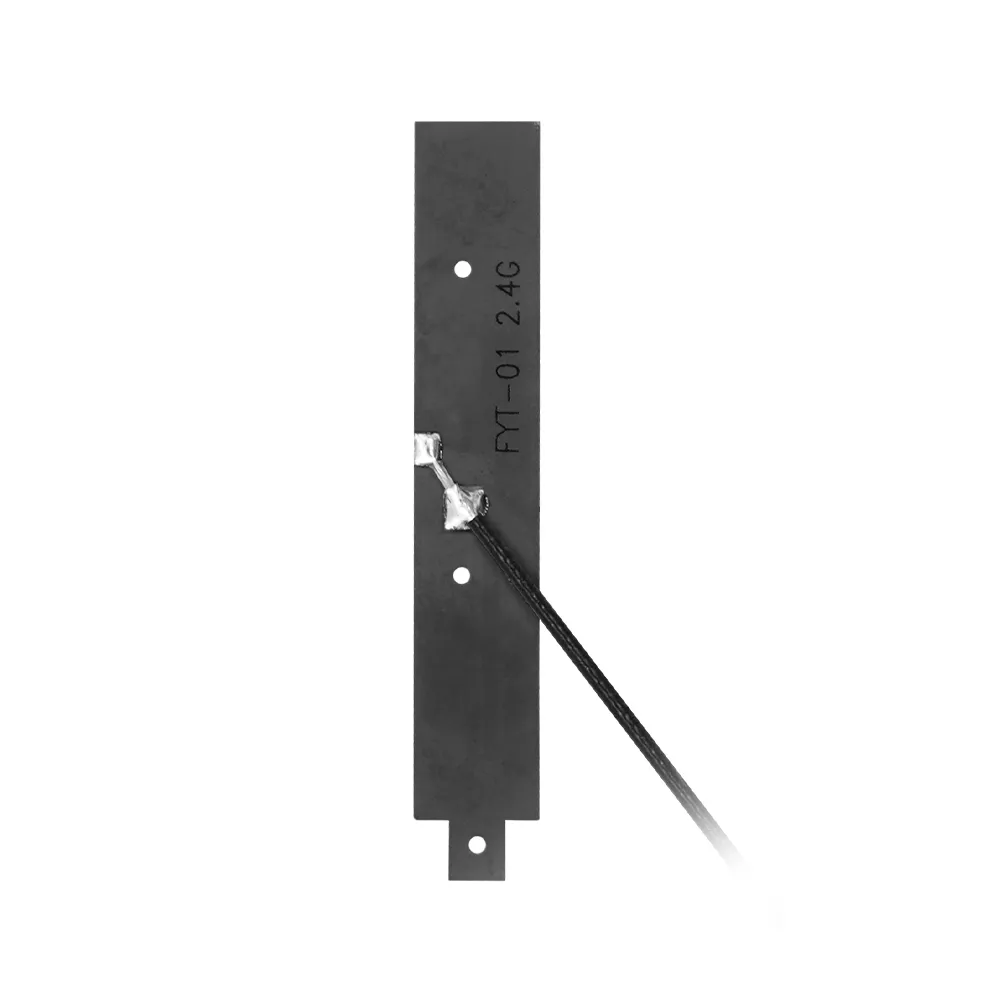

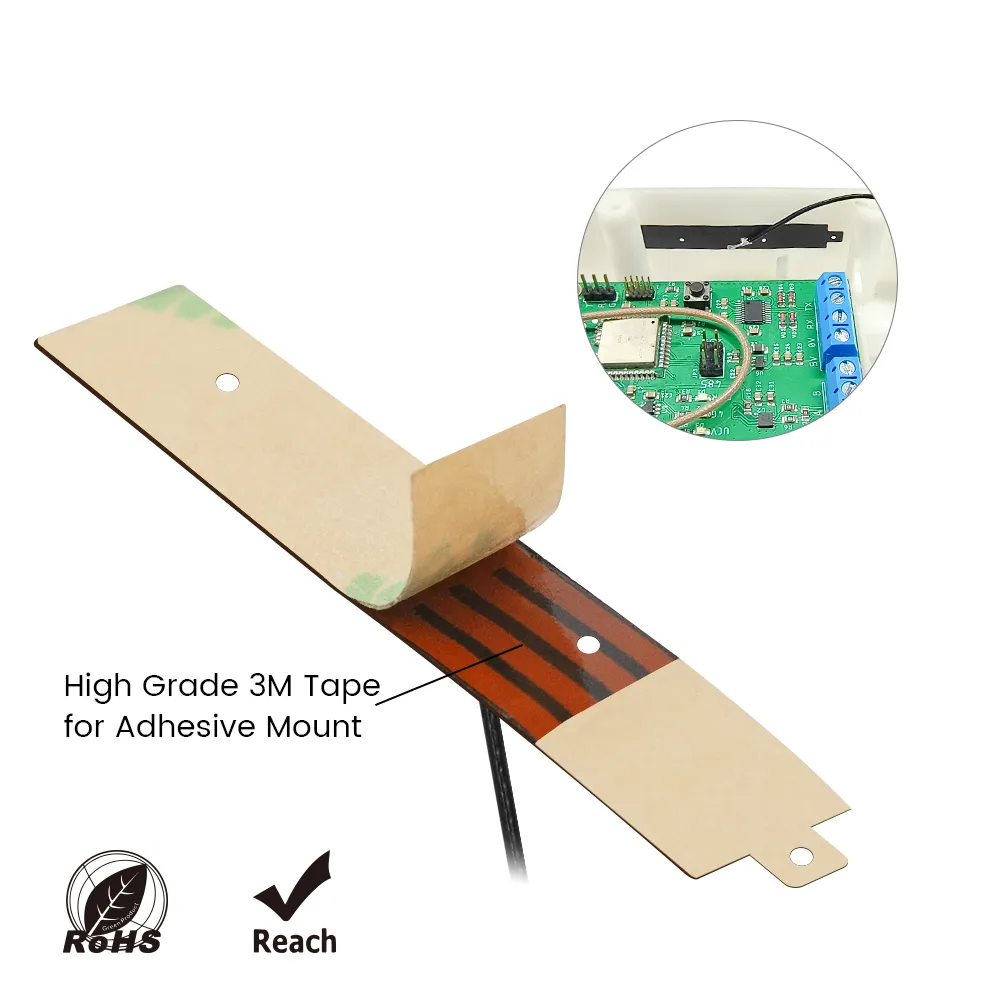

The Aboosty AIWF018 FPC antenna is a versatile and compact solution designed for 2.4 GHz connectivity. As a flexible printed circuit board (FCB) antenna, it combines a low-profile design with high performance, making it ideal for use in smart devices, Zigbee, and Bluetooth systems. This antenna offers reliable and efficient operation. Its peelable adhesive back facilitates easy installation on non-metallic surfaces.

Package Included: 1 x FPC Antenna

LABEL

VALUE

Certificates Acquired

Reach, RoHS Compliant

Length (mm)

50.85

Width (mm)

8.5

Height (mm)

0.2

Freq. (MHz)

2400-2500

Technology Type

2.4G WIFI

Operating Temperature (℃)

-40°C to +85°C

Markets

Transportation, Smart Industrial, Smart Cities, Mobility and Infrastructure, Connected Health, Others

Antenna Type

Dipole

Connector Style

Straight

Radiation Pattern

Omnidirectional

Polarity

Linear

Peak Gain

3.43 dBi

VSWR

3.0:1

Impedance (Ω)

Ingress/Impact

N/A

Termination Style

Connector

Antenna Connector Type

IPEX 1

Cable Type

RF 1.13 Coax

Cable Length (mm)

200

Mechanical Style

FPC

Mounting Style

Adhesive Mount, Through-Hole/Tab Mount

Customization Option

Logo, Packaging, Cables and Connectors

Smart Home Devices
Internet of Things (IoT) Devices
Consumer Electronics
Vehicle-to-Everything (V2X)
Industrial Equipment
Medical Devices
Drones and Robotics
Smart City Infrastructure

Part Number

User Story

Model

Description

Note

AIWF018

2.4G 50.85 x 8.5mm FPC Embedded Antenna

M01-0600460R0A

Customization supported
