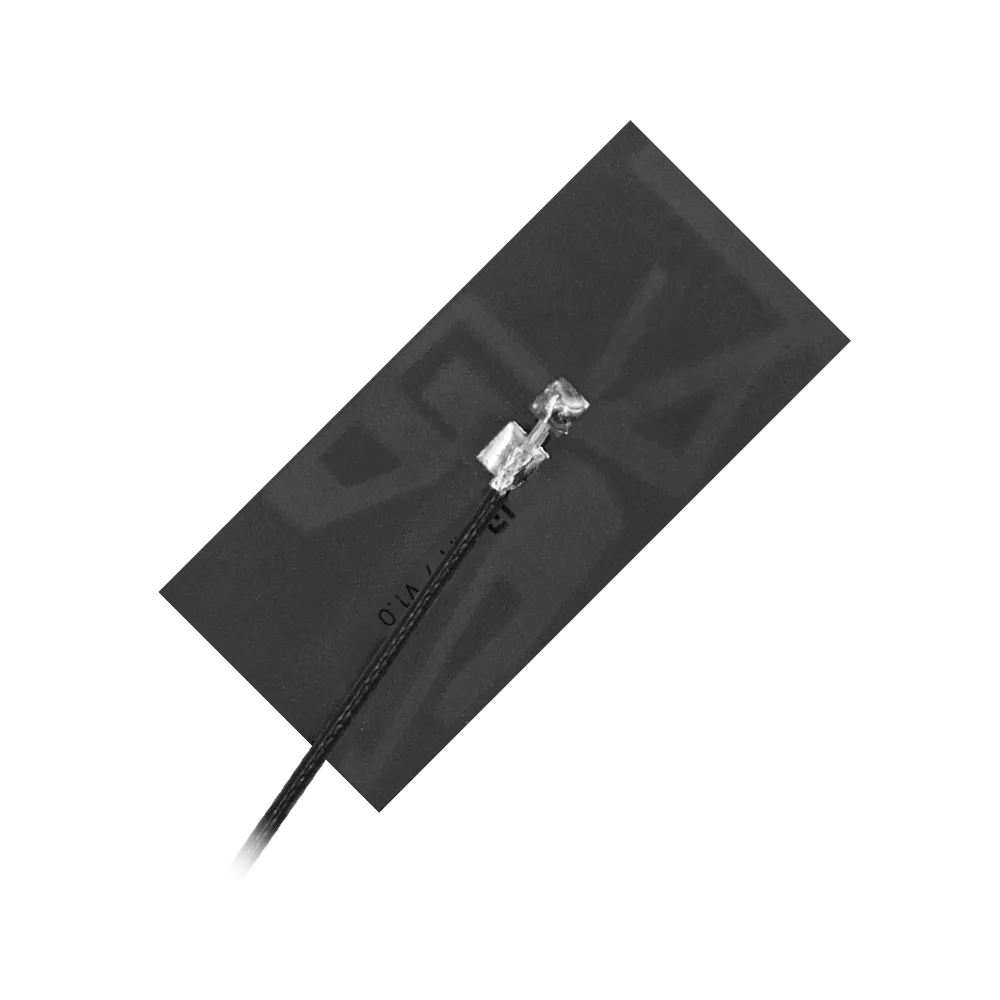

AIWF015 | Adhesive WiFi 7 Embedded FPC Antenna 37.4 x 17.5 mm

SKU: AIWF015 Categories: , Tags: ,

Product Overview

Description
Specification
Applications

Max Efficiency: up to 63.5%
Cable: RF 1.13, L: 145 mm
Connector: IPEX 1

Flexible adhesive mount FPC antenna

Ultra-thin and compact design

Omni-directional with dual-band support

Customizable cable and connector options

REACH/RoHS compliant

Operating Frequency: 2400-2500 MHz | 5100-5900 MHz

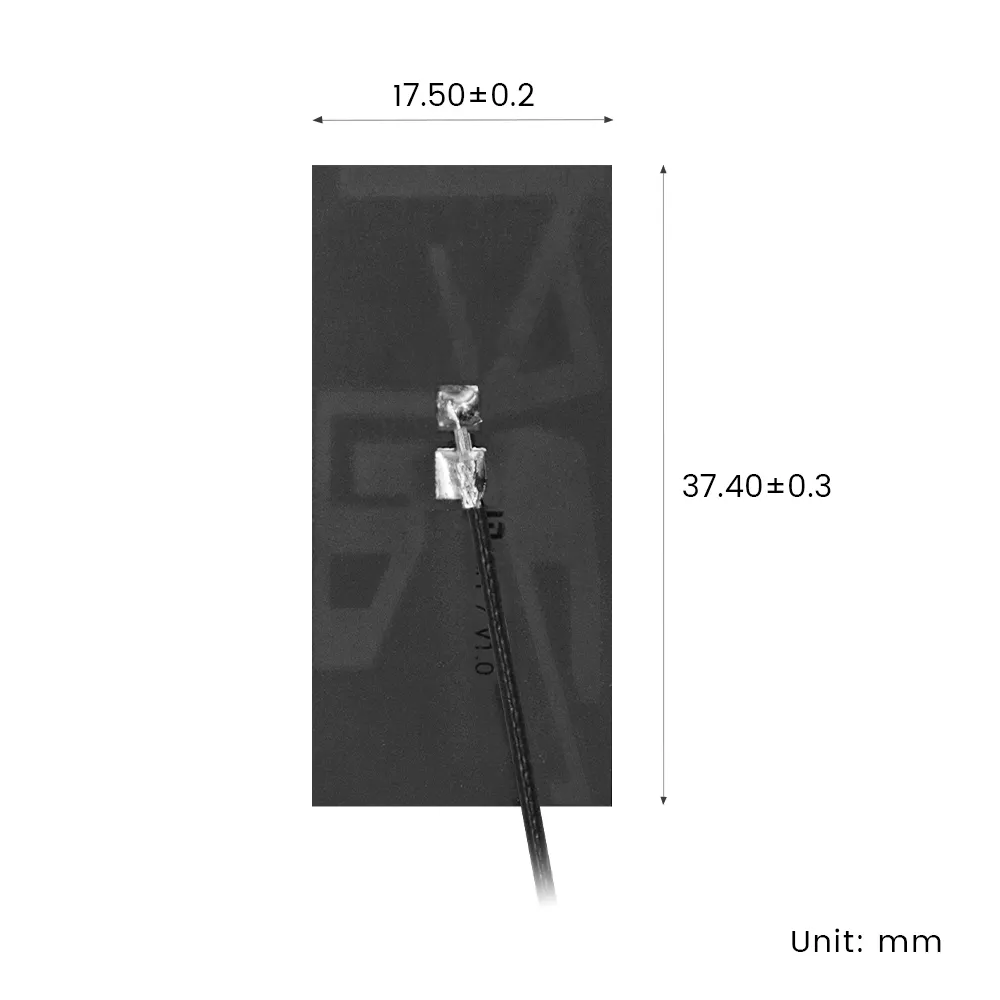

Diemensions: 37.4 x 17.5 mm

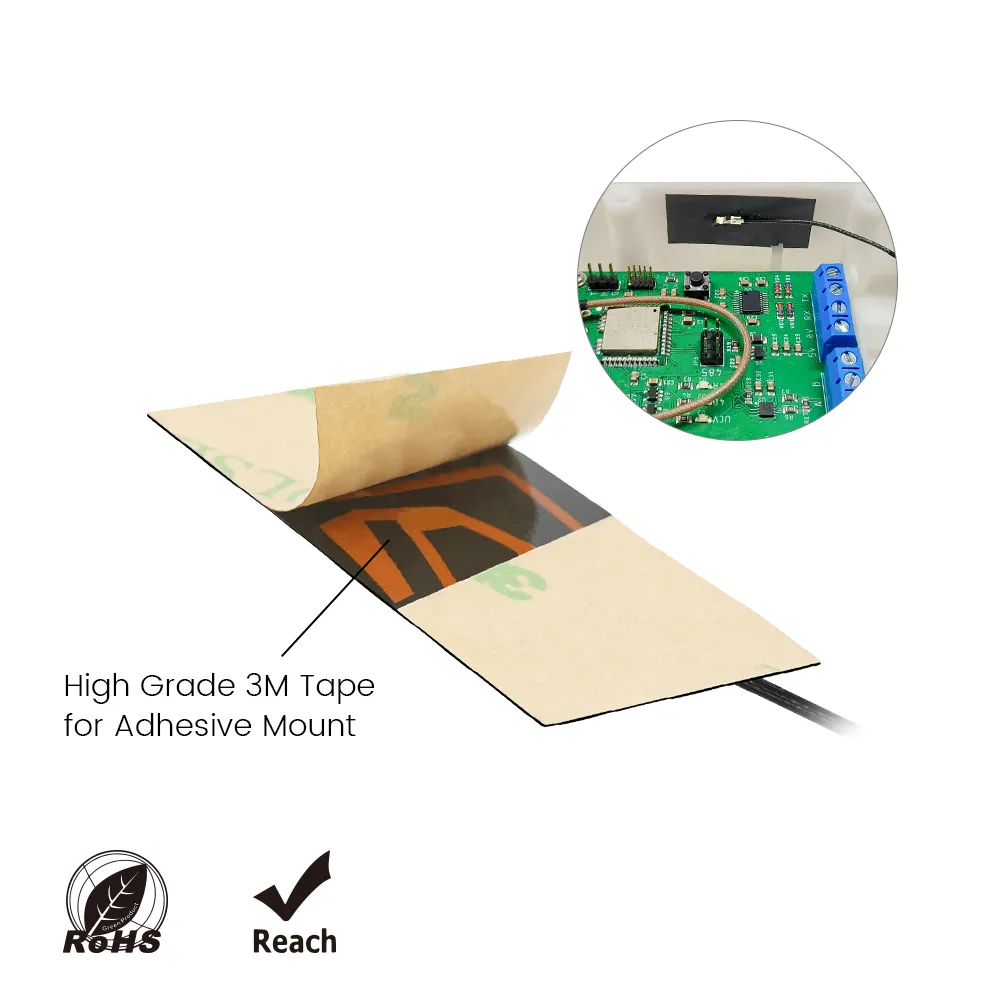

The Aboosty AIWF015 FPC antenna is a versatile and compact solution designed for WIFI 7 connectivity. As a flexible printed circuit board (FCB) antenna, it combines a low-profile design with high performance, making it ideal for use in smart devices, Zigbee, and Bluetooth systems. This antenna offers reliable and efficient operation. Its peelable adhesive back facilitates easy installation on non-metallic surfaces. For optimal performance, ensure that the ground plane area is adequately increased.

Package Included: 1 x FPC Antenna

LABEL
VALUE

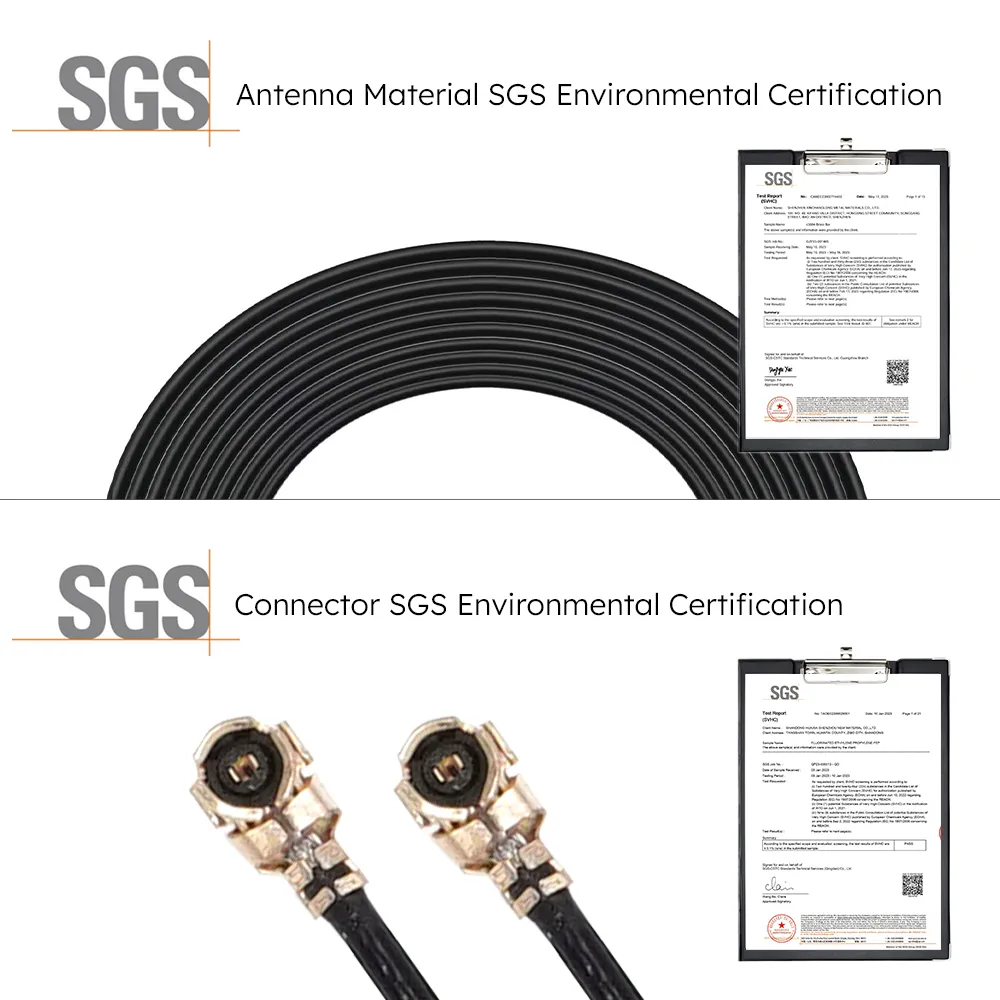

Certificates Acquired
Reach, RoHS Compliant
Length (mm)
37.4
Width (mm)
17.5
Height (mm)
0.2
Freq. (MHz)
2400-2500, 5100-5900
Technology Type
WIFI 7, 2.4G & 5G WIFI, Bluetooth, Zigbee
Operating Temperature (℃)
-40°C to +85°C
Markets
Transportation, Smart Industrial, Smart Cities, Connected Health, Mobility and Infrastructure, Mobile Communication, Others
Antenna Type
Monopole
Connector Style
N/A
Radiation Pattern
Omnidirectional
Polarity
Linear
Max Effi. (%)
63.5
Peak Gain
4.12 dBi
VSWR
3.0:1
Impedance (Ω)
50
Ingress/Impact
N/A
Termination Style
Connector
Antenna Connector Type
IPEX 1
Cable Type
RF 1.13 Coax
Cable Length (mm)
145
Mechanical Style
FPC
Mounting Style
Adhesive Mount

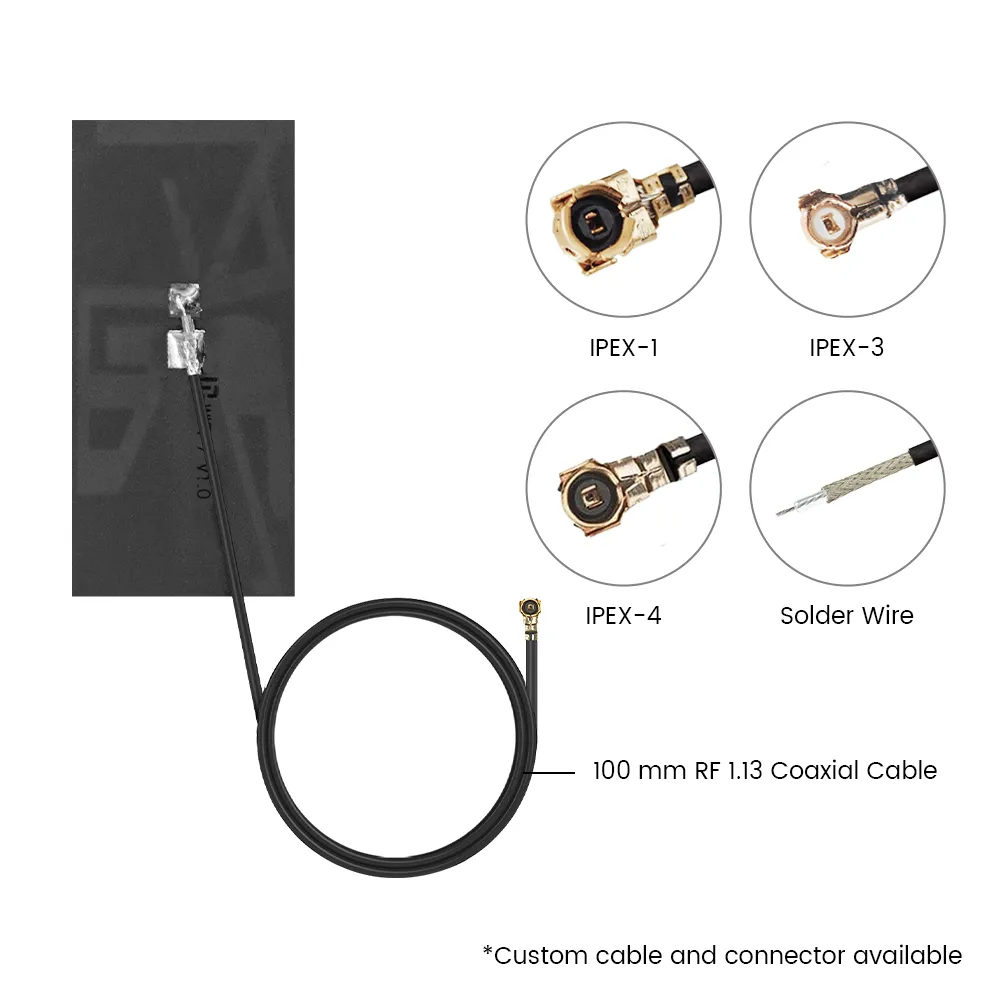

Customization Option
Logo, Packaging, Cables and Connectors
  • Smart Home Devices
  • IoT Devices
  • Consumer Electronics
  • V2X
  • Industrial Equipment
  • Medical Devices
  • Drones and Robotics
  • Smart City Infrastructure
Part Number
User Story
Model
Description
PN
Note
AIWF015
WIFI 7 37.4*17.5 mm FPC Antenna
M01-0201110R0A
Customization supported
DELIVERY INFORMATION
Antennas & GPS modules, RF Connectors / Cables
Antennas & GPS modules, RF Connectors / Cables - estimated delivery time for samples is 5-7 days
Evaluation boards
Evaluation boards - estimated delivery time for samples is 7-14 days
Delivery & Returns >
Powering Success: Bringing Client Innovations to Reality
The antennas listed below are excellent examples for our VIP customers. They have been tested, verified, and widely applied to application systems for years with huge volumes by our VIP customers.
If you have a demand for antenna OEM/ODM service, no matter it is big or small, please feel free to send us a message.
We have the experience, capability, and R&D resources to make any OEM/OEM integration a glowing success!
4G
4G
4G
Bluetooth
August 6, 2024
Managing Low Back Pain: Lifestyle and Technology Solutions That Provide Relief
Managing Low Back Pain: Lifestyle and Technology Solutions That Provide Relief
4G
GPS
NB-lot
August 6, 2024
5G
5G
5G
Bluetooth
August 6, 2024
View All Article >

Related Products

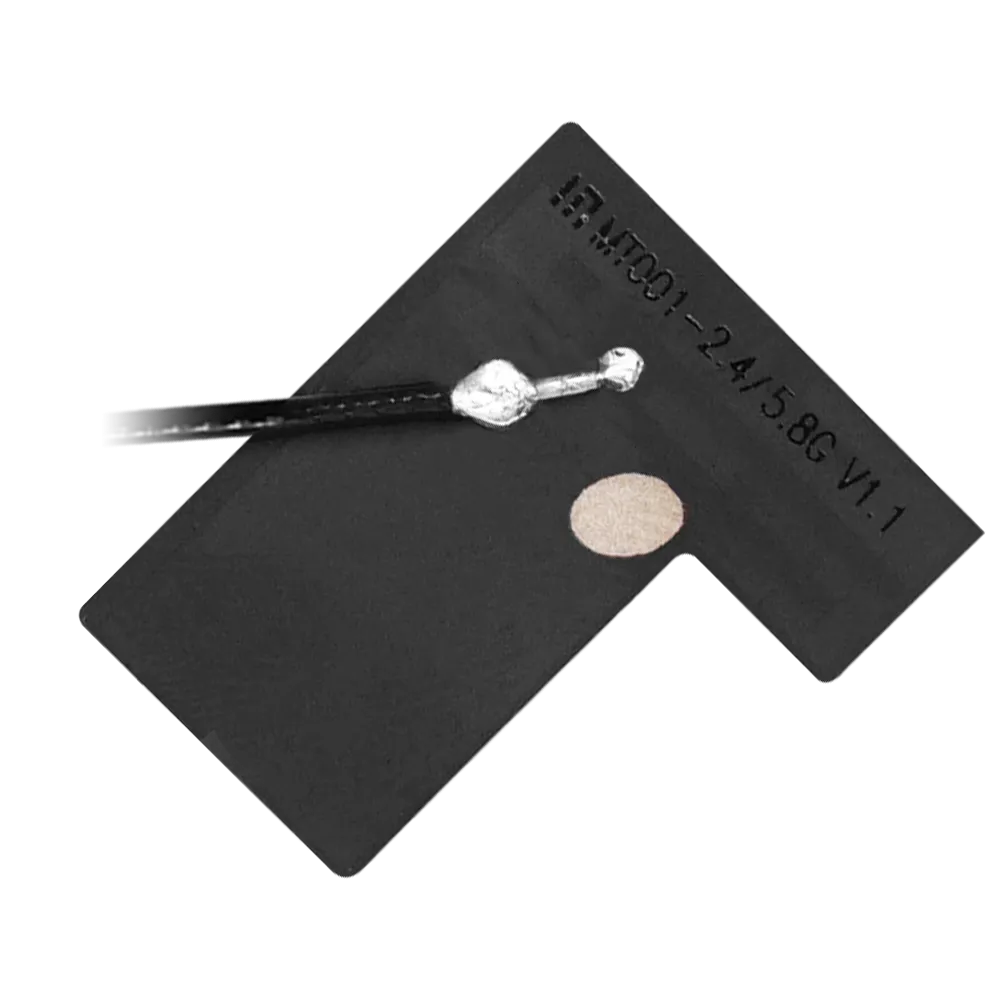

Adhesive 2.4G/5.8G WiFi Embedded FPC Antenna 18.2 x 21.8 mm
AIWF014
Adhesive 2.4G/5.8G WiFi Embedded FPC Antenna 18.2 x 21.8 mm
View Details >

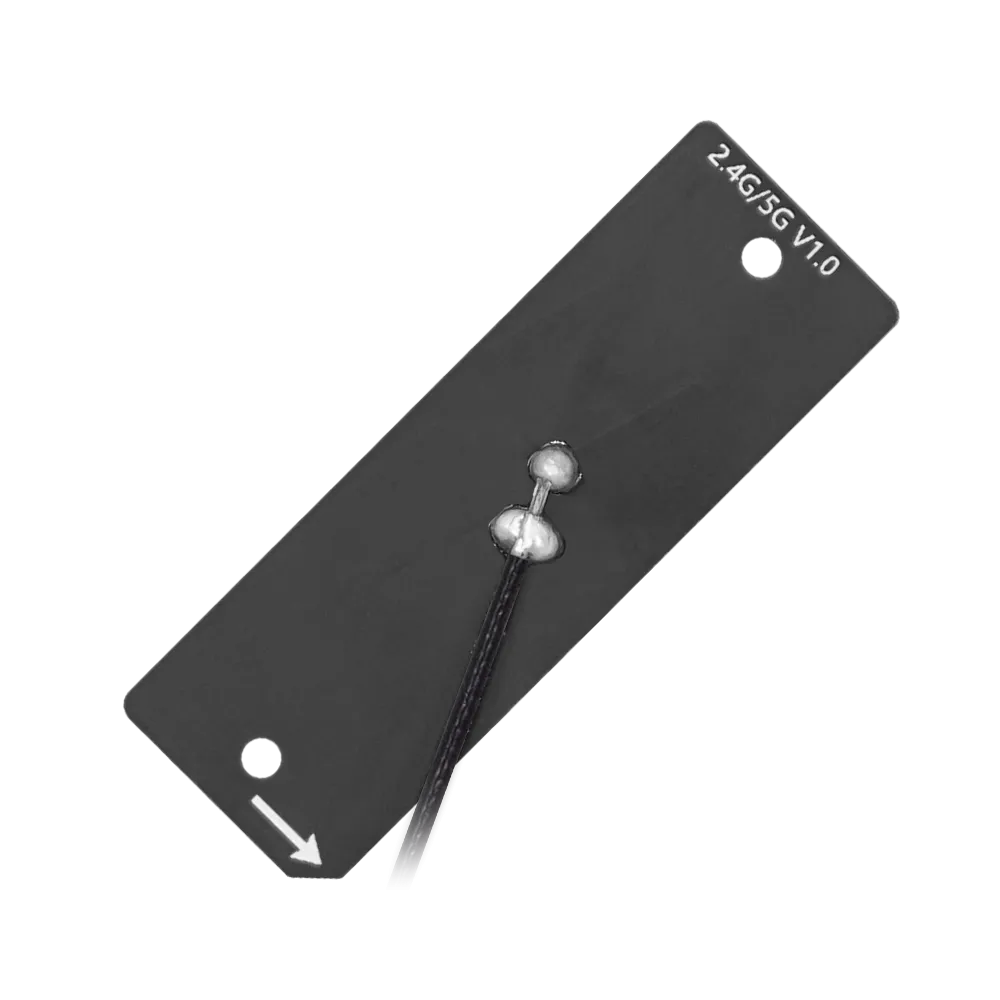

Adhesive Mount 2.4G/5.8G Dual Band WiFi Embedded PCB Antenna
AIWP003
Adhesive Mount 2.4G/5.8G Dual Band WiFi Embedded PCB Antenna
View Details >

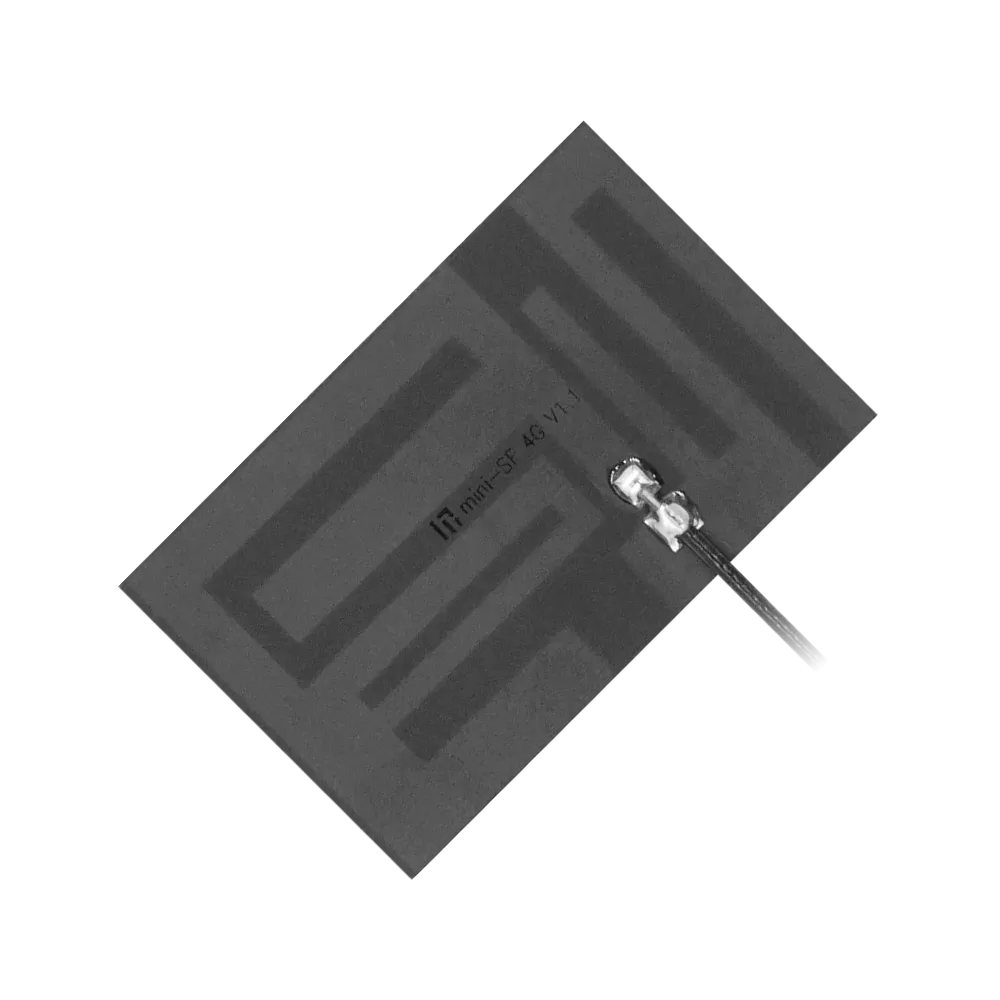

Adhesive LTE/4G/5G/BT Embedded FPC Antenna 42.2 x 26.5 mm
