ADCM001 | 4G LTE/CELLULAR OnBoard SMD Metal Stapmed Antenna

SKU: ADCM001 Categories: Internal Antennas, SMD Antennas, Stamped Metal Antennas Tags: 4G LTE, 4G/3G/NB-Iot

Product Overview

Description

Specification

Applications

Peak Gain: 2.24 dBi (133*55mm PCB Board)

Cellular Helical Monopole Antenna, Ground Plane Dependent

Low Profile, Compact, Light Weight

Easy to Integrate

Intended for SMD Mounting

Reduced Cost and Time-to-Market

Resistant to shock and aging for long-term use

REACH/RoHS Compliant

Operating Frequency: 824-960 MHz | 1710-2690 MHz
Dimensions:26 x 14.78 x 4.5 mm

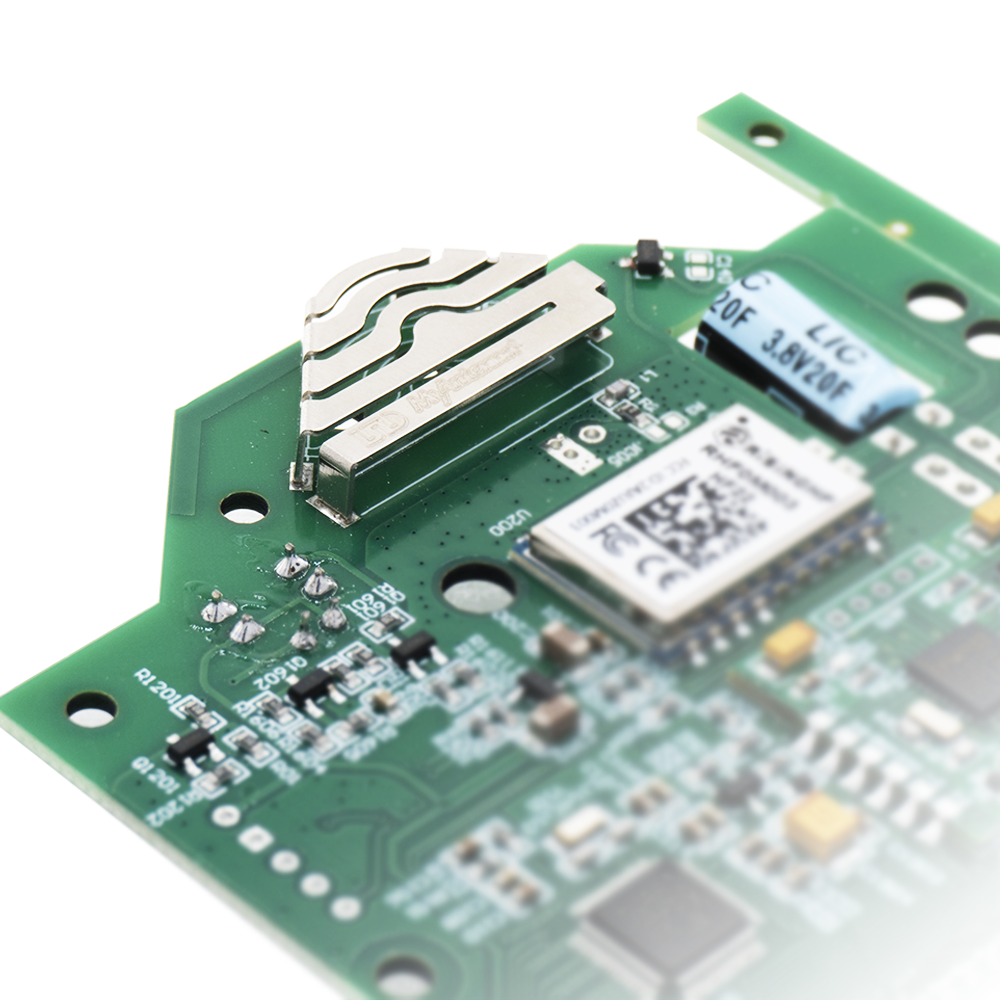

Aboosty ADCM001 High-Efficiency Onboard Metal Shrapnel Antenna

The Aboosty ADCM001 is a high-efficiency metal shrapnel antenna optimized for 4G LTE, Cellular, and NB-IoT applications. This compact antenna is designed for ease of integration by mounting to the device’s PCB with a conventional metal shrapnel reflow process. Supplied on tape and reel, the ADCM001 is perfect for high-volume production environments. Aboosty provides comprehensive support for custom antenna solutions, including antenna design simulation, performance testing, and manufacturing services, tailored to meet your specific application needs.

LABEL

VALUE

Certificates Acquired

Reach, RoHS Compliant

Length (mm)

Width (mm)

14.78

Height (mm)

4.5

Product Weight (g)

0.3

Freq. (MHz)

824-960, 1710-2690

Technology Type

4G LTE, 4G 3G/NB-lot

Operating Temperature (℃)

-40°C to +85°C

Markets

Transportation, Smart Industrial, Smart Cities, Mobility and Infrastructure, Connected Health, Mobile Communication, Public Safety, Others

Antenna Type

Monopole

Radiation Pattern

Omnidirectional

Polarity

Linear

Max Effi. (%)

77.58

Peak Gain

2.24 dBi

VSWR

3.69:1

Impedance (Ω)

Ingress/Impact

N/A

Termination Style

SMD/SMT

Antenna Connector Type

N/A

Cable Type

N/A

Mechanical Style

Metal

Mounting Style

SMT/SMD

Customization Option

Logo, Packaging

4G LTE Network Connectivity
Smartphones and Tablets
Wireless Payment Terminals like POS machines
IoT Devices
Wearables
Industrial Equipment
Commercial Equipment
Routers and Gateway Devices

Part Number

User Story

Model

Description

Note

ADCM001

Trm 1 4G SMD Antenna

M01-X02614M4G1

Frequency customization supported

DELIVERY INFORMATION

Antennas & GPS modules, RF Connectors / Cables

Antennas & GPS modules, RF Connectors / Cables - estimated delivery time for samples is 5-7 days

Evaluation boards

Evaluation boards - estimated delivery time for samples is 7-14 days
