COMBO ANTENNAS
We provide combination internal antennas and combination extrenal antennas
Aboosty Combo Antennas
Please note that if you require specific connectors or cable lengths on a standard antenna they can be customized to your specific requirements.

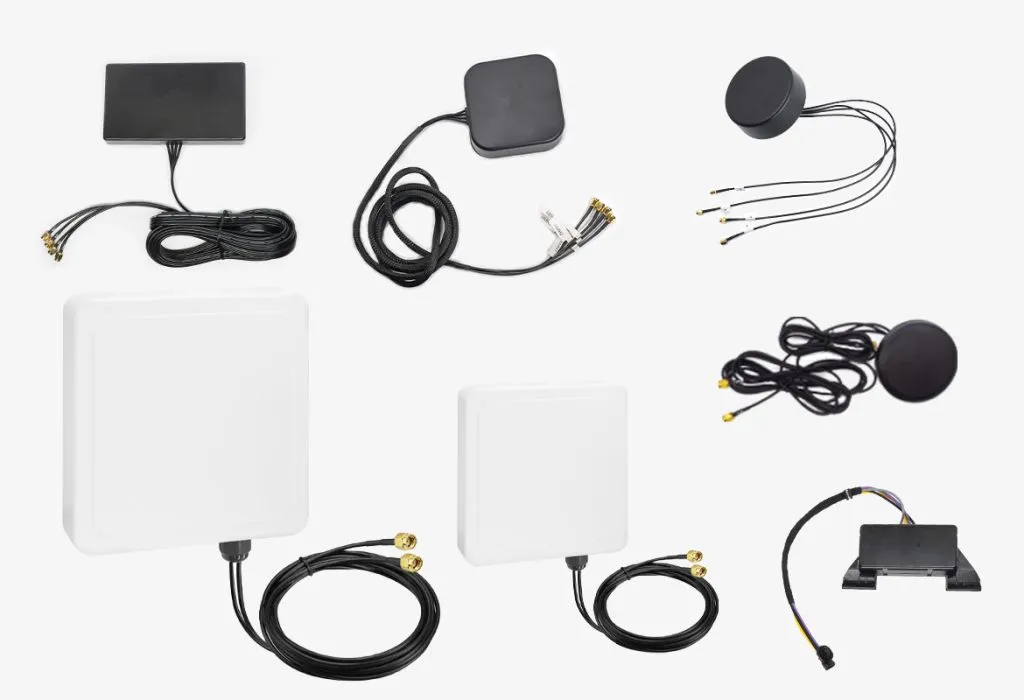

Combo antennas are multifunctional. Our combo antennas portfolio includes 2-in-1, 3-in-1,4-in-1, and more.
Position Antennas at the PCB Edge
Generally, antennas should be placed at the edge of a circuit board away from other circuit components to maximumly minimize electromagnetic interference. The aim is to keep the antenna away from noise-generating components such as power ICs, clocks, and other signal buses. Ensuring adequate clearance from these components helps maintain signal integrity and improve overall performance.
Three Ways to Mount the Embedded Antenna
Placing the antenna on the PCB corner is generally the most desirable location. This typically results in better antenna gain.
Placing the antenna at the side edge of the PCB can also ensure the best performance. Some antennas reach their highest performance when paling on the long-side edge of the circuit board, while others achieve the best results when positioned on the short-side edge of the board. Antenna designers need to experiment to find the best answer.
In extreme cases, the antenna may be placed over or between ground planes. In this case, Antennas should not be placed directly above any ground layers on the PCB, or the metal layer or battery beneath would affect how signals are propagated, disrupting the antenna’s functionality.
More Practicle Tips for Perfect Antenna Mounting
With Shenzhen's vast resources, and trusted technology and distribution partners around the world, Aboosty strives to be the most integrated platform for creating hardware solutions for IoT, edge AI applications.
With Shenzhen's vast resources, and trusted technology and distribution partners around the world, Aboosty strives to be the most integrated platform for creating hardware solutions for IoT, edge AI applications.
With Shenzhen's vast resources, and trusted technology and distribution partners around the world, Aboosty strives to be the most integrated platform for creating hardware solutions for IoT, edge AI applications.
With Shenzhen's vast resources, and trusted technology and distribution partners around the world, Aboosty strives to be the most integrated platform for creating hardware solutions for IoT, edge AI applications.
Conclusion
In summary, optimal embedded antenna placement is critical in wireless designs. Following these suggestions, designers can ensure efficient antenna operation, delivering robust and reliable wireless communications.
