AIWP003

Adhesive Mount 2.4G/5.8G Dual Band WiFi Embedded PCB Antenna

WIFI/Bluetooth

Single Internal Antennas

Embedded Antennas

Adhesive Mount

Download

Datasheet

Buy Samples

Coming soon

Dealers

Coming soon

Aboosty is ready to help you tackle various wireless issues.

Adhesive Mount 2.4G/5.8G Dual Band WiFi Embedded PCB Antenna

Product Overview

Description

Specification

Applications

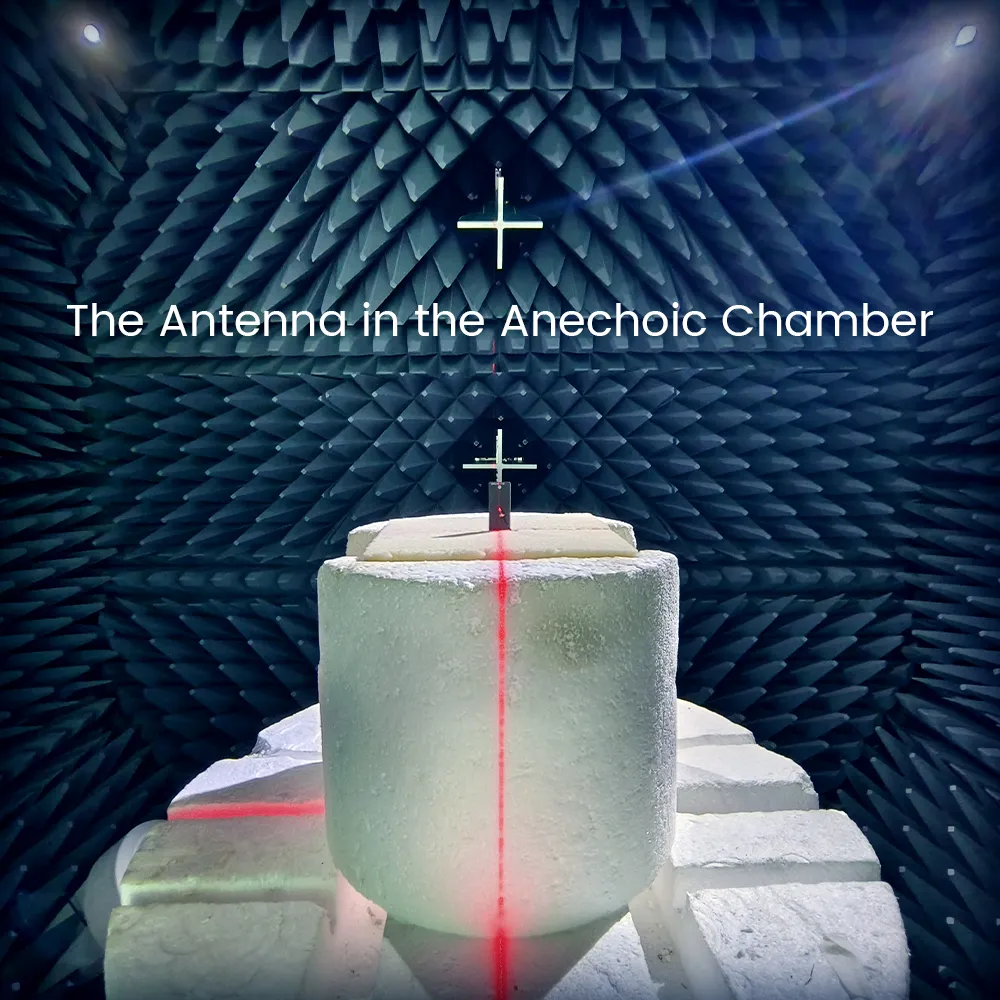

Max Efficiency: up to 68.3% at 2490 MHz
Cable: RF 1.13, L: 100 mm
Connector: IPEX 1

High-performance and dual-band supported

Easy installation with 3M adhesive back

Low profile and compact design ideal for space-constrained applications.

Rigid, durable, and cost-effective with PCB design

Customizable cable and connector options

REACH/RoHS compliant

Operating Frequency: 2400-2500 MHz | 5100-5900 MHz
Dimensions: 45.0 x 15.0 x 0.8 mm

The Aboosty AIWP003 PCB antenna is a versatile and compact solution designed for 2.4 GHz and 5.8 GHz connectivity. As a flexible printed circuit board (FCB) antenna, it combines a low-profile design with high performance, making it ideal for use in smart devices, Zigbee, and Bluetooth systems. This antenna offers reliable and efficient operation. Its peelable adhesive back facilitates easy installation on non-metallic surfaces. For optimal performance, ensure that the ground plane area is adequately increased.

Package Included: 1 x FPC Antenna

LABEL

VALUE

Certificates Acquired

Reach, RoHS Compliant

Length (mm)

Width (mm)

Height (mm)

0.8

Product Weight (g)

0.3

Freq. (MHz)

2400-2500, 5100-5800

Technology Type

2.4G & 5G WIFI, Bluetooth, Zigbee

Operating Temperature (℃)

-40°C to +85°C

Markets

Transportation, Smart Industrial, Smart Cities, Connected Health, Mobility and Infrastructure, Mobile Communication, Others

Antenna Type

N/A

Connector Style

N/A

Radiation Pattern

Omnidirectional

Polarity

Linear

Max Effi. (%)

68.26

Peak Gain

3.4 dBi

VSWR

3.0:1

Impedance (Ω)

Ingress/Impact

N/A

Termination Style

Connector

Antenna Connector Type

IPEX 1

Cable Type

RF 1.13 Coax

Cable Length (mm)

100

Mechanical Style

FPC

Mounting Style

Adhesive Mount

Customization Option

Logo, Packaging, Cables and Connectors

Smart Home Devices
IoT Devices
Consumer Electronics
V2X
Industrial Equipment
Medical Devices
Drones and Robotics
Smart City Infrastructure

Part Number

User Story

Model

Description

Note

AIWP003

2.4&5.8GHz 45.0*15.0*0.8mm PCB Antenna

M01-0200890R0A

Customization supported

DELIVERY INFORMATION

Antennas & GPS modules, RF Connectors / Cables

Antennas & GPS modules, RF Connectors / Cables - estimated delivery time for samples is 5-7 days

Evaluation boards

Evaluation boards - estimated delivery time for samples is 7-14 days
