AECM009 | 3G/4G LTE/GSM External Magnetic Loaded Coil Whip Antenna

SKU: AECM009 Category: External Antennas Tag: 4G/3G/LTE/GSM

Product Overview

Key Features

Description

Specification

Applications

Peak Gain: 3.2 dBi
Cable: 1000mm Long RG174 Cable
Connector: SMA-Male

Omni-directional monopole antenna, ground plane dependent

Made of wear and corrosion-resistant copper

Robust magnetic base for easy attachment to metal surfaces

Easy to clean: detachable steel ring and spring for simple cleaning

Custom development and RF connectors available

RoHS compliant

Note: not intended for use on moving vehicles

Operating Frequency: 824-960 MHz | 1710-2690 MHz

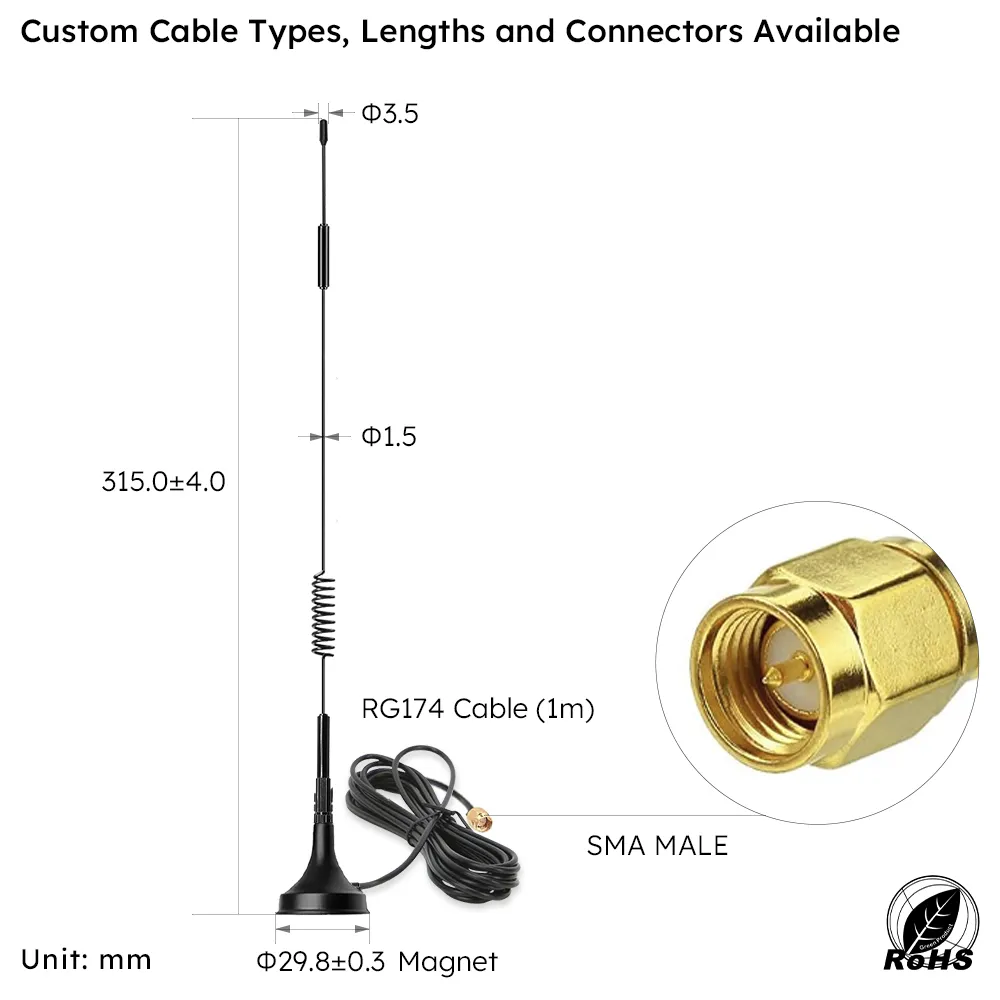

Dimensions: Ø29.8 x 315 mm

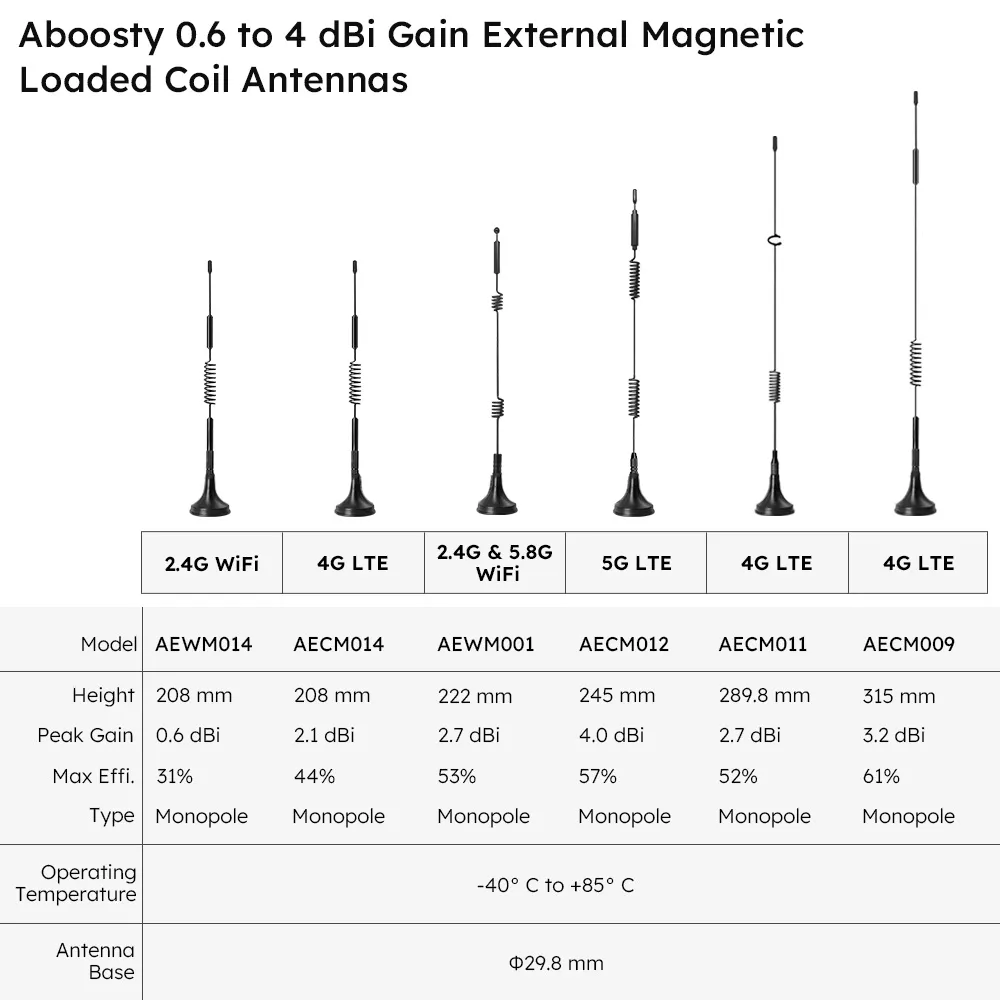

Magnetic Loaded Coil Whip Antenna

The Aboosty AECM009 magnetic whip antenna is designed to boost signal strength and data speeds for 3G/4G LTE/GSM connectivity.

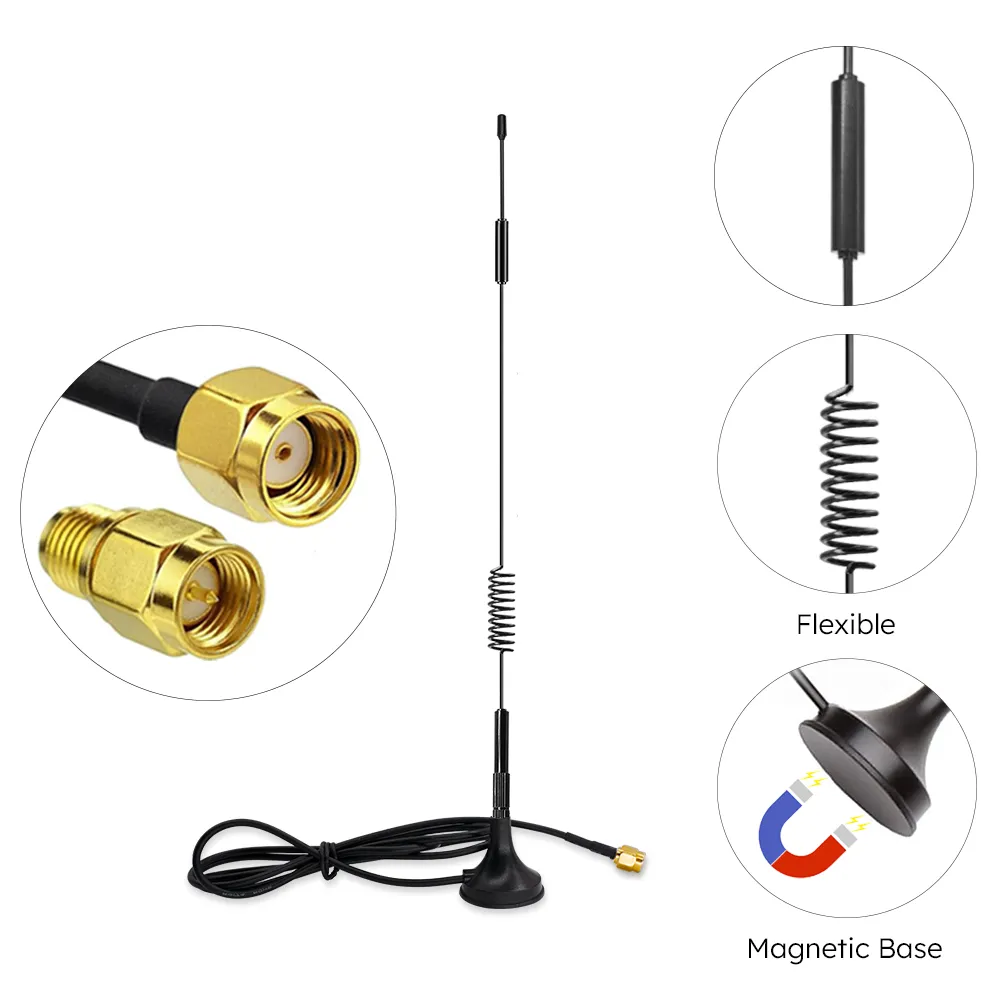

Featuring a magnetic base for easy installation on any metal surface, the AECM009 is an all-in-one solution: It includes a 12.4-inch omnidirectional loaded coil whip antenna, a 1.17-inch magnetic base, a 3.3 ft coaxial cable, and an SMA male connector.
The antenna’s robust neodymium magnet ensures a secure attachment with strong pull force, making it a reliable choice for various applications. Custom connectors and cable lengths are available upon request to meet specific requirements. For optimal performance, it is recommended to mount it with a ground plane.

LABEL

VALUE

Certificates Acquired

RoHS Compliant

Length (mm)

Ø29.8

Width (mm)

Height (mm)

315

Product Weight (g)

Freq. (MHz)

824-960, 1710-2690

Technology Type

4G/3G/LTE/GSM

Operating Temperature (℃)

-40°C to +85°C

Markets

Mobile Communication, Smart Cities, Public Safety

Antenna Type

Monopole

Connector Style

Straight

Radiation Pattern

Omnidirectional

Polarity

Linear

Max Effi. (%)

Peak Gain

3.2 dBi

VSWR

3.0:1

Impedance (Ω)

Ingress/Impact

N/A

Termination Style

Connector

Antenna Connector Type

SMA-Male

Cable Type

RG174

Cable Length (mm)

1000

Mechanical Style

Whip/Stick

Mounting Style

Surface Mount, Magnetic Mount

Customization Option

Logo, Packaging, Cables and Connectors

Vending Machines
ATMs, Kiosks
M2M Communication
IoT Devices
Desktop Use

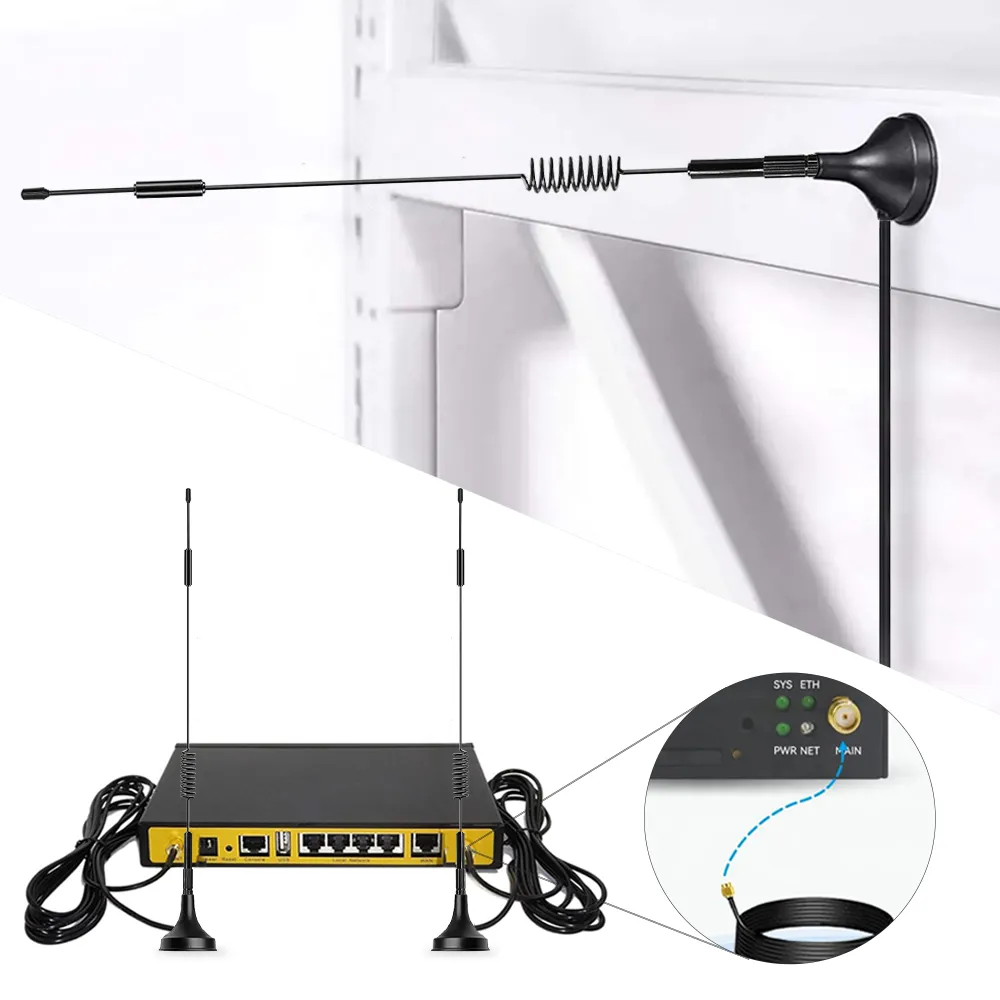

Routers, Modems, Hotspots with external SMA antenna jacks

Part Number

User Story

Model

Description

Note

AECM009

H=315mm 4G LTE Antenna, 1000 mm Long RG174 Cable, SMA-Male Connector

M04-0100150R0A

Customization supported
