ACA-SMA-K TO MCX-JW 001

SMA(F) Bulkhead to MCX Plug Right Angle Male, RG316 Coax Cable, 1200mm

RG316

0-6GHz RF

Download

Buy Samples

Coming soon

Dealers

Coming soon

Aboosty is ready to help you tackle various wireless issues.

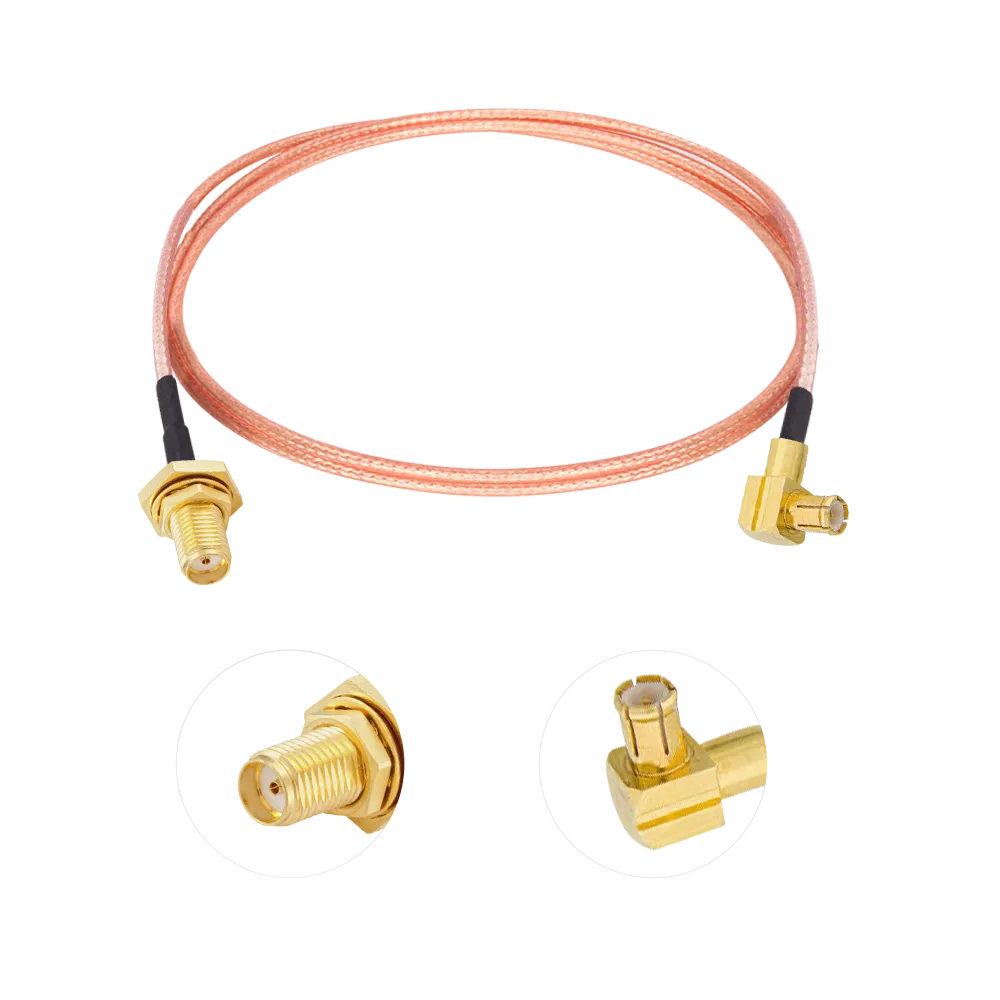

SMA(F) Bulkhead to MCX Plug Right Angle Male, RG316 Coax Cable, 1200mm

SKU: ACA-SMA-K TO MCX-JW 001 Category: RF Assemblies Tag: Cables

Product Overview

Key Features

Specification

Applications

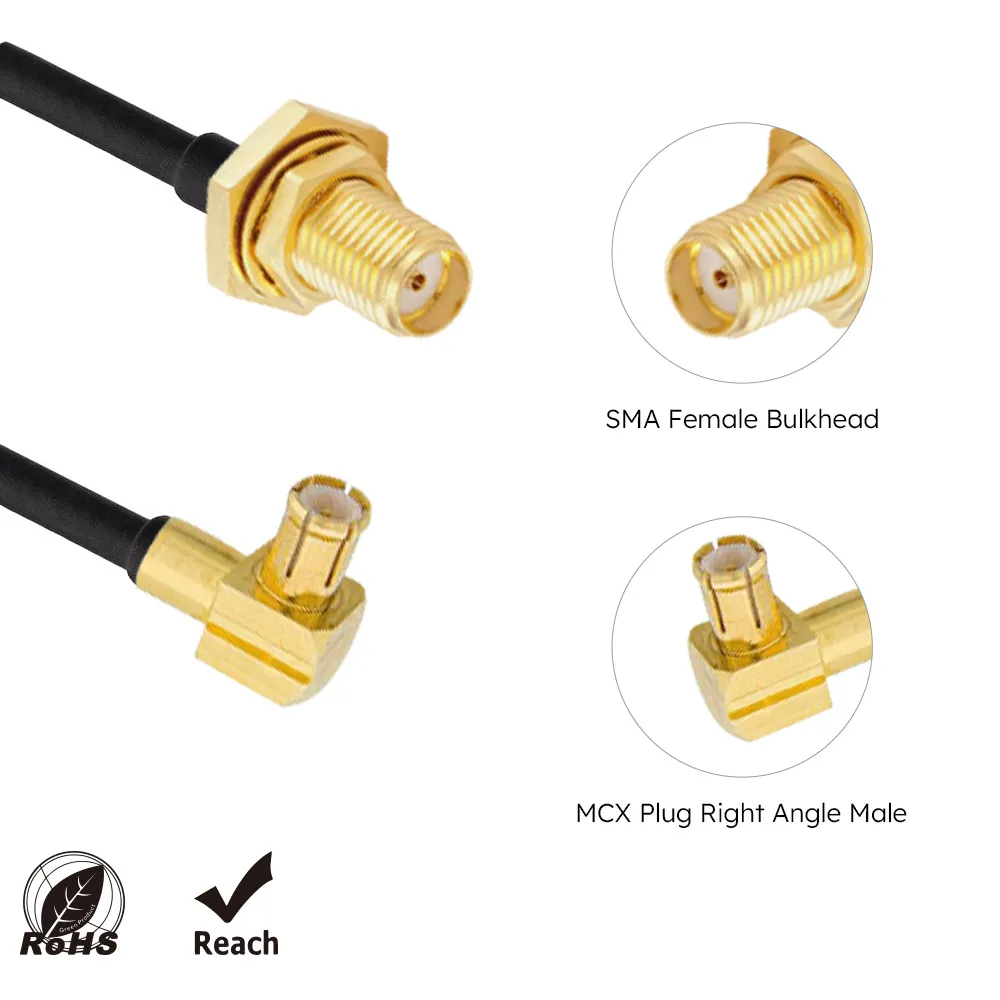

SMA(F) Bulkhead to MCX Plug Right Angle Male, RG316 Coax Cable

Cable length:Default 1200mm

Orientation: Straight-Right Angle

48 Hours Salt Spray Test for Connectors

Factory-direct, high-quality products with 30-day returns

OEM sourced, same quality, more competitive price

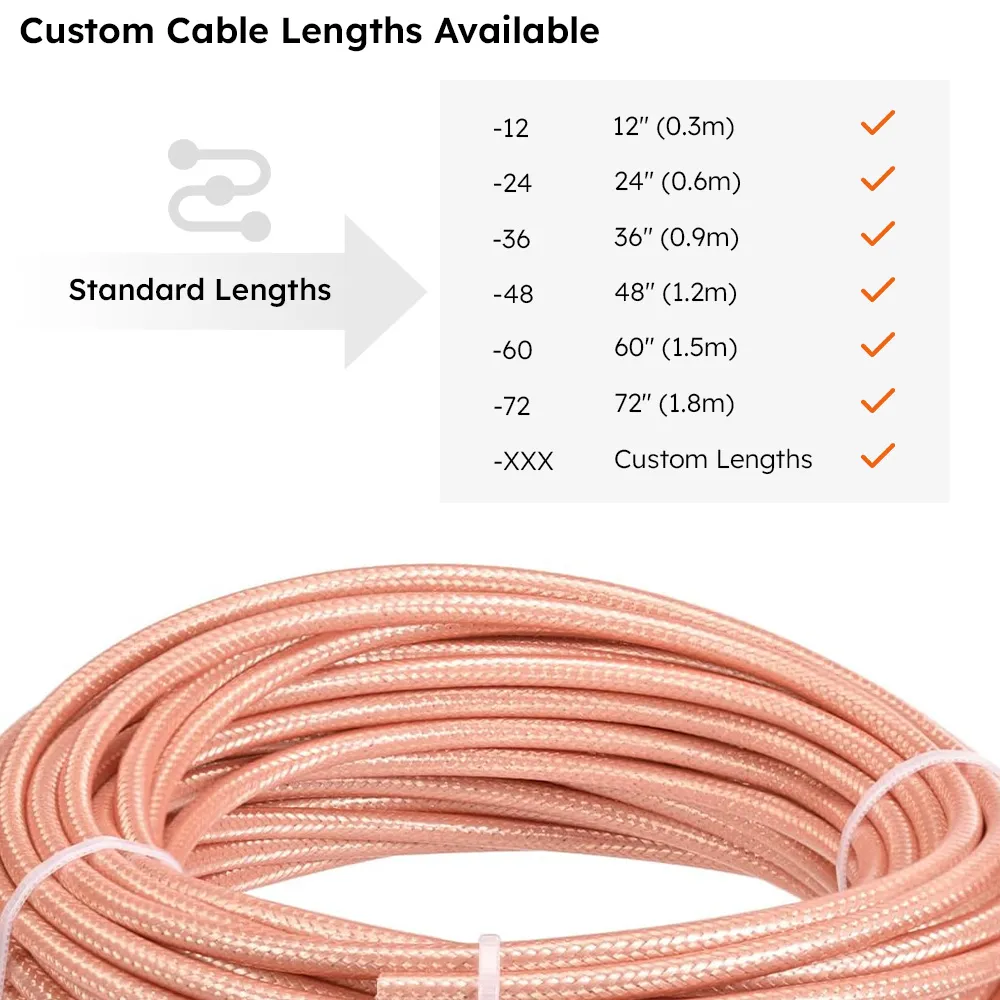

Custom cable types, lengths, and connector options are available

RoHS & Reach Compliant

LABEL

VALUE

Certificates Acquired

Reach, RoHS Compliant

Connector Style

N/A

Customization Option

Cables and Connectors

VSWR

3.0:1

Impedance (Ω)

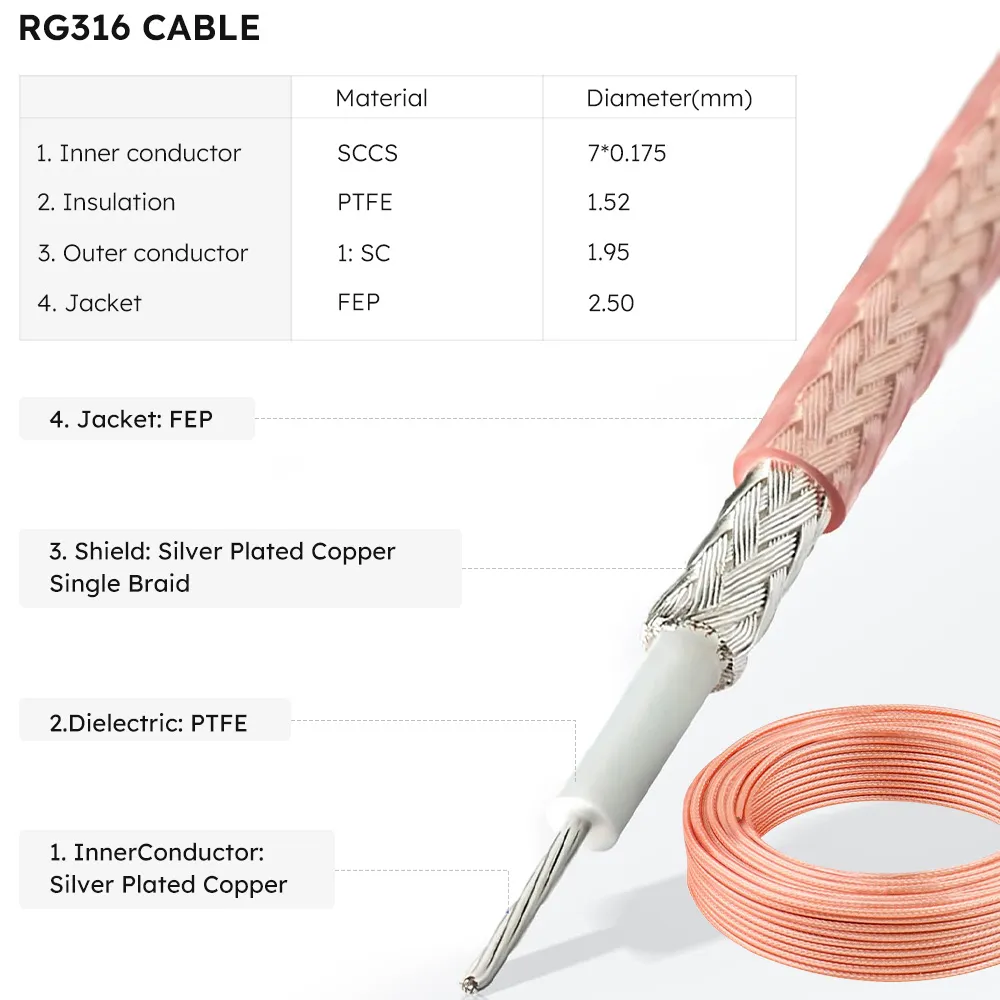

Cable Type

RG316

Cable Length (mm)

1200

Frequency Range

0-6GHz RF

Voltage Rating

DC 60V

Capacitance

≤106 pF/m

Nom. Impedance

50 ohm

Attenuation at 1GHz (dB/100M)

0.93

Connector 1 Type

SMA

Connector 1 Orientation

Straight

Connector 1 Gender

Connector 1 Polarity

Normal

Connector 1 Material

Gold

Connector 2 Type

MCX

Connector 2 Orientation

Right Angle

Connector 2 Gender

Connector 2 Polarity

Normal

Connector 2 Material

Gold

Wireless & IoT Devices

Part Number

User Story

Model

Description

Note

ACA-SMA-K TO MCX-JW 001

SMA(F) Bulkhead to MCX Plug Right Angle Male, RG316 Coax Cable, 1200mm

M00-0104720R0A

Customization supported

DELIVERY INFORMATION

Antennas & GPS modules, RF Connectors / Cables

Antennas & GPS modules, RF Connectors / Cables - estimated delivery time for samples is 5-7 days

Evaluation boards

Evaluation boards - estimated delivery time for samples is 7-14 days
